Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

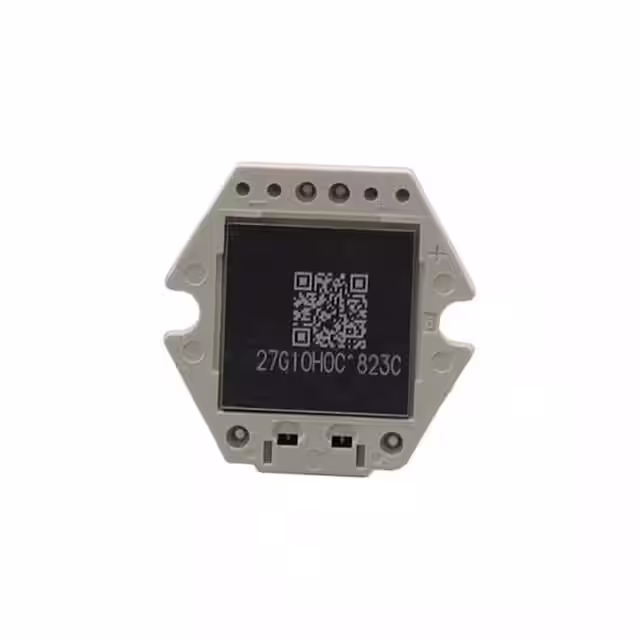

BXRC-27G10H0-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
200 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1329lm (Typ) | 300mA | 25°C | 30.7V | 144 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
BXRC-27G1000-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
198 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1274lm (Typ) | 300mA | 25°C | 30.7V | 138 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-30G10H0-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
198 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1395lm (Typ) | 300mA | 25°C | 30.7V | 151 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-40G1000-C-83VERO 10C NEUTRAL WHITE LED ARRAY Bridgelux |
198 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1409lm (Typ) | 300mA | 25°C | 30.7V | 153 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-27E1000-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
190 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1544lm (Typ) | 300mA | 25°C | 30.7V | 168 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-35G1000-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
155 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1380lm (Typ) | 300mA | 25°C | 30.7V | 150 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-35E1000-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
115 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1680lm (Typ) | 300mA | 25°C | 30.7V | 182 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-40E1000-C-83VERO 10C NEUTRAL WHITE LED ARRAY Bridgelux |
110 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1689lm (Typ) | 300mA | 25°C | 30.7V | 183 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|

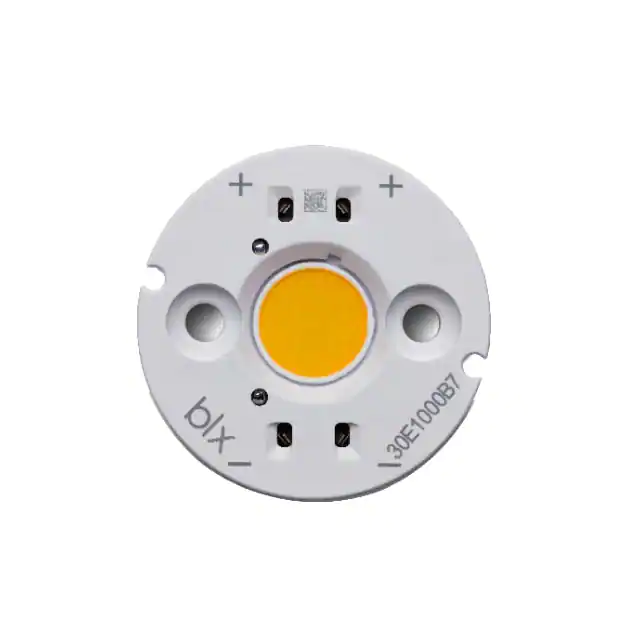

BXRC-35G1000-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
200 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1342lm (Typ) | 300mA | 25°C | 30.7V | 146 lm/W | 1A | 90 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
BXEB-TL-L0280Z-2750E1000-B-C3VESTA TL GEN 3 (1 SMD ROW) LED M Bridgelux |
3,579 | - |
RFQ |
Ficha técnica |
Bulk | Vesta™ Tunable Linear Gen 3 | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1219lm Warm White, 1362lm Cool White | 375mA | 25°C | 19.7V | 165 lm/W Warm White, 184 lm/W Cool White | 750mA | 80 | 120° | - | 280.00mm L x 24.00mm W | 5.60mm | - |
|
|
BXEB-L0280Z-35S1000-C-C3EB GEN 3 LED MODULE, 280 MM, 350 Bridgelux |
3,908 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ Gen 3 Thrive | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1345lm (Typ) | 480mA | 25°C | 20.3V | 138 lm/W | 960mA | 98 (Typ) | 120° | - | 280.00mm L x 24.00mm W | 6.10mm | - |
|
|
BXRC-40C1001-C-83VERO 10C NEUTRAL WHITE LED ARRAY Bridgelux |
200 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1766lm (Typ) | 300mA | 25°C | 30.7V | 192 lm/W | 1A | 70 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-57C1001-C-83VERO 10C COOL WHITE LED ARRAY Bridgelux |
200 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Starboard | 1728lm (Typ) | 300mA | 25°C | 30.7V | 188 lm/W | 1A | 70 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-30C1001-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
200 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1718lm (Typ) | 300mA | 25°C | 30.7V | 187 lm/W | 1A | 70 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-65C1001-C-83VERO 10C COOL WHITE LED ARRAY Bridgelux |
195 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Starboard | 1728lm (Typ) | 300mA | 25°C | 30.7V | 188 lm/W | 1A | 70 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-50E1001-C-83VERO 10C COOL WHITE LED ARRAY Bridgelux |
192 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1709lm (Typ) | 300mA | 25°C | 30.7V | 186 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-65E1001-C-83VERO 10C COOL WHITE LED ARRAY Bridgelux |
191 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Starboard | 1660lm (Typ) | 300mA | 25°C | 30.7V | 180 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-50G1001-C-83VERO 10C COOL WHITE LED ARRAY Bridgelux |
190 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1477lm (Typ) | 300mA | 25°C | 30.7V | 160 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-57E1001-C-83VERO 10C COOL WHITE LED ARRAY Bridgelux |
190 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Starboard | 1641lm (Typ) | 300mA | 25°C | 30.7V | 178 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-30H1000-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
189 | - |
RFQ |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | - | 300mA | 25°C | 30.7V | - | 1A | 97 (Typ) | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
