Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRV-TR-2765G-1KA0-A-23VESTA TW29 GEN 2 Bridgelux |
3,682 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 7043lm (Typ) | 1.05A | 25°C | 52.4V | 128 lm/W | 1.8A | 92 | 130° | - | 32.05mm L x 32.05mm W | 1.65mm | 29.60mm Dia |
|
BXRE-27E4000-B-73LED COB V18 2700K SQUARE Bridgelux |
519 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4180lm (Typ) | 900mA | 85°C | 34V | 137 lm/W | 1.8A | 80 | - | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
BXRE-30E2000-C-73LED COB V13 3000K SQUARE Bridgelux |
1,875 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3048lm (Typ) | 630mA | 85°C | 33.9V | 143 lm/W | 1.26A | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-40E2000-C-73LED COB V13 4000K SQUARE Bridgelux |
978 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3170lm (Typ) | 630mA | 85°C | 33.9V | 148 lm/W | 1.26A | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-30G2000-C-73LED COB V13 3000K SQUARE Bridgelux |
169 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2530lm (Typ) | 630mA | 85°C | 33.9V | 118 lm/W | 1.26A | 90 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
BXRE-30G1000-C-83V10C WARM WHITE LED ARRAY Bridgelux |
1,162 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1331lm (Typ) | 300mA | 25°C | 30.7V | 144 lm/W | - | 90 | - | - | - | - | 10.00mm Dia |
|
BXRE-40E1000-C-83V10C NEUTRAL WHITE LED ARRAY Bridgelux |
829 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1688lm (Typ) | 300mA | 25°C | 30.7V | 182 lm/W | - | 80 | - | - | - | - | 10.00mm Dia |
|
|
BXRE-30E1000-C-83V10C WARM WHITE LED ARRAY Bridgelux |
759 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1640lm (Typ) | 300mA | 25°C | 30.7V | 175 lm/W | - | 80 | - | - | - | - | 10.00mm Dia |
|
BXRV-TR-2750G-20A0-A-23VESTA TW13 GEN 2 Bridgelux |
240 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 2220lm (Typ) | 500mA | 25°C | 35.9V | 124 lm/W | 700mA | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.65mm | 14.25mm Dia |
|
BXRE-65S2001-C-74V13C THRIVE Bridgelux |
1,909 | - |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
BXEB-L0340U-30E0750-C-C3EB SLIM GEN 3 340MM Bridgelux |
887 | - |
RFQ |
Ficha técnica |
Tray | EB Series™ Slim Gen 3 | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1425lm (Typ) | 700mA | 25°C | 10.9V | 186 lm/W | 1.7A | 80 | 120° | With Connector | 340.00mm L x 12.70mm W | 4.30mm | - |
|
BXRC-40E4000-D-73-SELED COB VERO SE 4000K ROUND Bridgelux |
738 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 4345lm (Typ) | 1.05A | 85°C | 28.3V | 146 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-35E4000-B-73-SELED COB VERO SE 3500K ROUND Bridgelux |
452 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 4426lm (Typ) | 900mA | 85°C | 34.1V | 144 lm/W | 1.8A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-50C4001-D-74-SELED COB VERO SE 5000K ROUND Bridgelux |
285 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4763lm (Typ) | 1.05A | 85°C | 28.3V | 160 lm/W | 2.1A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-30E4000-B-73-SELED COB VERO SE 3000K ROUND Bridgelux |
279 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4337lm (Typ) | 900mA | 85°C | 34.1V | 141 lm/W | 1.8A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRE-40E4000-B-73LED COB V18 4000K SQUARE Bridgelux |
187 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4528lm (Typ) | 900mA | 85°C | 34V | 148 lm/W | 1.8A | 80 | - | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-35E2000-C-83V13C WARM WHITE LED ARRAY Bridgelux |
2,555 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 182 lm/W | - | 80 | - | - | - | - | 13.00mm Dia |
|

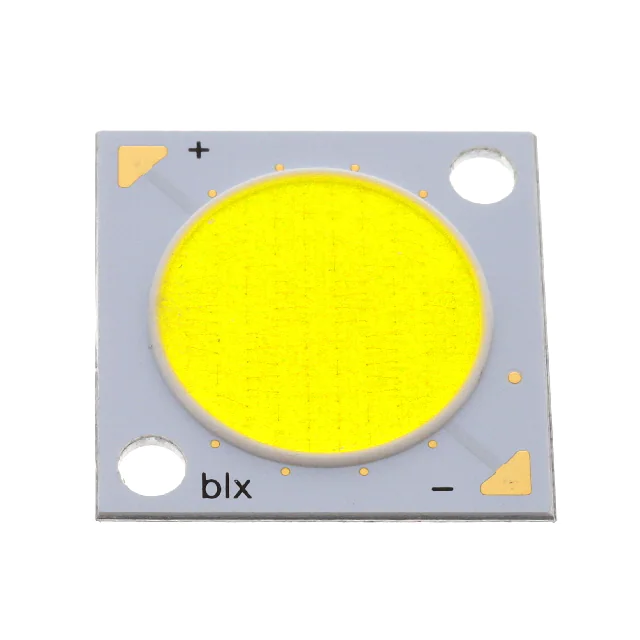

BXRE-50C3001-D-84V15D COOL WHITE LED ARRAY Bridgelux |
387 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3214lm (Typ) | 500mA | 25°C | 33.7V | 192 lm/W | - | 70 | - | - | - | - | 15.00mm Dia |
|
BXEB-L1120Z-50E4000-C-B34000 LM COOL WHITE LINEAR MODULE Bridgelux |
108 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ Gen 2 | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4920lm (Typ) | 700mA | 25°C | 39V | 180 lm/W | 1.4A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - |
|
BXRV-TR-2750G-40A0-A-23VESTA TW18 GEN 2 Bridgelux |
113 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 3741lm (Typ) | 900mA | 25°C | 35.3V | 118 lm/W | 1.4A | 92 | 130° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.70mm Dia |
