Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-50E4001-D-74LED COB VERO 18 5000K ROUND Bridgelux |
102 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4536lm (Typ) | 1.05A | 85°C | 28.3V | 153 lm/W | 2.1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRC-35A4001-D-73LED COB WARM WHT 3500K ROUND Bridgelux |
2,029 | - |
RFQ |
Ficha técnica |
Tray | Décor Series™ Class A Vero® 18 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 3524lm (Typ) | 1.05A | 85°C | 28.1V | 119 lm/W | 2.1A | 93 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXEB-TL-2750G-3000-A-133000 LM TUNABLE WHITE WHITE LINE Bridgelux |
222 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 3192lm (Typ), 3352lm (Typ) | 1A | 25°C | 24.8V | 129 lm/W, 135 lm/W | 2A | 90 | 120° | - | 560.00mm L x 31.00mm W | 6.10mm | - |
|
BXRE-40E6500-D-73LED COB GEN7 V22 4000K SQUARE Bridgelux |
637 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6956lm (Typ) | 1.4A | 85°C | 33.4V | 149 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
|
BXRE-50C6501-D-74LED COB GEN7 V22 5000K SQUARE Bridgelux |
150 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 7706lm (Typ) | 1.4A | 85°C | 33.4V | 165 lm/W | 2.8A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
BXRV-TR-1840G-20A0-A-25TW13 GEN 2 TUNABLE WHITE LED ARR Bridgelux |
333 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Neutral | 1800K, 4000K | - | Square | - | 500mA | 25°C | - | - | 700mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
|
BXRC-30G4000-C-73LED COB VERO 18 3000K ROUND Bridgelux |
498 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4699lm (Typ) | 1.17A | 85°C | 34.1V | 118 lm/W | 2.34A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRE-30E4000-B-83V18B WARM WHITE LED ARRAY Bridgelux |
562 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4280lm (Typ) | 700mA | 25°C | 33.9V | 178 lm/W | - | 80 | - | - | - | - | 18.00mm Dia |
|
|
BXRE-35E4000-C-83V18C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 182 lm/W | - | 80 | - | - | - | - | 18.00mm Dia |
|

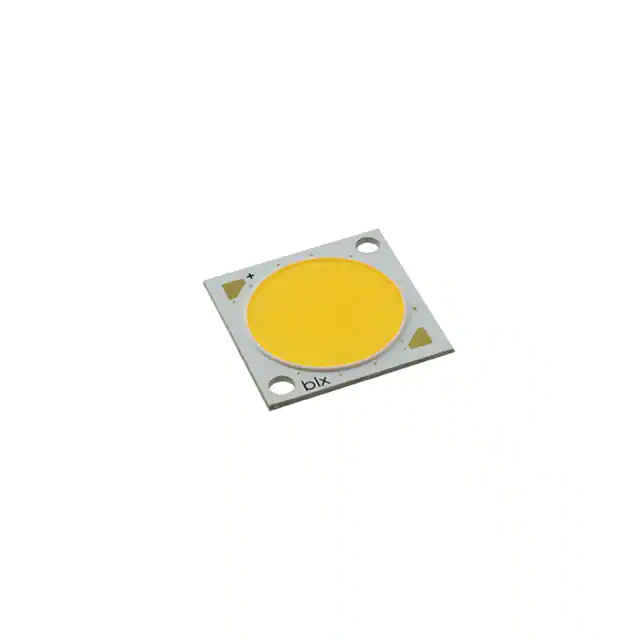

BXRE-40E4000-C-83V18C NEUTRAL WHITE LED ARRAY Bridgelux |
206 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6357lm (Typ) | 1.05A | 25°C | 33.9V | 185 lm/W | - | 80 | - | - | - | - | 18.00mm Dia |
|
|
BXRE-30G6500-D-83V22D WARM WHITE LED ARRAY Bridgelux |
298 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5201lm (Typ) | 1.05A | 25°C | 33.5V | 147 lm/W | - | 90 | - | - | - | - | 22.00mm Dia |
|

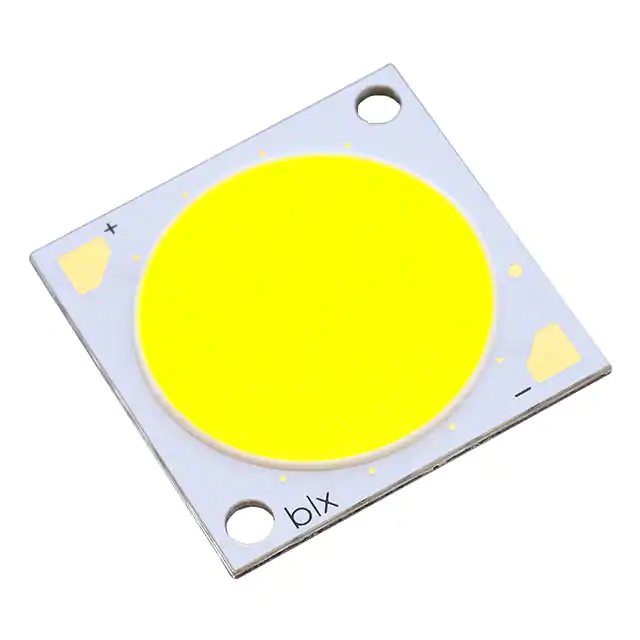

BXRE-50C6501-D-84V22D COOL WHITE LED ARRAY Bridgelux |
249 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 6935lm (Typ) | 1.05A | 25°C | 33.5V | 197 lm/W | - | 70 | - | - | - | - | 22.00mm Dia |
|
BXRV-TR-2750G-1KA0-A-23VESTA TW29 GEN 2 Bridgelux |
221 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 6878lm (Typ) | 1.05A | 25°C | 52.4V | 125 lm/W | 1.8A | 92 | 130° | - | 32.05mm L x 32.05mm W | 1.65mm | 29.60mm Dia |
|
BXRC-50C10K1-B-74-SELED COB VERO SE 5000K ROUND Bridgelux |
322 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 17035lm (Typ) | 1.8A | 25°C | 52V | 182 lm/W | 3.6A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
|
BXRE-40E6500-C-83V22C NEUTRAL WHITE LED ARRAY Bridgelux |
288 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11277lm (Typ) | 1.2A | 25°C | 50.7V | 187 lm/W | - | 80 | - | - | - | - | 22.00mm Dia |
|
|
BXRC-50C10K1-C-74-SELED COB VERO SE 5000K ROUND Bridgelux |
213 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 21599lm (Typ) | 1.71A | 25°C | 69.4V | 182 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
BXRC-30E10K0-C-73LED COB VERO 29 3000K ROUND Bridgelux |
104 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 18946lm (Typ) | 1.71A | 25°C | 69.4V | 160 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRE-35S4001-C-73V18C THRIVE Bridgelux |
124 | - |
RFQ |
Tube | Gen 7 V18 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4890lm (Typ) | 1.17A | 25°C | 34.4V | 121 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | |
|
BXRH-30G100C-B-73V6 HD WARM WHITE LED ARRAY Bridgelux |
171 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1075lm (Typ) | 350mA | 85°C | 35.4V | 87 lm/W | 480mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia |
|
BXRE-50C0801-E-73V8E COOL WHITE LED ARRAY Bridgelux |
473 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V8 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 935lm (Typ) | 175mA | 85°C | 33.4V | 160 lm/W | 350mA | 70 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
