Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

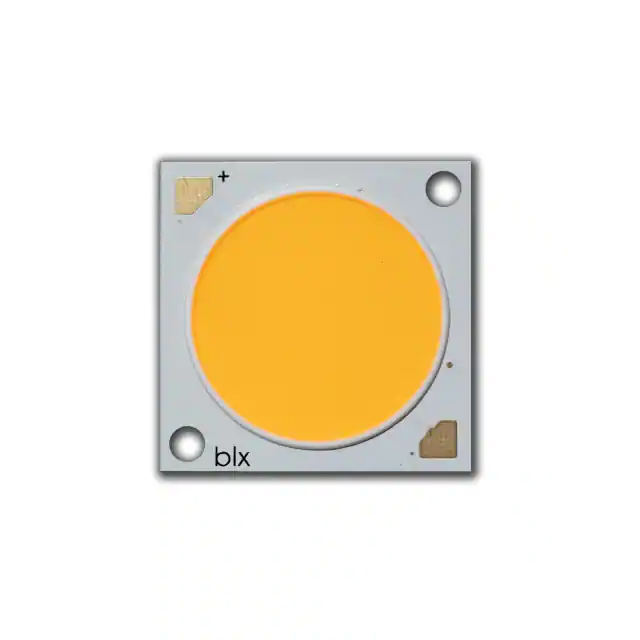

BXRE-35G6500-C-83V22C WARM WHITE LED ARRAY Bridgelux |
150 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9317lm (Typ) | 1.2A | 25°C | 50.7V | 153 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-30G65H0-C-83V22C WARM WHITE LED ARRAY Bridgelux |
150 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9415lm (Typ) | 1.2A | 25°C | 50.7V | 155 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-27G6500-C-83V22C WARM WHITE LED ARRAY Bridgelux |
137 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8600lm (Typ) | 1.2A | 25°C | 50.7V | 141 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-40G6500-C-83V22C NEUTRAL WHITE LED ARRAY Bridgelux |
123 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9512lm (Typ) | 1.2A | 25°C | 50.7V | 156 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
BXRE-27G65H0-C-83V22C WARM WHITE LED ARRAY Bridgelux |
123 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8972lm (Typ) | 1.2A | 25°C | 50.7V | 147 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-35E6500-C-83V22C WARM WHITE LED ARRAY Bridgelux |
104 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 11337lm (Typ) | 1.2A | 25°C | 50.7V | 186 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-65E6501-C-83V22C COOL WHITE LED ARRAY Bridgelux |
278 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 11206lm (Typ) | 1.2A | 25°C | 50.7V | 184 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-50E6501-C-83V22C COOL WHITE LED ARRAY Bridgelux |
165 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 11532lm (Typ) | 1.2A | 25°C | 50.7V | 190 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-50G6501-C-83V22C COOL WHITE LED ARRAY Bridgelux |
150 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9968lm (Typ) | 1.2A | 25°C | 50.7V | 164 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-57E6501-C-83V22C COOL WHITE LED ARRAY Bridgelux |
147 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 11076lm (Typ) | 1.2A | 25°C | 50.7V | 182 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
BXRV-TR-2765G-40A0-A-23-S2TW LED ARRAY, LES=18MM, INTEGRAT Bridgelux |
967 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 3193lm Warm White, 3623lm Cool White | 900mA | 25°C | 34.9V Warm White, 35.3V Cool White | 113 lm/W Warm White, 127 lm/W Cool White | 1.4A | 90 | 130° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.70mm Dia |
|

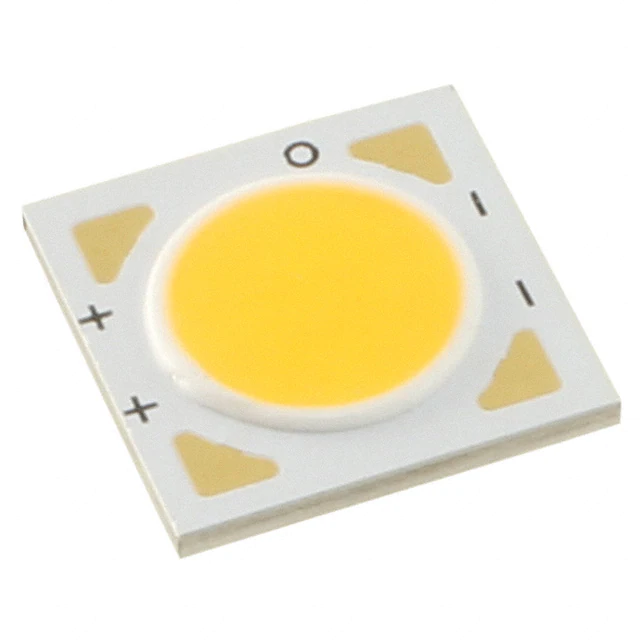

BXRE-30G0800-B-23LED ARRAY 800LM WARM WHITE COB Bridgelux |
134 | - |
RFQ |
Ficha técnica |
Tube | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 578lm (Typ) | 350mA | 85°C | 17.4V | 95 lm/W | 700mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-50C0800-B-24LED ARRAY 800LM COOL WHITE COB Bridgelux |
108 | - |
RFQ |
Ficha técnica |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 788lm (Typ) | 350mA | 85°C | 17.4V | 130 lm/W | 700mA | 70 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
BXRE-35S1001-B-73V10B THRIVE Bridgelux |
555 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V10 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 1011lm (Typ) | 270mA | 85°C | 33.7V | 111 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia |
|
|
BXRE-50S1001-B-74V10B THRIVE Bridgelux |
544 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V10 Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1078lm (Typ) | 270mA | 85°C | 33.7V | 119 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia |
|
BXRE-65S1001-B-74V10B THRIVE Bridgelux |
459 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V10 Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 1087lm (Typ) | 270mA | 85°C | 33.7V | 119 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia |
|
|
BXRE-57S1001-B-74V10B THRIVE Bridgelux |
415 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V10 Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 1103lm (Typ) | 270mA | 85°C | 33.7V | 121 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia |
|
|
BXRE-40S1001-B-73V10B THRIVE Bridgelux |
395 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V10 Thrive™ Array | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 1028lm (Typ) | 270mA | 85°C | 33.7V | 113 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia |
|
|
BXRE-30S1001-B-73V10B THRIVE Bridgelux |
353 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V10 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 970lm (Typ) | 270mA | 85°C | 33.7V | 107 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia |
|
BXRH-50S1001-B-74LED COB WHITE Bridgelux |
728 | - |
RFQ |
Ficha técnica |
Tray | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1401lm (Typ) | 350mA | 25°C | 36.4V | 110 lm/W | 480mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
