Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-50C0801-D-73V8D COOL WHITE LED ARRAY Bridgelux |
479 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V8 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 932lm (Typ) | 350mA | 85°C | 16.7V | 159 lm/W | 700mA | 70 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
BXRE-30E1000-B-73LED COB V10 3000K SQUARE Bridgelux |
720 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1276lm (Typ) | 270mA | 85°C | 34V | 139 lm/W | 540mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia |
|
BXRC-30G1000-B-73-SELED COB VERO SE 3000K ROUND Bridgelux |
121 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1057lm (Typ) | 270mA | 85°C | 33.8V | 116 lm/W | 540mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|

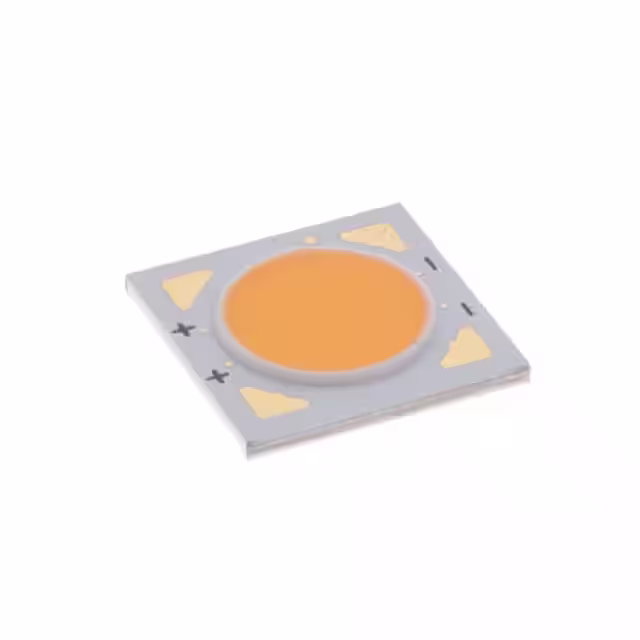

BXRE-30G0800-E-83V8E WARM WHITE LED ARRAY Bridgelux |
104 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 714lm (Typ) | 150mA | 25°C | 33.5V | 142 lm/W | - | 90 | - | - | - | - | 8.00mm Dia |
|
BXRE-27E1000-C-83V10C WARM WHITE LED ARRAY Bridgelux |
720 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 165 lm/W | - | 80 | - | - | - | - | 10.00mm Dia |
|
|
BXRE-27G2000-B-83V13B WARM WHITE LED ARRAY Bridgelux |
451 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 139 lm/W | - | 90 | - | - | - | - | 13.00mm Dia |
|
|
BXRE-27G3000-D-83V15D WARM WHITE LED ARRAY Bridgelux |
115 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 139 lm/W | - | 90 | - | - | - | - | 15.00mm Dia |
|
BXRC-50C4001-B-74LED COB VERO 18 5000K ROUND Bridgelux |
108 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4963lm (Typ) | 900mA | 85°C | 34.1V | 162 lm/W | 1.8A | 70 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRV-TR-2750G-65A0-A-23VESTA TW22 GEN 2 Bridgelux |
111 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 5963lm (Typ) | 900mA | 25°C | 53V | 125 lm/W | 1.4A | 92 | 130° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.10mm Dia |
|
BXRE-27E6500-B-73LED COB V22 2700K SQUARE Bridgelux |
108 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8163lm (Typ) | 1.17A | 85°C | 50.7V | 138 lm/W | 2.34A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
BXRC-35G10K0-B-73-SELED COB VERO SE 3500K ROUND Bridgelux |
113 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 12823lm (Typ) | 1.8A | 25°C | 52V | 137 lm/W | 3.6A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
BXRC-40G10K0-B-73LED COB VERO 29 4000K ROUND Bridgelux |
186 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13304lm (Typ) | 1.8A | 25°C | 52V | 142 lm/W | 3.6A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXEB-L0570A-35E3000-E-C3EB EDGE LED MODULE, 570 MM, 3500 Bridgelux |
2,347 | - |
RFQ |
Ficha técnica |
Bulk | EB Edge Gen 3 | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2705lm (Typ) | 700mA | 25°C | 23.5V | 164 lm/W | - | 80 | - | - | 570.00mm L x 6.00mm W | - | - |
|
|
BXEB-L0570A-50E3000-E-C3EB EDGE LED MODULE, 570 MM, 5000 Bridgelux |
120 | - |
RFQ |
Ficha técnica |
Bulk | EB Edge Gen 3 | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2885lm (Typ) | 700mA | 25°C | 23.5V | 175 lm/W | - | 80 | - | - | 570.00mm L x 6.00mm W | - | - |
|
BXRE-40G1000-C-83V10C NEUTRAL WHITE LED ARRAY Bridgelux |
598 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1409lm (Typ) | 300mA | 25°C | 30.7V | 153 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|
|
BXRE-27G1000-C-83V10C WARM WHITE LED ARRAY Bridgelux |
570 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1274lm (Typ) | 300mA | 25°C | 30.7V | 138 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|
|
BXRE-35E1000-C-83V10C WARM WHITE LED ARRAY Bridgelux |
578 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1680lm (Typ) | 300mA | 25°C | 30.7V | 182 lm/W | 1A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|

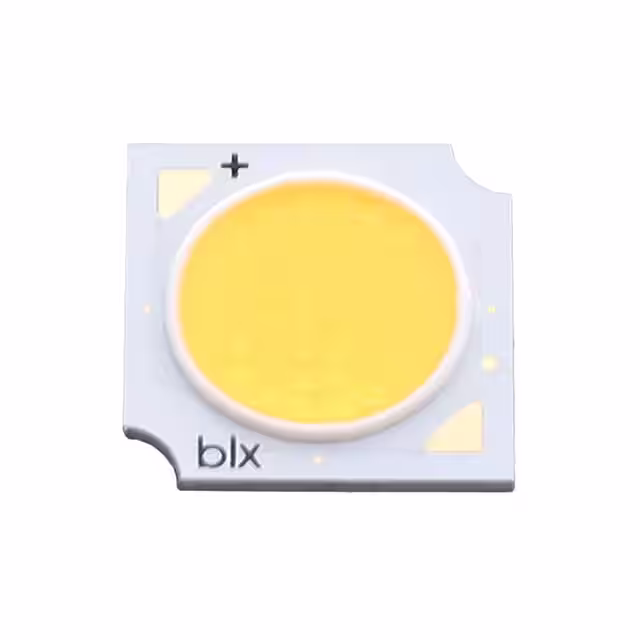

BXRE-30G10H0-C-83V10C WARM WHITE LED ARRAY Bridgelux |
557 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 300mA | 25°C | 30.7V | 151 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|
|
BXRE-35G1000-C-83V10C WARM WHITE LED ARRAY Bridgelux |
542 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1380lm (Typ) | 300mA | 25°C | 30.7V | 150 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|
|
BXRE-27G10H0-C-83V10C WARM WHITE LED ARRAY Bridgelux |
450 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1329lm (Typ) | 300mA | 25°C | 30.7V | 144 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
