0Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-50E1001-C-83V10C COOL WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1709lm (Typ) | 300mA | 25°C | 30.7V | 186 lm/W | 1A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|
|
BXRE-57E1001-C-83V10C COOL WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 1641lm (Typ) | 300mA | 25°C | 30.7V | 178 lm/W | 1A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|
|
BXRE-50G1001-C-83V10C COOL WHITE LED ARRAY Bridgelux |
599 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1477lm (Typ) | 300mA | 25°C | 30.7V | 160 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|
|
BXRE-65E1001-C-83V10C COOL WHITE LED ARRAY Bridgelux |
574 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 1660lm (Typ) | 300mA | 25°C | 30.7V | 180 lm/W | 1A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
|
BXRH-27E3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3416lm (Typ) | 700mA | 25°C | 36.6V | 133 lm/W | 1.2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-30E3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3630lm (Typ) | 700mA | 25°C | 36.6V | 142 lm/W | 1.2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-30G300C-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2891lm (Typ) | 700mA | 25°C | 36.6V | 113 lm/W | 1.2A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-35A3001-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Tube | - | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | 700mA | 25°C | 36.4V | - | 960mA | 93 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 9.20mm Dia | |
|
|
BXRH-35E3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3715lm (Typ) | 700mA | 25°C | 36.6V | 145 lm/W | 1.2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-27G3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
596 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2819lm (Typ) | 700mA | 25°C | 36.6V | 110 lm/W | 1.2A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
BXRC-17E10K0-C-74-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
3,019 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Round | 10443lm (Typ) | 1.71A | 25°C | 69.4V | 88 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
|
BXRH-35G3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
587 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3053lm (Typ) | 700mA | 25°C | 36.6V | 119 lm/W | 1.2A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-40G3000-D-83V9 HD NEUTRAL WHITE LED ARRAY Bridgelux |
576 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3118lm (Typ) | 700mA | 25°C | 36.6V | 122 lm/W | 1.2A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-35H3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
529 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2744lm (Typ) | 700mA | 25°C | 36.6V | 107 lm/W | 1.2A | 97 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-27H3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
506 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2498lm (Typ) | 700mA | 25°C | 36.6V | 98 lm/W | 1.2A | 97 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-30G3000-D-83V9 HD WARM WHITE LED ARRAY Bridgelux |
485 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2947lm (Typ) | 700mA | 25°C | 36.6V | 115 lm/W | 1.2A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
|
BXRH-40H3000-D-83V9 HD NEUTRAL WHITE LED ARRAY Bridgelux |
380 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2819lm (Typ) | 700mA | 25°C | 36.6V | 110 lm/W | 1.2A | 97 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|

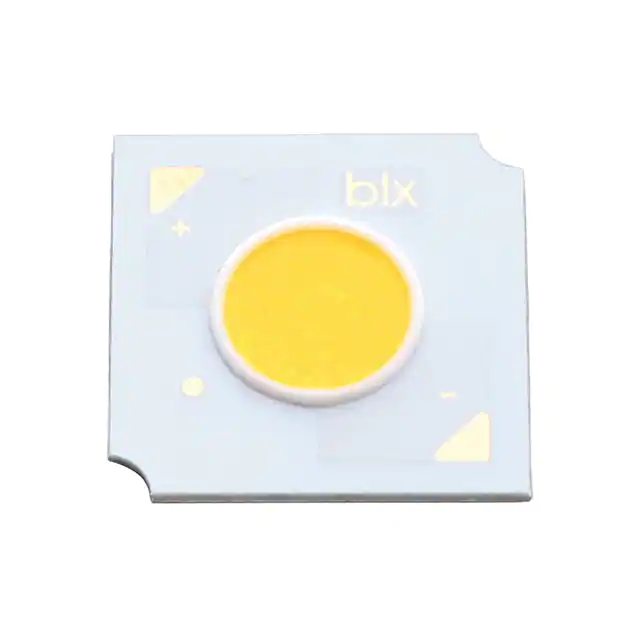

BXRH-40E3000-D-83V9 HD NEUTRAL WHITE LED ARRAY Bridgelux |
284 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3737lm (Typ) | 700mA | 25°C | 36.6V | 146 lm/W | 1.2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
|
BXRC-30G1000-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
200 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1332lm (Typ) | 300mA | 25°C | 30.7V | 145 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
|
|
BXRC-30E1000-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
200 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1641lm (Typ) | 300mA | 25°C | 30.7V | 178 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia |
