Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-50C1001-D-74LED COB VERO 10 5000K STARBOARD Bridgelux |
984 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | 1603lm (Typ) | 350mA | 25°C | 26V | 176 lm/W | 700mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40E1000-D-73LED COB VERO 10 4000K STARBOARD Bridgelux |
600 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1462lm (Typ) | 350mA | 25°C | 26V | 161 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-40G1000-D-73LED COB VERO 10 4000K STARBOARD Bridgelux |
390 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1256lm (Typ) | 350mA | 25°C | 26V | 138 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-27E1000-D-73LED COB VERO 10 2700K STARBOARD Bridgelux |
148 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1350lm (Typ) | 350mA | 25°C | 26V | 148 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRH-30H3000-D-73V9 HD WARM WHITE LED ARRAY Bridgelux |
813 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V9 HD Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2225lm (Typ) | 700mA | 85°C | 35.4V | 90 lm/W | 960mA | 97 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 9.20mm Dia |
|
BXRH-50S1001-G-74LED COB WHITE Bridgelux |
413 | - |
RFQ |
Ficha técnica |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1401lm (Typ) | 700mA | 25°C | 18.2V | 110 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
BXRH-30S1001-G-73LED COB WHITE Bridgelux |
474 | - |
RFQ |
Ficha técnica |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1223lm (Typ) | 700mA | 25°C | 18.2V | 96 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
|
BXRH-27S1001-G-73LED COB WHITE Bridgelux |
198 | - |
RFQ |
Ficha técnica |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1147lm (Typ) | 700mA | 25°C | 18.2V | 90 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
|
BXRH-40S1001-G-73LED COB WHITE Bridgelux |
181 | - |
RFQ |
Ficha técnica |
Tray | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1338lm (Typ) | 700mA | 25°C | 18.2V | 105 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
BXRE-27S0801-D-73LED COB WHITE Bridgelux |
116 | - |
RFQ |
Ficha técnica |
Tube | V8 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 630lm (Typ) | 350mA | 25°C | 17.2V | 105 lm/W | 700mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 9.00mm Dia |
|
BXRC-30E2000-D-73-SELED COB VERO SE 3000K ROUND Bridgelux |
390 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2173lm (Typ) | 500mA | 85°C | 30.9V | 141 lm/W | 1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
BXEB-L0560Z-30E2000-C-B32000 LM WARM WHITE LINEAR MODULE Bridgelux |
421 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ Gen 2 | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2390lm (Typ) | 700mA | 25°C | 19.5V | 175 lm/W | 1.4A | 80 | 120° | With Connector | 560.00mm L x 24.00mm W | 6.10mm | - |
|
BXEB-L0560Z-35E2000-C-B32000 LM NEUTRAL WHITE LINEAR MOD Bridgelux |
384 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ Gen 2 | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2390lm (Typ) | 700mA | 25°C | 19.5V | 175 lm/W | 1.4A | 80 | 120° | - | 560.00mm L x 24.00mm W | 6.10mm | - |
|
BXEB-L0560Z-50E2000-C-B32000 LM COOL WHITE LINEAR MODULE Bridgelux |
159 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ Gen 2 | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2460lm (Typ) | 700mA | 25°C | 19.5V | 180 lm/W | 1.4A | 80 | 120° | - | 560.00mm L x 24.00mm W | 6.10mm | - |
|
BXRE-35E2000-C-73LED COB V13 3500K SQUARE Bridgelux |
1,050 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3140lm (Typ) | 630mA | 85°C | 33.9V | 147 lm/W | 1.26A | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
BXRV-TR-2765G-20A0-A-23VESTA TW13 GEN 2 Bridgelux |
181 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 2312lm (Typ) | 500mA | 25°C | 35.9V | 129 lm/W | 700mA | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.65mm | 14.25mm Dia |
|
BXRC-30G2000-D-73LED COB VERO 13 3000K ROUND Bridgelux |
151 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1840lm (Typ) | 500mA | 85°C | 30.9V | 119 lm/W | 1A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-27G2000-D-73LED COB VERO 13 2700K ROUND Bridgelux |
146 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1774lm (Typ) | 500mA | 85°C | 30.9V | 115 lm/W | 1A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|

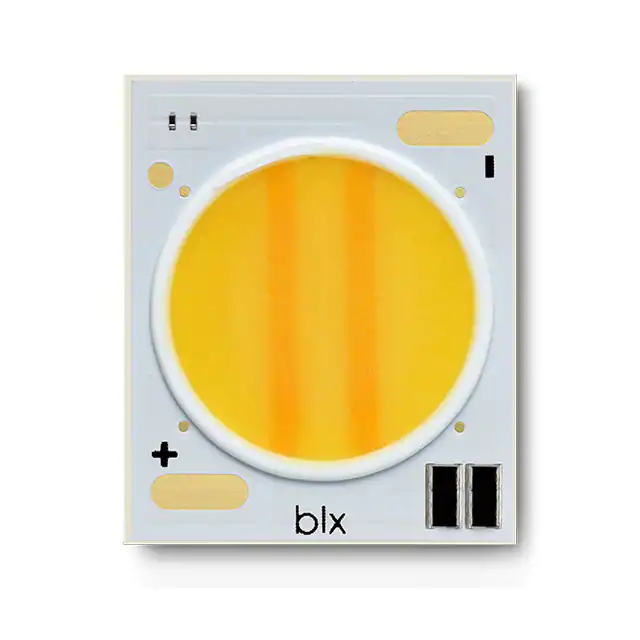

BXRV-DR-1830H-3000-A-13LED VESTA WHITE WARM 2400K 2SMD Bridgelux |
174 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 3300lm (Typ) | 950mA | 25°C | 34.1V | 102 lm/W | 1.05A | 95 | 110° | - | 24.00mm L x 20.00mm W | 1.70mm | 16.20mm Dia |
|
|
BXRC-35E2000-C-73-SELED COB VERO SE 3500K ROUND Bridgelux |
467 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 3077lm (Typ) | 630mA | 85°C | 34.1V | 143 lm/W | 1.26A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
