Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
RN212-0.5-02-18M CMC 18MH 500MA 2LN TH Schaffner EMC Inc.	2,830	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	18 mH @ 10 kHz	500mA	1.1Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN212-2.6-02-0M4 CMC 400UH 2.6A 2LN TH Schaffner EMC Inc.	3,163	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	400 µH @ 10 kHz	2.6A	40mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN212-0.4-02-27M CMC 27MH 400MA 2LN TH Schaffner EMC Inc.	3,134	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	400mA	1.4Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN212-3.6-02-0M4 CMC 400UH 3.6A 2LN TH Schaffner EMC Inc.	3,697	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	400 µH @ 10 kHz	3.6A	27mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)

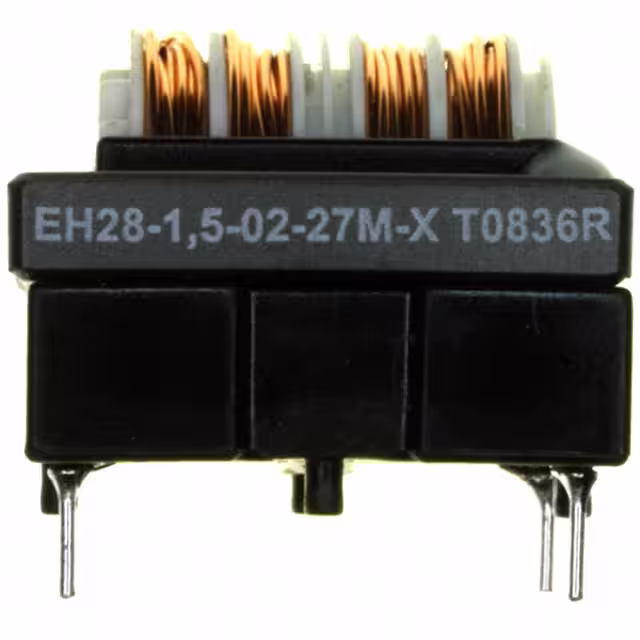

EH28-1.5-02-27M-X CMC 27MH 1.5A 2LN TH Schaffner EMC Inc.	3,911	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	27 mH @ 400 Hz	1.5A	282mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)
RN232-1.6-02-10M CMC 10MH 1.6A 2LN TH Schaffner EMC Inc.	2,902	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	1.6A	170mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN142-2-02-6M8 CMC 6.8MH 2A 2LN TH Schaffner EMC Inc.	2,568	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	2A	192mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
RN242-2-02-6M8 CMC 6.8MH 2A 2LN TH Schaffner EMC Inc.	2,528	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	2A	192mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)

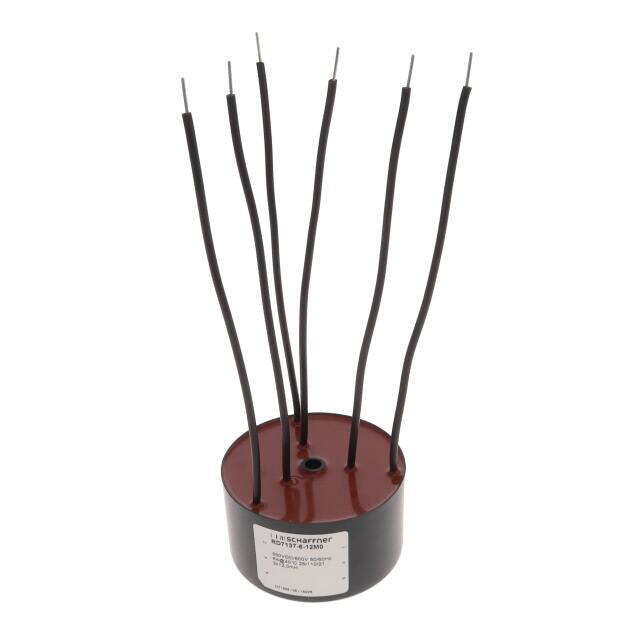

RD7137-6-12M0 CMC 12MH 6A 3LN TH Schaffner EMC Inc.	3,168	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	12 mH @ 1 kHz	6A (Typ)	60.6mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)
RD7147-6-6M0 CMC 6MH 6A 4LN TH Schaffner EMC Inc.	2,164	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	6 mH @ 400 Hz	6A (Typ)	45.1mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)

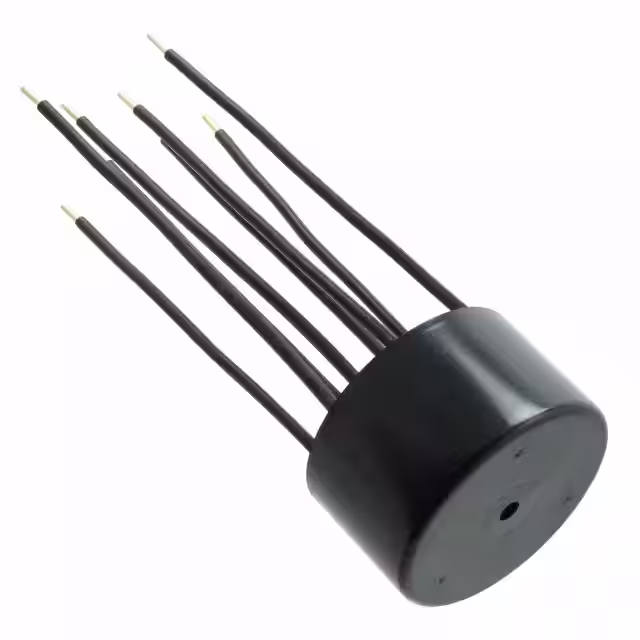

RD7147-25-0M7 CMC 700UH 25A 4LN TH Schaffner EMC Inc.	3,824	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	700 µH @ 1 kHz	25A (Typ)	3.65mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)

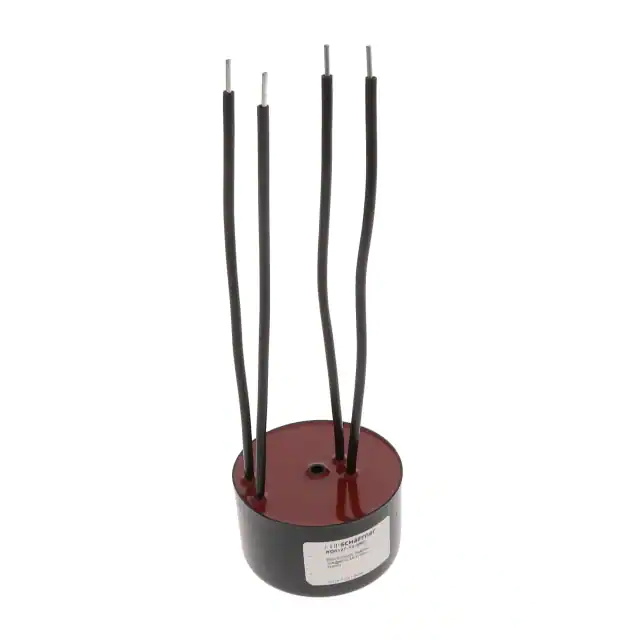

RD6127-10-9M0 CMC 9MH 10A 2LN TH Schaffner EMC Inc.	3,807	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	9 mH @ 400 Hz	10A (Typ)	25.9mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.362 L x 2.362 W (60.00mm x 60.00mm)	1.398 (35.50mm)

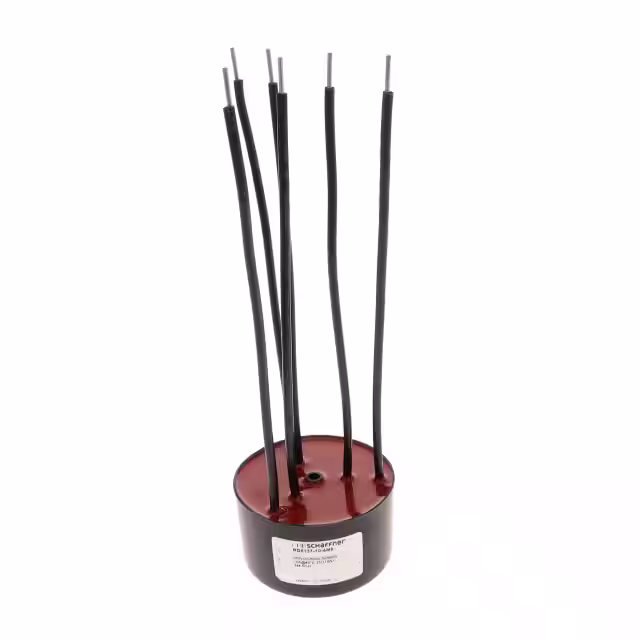

RD6137-10-4M5 CMC 4.5MH 10A 3LN TH Schaffner EMC Inc.	3,412	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	4.5 mH @ 400 Hz	10A (Typ)	18.35mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.362 L x 2.362 W (60.00mm x 60.00mm)	1.398 (35.50mm)

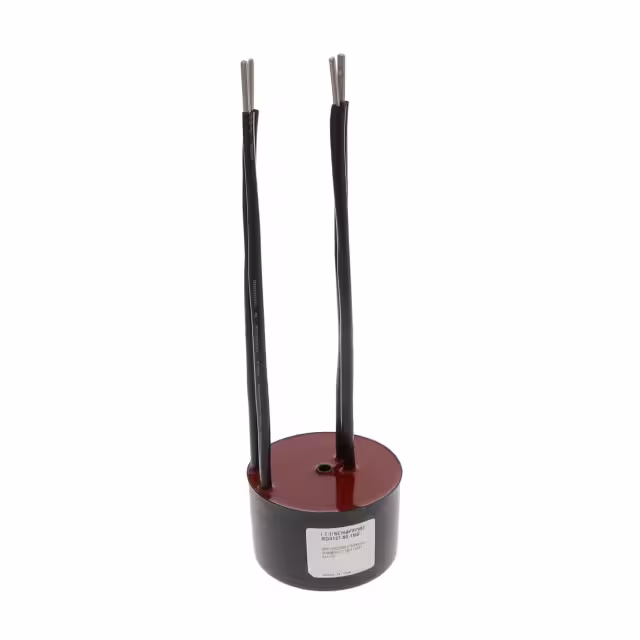

RD8127-50-1M0 CMC 1MH 50A 2LN TH Schaffner EMC Inc.	3,755	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	1 mH @ 1 kHz	50A (Typ)	2.5mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)
RD8137-36-1M5 CMC 1.5MH 36A 3LN TH Schaffner EMC Inc.	3,923	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	1.5 mH @ 1 kHz	36A (Typ)	3.65mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)

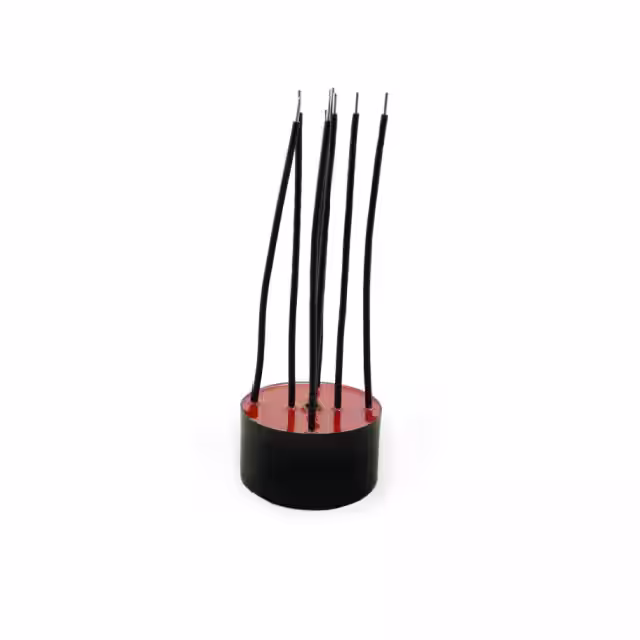

RD8147-16-3M0 CMC 3MH 16A 4LN TH Schaffner EMC Inc.	2,674	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	3 mH @ 400 Hz	16A (Typ)	9.25mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)
EH20-0.5-02-18M CMC 18MH 500MA 2LN TH Schaffner EMC Inc.	3,453	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	18 mH @ 400 Hz	500mA	725mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.740 (18.80mm)

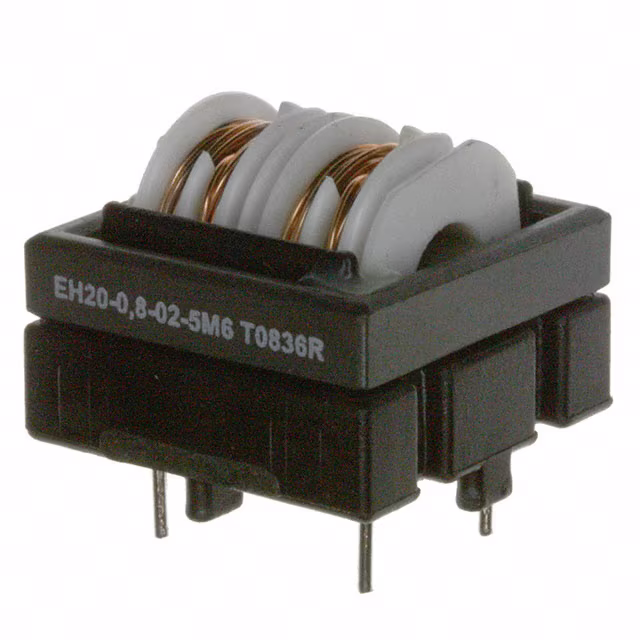

EH20-0.8-02-5M6 CMC 5.6MH 800MA 2LN TH Schaffner EMC Inc.	3,566	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	5.6 mH @ 400 Hz	800mA	245mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.740 (18.80mm)

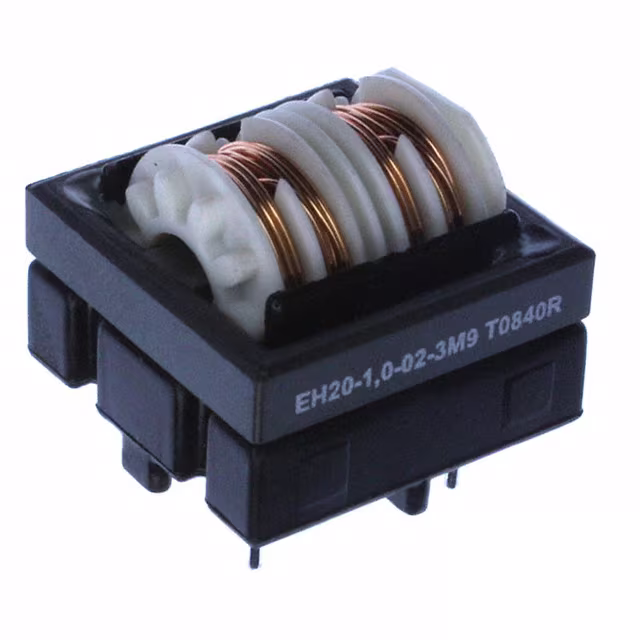

EH20-1.0-02-3M9 CMC 3.9MH 1A 2LN TH Schaffner EMC Inc.	2,648	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	3.9 mH @ 10 kHz	1A	168mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.740 (18.80mm)
EH20-1.5-02-1M8 CMC 1.8MH 1.5A 2LN TH Schaffner EMC Inc.	2,831	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	1.8 mH @ 400 Hz	1.5A	72mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.740 (18.80mm)
