Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
RN204-1.5-02-1M6 CMC 1.6MH 1.5A 2LN TH Schaffner EMC Inc.	331	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	1.6 mH @ 10 kHz	1.5A	96mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 L x 0.354 W (14.00mm x 9.00mm)	0.575 (14.61mm)
RN222-0.5-02-56M CMC 56MH 500MA 2LN TH Schaffner EMC Inc.	200	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	56 mH @ 10 kHz	500mA	1.8Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)
RN222-0.6-02-47M CMC 47MH 600MA 2LN TH Schaffner EMC Inc.	161	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	47 mH @ 10 kHz	600mA	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)
RN122-0.5-02-56M CMC 56MH 500MA 2LN TH Schaffner EMC Inc.	119	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	56 mH @ 10 kHz	500mA	1.8Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN222-1.5-02-10M CMC 10MH 1.5A 2LN TH Schaffner EMC Inc.	268	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	1.5A	250mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)
RN222-1-02-18M CMC 18MH 1A 2LN TH Schaffner EMC Inc.	248	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	18 mH @ 10 kHz	1A	630mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)
RN122-1-02-10M CMC 10MH 1A 2LN TH Schaffner EMC Inc.	190	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	1A	560mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN122-2-02-5M0 CMC 5MH 2A 2LN TH Schaffner EMC Inc.	3,008	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	5 mH @ 10 kHz	2A	140mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN222-1-02-33M CMC 33MH 1A 2LN TH Schaffner EMC Inc.	3,671	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	33 mH @ 10 kHz	1A	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)
RN232-2.5-02-5M6 CMC 5.6MH 2.5A 2LN TH Schaffner EMC Inc.	221	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	5.6 mH @ 10 kHz	2.5A	86mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN142-0.5-02-82M CMC 82MH 500MA 2LN TH Schaffner EMC Inc.	3,658	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	82 mH @ 10 kHz	500mA	2.7Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
RN143-0.5-02-100M CMC 100MH 500MA 2LN TH Schaffner EMC Inc.	3,476	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	100 mH @ 10 kHz	500mA	2.9Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
RN142-4-02-3M3 CMC 3.3MH 4A 2LN TH Schaffner EMC Inc.	3,738	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	67mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
RN143-1-02-47M CMC 47MH 1A 2LN TH Schaffner EMC Inc.	2,873	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	47 mH @ 10 kHz	1A	890mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
RN152-2-02-18M CMC 18MH 2A 2LN TH Schaffner EMC Inc.	2,046	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	18 mH @ 10 kHz	2A	350mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.693 L x 1.646 W (43.00mm x 41.80mm)	0.996 (25.30mm)
RD6127-6-15M0 CMC 15MH 6A 2LN TH Schaffner EMC Inc.	3,883	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	15 mH @ 400 Hz	6A (Typ)	66.65mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.362 L x 2.362 W (60.00mm x 60.00mm)	1.398 (35.50mm)

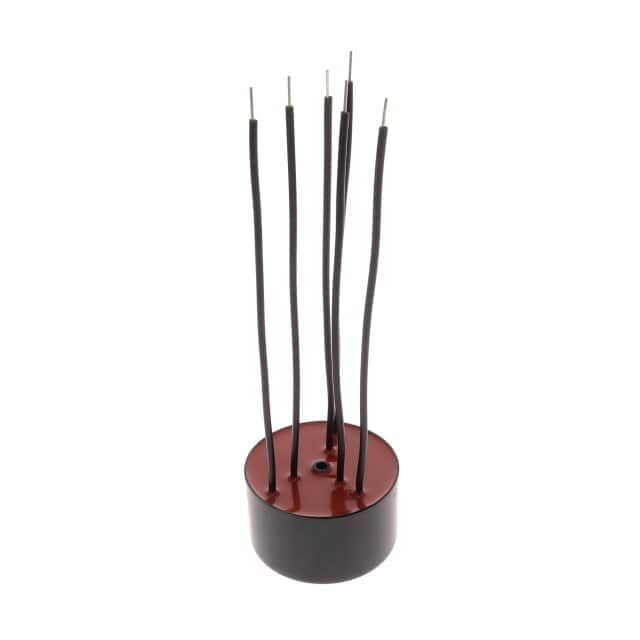

RD6137-6-7M5 CMC 7.5MH 6A 3LN TH Schaffner EMC Inc.	3,388	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	7.5 mH @ 400 Hz	6A (Typ)	49mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.362 L x 2.362 W (60.00mm x 60.00mm)	1.398 (35.50mm)
RD7127-6-25M0 CMC 25MH 6A 2LN TH Schaffner EMC Inc.	3,026	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	25 mH @ 400 Hz	6A (Typ)	84.2mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)
RD7127-10-14M0 CMC 14MH 10A 2LN TH Schaffner EMC Inc.	3,045	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	14 mH @ 1 kHz	10A (Typ)	33.5mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)
RD7127-16-5M7 CMC 5.7MH 16A 2LN TH Schaffner EMC Inc.	2,592	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	5.7 mH @ 400 Hz	16A (Typ)	14.1mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)
