Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

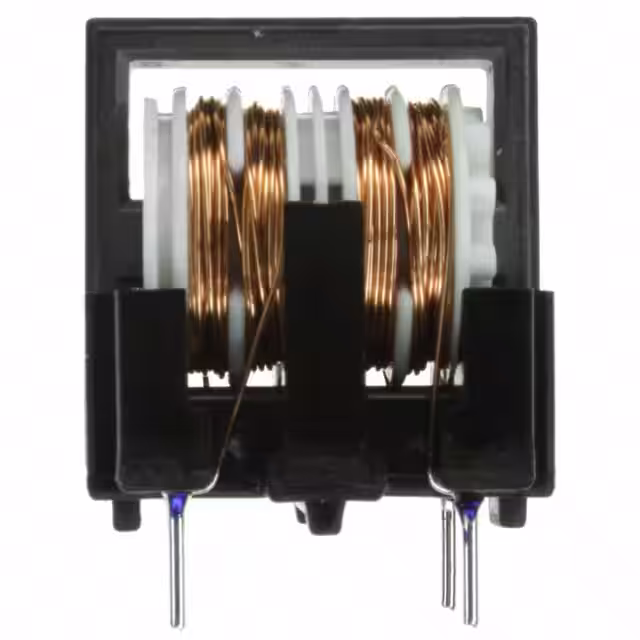

EV20-0.5-02-18M CMC 18MH 500MA 2LN TH Schaffner EMC Inc.	3,543	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	18 mH @ 400 Hz	500mA	725mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.630 W (21.00mm x 16.00mm)	1.024 (26.00mm)

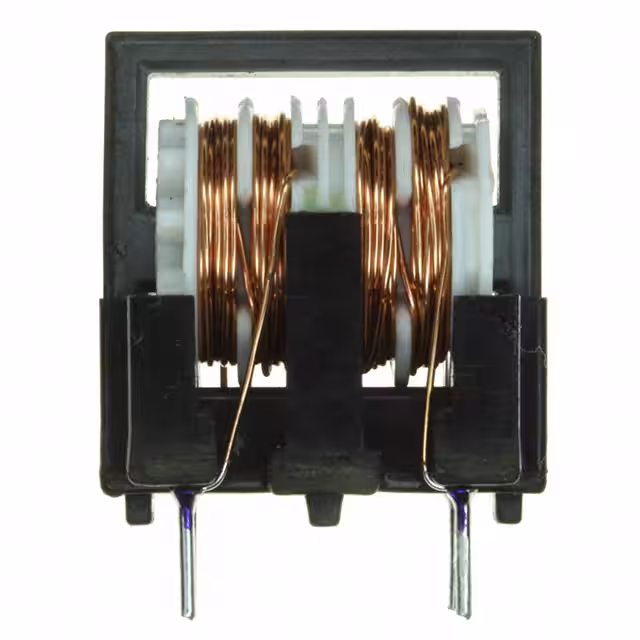

EV20-0.8-02-5M6 CMC 5.6MH 800MA 2LN TH Schaffner EMC Inc.	3,494	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	5.6 mH @ 400 Hz	800mA	245mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.630 W (21.00mm x 16.00mm)	1.024 (26.00mm)

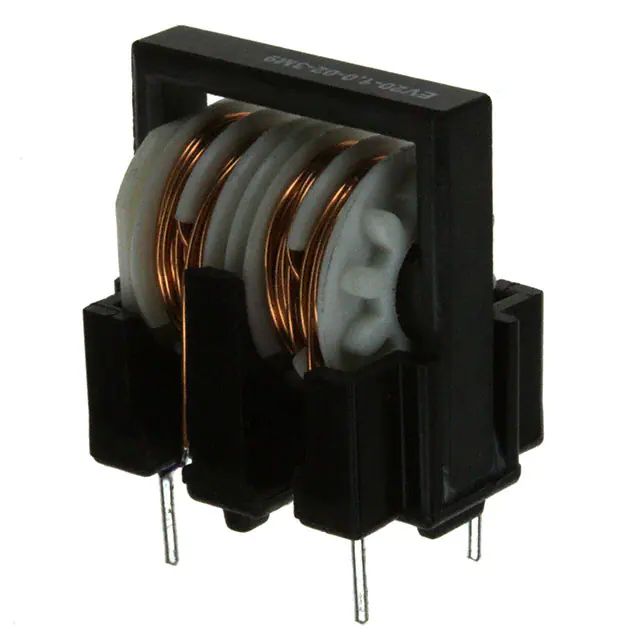

EV20-1.0-02-3M9 CMC 3.9MH 1A 2LN TH Schaffner EMC Inc.	2,064	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	3.9 mH @ 400 Hz	1A	168mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.630 W (21.00mm x 16.00mm)	1.024 (26.00mm)

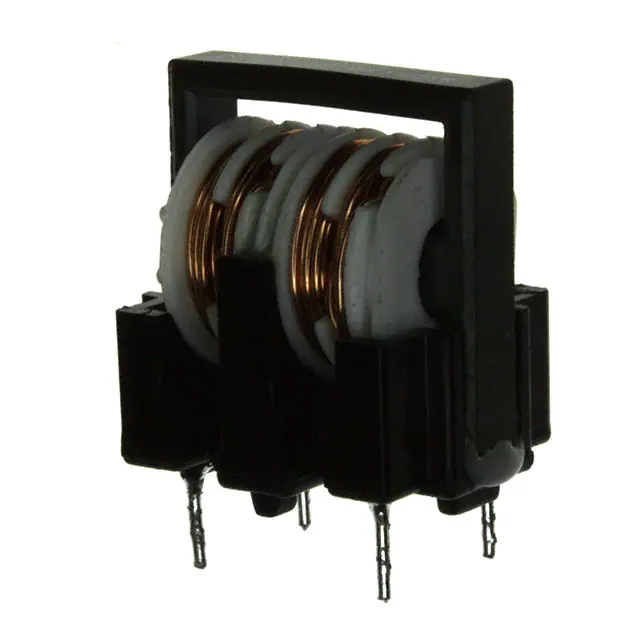

EV20-1.5-02-1M8 CMC 1.8MH 1.5A 2LN TH Schaffner EMC Inc.	3,170	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	1.8 mH @ 10 kHz	1.5A	72mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.630 W (21.00mm x 16.00mm)	1.024 (26.00mm)

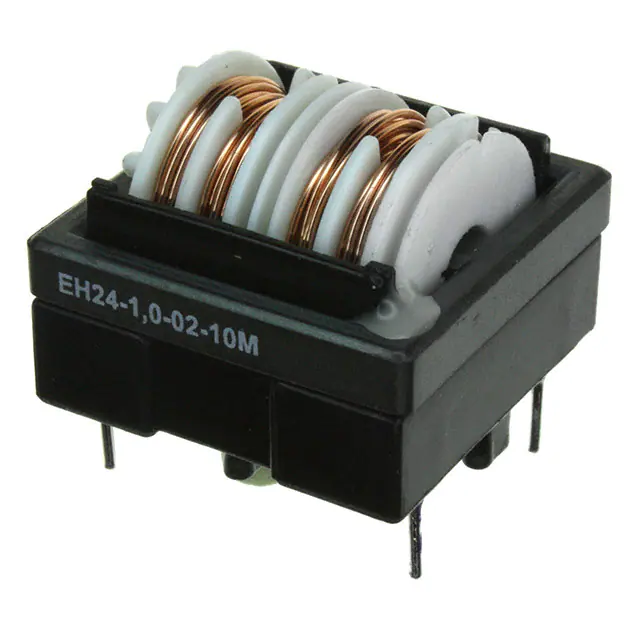

EH24-1.0-02-10M CMC 10MH 1A 2LN TH Schaffner EMC Inc.	3,478	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	10 mH @ 10 kHz	1A	244mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.945 L x 0.945 W (24.00mm x 24.00mm)	0.827 (21.00mm)

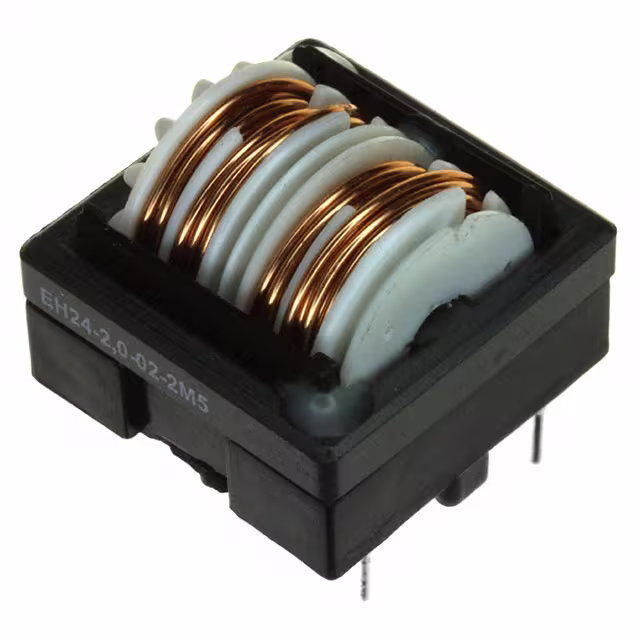

EH24-2.0-02-2M5 CMC 2.5MH 2A 2LN TH Schaffner EMC Inc.	2,486	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	2.5 mH @ 400 Hz	2A	62mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.945 L x 0.945 W (24.00mm x 24.00mm)	0.827 (21.00mm)

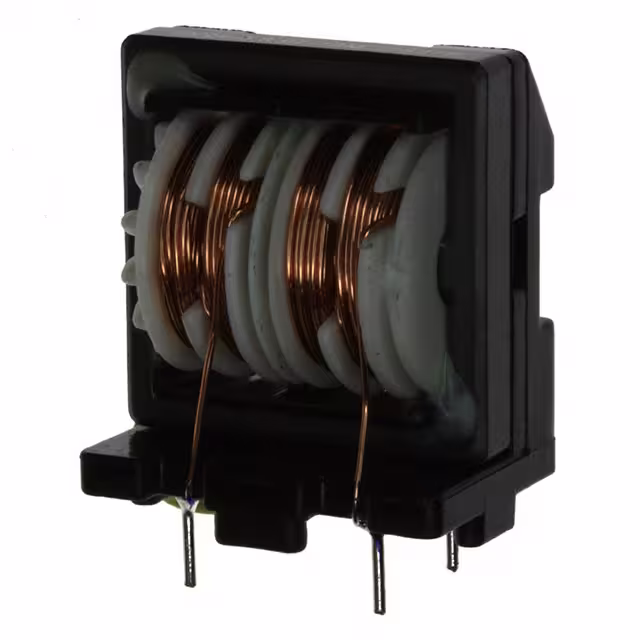

EV24-0.8-02-18M CMC 18MH 800MA 2LN TH Schaffner EMC Inc.	3,809	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	18 mH @ 10 kHz	800mA	438mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.969 L x 0.685 W (24.60mm x 17.40mm)	1.185 (30.10mm)

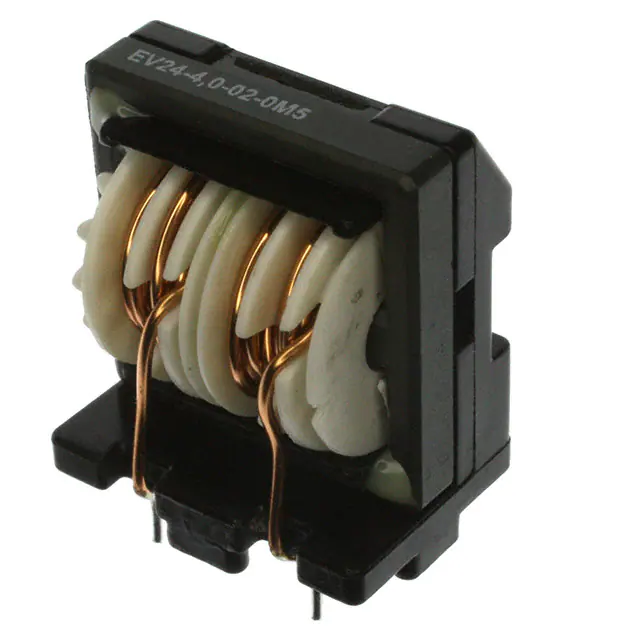

EV24-4.0-02-0M5 CMC 500UH 4A 2LN TH Schaffner EMC Inc.	3,528	-	RFQ	Ficha técnica	Bulk,Bulk	EV	Active	Power Line	2	-	500 µH @ 400 Hz	4A	16mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.969 L x 0.685 W (24.60mm x 17.40mm)	1.185 (30.10mm)

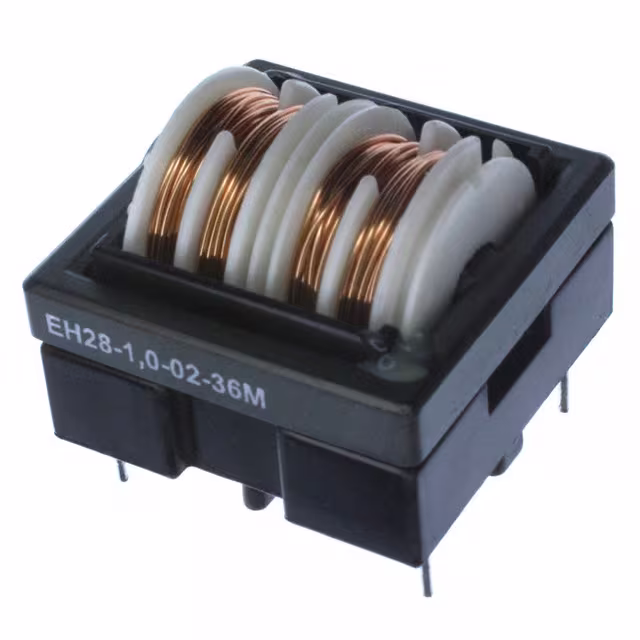

EH28-1.0-02-36M CMC 36MH 1A 2LN TH Schaffner EMC Inc.	3,272	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	36 mH @ 400 Hz	1A	591mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)

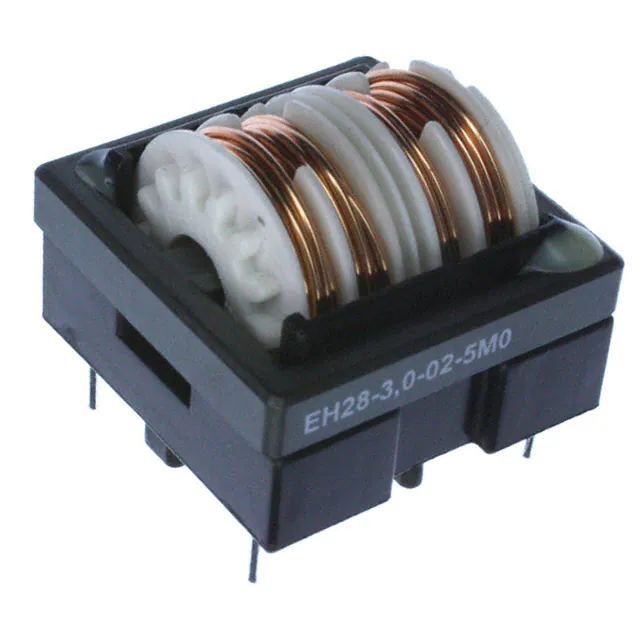

EH28-3.0-02-5M0 CMC 5MH 3A 2LN TH Schaffner EMC Inc.	3,409	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	5 mH @ 400 Hz	3A	79mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)

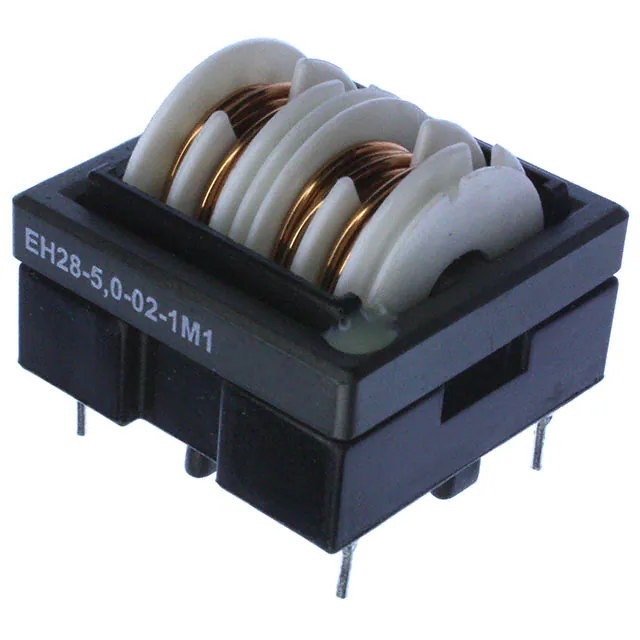

EH28-5.0-02-1M1 CMC 1.1MH 5A 2LN TH Schaffner EMC Inc.	2,816	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	1.1 mH @ 400 Hz	5A	27mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)

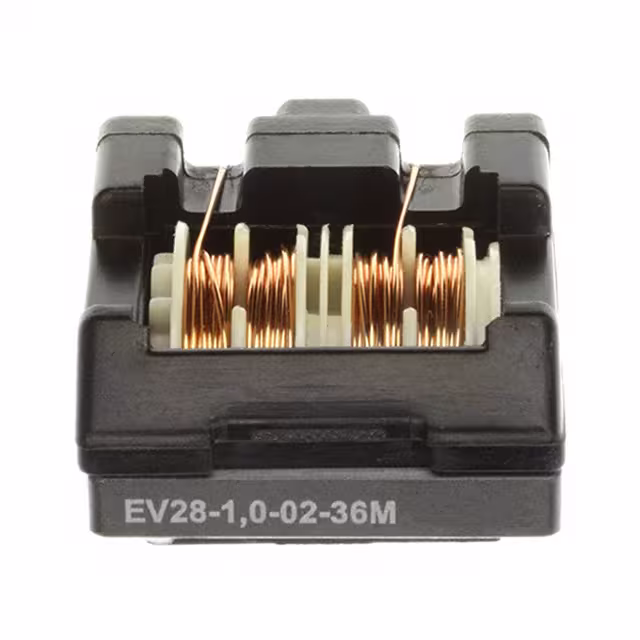

EV28-1.0-02-36M CMC 36MH 1A 2LN TH Schaffner EMC Inc.	2,472	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	36 mH @ 400 Hz	1A	591mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)

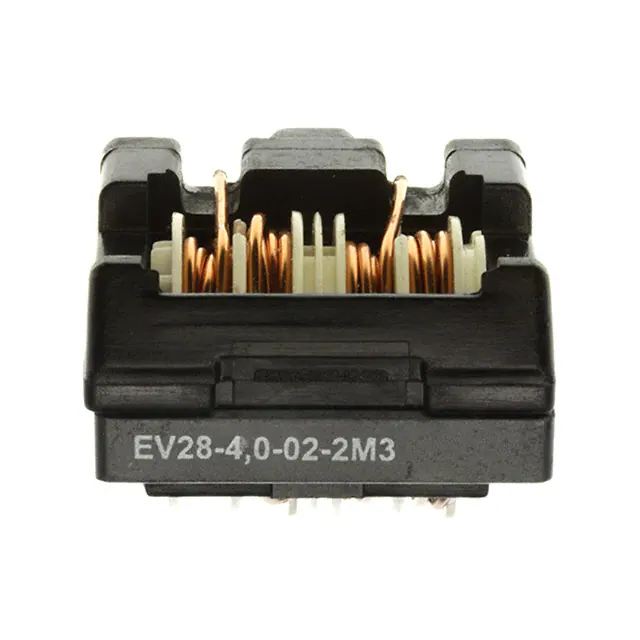

EV28-4.0-02-2M3 CMC 2.3MH 4A 2LN TH Schaffner EMC Inc.	2,449	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	2.3 mH @ 10 kHz	4A	40mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)

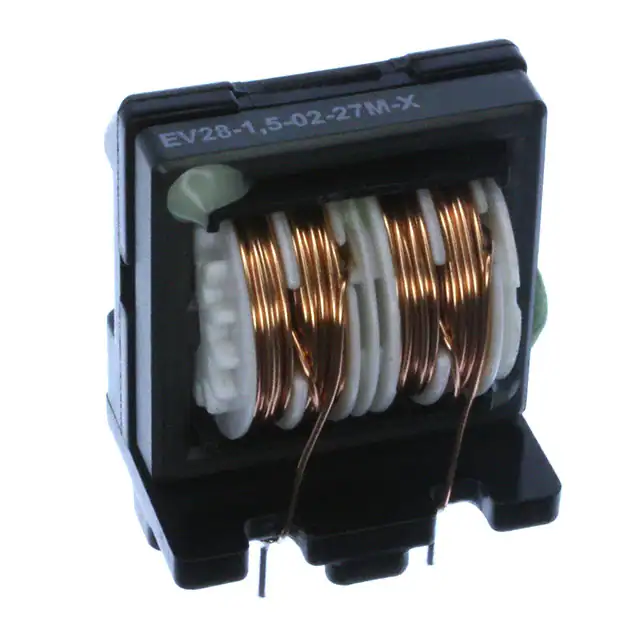

EV28-1.5-02-27M-X CMC 27MH 1.5A 2LN TH Schaffner EMC Inc.	2,296	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	27 mH @ 10 kHz	1.5A	287mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)

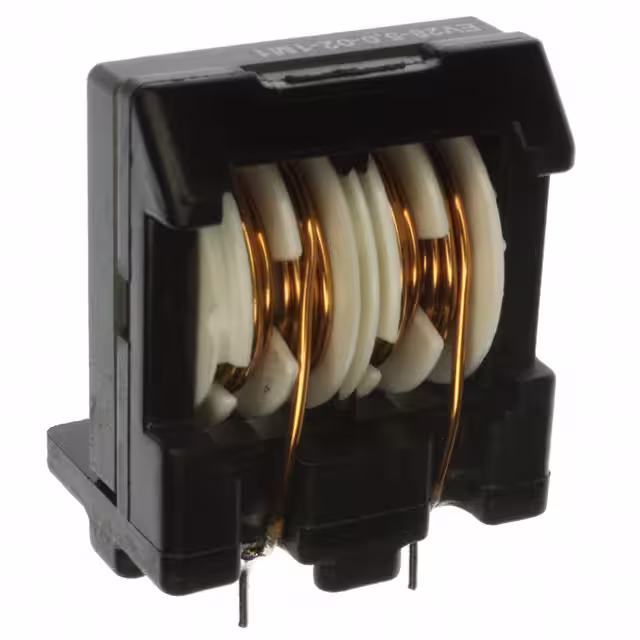

EV28-5.0-02-1M1 CMC 1.1MH 5A 2LN TH Schaffner EMC Inc.	2,133	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	1.1 mH @ 400 Hz	5A	27mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)
RN112-0.5-02 CMC 27MH 500MA 2LN TH Schaffner EMC Inc.	3,631	-	RFQ	Ficha técnica	Tray	RN	Obsolete	Power Line	2	-	27 mH @ 10 kHz	500mA (Typ)	1.25Ohm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN114-2-02 CMC 4.2MH 2A 2LN TH Schaffner EMC Inc.	2,470	-	RFQ	Ficha técnica	Tray	RN	Obsolete	Power Line	2	-	4.2 mH @ 1 kHz	2A (Typ)	102mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN214-0.8-02 CMC 27MH 800MA 2LN TH Schaffner EMC Inc.	2,360	-	RFQ	Ficha técnica	Tube	RN	Obsolete	Power Line	2	-	27 mH @ 10 kHz	800mA (Typ)	500mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)

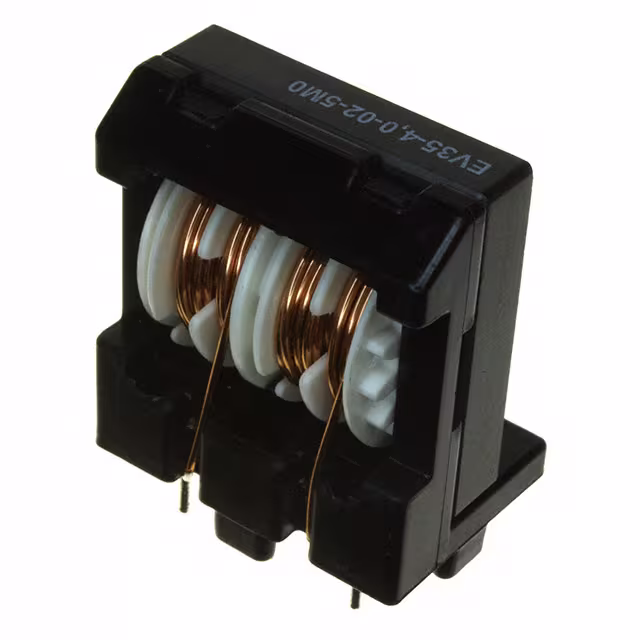

EV35-4.0-02-5M0 CMC 5MH 4A 2LN TH Schaffner EMC Inc.	3,704	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	5 mH @ 10 kHz	4A	53mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 0.965 W (36.00mm x 24.50mm)	1.681 (42.70mm)
EV35-1.0-02-90M CMC 90MH 1A 2LN TH Schaffner EMC Inc.	2,392	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	90 mH @ 400 Hz	1A	628mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 0.965 W (36.00mm x 24.50mm)	1.681 (42.70mm)
