Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

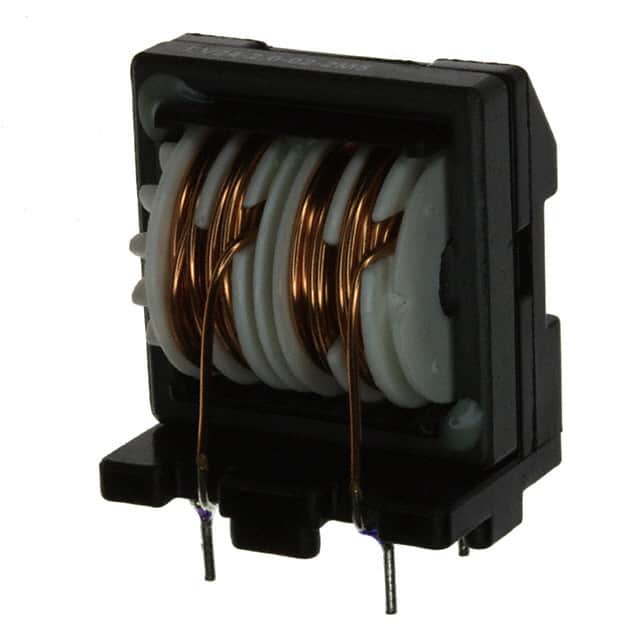

EV24-2.0-02-2M5 CMC 2.5MH 2A 2LN TH Schaffner EMC Inc.	2,553	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	2.5 mH @ 10 kHz	2A	62mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.969 L x 0.685 W (24.60mm x 17.40mm)	1.185 (30.10mm)
RN212-1.2-02-6M8 CMC 6.8MH 1.2A 2LN TH Schaffner EMC Inc.	3,868	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.2A	250mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)

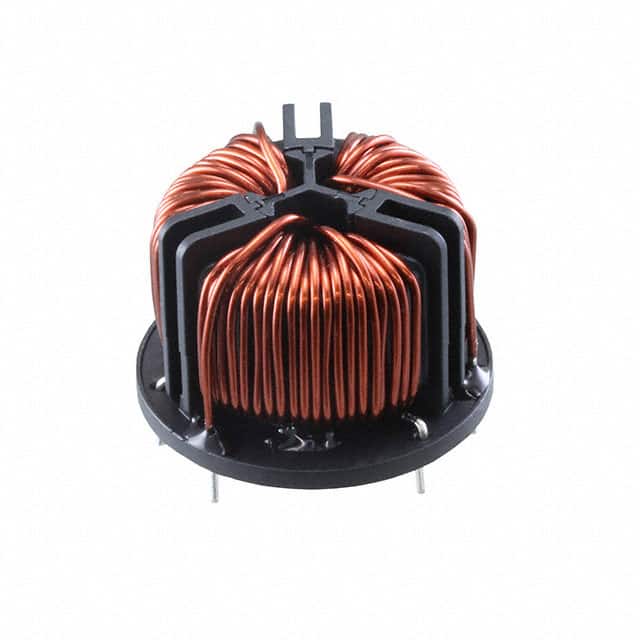

RT8132-6-6M0 CMC 6MH 6A 3LN TH Schaffner EMC Inc.	2,167	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	3	-	6 mH @ 100 kHz	6A	27mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	-	1.339 (34.00mm)
RT8522-16-4M0 CMC 4MH 16A 2LN TH Schaffner EMC Inc.	2,342	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	2	-	4 mH @ 100 kHz	16A	10mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	1.969 L x 1.260 W (50.00mm x 32.00mm)	2.047 (52.00mm)
RT8532-20-2M5 CMC 2.5MH 20A 3LN TH Schaffner EMC Inc.	2,229	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	3	-	2.5 mH @ 100 kHz	20A	7mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	2.205 L x 1.457 W (56.00mm x 37.00mm)	2.362 (60.00mm)

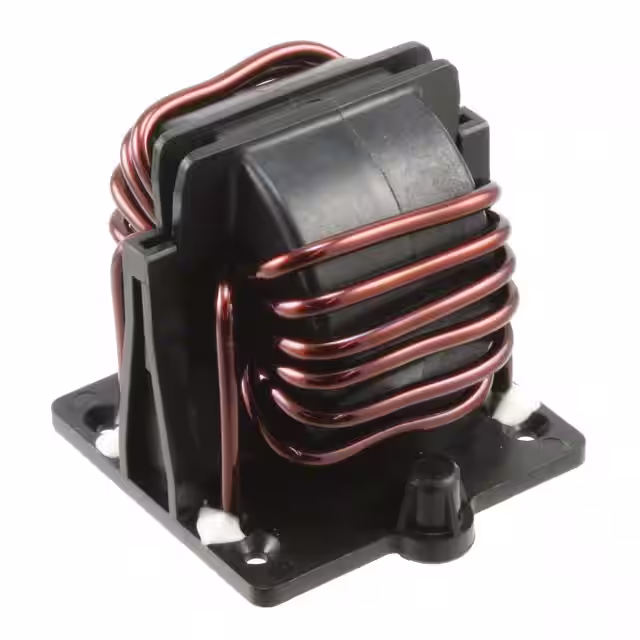

RB6522-16-1M0 CMC 1MH 16A 2LN TH Schaffner EMC Inc.	2,052	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	2	-	1 mH @ 400 Hz	16A	4.6mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	1.846 L x 1.772 W (46.90mm x 45.00mm)	2.047 (52.00mm)

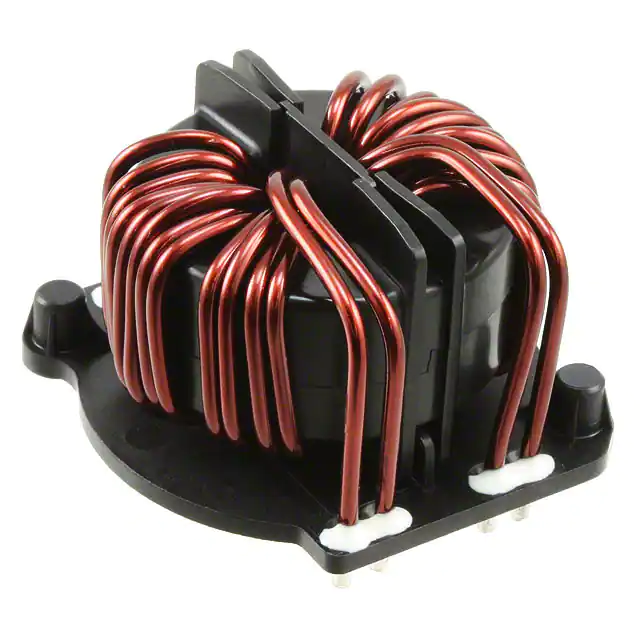

RB6122-50-0M3 CMC 250UH 50A 2LN TH Schaffner EMC Inc.	2,734	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	2	-	250 µH @ 400 Hz	50A	0.9mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.402 L x 2.276 W (61.00mm x 57.80mm)	1.496 (38.00mm)
RN202-0.3-02-22M CMC 22MH 300MA 2LN TH Schaffner EMC Inc.	3,942	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	22 mH @ 10 kHz	300mA	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.346 W (18.20mm x 8.80mm)	0.543 (13.80mm)
RN218-1.7-02-6M8 CMC 6.8MH 1.7A 2LN TH Schaffner EMC Inc.	2,113	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.7A	180mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN216-1-02-15M CMC 15MH 1A 2LN TH Schaffner EMC Inc.	2,582	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	1A	260mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
RN222-2-02-6M8 CMC 6.8MH 2A 2LN TH Schaffner EMC Inc.	3,320	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	2A	156mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)
RN143-6-02-1M8 CMC 1.8MH 6A 2LN TH Schaffner EMC Inc.	3,415	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	1.8 mH @ 10 kHz	6A	20mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
RT8532-6-6M0 CMC 6MH 6A 3LN TH Schaffner EMC Inc.	3,409	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	3	-	6 mH @ 100 kHz	6A	27mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	1.732 L x 1.260 W (44.00mm x 32.00mm)	1.850 (47.00mm)
RT8522-8-8M0 CMC 8MH 8A 2LN TH Schaffner EMC Inc.	2,350	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	2	-	8 mH @ 100 kHz	8A	21mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	1.693 L x 1.260 W (43.00mm x 32.00mm)	1.732 (44.00mm)
RT8122-10-6M0 CMC 6MH 10A 2LN TH Schaffner EMC Inc.	3,529	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	2	-	6 mH @ 100 kHz	10A	16mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	1.772 Dia (45.00mm)	1.339 (34.00mm)
RT8522-10-6M0 CMC 6MH 10A 2LN TH Schaffner EMC Inc.	3,543	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	2	-	6 mH @ 100 kHz	10A	16mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	1.693 L x 1.260 W (43.00mm x 32.00mm)	1.732 (44.00mm)
RT8122-6-10M0 CMC 10MH 6A 2LN TH Schaffner EMC Inc.	3,735	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	2	-	10 mH @ 100 kHz	6A	33mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	1.772 Dia (45.00mm)	1.339 (34.00mm)
RT8122-16-4M0 CMC 4MH 16A 2LN TH Schaffner EMC Inc.	2,682	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	2	-	4 mH @ 100 kHz	16A	10mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	2.008 Dia (51.00mm)	1.299 (33.00mm)
RT8132-10-4M0 CMC 4MH 10A 3LN TH Schaffner EMC Inc.	2,910	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	3	-	4 mH @ 100 kHz	10A	15mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	2.008 Dia (51.00mm)	1.299 (33.00mm)
RT8132-12-3M6 CMC 3.6MH 12A 3LN TH Schaffner EMC Inc.	3,339	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	3	-	3.6 mH @ 100 kHz	12A	12mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	2.008 Dia (51.00mm)	1.299 (33.00mm)
