Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
RD7127-25-2M8 CMC 2.8MH 25A 2LN TH Schaffner EMC Inc.	2,288	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	2.8 mH @ 400 Hz	25A (Typ)	6.4mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)

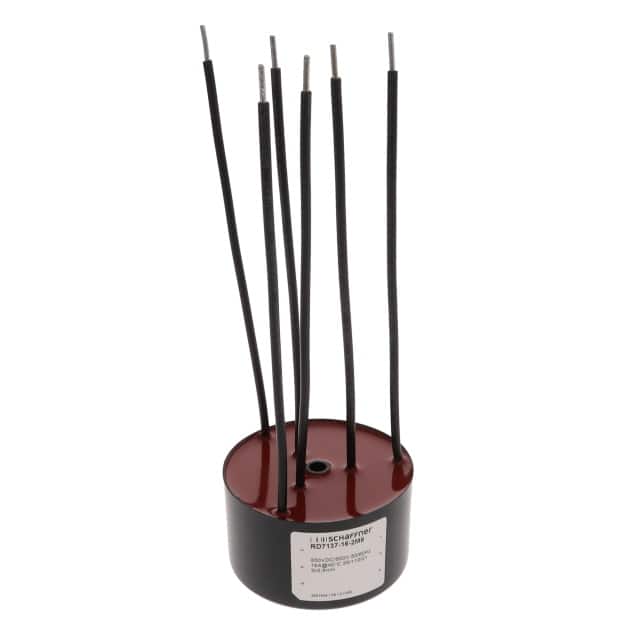

RD7137-16-2M8 CMC 2.8MH 16A 3LN TH Schaffner EMC Inc.	3,386	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	2.8 mH @ 1 kHz	16A (Typ)	10.7mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)

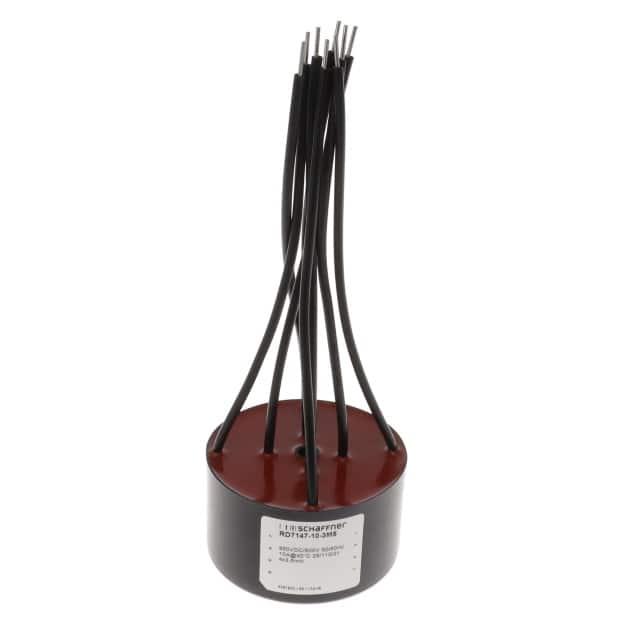

RD7147-10-3M5 CMC 3.5MH 10A 4LN TH Schaffner EMC Inc.	2,943	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	3.5 mH @ 400 Hz	10A (Typ)	19.1mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)

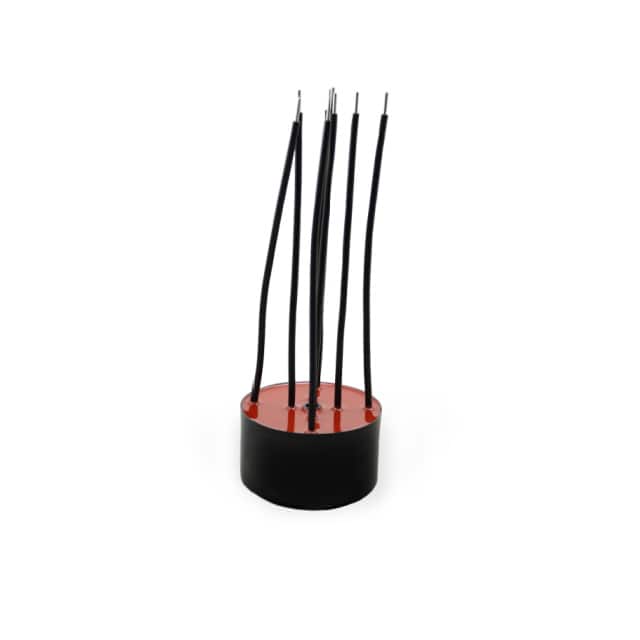

RD7147-16-1M5 CMC 1.5MH 16A 4LN TH Schaffner EMC Inc.	2,981	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	1.5 mH @ 400 Hz	16A (Typ)	8.5mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)

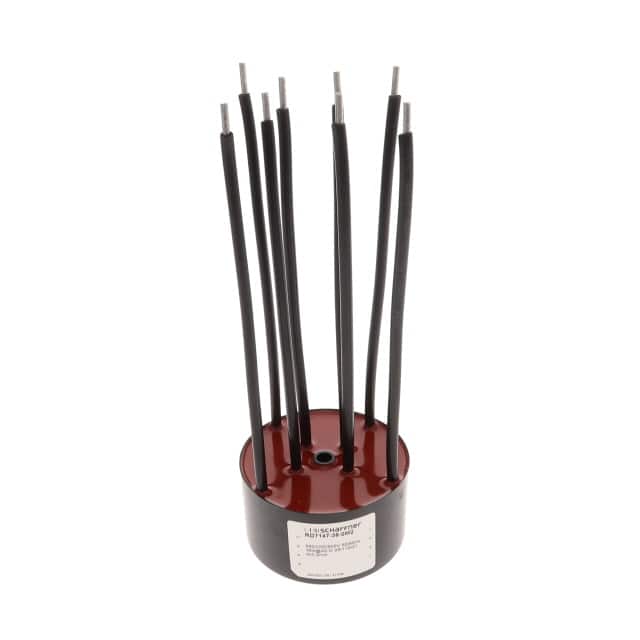

RD7147-36-0M2 CMC 200UH 36A 4LN TH Schaffner EMC Inc.	3,465	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	200 µH @ 400 Hz	36A (Typ)	2.3mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)
RD8137-16-5M0 CMC 5MH 16A 3LN TH Schaffner EMC Inc.	3,232	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	5 mH @ 400 Hz	16A (Typ)	11.6mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)
RD8137-25-2M5 CMC 2.5MH 25A 3LN TH Schaffner EMC Inc.	3,506	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	2.5 mH @ 400 Hz	25A (Typ)	6.4mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)
RD8137-50-0M6 CMC 600UH 50A 3LN TH Schaffner EMC Inc.	3,584	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	600 µH @ 400 Hz	50A (Typ)	2.15mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)

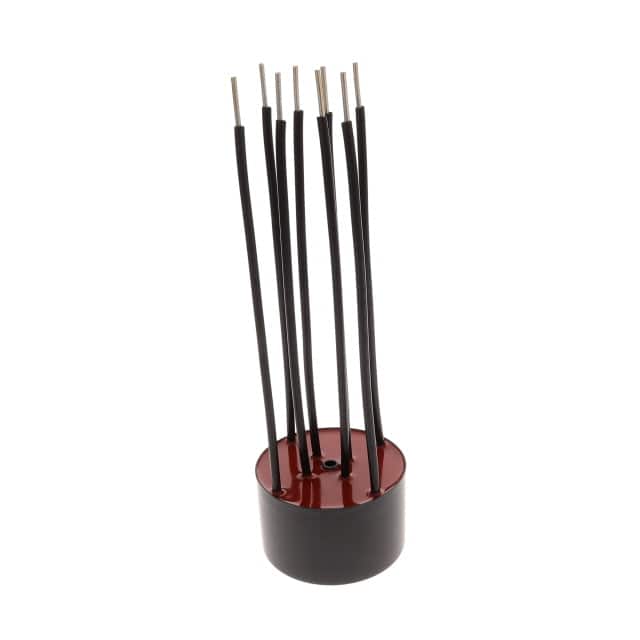

RD8147-25-1M3 CMC 1.3MH 25A 4LN TH Schaffner EMC Inc.	3,368	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	1.3 mH @ 400 Hz	25A (Typ)	5.05mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)

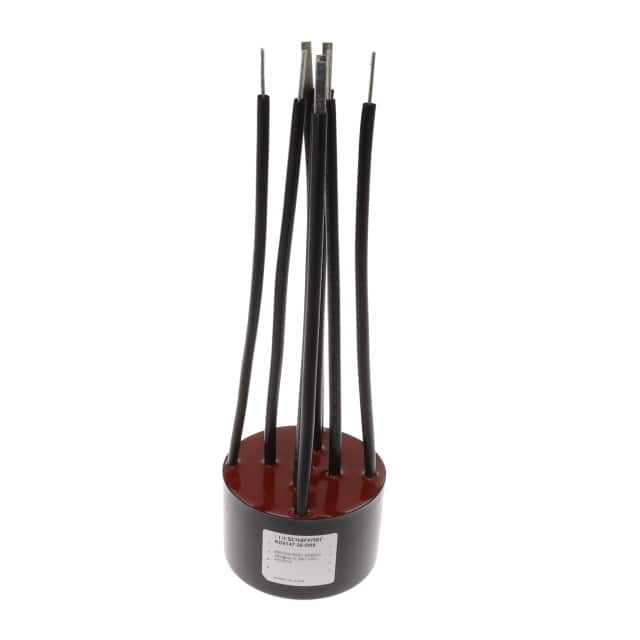

RD8147-36-0M8 CMC 800UH 36A 4LN TH Schaffner EMC Inc.	2,854	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	800 µH @ 1 kHz	36A (Typ)	3mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)

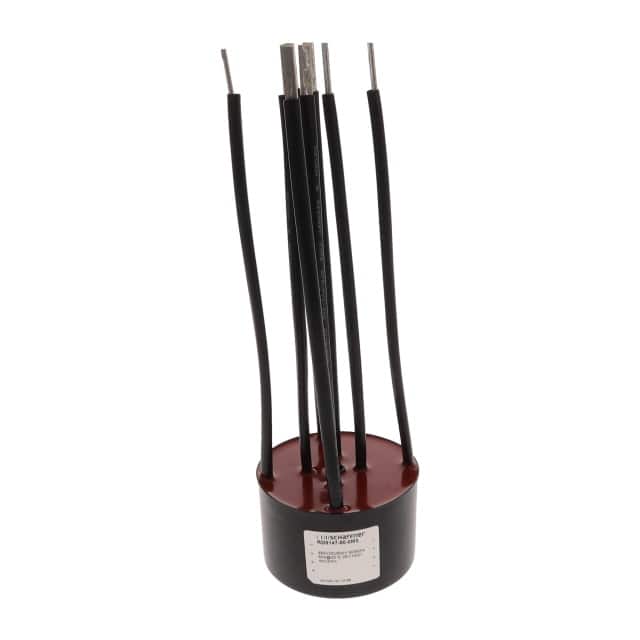

RD8147-50-0M3 CMC 300UH 50A 4LN TH Schaffner EMC Inc.	2,049	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	300 µH @ 400 Hz	50A (Typ)	1.75mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)

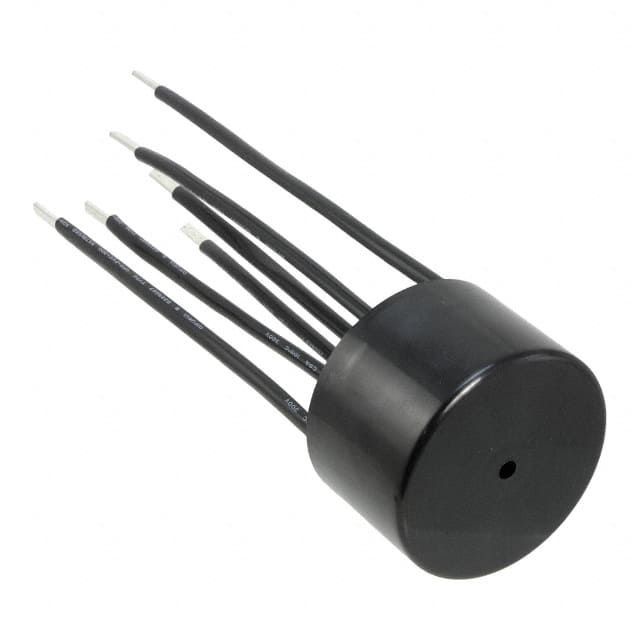

RD8137-64-0M5 CMC 500UH 64A 3LN TH Schaffner EMC Inc.	2,571	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	500 µH @ 1 kHz	64A (Typ)	1.35mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)

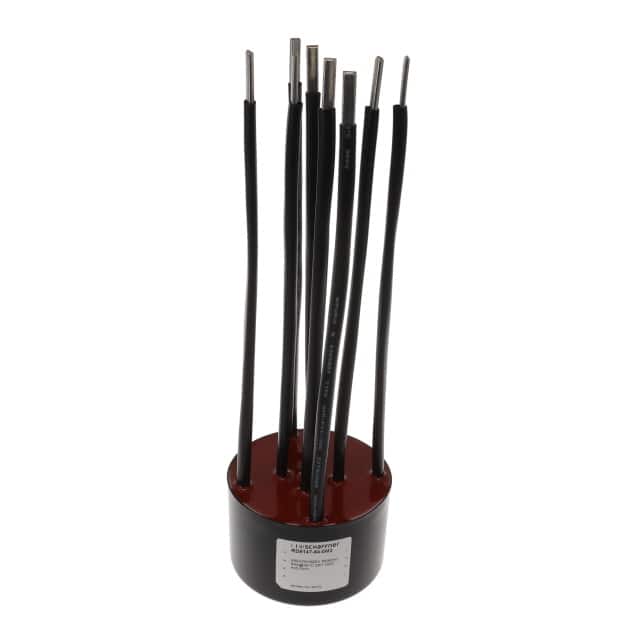

RD8147-64-0M2 CMC 200UH 64A 4LN TH Schaffner EMC Inc.	2,358	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	4	-	200 µH @ 1 kHz	64A (Typ)	1.1mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)
RN214-1.5-02 CMC 6.8MH 1.5A 2LN TH Schaffner EMC Inc.	530	-	RFQ	Ficha técnica	Tray	RN	Obsolete	Power Line	2	-	6.8 mH @ 10 kHz	1.5A (Typ)	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
EH24-0.8-02-18M CMC 18MH 800MA 2LN TH Schaffner EMC Inc.	468	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	18 mH @ 400 Hz	800mA	438mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.945 L x 0.945 W (24.00mm x 24.00mm)	0.827 (21.00mm)
RN114-1.5-02 CMC 6.8MH 1.5A 2LN TH Schaffner EMC Inc.	2,292	-	RFQ	Ficha técnica	Tray	RN	Obsolete	Power Line	2	-	6.8 mH @ 10 kHz	1.5A (Typ)	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)

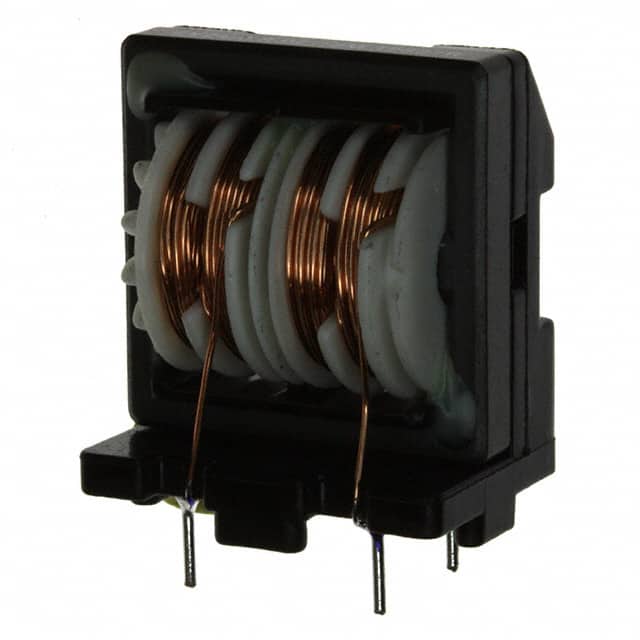

EV24-0.5-02-44M CMC 44MH 500MA 2LN TH Schaffner EMC Inc.	2,354	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	44 mH @ 400 Hz	500mA	1.25Ohm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.969 L x 0.685 W (24.60mm x 17.40mm)	1.185 (30.10mm)

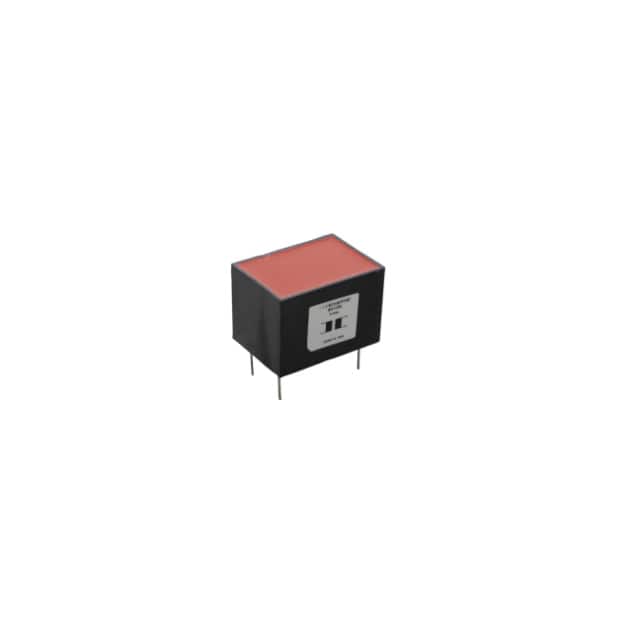

RI111PC CMC 6A 2LN TH Schaffner EMC Inc.	3,389	-	RFQ	Ficha técnica	Tray	RI	Active	Power Line	2	-	-	6A (Typ)	42mOhm (Typ)	-	500V	-25°C ~ 110°C	-	-	-	Through Hole	1.929 L x 1.378 W (49.00mm x 35.00mm)	1.350 (34.30mm)
RN242-6-02-1M8 CMC 1.8MH 6A 2LN TH Schaffner EMC Inc.	2,142	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	1.8 mH @ 10 kHz	6A	20mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN214-1-02-15M CMC 15MH 1A 2LN TH Schaffner EMC Inc.	3,737	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	1A	370mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
