Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

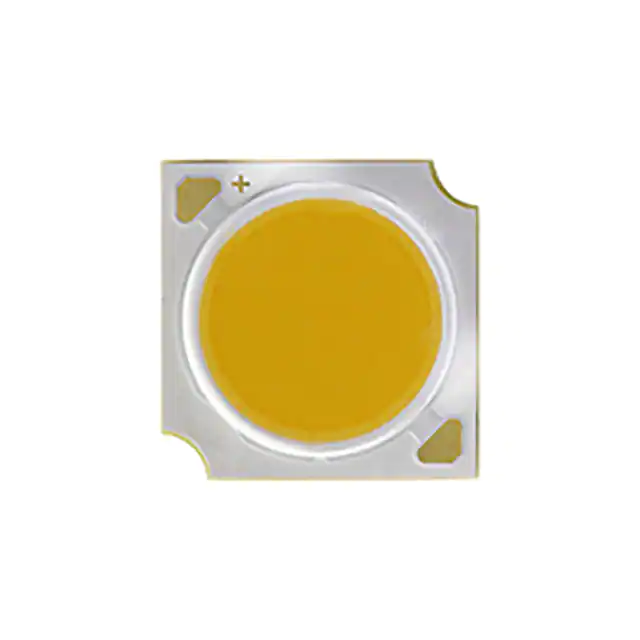

CMT1412-0000-00PN0U0A30GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
2,071 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMT1412 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1606lm (Typ) | 350mA | 85°C | 34.5V | 133 lm/W | 630mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia |
|
CXA1830-0000-000N0HT450FLED COB CXA1830 COOL WHT SQUARE CreeLED, Inc. |
2,431 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 37V | 120 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|

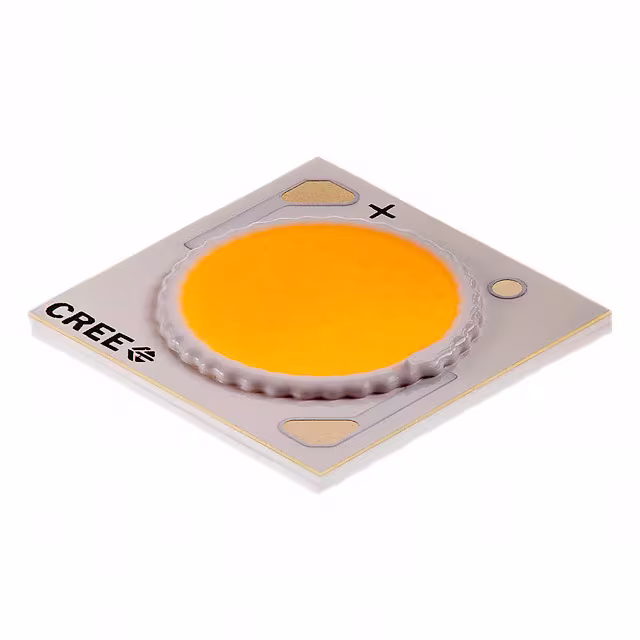

CXA1816-0000-000N00N435FLED COB CXA1816 WARM WHT SQUARE CreeLED, Inc. |
2,157 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 450mA | 85°C | 37V | 106 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA2530-0000-000N0HU250FLED COB CXA2530 COOL WHT SQUARE CreeLED, Inc. |
3,654 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CMA1825-0000-000N0H0A30GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
3,551 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1825 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3370lm (Typ) | 700mA | 85°C | 34.6V | 139 lm/W | 1.6A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CMA1825-0000-000N0U0A40GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
3,217 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1825 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3063lm (Typ) | 700mA | 85°C | 34.6V | 126 lm/W | 1.6A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CXA1830-0000-000N0HT440GLED COB CXA1830 4000K WHITE SMD CreeLED, Inc. |
3,630 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CMT1420-0000-00PN0U0A30GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
2,766 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMT1420 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2480lm (Typ) | 550mA | 85°C | 34.4V | 131 lm/W | 1.05A | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia |
|
|
CXA1816-0000-000N00P450FLED COB CXA1816 COOL WHT SQUARE CreeLED, Inc. |
2,862 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 450mA | 85°C | 37V | 122 lm/W | 900mA | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA2520-0000-000N0YM430HLED ARRAY XLAMP CXA2520 19MM WHT CreeLED, Inc. |
2,797 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 550mA | 85°C | 36V | 78 lm/W | 1.25A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N0HU240FLED COB CXA2530 NEUTRAL WHITE SQ CreeLED, Inc. |
2,189 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CMA1825-0000-00PN0U0A40GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
3,422 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1825 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3273lm (Typ) | 700mA | 85°C | 34.6V | 135 lm/W | 1.067A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CMA1825-0000-00PN0U0A30GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
3,219 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1825 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3202lm (Typ) | 700mA | 85°C | 34.6V | 132 lm/W | 1.067A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CMT1922-0000-00PN0U0A40GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
3,007 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMT1922 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2845lm (Typ) | 600mA | 85°C | 34.2V | 139 lm/W | 785mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia |
|
|
CMT1925-0000-00PN0U0A30GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
2,186 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMT1925 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3211lm (Typ) | 700mA | 85°C | 34.2V | 134 lm/W | 915mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia |
|
|
CMT1925-0000-00PN0U0A40GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
3,704 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMT1925 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3282lm (Typ) | 700mA | 85°C | 34.2V | 137 lm/W | 915mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia |
|
CXA2540-0000-000N00W250FLED HB XLAMP CXA2540 CreeLED, Inc. |
3,608 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 37V | 124 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00W257FLED ARRAY XLAMP CXA2540 19MM WHT CreeLED, Inc. |
3,935 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 37V | 124 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N00T227FCREE XLAMP CXA2530 19MM WHITE CreeLED, Inc. |
100 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00X250FLED COB CXA2540 COOL WHT SQUARE CreeLED, Inc. |
2,186 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.1A | 85°C | 37V | 143 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
