Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

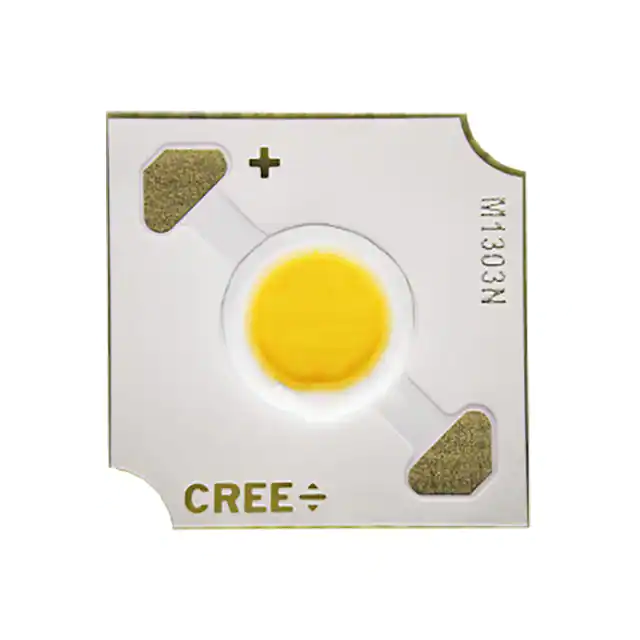

CMA1303-0000-000C0U0A27GLED COB CMA1304 2700K WHT SMD CreeLED, Inc. |
2,669 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 630lm (Typ) | 700mA | 85°C | 9.35V | 96 lm/W | 1.4A | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia |
|
CXB1507-0000-000F0UF430GLED COB CXB1507 3000K WHT SMD CreeLED, Inc. |
2,995 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 400mA | 85°C | 18V | 105 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CMA1303-0000-000C0U0A40GLED COB CMA1304 4000K WHT SMD CreeLED, Inc. |
3,965 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 709lm (Typ) | 700mA | 85°C | 9.35V | 108 lm/W | 1.4A | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia |
|
|
CMA1303-0000-000C0H0A30GLED COB CMA1304 3000K WHT SMD CreeLED, Inc. |
3,647 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 780lm (Typ) | 700mA | 85°C | 9.35V | 119 lm/W | 1.4A | 80 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia |
|
CXA1304-0000-000C0YA230FLED COB CXA1304 WARM WHT SQUARE CreeLED, Inc. |
3,007 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 343lm (330lm ~ 355lm) | 400mA | 85°C | 9V | 95 lm/W | 1A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
CXA1512-0000-000F00M40E5LED COB CXA1512 NEUTRAL WHITE SQ CreeLED, Inc. |
3,219 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 1538lm (1485lm ~ 1590lm) | 700mA | 85°C | 18V | 122 lm/W | 1.2A | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000N00N20E3LED ARRAY XLAMP CXA1512 WHITE CreeLED, Inc. |
3,557 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1650lm (1590lm ~ 1710lm) | 350mA | 85°C | 37V | 127 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000N00N20E1LED ARRAY XLAMP CXA1512 WHITE CreeLED, Inc. |
2,398 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 1650lm (1590lm ~ 1710lm) | 350mA | 85°C | 37V | 127 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000F0HM240FLED COB CXA1512 NEUTRAL WHITE SQ CreeLED, Inc. |
3,120 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 700mA | 85°C | 18V | 114 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000N0HM240GLED COB CXA1512 4000K WHITE SMD CreeLED, Inc. |
100 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 36V | 114 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000N00K427GLED COB CXA1512 2700K WHITE SMD CreeLED, Inc. |
2,057 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 36V | 106 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000N00M235GLED COB CXA1512 3500K WHITE SMD CreeLED, Inc. |
3,436 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 36V | 114 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000F0HM440FLED COB CXA1512 NEUTRAL WHITE SQ CreeLED, Inc. |
2,663 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 700mA | 85°C | 18V | 122 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXA1507-0000-000F0YD40E7LED COB CXA1507 WARM WHT SQUARE CreeLED, Inc. |
2,771 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 570lm (550lm ~ 590lm) | 400mA | 85°C | 18V | 79 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000N00M230HLED COB CXA1512 WARM WHT SQUARE CreeLED, Inc. |
2,835 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 37V | 111 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|

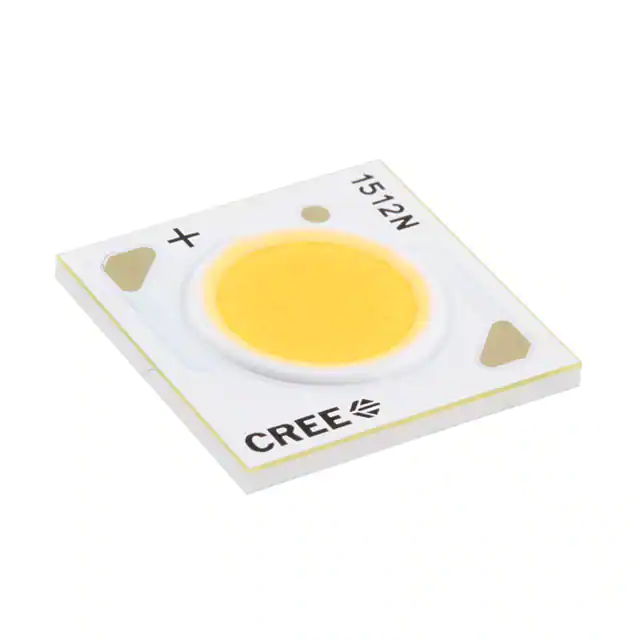

CXB1512-0000-000N0UK430GLED ARRAY 9MM 3000K 90CRI 1411LM CreeLED, Inc. |
3,330 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 36V | 106 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0HM427GLED ARRAY 9MM 2700K 80CRI 1485LM CreeLED, Inc. |
3,939 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 36V | 122 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000F0UK227GLED COB CXB1512 2700K WHT SMD CreeLED, Inc. |
3,370 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0HM430GLED ARRAY 9MM 3000K 80CRI 1485LM CreeLED, Inc. |
2,994 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 36V | 122 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000N00K20E7LED COB CXA1512 WARM WHT SQUARE CreeLED, Inc. |
3,722 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 37V | 96 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
