Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1512-0000-000N0YJ230GLED COB CXA1512 3000K WHITE SMD CreeLED, Inc. |
3,147 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXA1830-0000-000N00U20E3LED COB CXA1830 COOL WHT SQUARE CreeLED, Inc. |
2,849 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.4A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
CXA2530-0000-000N00T20E5CREE XLAMP CXA2530 19MM WHITE CreeLED, Inc. |
100 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXA1507-0000-000F0YE227FLED COB CXA1507 2700K WHITE SMD CreeLED, Inc. |
2,057 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 400mA | 85°C | 18V | 85 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA2530-0000-000N00T230HLED XLAMP CXA2530 WHT 19MM CreeLED, Inc. |
3,785 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N00T230GLED COB CXA2530 3000K WHITE SMD CreeLED, Inc. |
3,535 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 36V | 115 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N00U20E5CREE XLAMP CXA2530 19MM WHITE CreeLED, Inc. |
3,728 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA1512-0000-000F0YJ430HLED COB CXA1512 WARM WHT SQUARE CreeLED, Inc. |
2,172 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 700mA | 85°C | 18V | 92 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1830-0000-000N00T230HLED COB CXA1830 WARM WHT SQUARE CreeLED, Inc. |
3,238 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3320lm (3220lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N00U240FLED COB CXA1830 NEUTRAL WHITE SQ CreeLED, Inc. |
3,445 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.4A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0YQ430HLED COB CXA1830 WARM WHT SQUARE CreeLED, Inc. |
2,297 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2780lm) | 800mA | 85°C | 37V | 79 lm/W | 1.4A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA2530-0000-000N0HT440GLED COB CXA2530 4000K WHITE SMD CreeLED, Inc. |
3,243 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CMA1825-0000-000N0H0A40GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
3,046 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1825 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3557lm (Typ) | 700mA | 85°C | 34.6V | 147 lm/W | 1.6A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CXA2530-0000-000N00T20E7CREE XLAMP CXA2530 19MM WHITE CreeLED, Inc. |
2,133 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXB2530-0000-000N0HT435HLED COB CXB2530 3500K WHT SMD CreeLED, Inc. |
2,116 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB2530 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXA2540-0000-000N00W40E3LED HB XLAMP CXA2540 CreeLED, Inc. |
2,307 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5408lm (5225lm ~ 5590lm) | 1.1A | 85°C | 37V | 133 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|

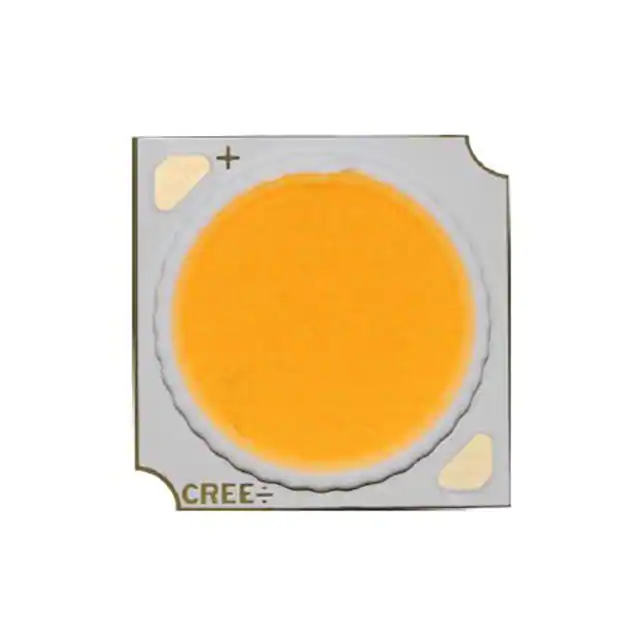

CMA1840-0000-000N0U0A30GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
3,414 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1840 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4481lm (Typ) | 1.1A | 85°C | 34.7V | 117 lm/W | 2.3A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CMA1840-0000-000N0U0A40GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
2,570 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1840 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4817lm (Typ) | 1.1A | 85°C | 34.7V | 126 lm/W | 2.3A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
CXB1310-0000-000N0UJ430GLED COB XLAMP CXB1310 3000K SQ CreeLED, Inc. |
2,572 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1310 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 350mA | 85°C | 36V | 92 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia |
|
CXA2540-0000-000N0YU230HLED COB CXA2540 WARM WHT SQUARE CreeLED, Inc. |
3,147 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 1.1A | 85°C | 37V | 94 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
