Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMU2258-0000-000P0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
100 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMU2258 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 6663lm (Typ) | 1.08A | 85°C | 50.5V | 122 lm/W | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
CMU2258-0000-000P0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
2,558 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMU2258 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 6896lm (Typ) | 1.08A | 85°C | 50.5V | 126 lm/W | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
CMU2287-0000-000P0H0A30HXLAMP CMU LED WHITE CreeLED, Inc. |
100 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMU2287 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 12625lm (Typ) | 1.62A | 85°C | 50.5V | 154 lm/W | 4.32A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
CMU2287-0000-000P0U0A30HXLAMP CMU LED WHITE CreeLED, Inc. |
2,079 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMU2287 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 10974lm (Typ) | 1.62A | 85°C | 50.5V | 134 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
CMU2287-0000-000P0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
2,375 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMU2287 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 10198lm (Typ) | 1.62A | 85°C | 50.5V | 125 lm/W | 4.32A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
CMU2287-0000-000P0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W CreeLED, Inc. |
3,636 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMU2287 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 9845lm (Typ) | 1.62A | 85°C | 50.5V | 120 lm/W | 4.32A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
CXA1507-0000-000F00F227FLED COB CXA1507 WARM WHT SQUARE CreeLED, Inc. |
2,916 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 705lm (680lm ~ 730lm) | 400mA | 85°C | 18V | 98 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXA1512-0000-000N00K427FLED COB CXA1512 WARM WHT SQUARE CreeLED, Inc. |
2,570 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000F00K435FLED COB CXA1512 WARM WHT SQUARE CreeLED, Inc. |
2,198 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 700mA | 85°C | 18V | 106 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|

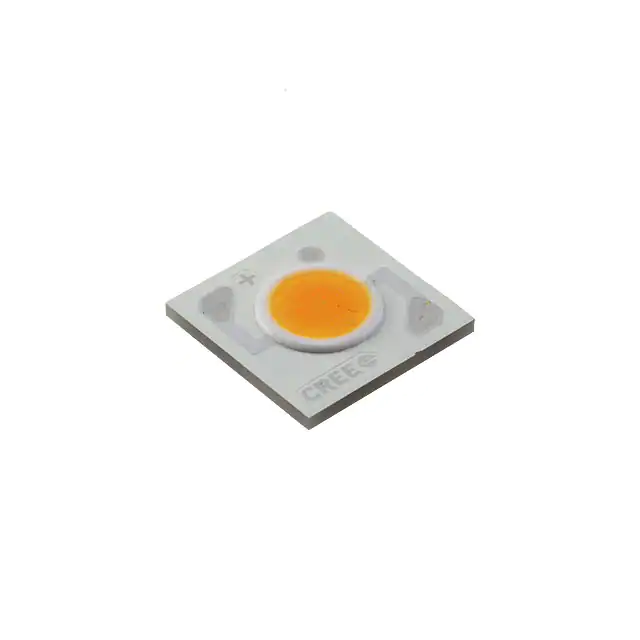

CXA1310-0000-000N00J230FLED XLAMP CXA WHITE 3000K 1165LM CreeLED, Inc. |
2,233 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1310 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia |
|
|
CXA1310-0000-000N00J230HLED COB CXA1310 WARM WHT SQUARE CreeLED, Inc. |
2,492 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1310 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia |
|
|
CXB1512-0000-00PF0U0A40GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
2,973 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1705lm (Typ) | 700mA | 85°C | 18V | 135 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXA2540-0000-000N00W450FLED HB XLAMP CXA2540 CreeLED, Inc. |
3,434 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5408lm (5225lm ~ 5590lm) | 1.1A | 85°C | 37V | 133 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXB1816-0000-00PN0U0A30GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
3,531 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1816 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2124lm (Typ) | 450mA | 85°C | 35V | 135 lm/W | 900mA | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CXB1816-0000-00PN0U0A40GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
2,073 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1816 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2182lm (Typ) | 450mA | 85°C | 35V | 139 lm/W | 900mA | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA2520-0000-000N00R230FLED COB CXA2520 3000K WHITE SMD CreeLED, Inc. |
3,790 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00W230GLED COB CXA2540 3000K WHT SMD CreeLED, Inc. |
2,497 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 36V | 127 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXB1820-0000-00PN0U0A30GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
3,366 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1820 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2708lm (Typ) | 550mA | 85°C | 35V | 141 lm/W | 1.044A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CXB1820-0000-00PN0U0A40GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
3,271 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1820 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2782lm (Typ) | 550mA | 85°C | 35V | 145 lm/W | 1.044A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|

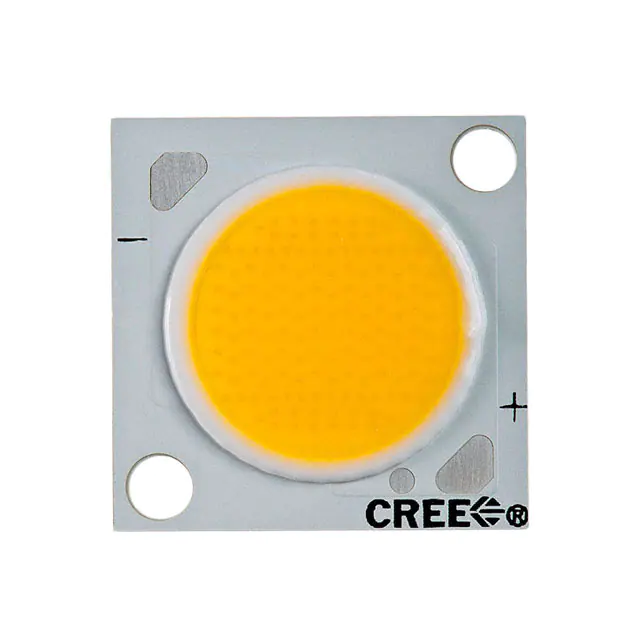

CXA2011-0000-000P00H00E7LED WARM WHITE 3000K SCREW MOUNT CreeLED, Inc. |
3,521 | - |
RFQ |
Ficha técnica |
Tube | XLamp® CXA2011 | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 970lm (900lm ~ 1040lm) | 270mA | 85°C | 40V | 90 lm/W | 1A | 80 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - |
