Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-57S2001-C-74V13C THRIVE Bridgelux |
297 | - |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BXRE-30S2001-C-73V13C THRIVE Bridgelux |
252 | - |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BXRE-30S4001-C-73V18C THRIVE Bridgelux |
853 | - |
RFQ |
Tube | Gen 7 V18 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4669lm (Typ) | 1.17A | 25°C | 34.4V | 116 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | |
|
|
BXRE-50S4001-C-74V18C THRIVE Bridgelux |
830 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V18 Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5232lm (Typ) | 1.17A | 25°C | 34.4V | 130 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-27S4001-C-73V18C THRIVE Bridgelux |
827 | - |
RFQ |
Tube | Gen 7 V18 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4347lm (Typ) | 1.17A | 25°C | 34.4V | 108 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | |
|
|
BXRE-65S4001-C-74V18C THRIVE Bridgelux |
599 | - |
RFQ |
Tube | Gen 7 V18 Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 5205lm (Typ) | 1.17A | 25°C | 34.4V | 129 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | |
|
|
BXRE-57S4001-C-74V18C THRIVE Bridgelux |
476 | - |
RFQ |
Tube | Gen 7 V18 Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 5312lm (Typ) | 1.17A | 25°C | 34.4V | 132 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | |
|
|
BXRE-40S4001-C-73V18C THRIVE Bridgelux |
325 | - |
RFQ |
Tube | Gen 7 V18 Thrive™ Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4969lm (Typ) | 1.17A | 25°C | 34.4V | 123 lm/W | 2.34A | 95 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | |
|
BXRC-50G10K0-L-24LED ARRAY 10000LM COOL WHITE COB Bridgelux |
3,075 | - |
RFQ |
Ficha técnica |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 10173lm (Typ) | 2.1A | 25°C | 38V | 127 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-35E10K0-L-23LED ARRAY 10000LM WARM WHITE COB Bridgelux |
168 | - |
RFQ |
Ficha técnica |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 11399lm (Typ) | 2.1A | 25°C | 38V | 143 lm/W | 4.2A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXEB-TL-L1120Z-2750E4000-A-C3VESTA TL GEN 3 (2 SMD ROWS) LED Bridgelux |
3,690 | - |
RFQ |
Ficha técnica |
Bulk | Vesta™ Tunable Linear Gen 3 | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 6650lm Warm White, 7344lm Cool White | 1A | 25°C | 38.8V | 171 lm/W Warm White, 189 lm/W Cool White | 2A | 80 | 120° | - | 1120.00mm L x 31.00mm W | 5.60mm | - |
|
BXRC-50G10K1-C-74LED COB VERO 29 5000K ROUND Bridgelux |
144 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 17235lm (Typ) | 1.71A | 25°C | 69.4V | 145 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRE-30E0800-D-73V8D WARM WHITE LED ARRAY Bridgelux |
2,390 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V8 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 817lm (Typ) | 350mA | 85°C | 16.7V | 140 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
BXRV-DR-1830G-0600-A-13DW6A DIM-TO-WARM LED ARRAY Bridgelux |
276 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Rectangle | 684lm | 350mA | 25°C | 17V | 115 lm/W | 420mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia |
|
BXRC-27E2000-D-73-SELED COB VERO SE 2700K ROUND Bridgelux |
3,227 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2086lm (Typ) | 500mA | 85°C | 30.9V | 135 lm/W | 1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
BXRC-35E2000-D-73LED COB VERO 13 3500K ROUND Bridgelux |
3,492 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2284lm (Typ) | 500mA | 85°C | 30.9V | 148 lm/W | 1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-30E2000-C-73-SELED COB VERO SE 3000K ROUND Bridgelux |
3,510 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2987lm (Typ) | 630mA | 85°C | 34.1V | 139 lm/W | 1.26A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|

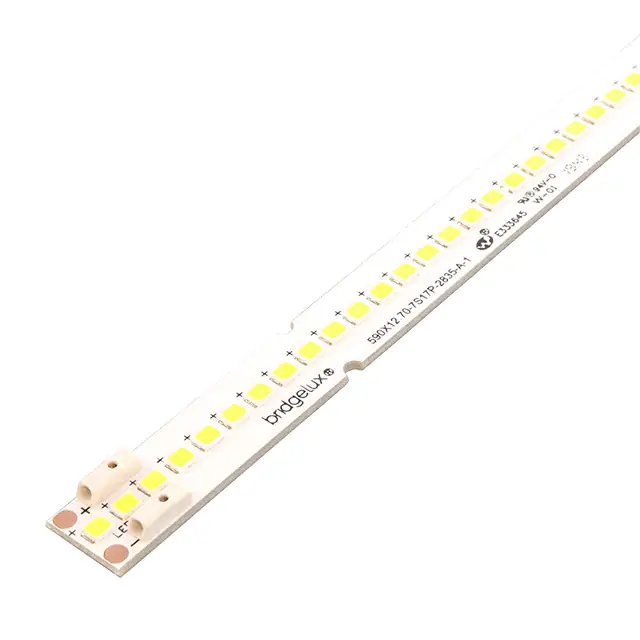

BXEB-L0590U-50E1500-C-C3EB SLIM GEN 3 590MM Bridgelux |
3,906 | - |
RFQ |
Ficha técnica |
Tray | EB Series™ Slim Gen 3 | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2675lm (Typ) | 700mA | 25°C | 19.1V | 200 lm/W | 1.7A | 80 | 120° | With Connector | 590.00mm L x 12.70mm W | 4.30mm | - |
|
BXRC-40E4000-C-73-SELED COB VERO SE 4000K ROUND Bridgelux |
3,380 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 5811lm (Typ) | 1.17A | 85°C | 34.1V | 146 lm/W | 2.34A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-30G4000-C-73-SELED COB VERO SE 3000K ROUND Bridgelux |
3,519 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4637lm (Typ) | 1.17A | 85°C | 34.1V | 116 lm/W | 2.34A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
