Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
EH28-2.0-02-15M-X CMC 15MH 2A 2LN TH Schaffner EMC Inc.	393	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	15 mH @ 400 Hz	2A	196mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)

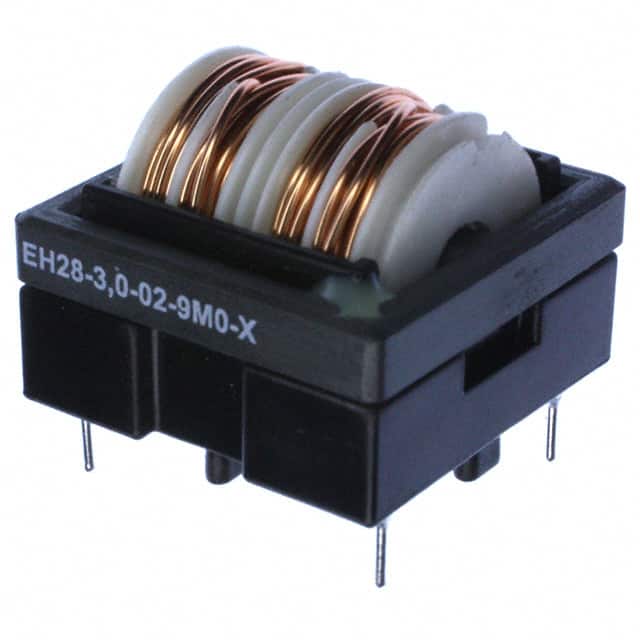

EH28-3.0-02-9M0-X CMC 9MH 3A 2LN TH Schaffner EMC Inc.	423	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	9 mH @ 400 Hz	3A	115mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)
RN232-0.6-02-47M CMC 47MH 600MA 2LN TH Schaffner EMC Inc.	295	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	47 mH @ 10 kHz	600mA	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN232-1-02-18M CMC 18MH 1A 2LN TH Schaffner EMC Inc.	300	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	18 mH @ 10 kHz	1A	390mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN242-0.5-02-82M CMC 82MH 500MA 2LN TH Schaffner EMC Inc.	293	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	82 mH @ 10 kHz	500mA	2.7Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN242-1.4-02-27M CMC 27MH 1.4A 2LN TH Schaffner EMC Inc.	285	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	1.4A	500mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN232-4-02-3M3 CMC 3.3MH 4A 2LN TH Schaffner EMC Inc.	248	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	54mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
ED101-0.2-40M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Ficha técnica	Box	ED101	Active	Power Line	2	-	40 mH @ 10 kHz	200mA	10Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
RD6127-16-3M0 CMC 3MH 16A 2LN TH Schaffner EMC Inc.	2,798	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	3 mH @ 1 kHz	16A (Typ)	10.9mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.362 L x 2.362 W (60.00mm x 60.00mm)	1.398 (35.50mm)
EH28-1.5-02-20M CMC 20MH 1.5A 2LN TH Schaffner EMC Inc.	264	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	20 mH @ 400 Hz	1.5A	282mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)
RN112-0.8-02-10M CMC 10MH 800MA 2LN TH Schaffner EMC Inc.	859	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	800mA	380mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-3.6-02-0M4 CMC 400UH 3.6A 2LN TH Schaffner EMC Inc.	3,383	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	400 µH @ 10 kHz	3.6A	27mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN214-1.2-02-10M CMC 10MH 1.2A 2LN TH Schaffner EMC Inc.	840	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	1.2A	195mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
RN114-2-02-4M2 CMC 4.2MH 2A 2LN TH Schaffner EMC Inc.	720	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	4.2 mH @ 10 kHz	2A	100mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN114-4-02-1M5 CMC 1.5MH 4A 2LN TH Schaffner EMC Inc.	887	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	1.5 mH @ 10 kHz	4A	34mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN116-2-02-2M2 CMC 2.2MH 2A 2LN TH Schaffner EMC Inc.	855	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	2.2 mH @ 10 kHz	2A	66mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN122-4-02-3M3 CMC 3.3MH 4A 2LN TH Schaffner EMC Inc.	383	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	46mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)

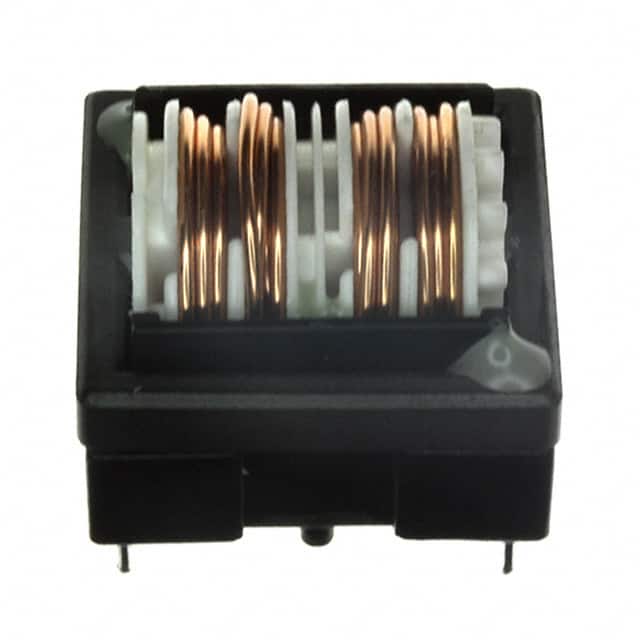

EH24-3.0-02-1M2 CMC 1.2MH 3A 2LN TH Schaffner EMC Inc.	198	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	1.2 mH @ 400 Hz	3A	29mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.945 L x 0.945 W (24.00mm x 24.00mm)	0.827 (21.00mm)
RT8132-20-2M5 CMC 2.5MH 20A 3LN TH Schaffner EMC Inc.	3,993	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	3	-	2.5 mH @ 100 kHz	20A	7mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	2.244 Dia (57.00mm)	1.457 (37.00mm)
RT8532-10-4M0 CMC 4MH 10A 3LN TH Schaffner EMC Inc.	2,369	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	3	-	4 mH @ 100 kHz	10A	15mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	1.929 L x 1.339 W (49.00mm x 34.00mm)	2.087 (53.00mm)
