Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
RN114-3-02-2M0 CMC 2MH 3A 2LN TH Schaffner EMC Inc.	780	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	2 mH @ 10 kHz	3A	52mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)

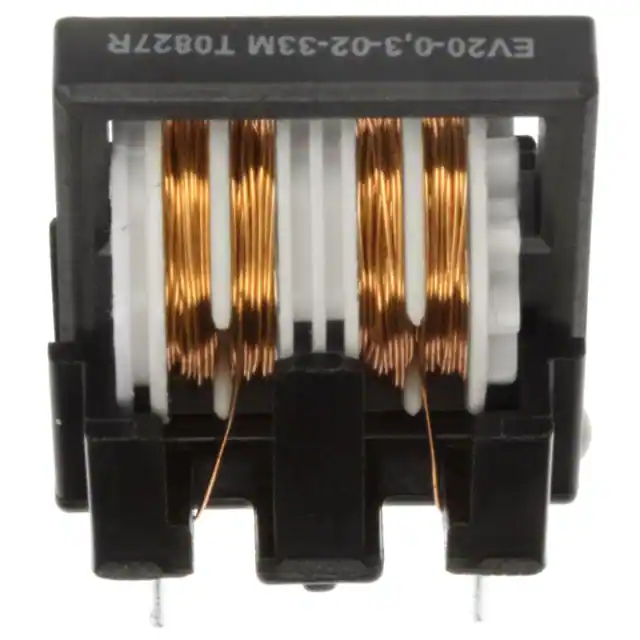

EV20-0.3-02-33M CMC 33MH 300MA 2LN TH Schaffner EMC Inc.	2,551	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	33 mH @ 10 kHz	300mA	1.78Ohm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.630 W (21.00mm x 16.00mm)	1.024 (26.00mm)
RN122-3-02-4M5 CMC 4.5MH 3A 2LN TH Schaffner EMC Inc.	3,984	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	4.5 mH @ 10 kHz	3A	80mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN122-2-02-6M8 CMC 6.8MH 2A 2LN TH Schaffner EMC Inc.	2,937	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	2A	156mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)

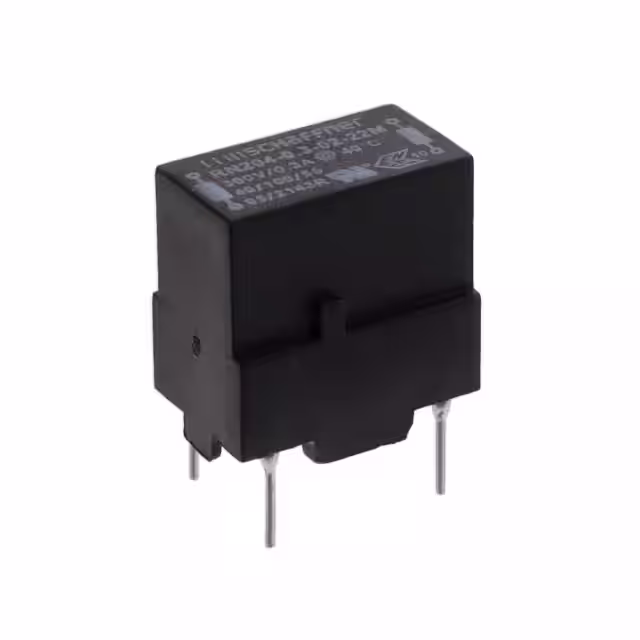

RN204-0.3-02-22M CMC 22MH 300MA 2LN TH Schaffner EMC Inc.	977	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	22 mH @ 10 kHz	300mA	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 L x 0.354 W (14.00mm x 9.00mm)	0.575 (14.61mm)
RN222-4-02-3M3 CMC 3.3MH 4A 2LN TH Schaffner EMC Inc.	3,845	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	46mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)
EV28-2.0-02-11M CMC 11MH 2A 2LN TH Schaffner EMC Inc.	500	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	11 mH @ 400 Hz	2A	162mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)

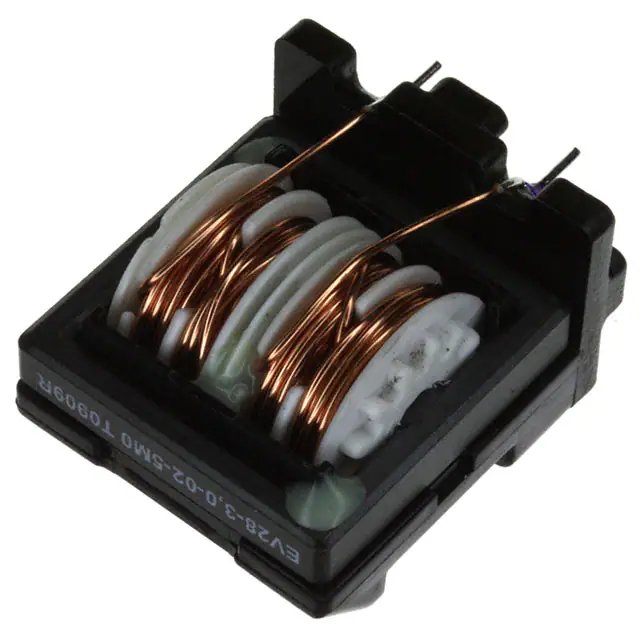

EV28-3.0-02-5M0 CMC 5MH 3A 2LN TH Schaffner EMC Inc.	3,648	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	5 mH @ 400 Hz	3A	79mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)
RN242-4-02-3M3 CMC 3.3MH 4A 2LN TH Schaffner EMC Inc.	3,275	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	67mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN142-6-02-1M8 CMC 1.8MH 6A 2LN TH Schaffner EMC Inc.	2,297	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	1.8 mH @ 10 kHz	6A	20mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
RN152-4-02-6M8 CMC 6.8MH 4A 2LN TH Schaffner EMC Inc.	103	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	4A	87mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.693 L x 1.646 W (43.00mm x 41.80mm)	0.996 (25.30mm)

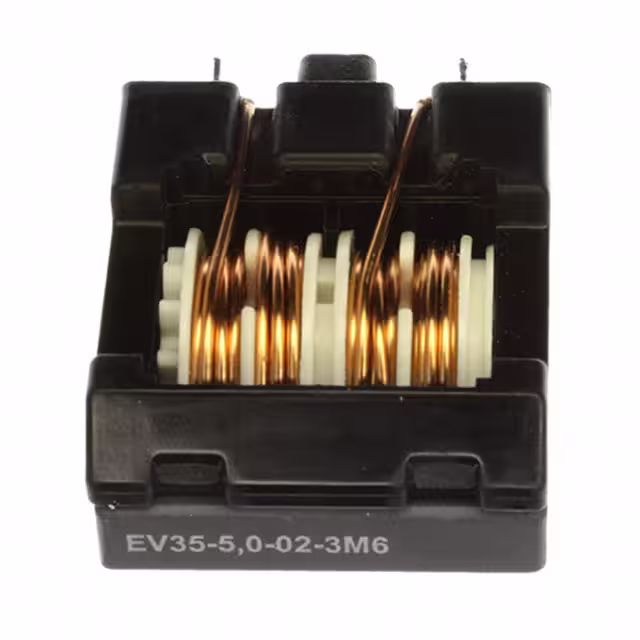

EV35-5.0-02-3M6 CMC 3.6MH 5A 2LN TH Schaffner EMC Inc.	138	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	3.6 mH @ 400 Hz	5A	33mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 0.965 W (36.00mm x 24.50mm)	1.681 (42.70mm)
RN152-6-02-3M9 CMC 3.9MH 6A 2LN TH Schaffner EMC Inc.	478	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	3.9 mH @ 10 kHz	6A	42mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.693 L x 1.646 W (43.00mm x 41.80mm)	0.996 (25.30mm)

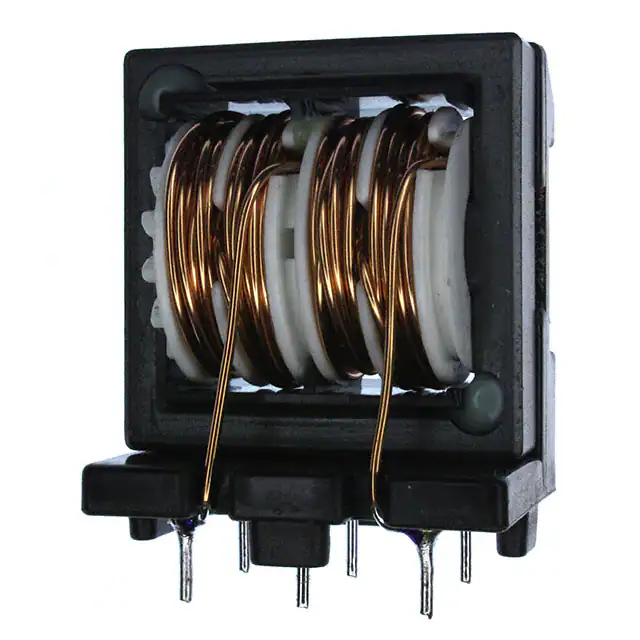

EV35-3.0-02-10M CMC 10MH 3A 2LN TH Schaffner EMC Inc.	145	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	10 mH @ 400 Hz	3A	72mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 0.965 W (36.00mm x 24.50mm)	1.681 (42.70mm)
RN152-10-02-1M8 CMC 1.8MH 10A 2LN TH Schaffner EMC Inc.	2,783	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	1.8 mH @ 10 kHz	10A	14mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.693 L x 1.646 W (43.00mm x 41.80mm)	0.996 (25.30mm)
RD5122-10-6M0 CMC 6MH 10A 2LN TH Schaffner EMC Inc.	123	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	2	-	6 mH @ 400 Hz	10A (Typ)	24.25mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	1.969 L x 1.969 W (50.00mm x 50.00mm)	1.398 (35.50mm)

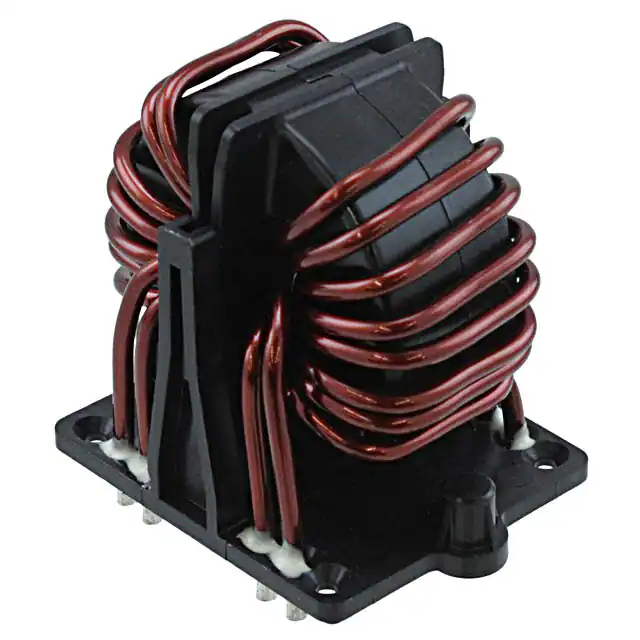

RB6522-50-0M3 CMC 250UH 50A 2LN TH Schaffner EMC Inc.	103	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	2	-	250 µH @ 400 Hz	50A	0.9mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	1.969 L x 1.709 W (50.00mm x 43.40mm)	2.283 (58.00mm)

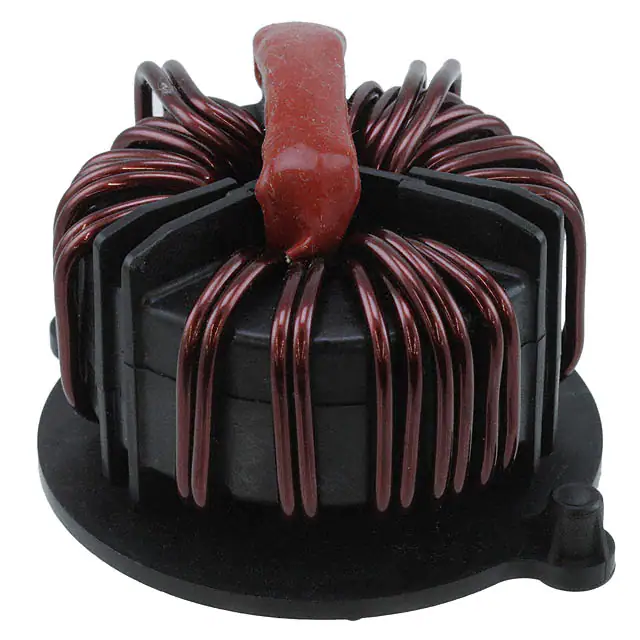

RB6132-36-0M4 CMC 420UH 36A 3LN TH Schaffner EMC Inc.	126	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	3	-	420 µH @ 400 Hz	36A	1.4mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.673 L x 2.634 W (67.90mm x 66.90mm)	2.047 (52.00mm)
RC212-0.7-4M7 CMC 4.7MH 700MA 2LN TH Schaffner EMC Inc.	3,252	-	RFQ	Ficha técnica	Bulk	RC	Active	Power Line	2	-	4.7 mH @ 10 kHz	700mA	440mOhm	-	250V	-40°C ~ 125°C	-	VDE	-	Through Hole	0.602 L x 0.291 W (15.30mm x 7.40mm)	0.693 (17.60mm)
RN114-1-02-15M CMC 15MH 1A 2LN TH Schaffner EMC Inc.	3,218	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	1A	370mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
