Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

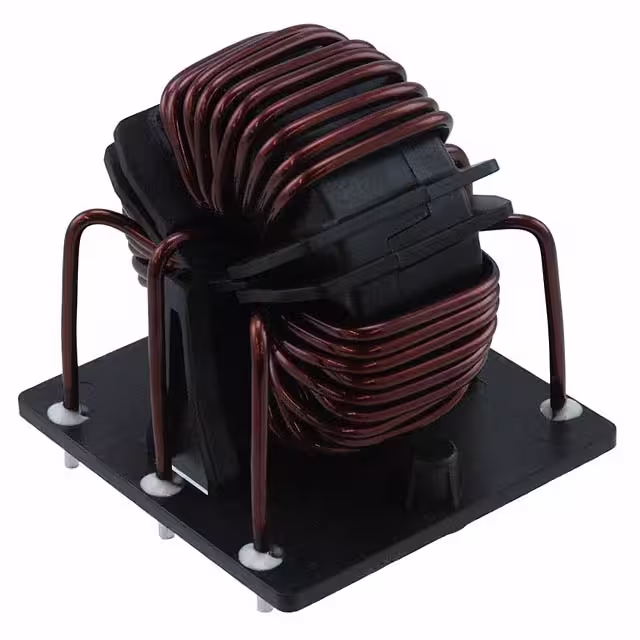

RB8532-16-1M3 CMC 1.3MH 16A 3LN TH Schaffner EMC Inc.	277	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	3	-	1.3 mH @ 1 kHz	16A	5.7mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.283 L x 2.165 W (58.00mm x 55.00mm)	2.283 (58.00mm)

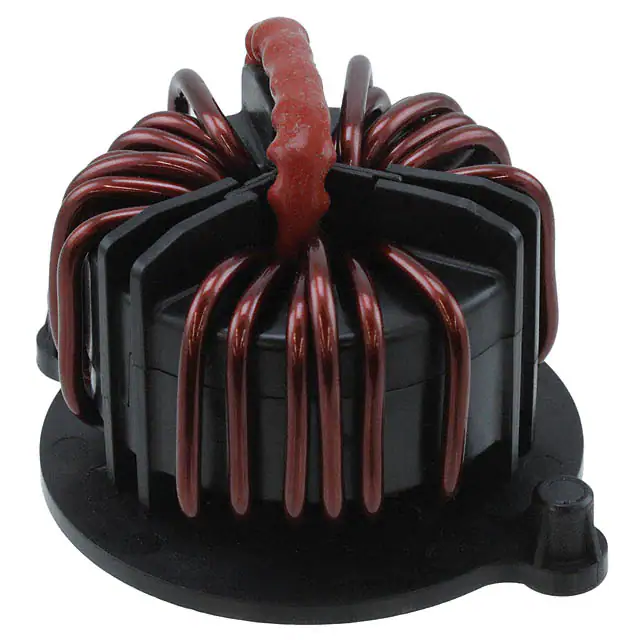

RB6132-25-0M5 CMC 470UH 25A 3LN TH Schaffner EMC Inc.	112	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	3	-	470 µH @ 400 Hz	25A	2.4mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.315 L x 2.276 W (58.80mm x 57.80mm)	1.890 (48.00mm)
RB6532-36-0M4 CMC 420UH 36A 3LN TH Schaffner EMC Inc.	201	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	3	-	420 µH @ 400 Hz	36A	4.2mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.441 L x 2.283 W (62.00mm x 58.00mm)	2.756 (70.00mm)

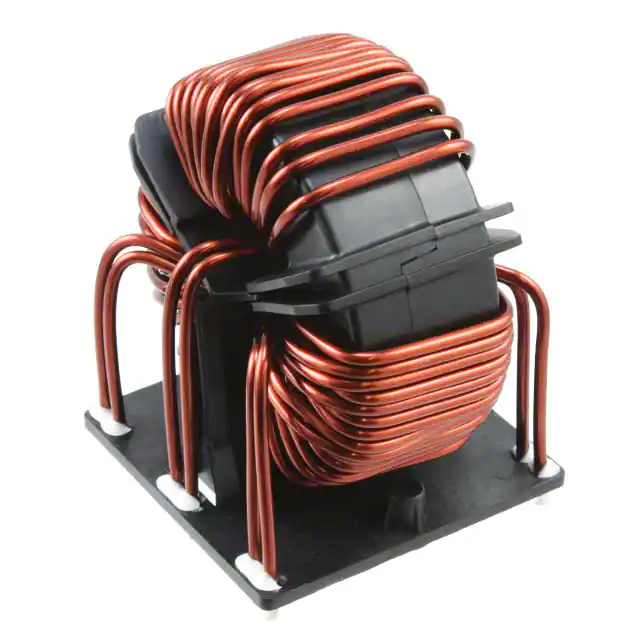

RB8532-36-0M8 CMC 830UH 36A 3LN TH Schaffner EMC Inc.	540	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	3	-	830 µH @ 400 Hz	36A	2.3mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.992 L x 2.480 W (76.00mm x 63.00mm)	3.228 (82.00mm)
EH28-2.0-02-11M CMC 11MH 2A 2LN TH Schaffner EMC Inc.	338	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	11 mH @ 10 kHz	2A	162mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)
EH35-1.0-02-90M CMC 90MH 1A 2LN TH Schaffner EMC Inc.	236	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	90 mH @ 400 Hz	1A	628mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 1.417 W (36.00mm x 36.00mm)	1.130 (28.70mm)
RT8122-12-5M0 CMC 5MH 12A 2LN TH Schaffner EMC Inc.	134	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	2	-	5 mH @ 100 kHz	12A	14mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	2.008 Dia (51.00mm)	1.299 (33.00mm)

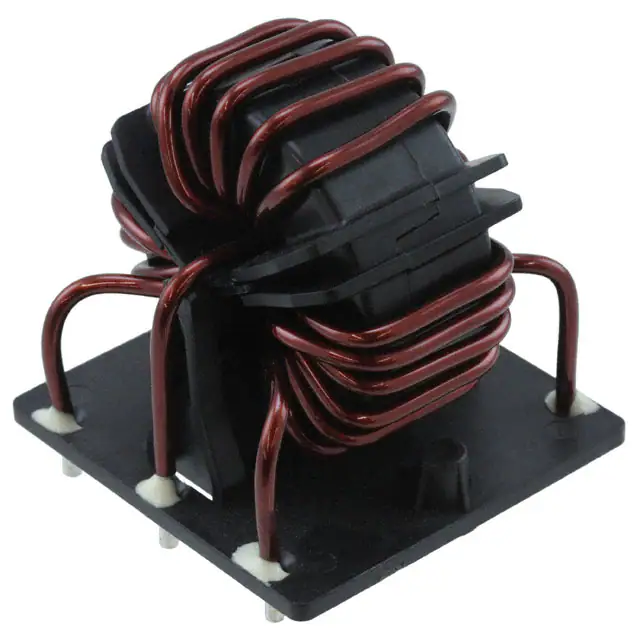

RB6532-25-0M5 CMC 470UH 25A 3LN TH Schaffner EMC Inc.	103	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	3	-	470 µH @ 400 Hz	25A	2.4mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.283 L x 2.165 W (58.00mm x 55.00mm)	2.283 (58.00mm)

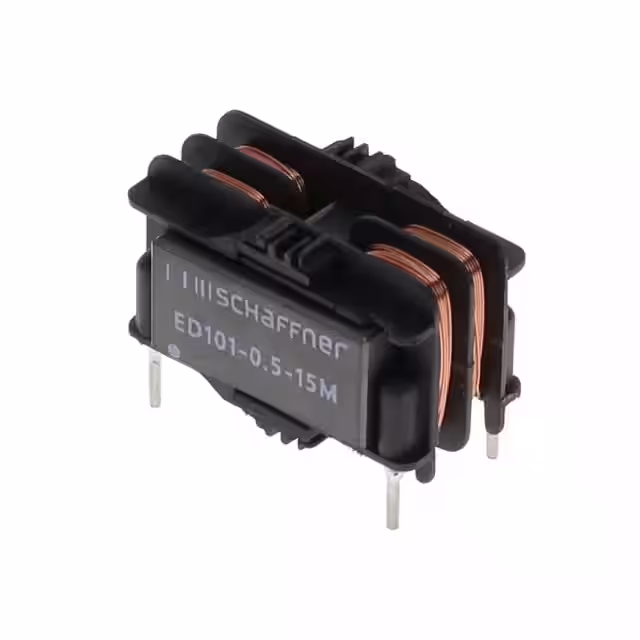

ED101-0.5-15M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Ficha técnica	Box	ED101	Active	Power Line	2	-	15 mH @ 10 kHz	500mA	2Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

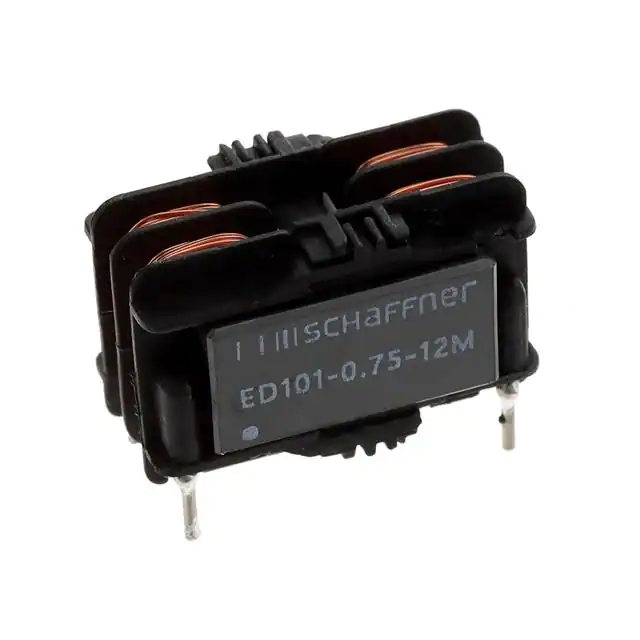

ED101-0.75-12M COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Ficha técnica	Box	ED101	Active	Power Line	2	-	12 mH @ 10 kHz	750mA	1.2Ohm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED101-1-9M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	-	RFQ	Ficha técnica	Box	ED101	Active	Power Line	2	-	9 mH @ 10 kHz	1A	600mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

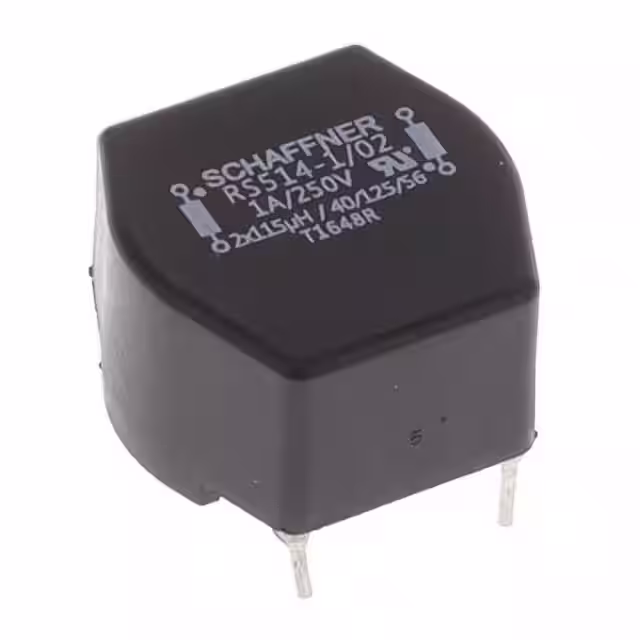

RS514-1-02 CMC 120UH 1A 2LN TH Schaffner EMC Inc.	393	-	RFQ	Ficha técnica	Tray	RS	Active	Signal Line	2	-	120 µH @ 1 kHz	1A (Typ)	200mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.520 (13.20mm)

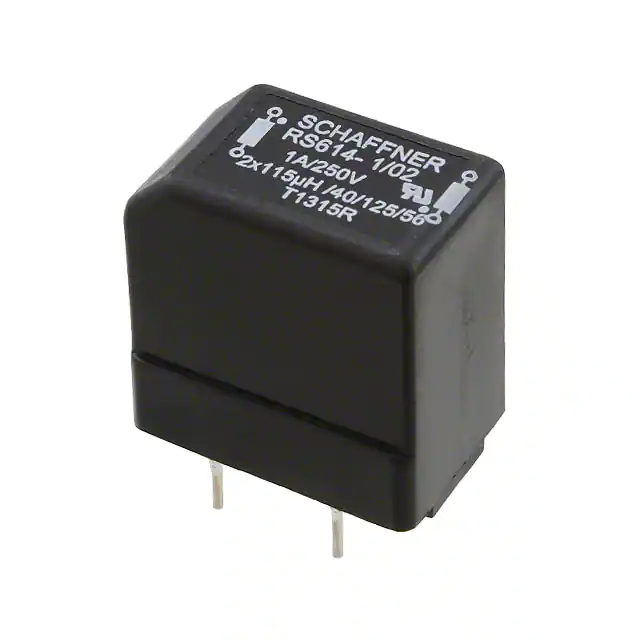

RS614-1-02 CMC 120UH 1A 2LN TH Schaffner EMC Inc.	143	-	RFQ	Ficha técnica	Tube	RS	Active	Signal Line	2	-	120 µH @ 1 kHz	1A (Typ)	200mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)

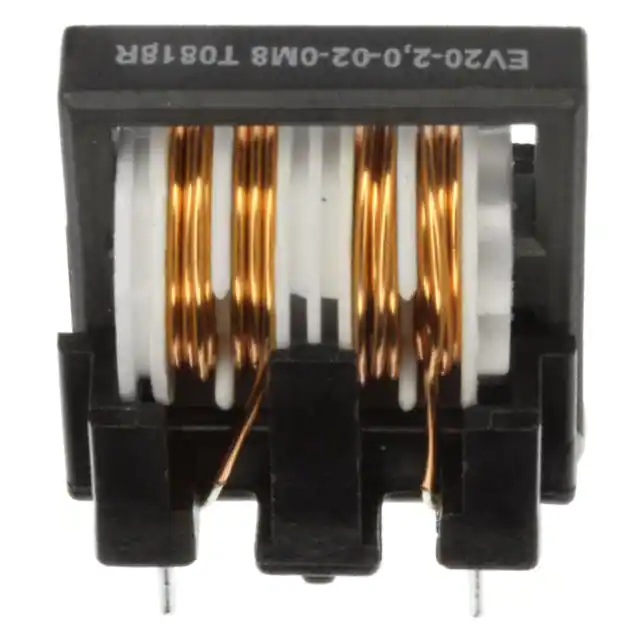

EV20-2.0-02-0M8 CMC 820UH 2A 2LN TH Schaffner EMC Inc.	3,754	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	820 µH @ 400 Hz	2A	38mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.630 W (21.00mm x 16.00mm)	1.024 (26.00mm)
RN216-2-02-3M3 CMC 3.3MH 2A 2LN TH Schaffner EMC Inc.	2,628	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	2A	70mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)

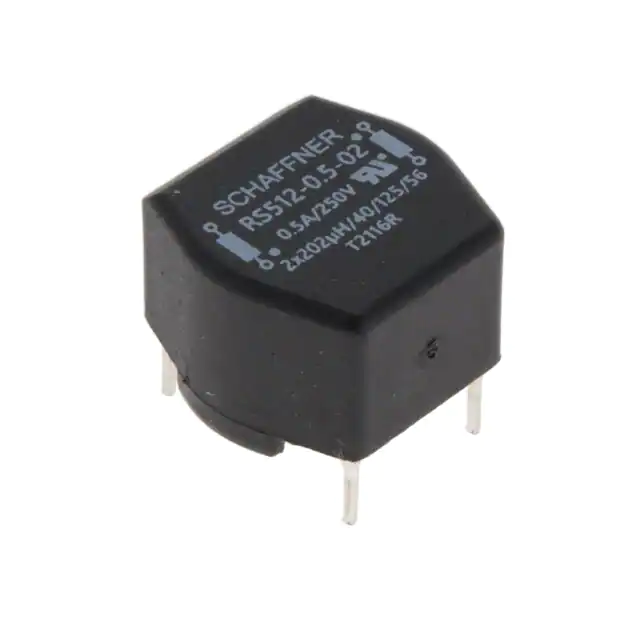

RS512-0.5-02 CMC 200UH 500MA 2LN TH Schaffner EMC Inc.	418	-	RFQ	Ficha técnica	Tray	RS	Active	Signal Line	2	-	200 µH @ 1 kHz	500mA (Typ)	650mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.492 (12.50mm)

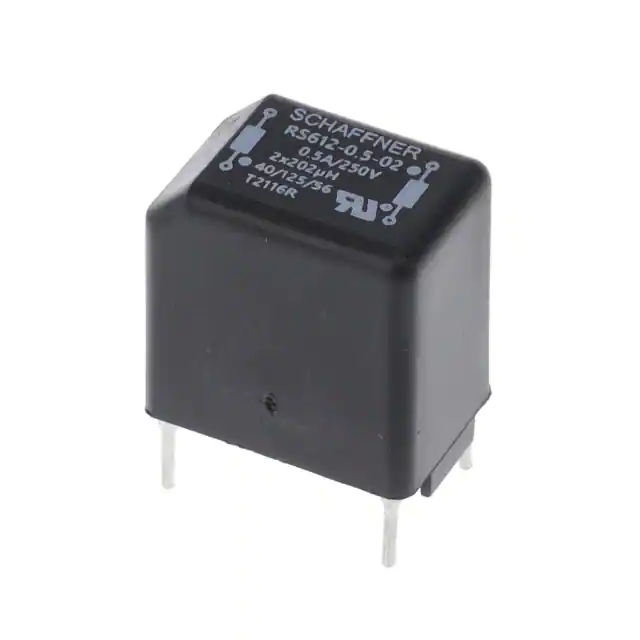

RS612-0.5-02 CMC 200UH 500MA 2LN TH Schaffner EMC Inc.	435	-	RFQ	Ficha técnica	Tray	RS	Active	Signal Line	2	-	200 µH @ 1 kHz	500mA (Typ)	650mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.787 (20.00mm)

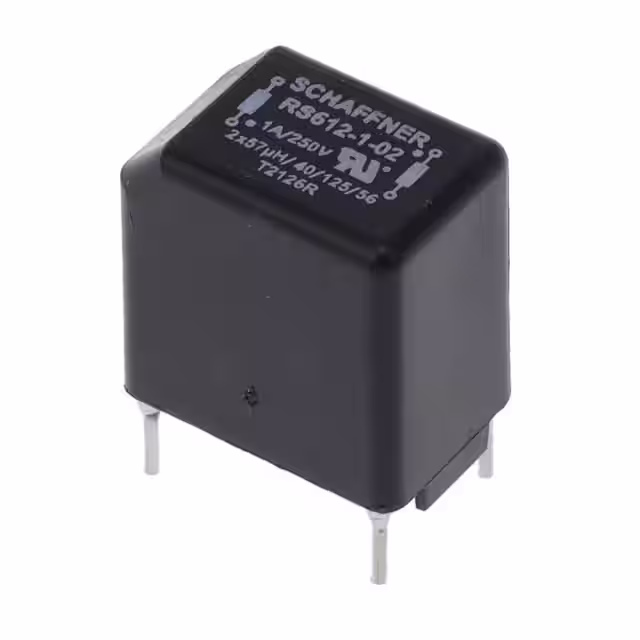

RS612-1-02 CMC 55UH 1A 2LN TH Schaffner EMC Inc.	3,324	-	RFQ	Ficha técnica	Tray	RS	Active	Signal Line	2	-	55 µH @ 1 kHz	1A (Typ)	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.787 (20.00mm)
RS512-1-02 CMC 55UH 1A 2LN TH Schaffner EMC Inc.	485	-	RFQ	Ficha técnica	Tray	RS	Active	Signal Line	2	-	55 µH @ 1 kHz	1A (Typ)	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.492 (12.50mm)

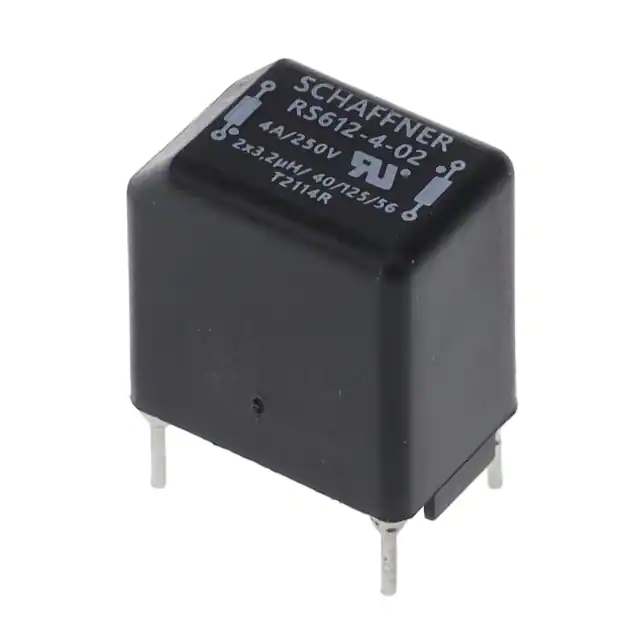

RS612-4-02 CMC 3UH 4A 2LN TH Schaffner EMC Inc.	494	-	RFQ	Ficha técnica	Tray	RS	Active	Signal Line	2	-	3 µH @ 1 kHz	4A (Typ)	10mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.787 (20.00mm)
