Inductancias de modo común

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

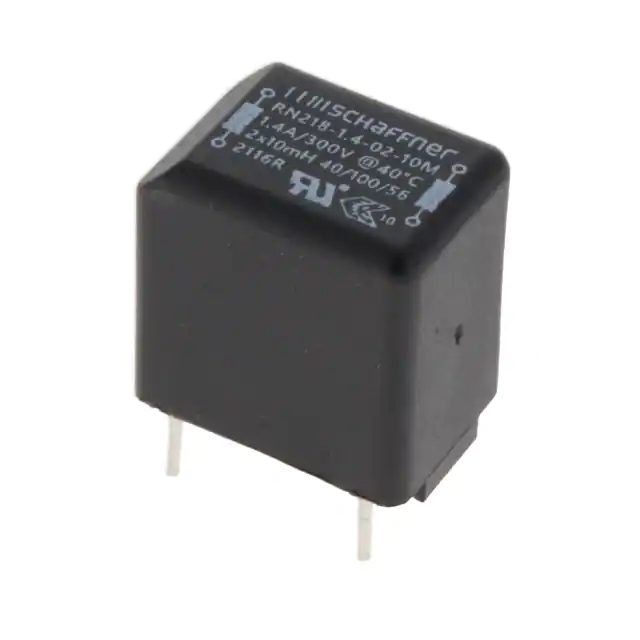

RN218-1.4-02-10M CMC 10MH 1.4A 2LN TH Schaffner EMC Inc.	3,663	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	1.4A	330mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)

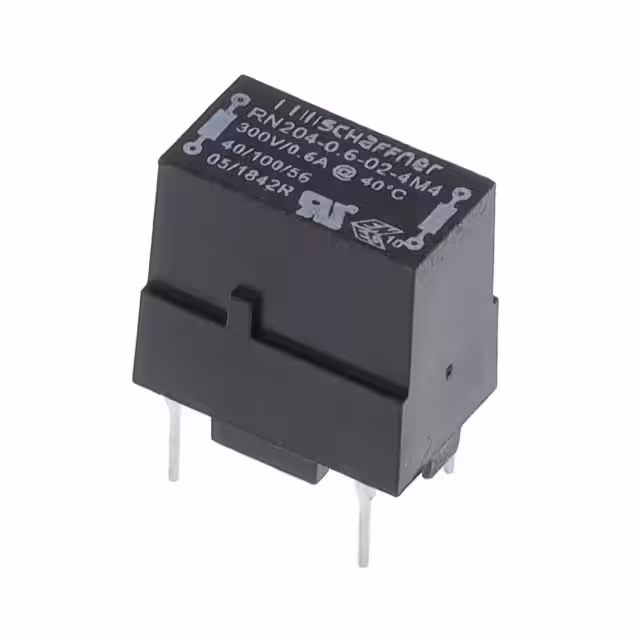

RN204-0.6-02-4M4 CMC 4.4MH 600MA 2LN TH Schaffner EMC Inc.	504	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	4.4 mH @ 10 kHz	600mA	350mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 L x 0.354 W (14.00mm x 9.00mm)	0.575 (14.61mm)

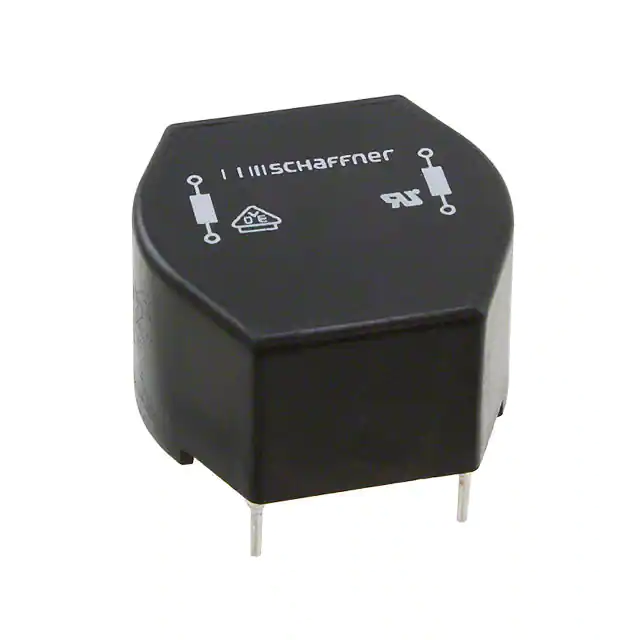

RN122-2.5-02-5M6 CMC 5.6MH 2.5A 2LN TH Schaffner EMC Inc.	2,584	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	5.6 mH @ 10 kHz	2.5A	110mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)

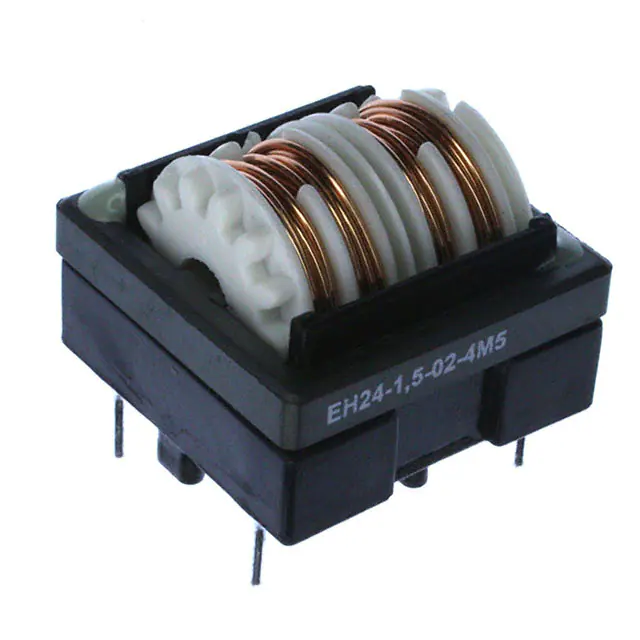

EH24-1.5-02-4M5 CMC 4.5MH 1.5A 2LN TH Schaffner EMC Inc.	2,146	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	4.5 mH @ 400 Hz	1.5A	116mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.945 L x 0.945 W (24.00mm x 24.00mm)	0.827 (21.00mm)
EV24-1.0-02-10M CMC 10MH 1A 2LN TH Schaffner EMC Inc.	2,492	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	10 mH @ 400 Hz	1A	244mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.969 L x 0.685 W (24.60mm x 17.40mm)	1.185 (30.10mm)

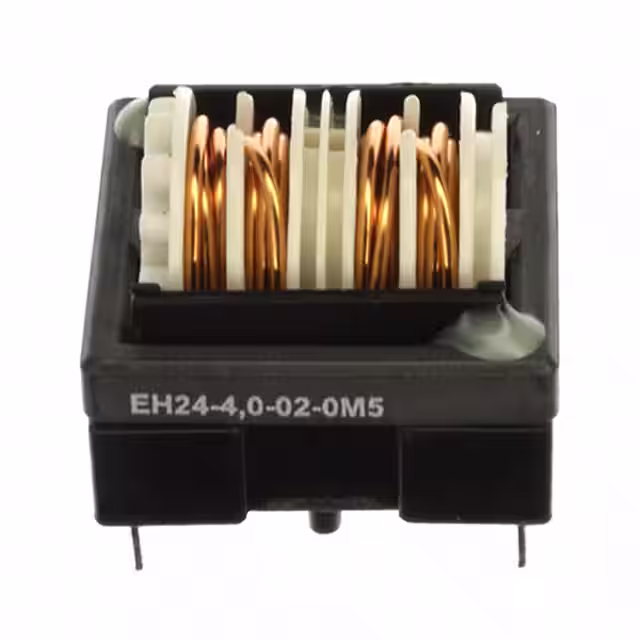

EH24-4.0-02-0M5 CMC 500UH 4A 2LN TH Schaffner EMC Inc.	490	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	500 µH @ 10 kHz	4A	16mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.945 L x 0.945 W (24.00mm x 24.00mm)	0.827 (21.00mm)

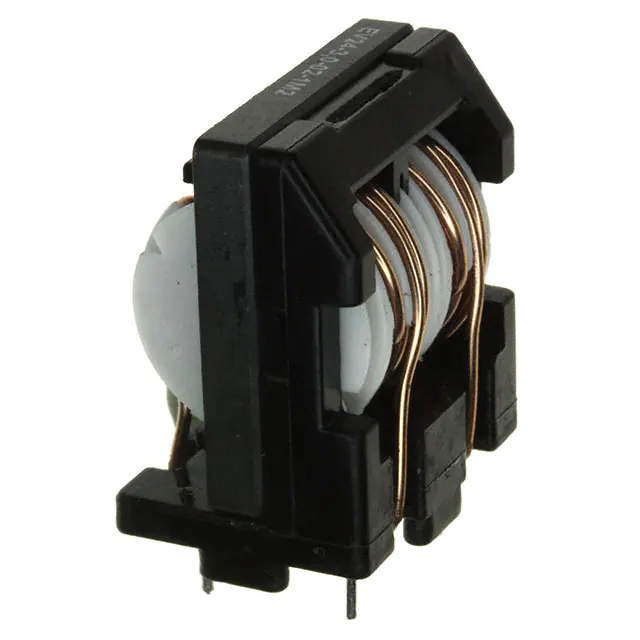

EV24-3.0-02-1M2 CMC 1.2MH 3A 2LN TH Schaffner EMC Inc.	555	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	1.2 mH @ 400 Hz	3A	29mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.969 L x 0.685 W (24.60mm x 17.40mm)	1.185 (30.10mm)

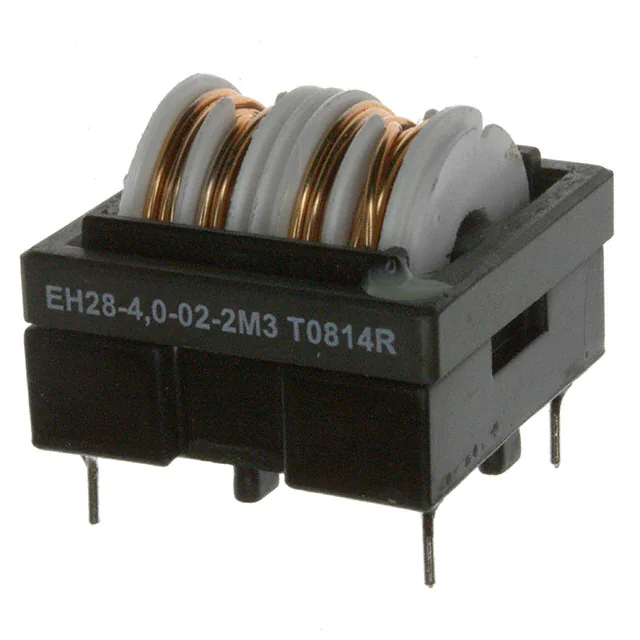

EH28-4.0-02-2M3 CMC 2.3MH 4A 2LN TH Schaffner EMC Inc.	2,827	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	2.3 mH @ 10 kHz	4A	40mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)

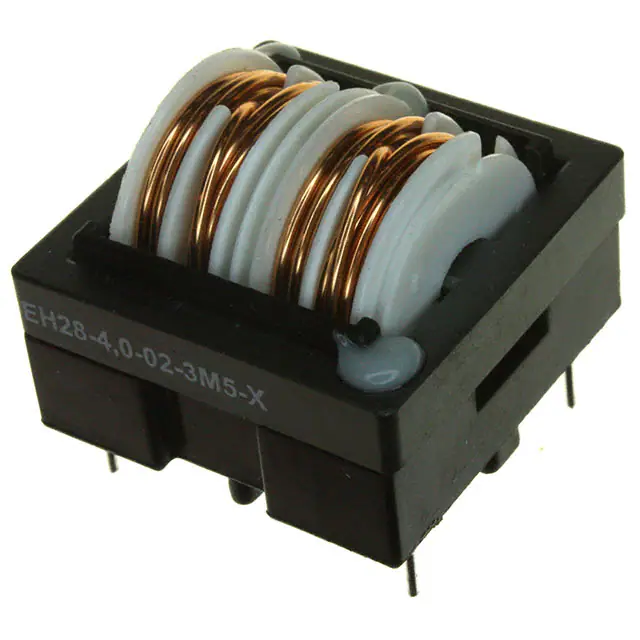

EH28-4.0-02-3M5-X CMC 3.5MH 4A 2LN TH Schaffner EMC Inc.	185	-	RFQ	Ficha técnica	Tray	EH	Active	Power Line	2	-	3.5 mH @ 400 Hz	4A	52mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)

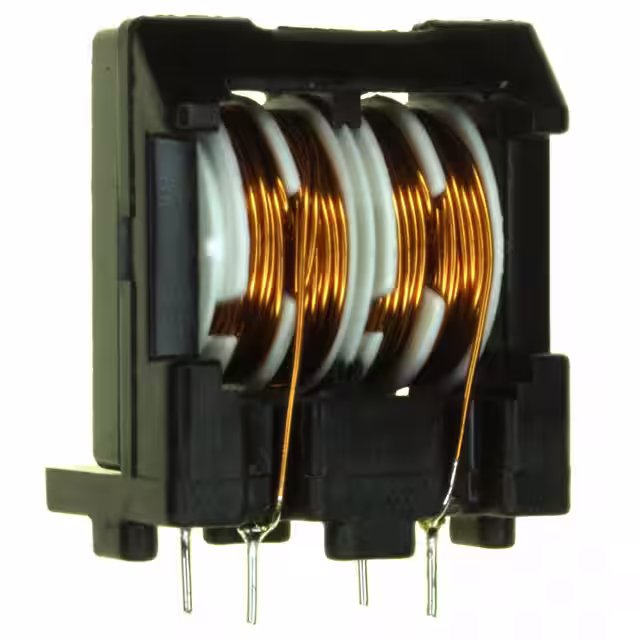

EV28-1.5-02-20M CMC 20MH 1.5A 2LN TH Schaffner EMC Inc.	2,683	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	20 mH @ 400 Hz	1.5A	282mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)
RN242-1-02-33M CMC 33MH 1A 2LN TH Schaffner EMC Inc.	174	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	33 mH @ 10 kHz	1A	810mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)

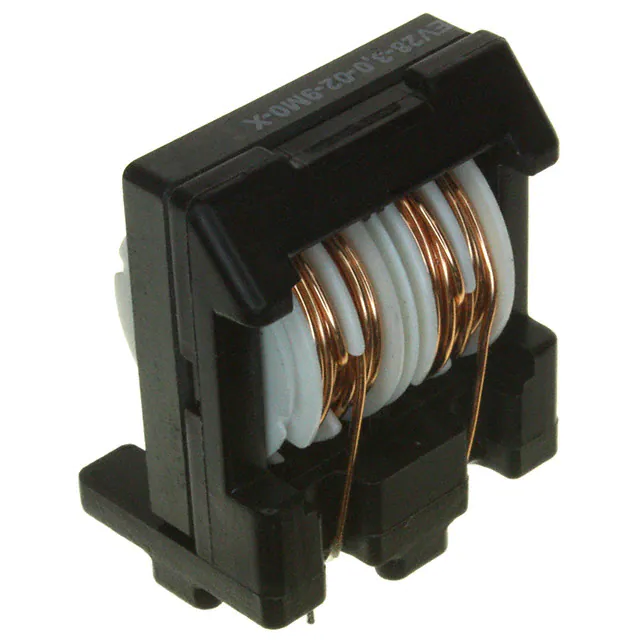

EV28-3.0-02-9M0-X CMC 9MH 3A 2LN TH Schaffner EMC Inc.	357	-	RFQ	Ficha técnica	Bulk	EV	Active	Power Line	2	-	9 mH @ 400 Hz	3A	115mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)
RN142-1-02-33M CMC 33MH 1A 2LN TH Schaffner EMC Inc.	356	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	33 mH @ 10 kHz	1A	810mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)

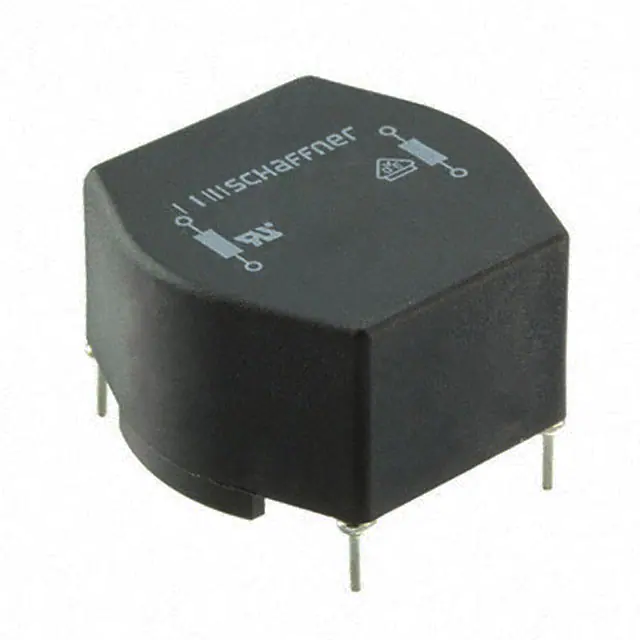

RN143-2-02-10M CMC 10MH 2A 2LN TH Schaffner EMC Inc.	862	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	2A	240mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)
RN152-8-02-2M7 CMC 2.7MH 8A 2LN TH Schaffner EMC Inc.	466	-	RFQ	Ficha técnica	Tube	RN	Active	Power Line	2	-	2.7 mH @ 10 kHz	8A	22mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.693 L x 1.646 W (43.00mm x 41.80mm)	0.996 (25.30mm)

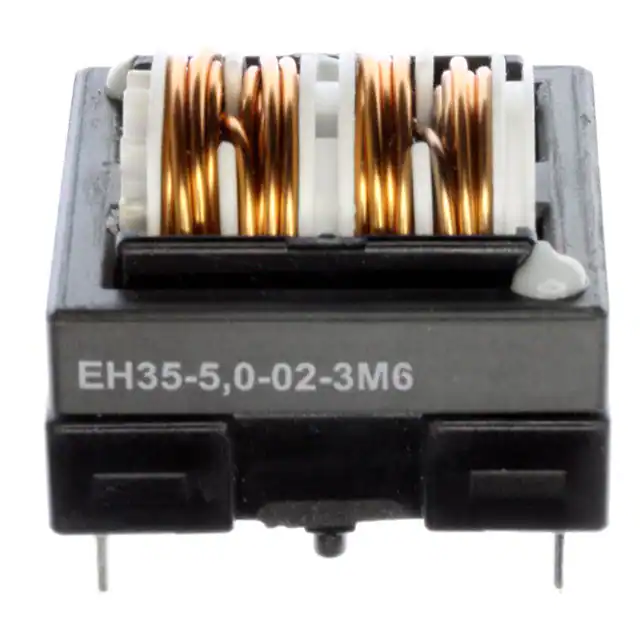

EH35-5.0-02-3M6 CMC 3.6MH 5A 2LN TH Schaffner EMC Inc.	3,263	-	RFQ	Ficha técnica	Tube	EH	Active	Power Line	2	-	3.6 mH @ 400 Hz	5A	33mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.417 L x 1.417 W (36.00mm x 36.00mm)	1.130 (28.70mm)
RT8522-12-5M0 CMC 5MH 12A 2LN TH Schaffner EMC Inc.	101	-	RFQ	Ficha técnica	Tray	RT	Active	Power Line	2	-	5 mH @ 100 kHz	12A	14mOhm (Typ)	425V	300V	-40°C ~ 100°C	-	-	-	Through Hole	1.969 L x 1.260 W (50.00mm x 32.00mm)	2.047 (52.00mm)

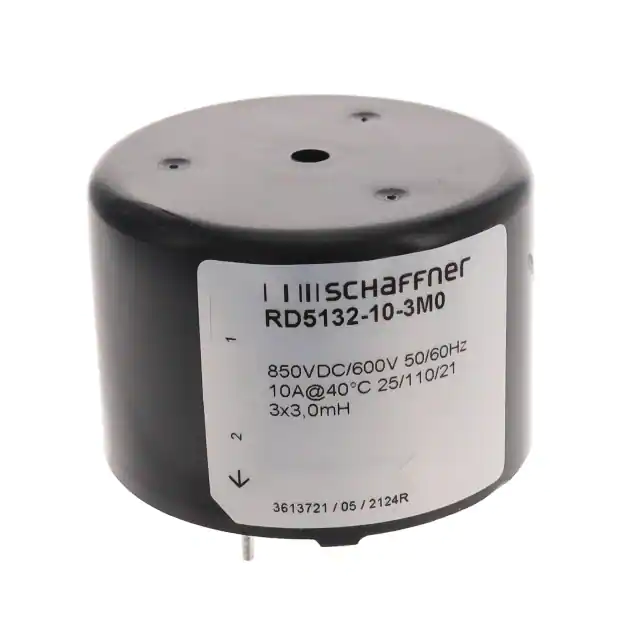

RD5132-10-3M0 CMC 3MH 10A 3LN TH Schaffner EMC Inc.	3,640	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	3 mH @ 400 Hz	10A (Typ)	17.6mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	1.969 L x 1.969 W (50.00mm x 50.00mm)	1.398 (35.50mm)

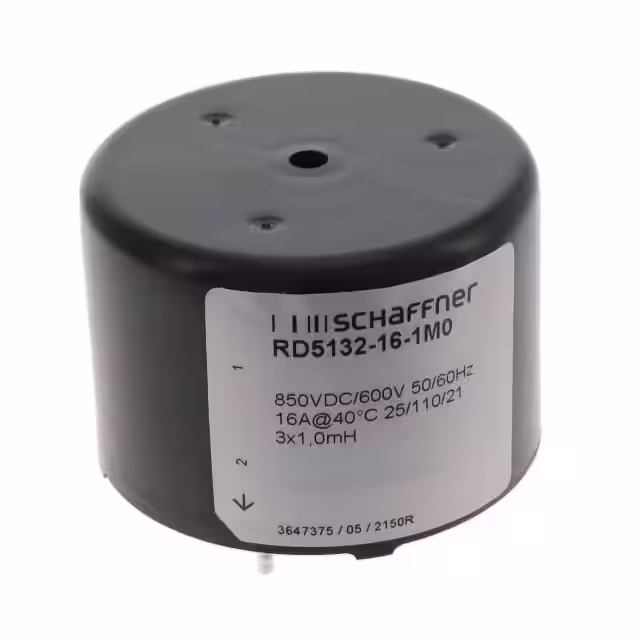

RD5132-16-1M0 CMC 1MH 16A 3LN TH Schaffner EMC Inc.	209	-	RFQ	Ficha técnica	Tray	RD	Active	Power Line	3	-	1 mH @ 400 Hz	16A (Typ)	6.9mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	1.969 L x 1.969 W (50.00mm x 50.00mm)	1.398 (35.50mm)

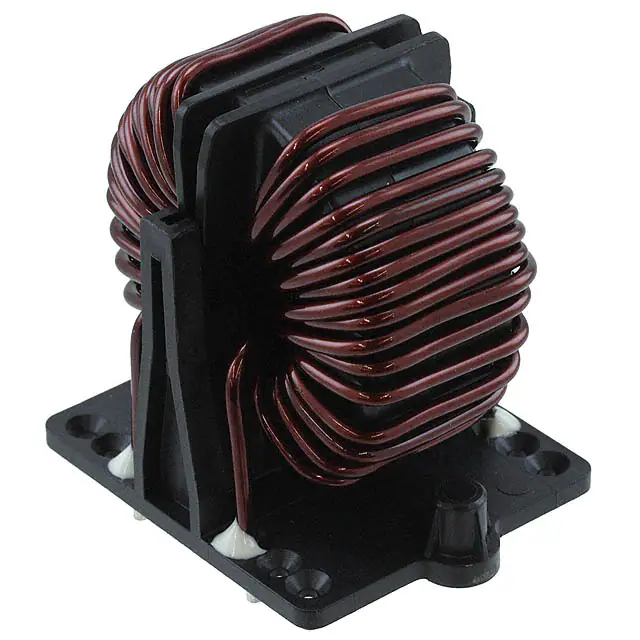

RB8522-16-3M0 CMC 3MH 16A 2LN TH Schaffner EMC Inc.	198	-	RFQ	Ficha técnica	Bulk	RB	Active	Power Line	2	-	3 mH @ 400 Hz	16A	8.4mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	1.969 L x 1.709 W (50.00mm x 43.40mm)	2.283 (58.00mm)
