Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

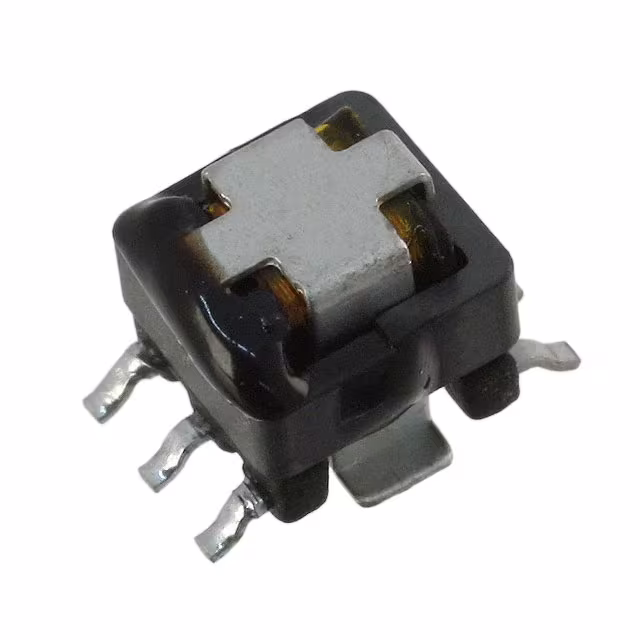

PA1005.050NLT CURR SENSE XFMR 1:50 20A SMD Pulse Electronics Power	2,763	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PA1005.XXXNL	Active	50kHz ~ 1MHz	Invasive	20 A	500 µH	-	1:50	-	0.75mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
B82801B0504A050 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	2,637	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	500 µH	-	1:50	-	0.8mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)

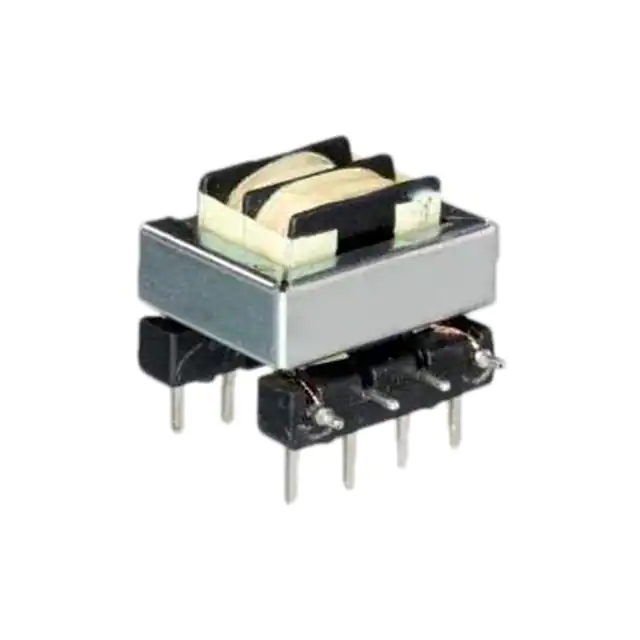

CSE186L CURR SENSE XFMR 1:166 10A T/H Triad Magnetics	2,896	-	RFQ	Ficha técnica	Bulk	-	Active	50Hz ~ 400Hz	Invasive	10 A	-	-	1:166	-	2mOhm Primary, 23Ohm Secondary	-	Through Hole	0.846 L x 0.945 W (21.50mm x 24.00mm)	0.709 (18.00mm)
CSE187L CURR SENSE XFMR 1:500 30A T/H Triad Magnetics	2,568	-	RFQ	Ficha técnica	Bulk	CSE	Active	50Hz ~ 400Hz	Invasive	30 A	-	-	1:500	-	3mOhm Primary, 21Ohm Secondary	-	Through Hole	0.860 L x 0.720 W (21.84mm x 18.29mm)	0.710 (18.03mm)

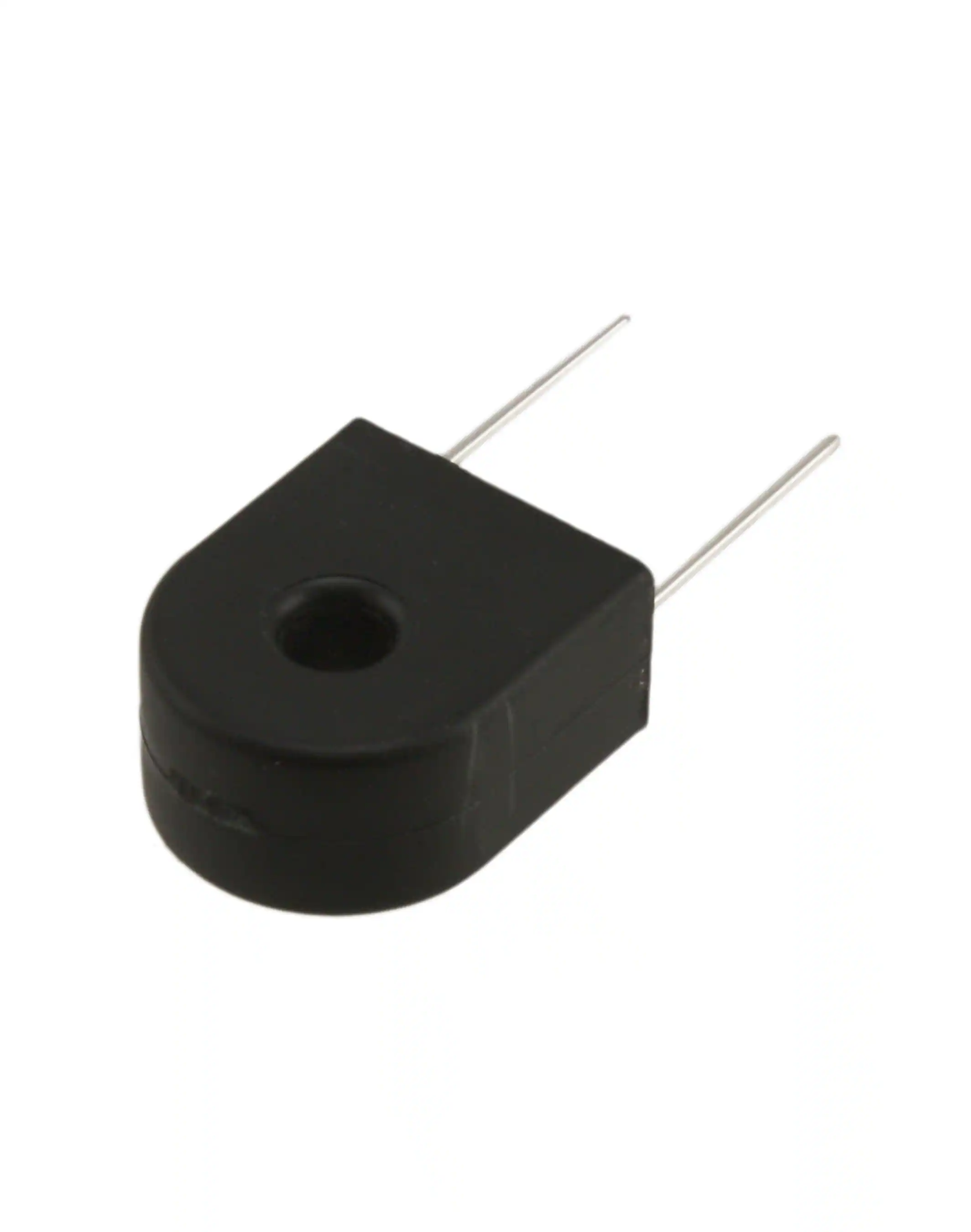

PE-51687NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,154	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	20 mH	-	-	100:1	100Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.670 L x 0.390 W (17.01mm x 9.90mm)	0.800 (20.32mm)

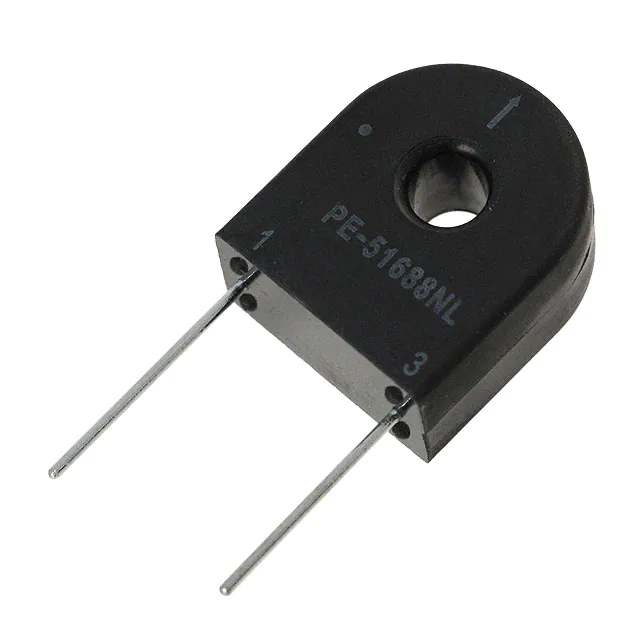

PE-51688NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,064	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.670 L x 0.390 W (17.01mm x 9.90mm)	0.800 (20.32mm)
CSE187L-P CURR SENSE XFMR 1:500 30A T/H Triad Magnetics	2,859	-	RFQ	Ficha técnica	Bulk	CSE	Active	50Hz ~ 400Hz	Invasive	30 A	-	-	1:500	-	3mOhm Primary, 21Ohm Secondary	-	Through Hole	0.875 L x 0.875 W (22.23mm x 22.23mm)	0.720 (18.29mm)
AC1010 CURR SENSE XFMR 10A T/H Talema Group LLC	3,101	-	RFQ	Ficha técnica	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)
AC1015 CURR SENSE XFMR 15A T/H Talema Group LLC	2,929	-	RFQ	Ficha técnica	Tray	AC	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)

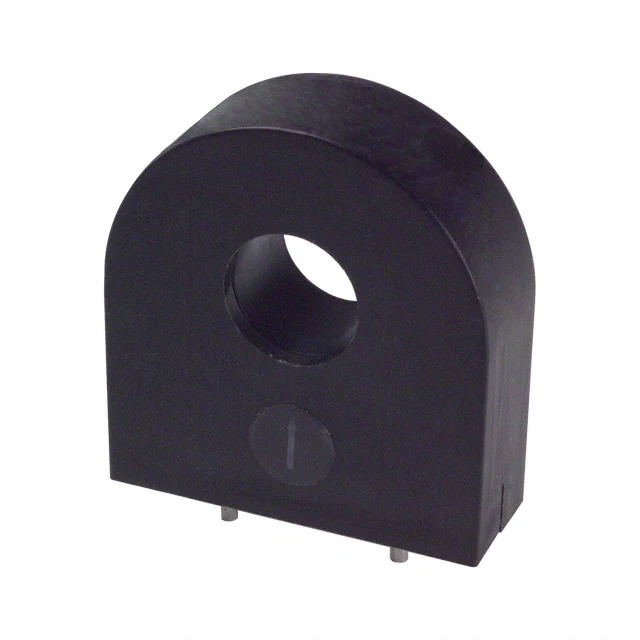

CST306-3A CURR SENSE XFMR 25A T/H Triad Magnetics	3,341	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	55 mH	2000VµS	-	200:1	3.75Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST306-2A CURR SENSE XFMR 25A T/H Triad Magnetics	3,921	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	14 mH	1000VµS	-	100:1	1.55Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
T60404E4622X501 CURRENT TRANSFORMER, 6A 2000:1 VACUUMSCHMELZE	2,505	-	RFQ	Ficha técnica	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	20 A	110 H	-	1:2000	2000:1	126Ohm	-	Through Hole	0.965 L x 0.484 W (24.50mm x 12.30mm)
CT-1005 CURR SENSE XFMR 5A T/H Amgis, LLC	3,580	-	RFQ	Ficha técnica	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)

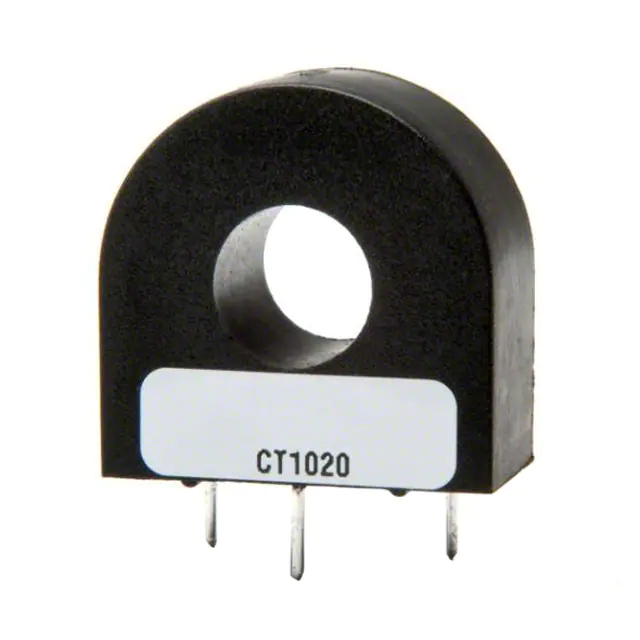

CT-1020 CURR SENSE XFMR 20A T/H Amgis, LLC	2,139	-	RFQ	Ficha técnica	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)
CT-1010 CURR SENSE XFMR 10A T/H Amgis, LLC	3,954	-	RFQ	Ficha técnica	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937 L x 0.438 W (23.80mm x 11.12mm)	0.937 (23.80mm)
T60404E4622X503 CURRENT TRANSFORMER, 20A 2000:1 VACUUMSCHMELZE	2,040	-	RFQ	Ficha técnica	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	20 A	238 H	-	1:2000	2000:1	114Ohm	-	Through Hole	0.965 L x 0.484 W (24.50mm x 12.30mm)

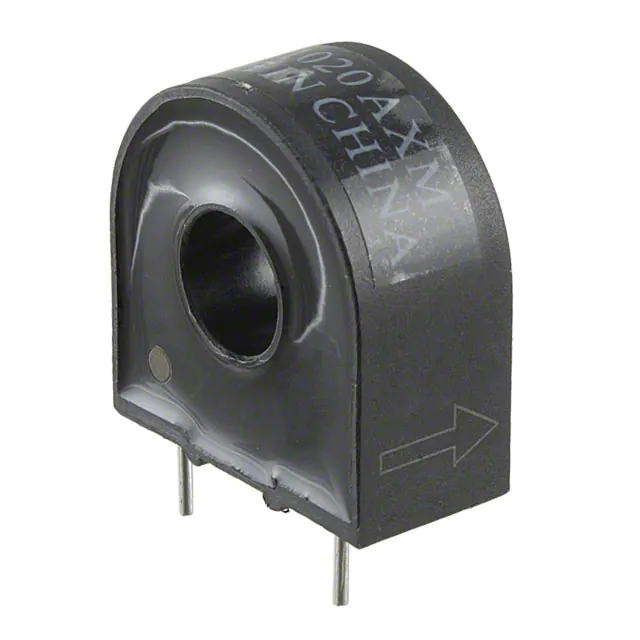

CST-1020 CURR SENSE XFMR 20A T/H Triad Magnetics	3,353	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
CST206-3A CURR SENSE XFMR 70A T/H Triad Magnetics	2,904	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	70 A	130 mH	6000VµS	-	300:1	12.4Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
CST206-1A CURR SENSE XFMR 110A T/H Triad Magnetics	996	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	110 A	14 mH	2000VµS	-	100:1	580mOhm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
CST206-2A CURR SENSE XFMR 80A T/H Triad Magnetics	821	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	80 A	56 mH	4000VµS	-	200:1	3.5Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
