Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

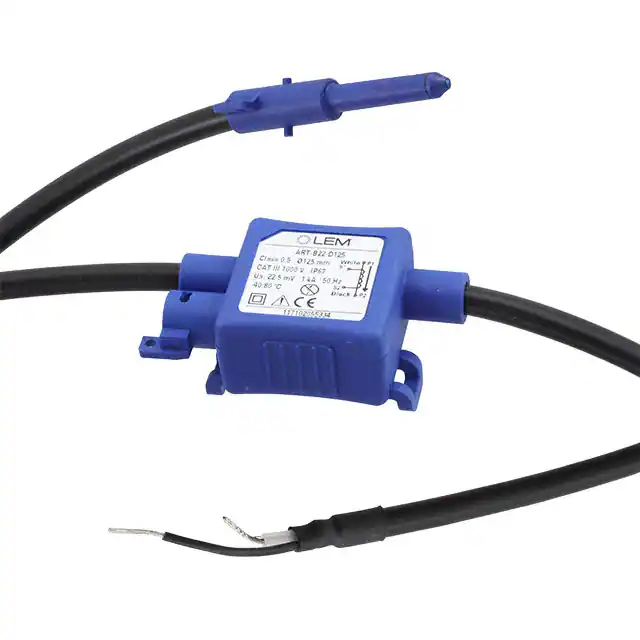

ART-B22-D175 CURR SENSE XFMR FLEXIBLE COIL LEM USA Inc.	277	-	RFQ	Ficha técnica	Bulk	ART	Active	50/60Hz	Non-Invasive (Split Core)	-	343 µH	-	Rogowski Coil	-	105Ohm	-	Free Hanging (In-Line)	2.205 L x 1.326 W (56.01mm x 33.69mm)	0.744 (18.91mm)

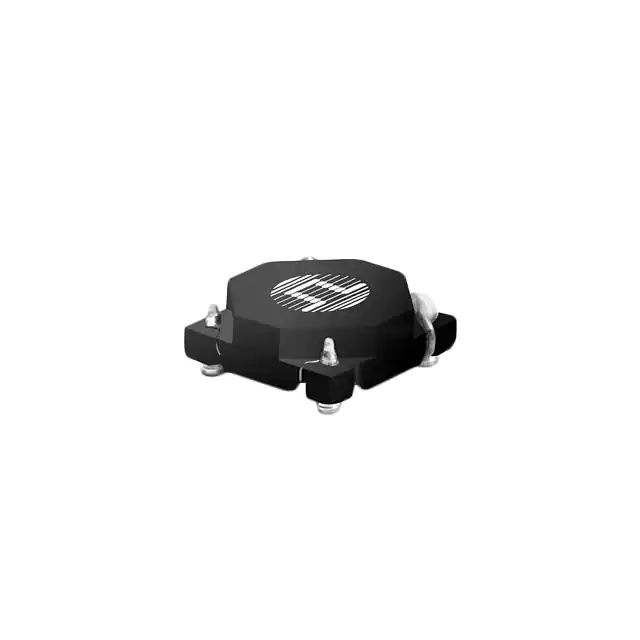

PA0368.050NLT CURR SENSE XFMR 1:50 SMD Pulse Electronics Power	291	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PA0368NL	Active	50kHz ~ 1MHz	Invasive	-	1.7 mH	-	1:50	-	4mOhm Primary, 900mOhm Secondary	-	Surface Mount	0.325 L x 0.325 W (8.25mm x 8.25mm)	0.134 (3.40mm)
PA0368.100NLT CURR SENSE XFMR 1:100 SMD Pulse Electronics Power	2,664	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PA0368NL	Active	50kHz ~ 1MHz	Invasive	-	6.7 mH	-	1:100	-	4mOhm Primary, 1.6Ohm Secondary	-	Surface Mount	0.325 L x 0.325 W (8.25mm x 8.25mm)	0.134 (3.40mm)
PH9500.100NLT CURRENT SENSE, SIDECAR, SM Pulse Electronics Power	2,025	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PH9500.XXXNL	Active	-	Invasive	10 A	10 mH	-	1:100	-	3mOhm Primary, 2.1Ohm Secondary Max	-	Surface Mount	-	0.346 (8.80mm)
56100C CURR SENSE XFMR 10A T/H Murata Power Solutions Inc.	935	-	RFQ	Ficha técnica	Tube	5600	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	10 A	-	-	-	100:1	-	-	Through Hole	0.661 L x 0.350 W (16.79mm x 8.89mm)	0.795 (20.16mm)

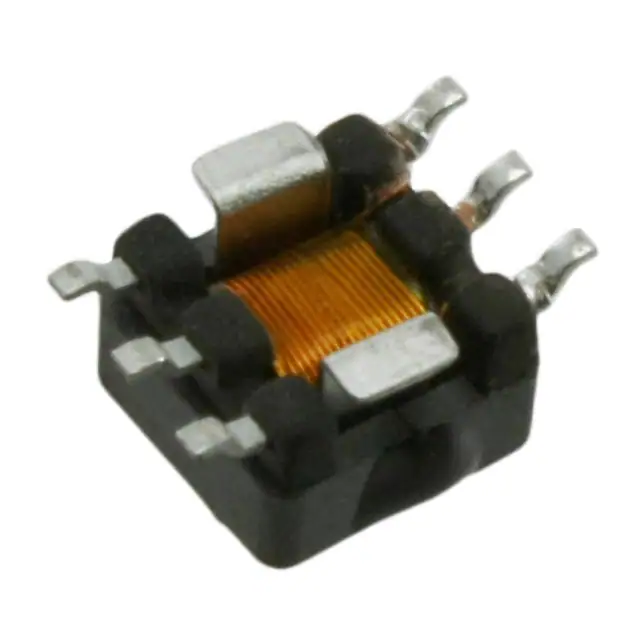

P8208NLT CURR SENSE XFMR 1:100 SMD Pulse Electronics Power	2,513	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	P820X	Active	50kHz ~ 1MHz	Invasive	-	2 mH	-	1:100	-	6mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
B82801B0305A125 CURR SENSE XFMR 1:125 SMD EPCOS - TDK Electronics	2,488	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	3 mH	-	1:125	-	0.8mOhm Primary, 6.5Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
B82801B0925A200 CURR SENSE XFMR 1:200 20A SMD EPCOS - TDK Electronics	2,903	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	20 A	8 mH	100VµS	1:200	-	0.6mOhm Primary, 33.24Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
PA1005.100QNL CURR SENSE XFMR 1:100 20A SMD Pulse Electronics Power	3,048	-	RFQ	Ficha técnica	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	2 mH	-	1:100	-	0.75mOhm Primary, 5.5Ohm Secondary	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
PB0026NLT CURR SENSE XFMR 100:1 35A SMD Pulse Electronics Power	2,532	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	PB002XNL	Active	50kHz ~ 500kHz	Invasive	35 A	5.6 mH	-	100:1	-	0.42mOhm Primary, 1.4Ohm Secondary	-	Surface Mount	0.591 L x 0.784 W (15.00mm x 19.91mm)	0.394 (10.00mm)
PA1005.020QNL CURR SENSE XFMR 1:20 20A SMD Pulse Electronics Power	3,518	-	RFQ	Ficha técnica	Tray	-	Active	50kHz ~ 1MHz	Invasive	20 A	80 µH	-	1:20	-	0.75mOhm Primary, 550mOhm Secondary	AEC-Q200	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)
B82801A1824A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	3,991	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	820 µH	-	-	-	2.5mOhm Primary, 8.7Ohm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)

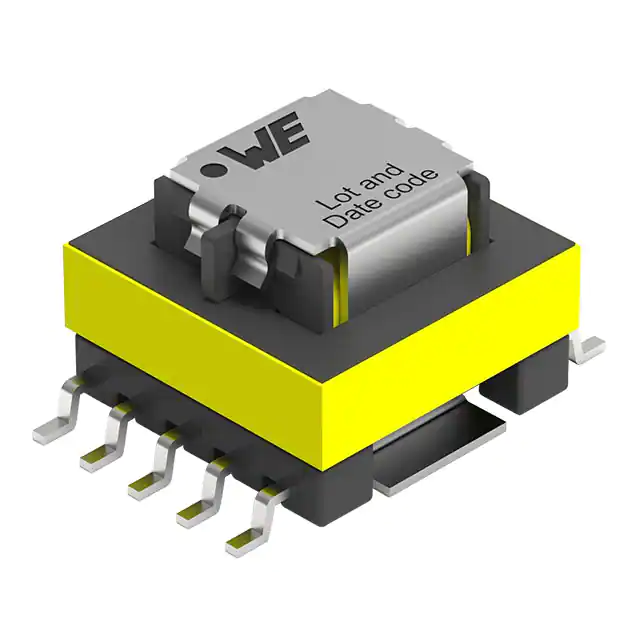

7492540500 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	3,403	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	MID-CST	Active	1MHz	Invasive	40 A	135 mH	1240Vµs	1:500	-	0.28mOhm Primary, 21.2Ohm Secondary	AEC-Q200	Surface Mount	0.570 L x 0.524 W (14.48mm x 13.30mm)	0.413 (10.50mm)

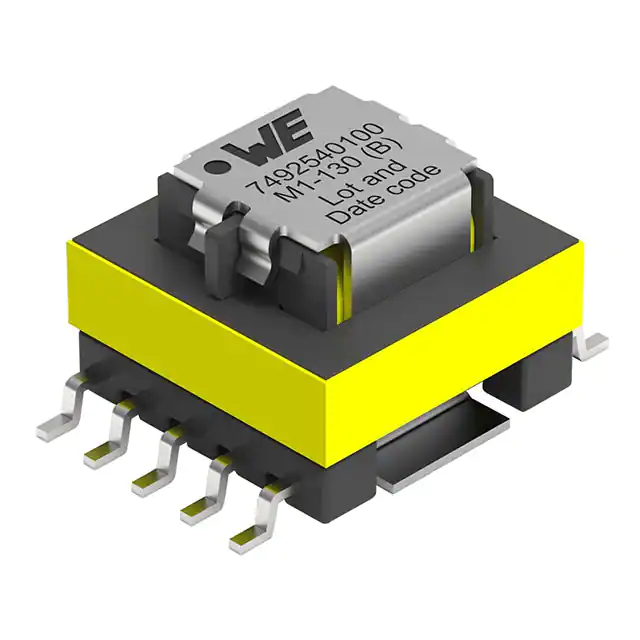

7492540100 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	3,043	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	MID-CST	Active	1MHz	Invasive	40 A	5.6 mH	248Vµs	1:100	-	0.28mOhm Primary, 805mOhm Secondary	AEC-Q200	Surface Mount	0.570 L x 0.524 W (14.48mm x 13.30mm)	0.413 (10.50mm)
7492540200 WE-CST CURRENT SENSE TRANSFORMER Würth Elektronik	611	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	MID-CST	Active	1MHz	Invasive	40 A	22.4 mH	496Vµs	1:200	-	0.28mOhm	AEC-Q200	Surface Mount	0.570 L x 0.524 W (14.48mm x 13.30mm)	0.413 (10.50mm)
B82801C0565A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	3,006	-	RFQ	Ficha técnica	Tape & Reel (TR),Cut Tape (CT)	B82801C	Active	50kHz ~ 500kHz	Invasive	-	5.6 mH	-	1:100	-	0.28mOhm Primary, 1Ohm Secondary	-	Surface Mount	0.560 L x 0.530 W (14.22mm x 13.46mm)	0.394 (10.00mm)

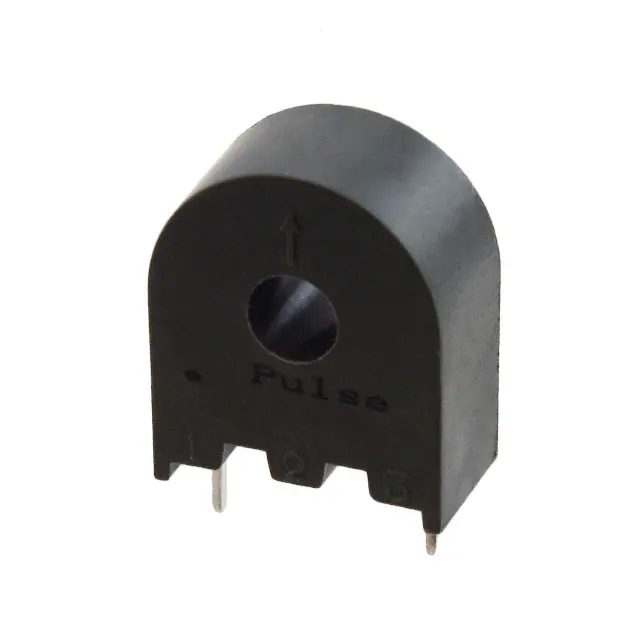

FIS111NL CURR SENSE XFMR 1:100 15A T/H Pulse Electronics Power	3,901	-	RFQ	Ficha técnica	Tube	FIS	Active	200kHz Max	Non-Invasive (Solid Core)	-	22 mH	350VµS	1:100	-	1.3Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
FIS121NL CURR SENSE XFMR 1:200 15A T/H Pulse Electronics Power	2,485	-	RFQ	Ficha técnica	Tube	FIS	Active	200kHz Max	Non-Invasive (Solid Core)	-	94.5 mH	700VµS	1:200	-	4.5Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
P8208NL CURR SENSE XFMR 1:100 SMD Pulse Electronics Power	598	-	RFQ	Ficha técnica	Tray	P820X	Active	50kHz ~ 1MHz	Invasive	-	2 mH	-	1:100	-	6mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284 L x 0.330 W (7.21mm x 8.38mm)	0.217 (5.50mm)

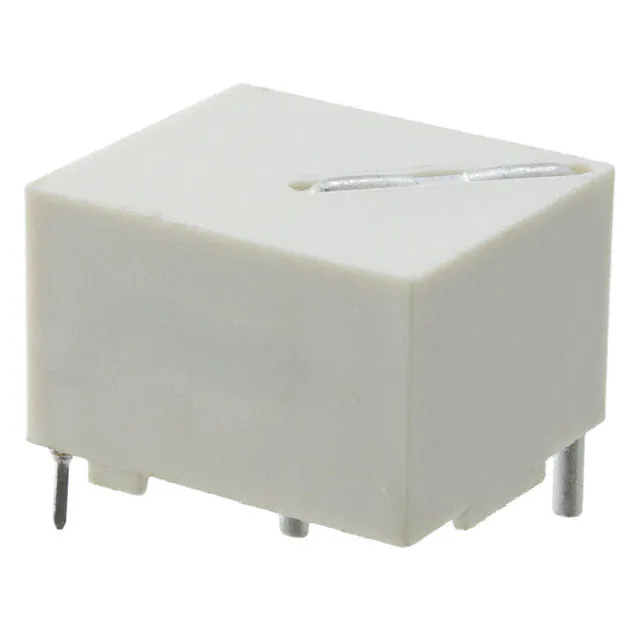

FIS105NL CURR SENSE XFMR 1:50 25A T/H Pulse Electronics Power	2,721	-	RFQ	Ficha técnica	Tube	FIS 1X5	Active	500kHz Max	Invasive	-	4.7 mH	175VµS	1:50	-	500mOhm Max	-	Through Hole	0.693 L x 0.591 W (17.60mm x 15.00mm)	0.492 (12.50mm)
