Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

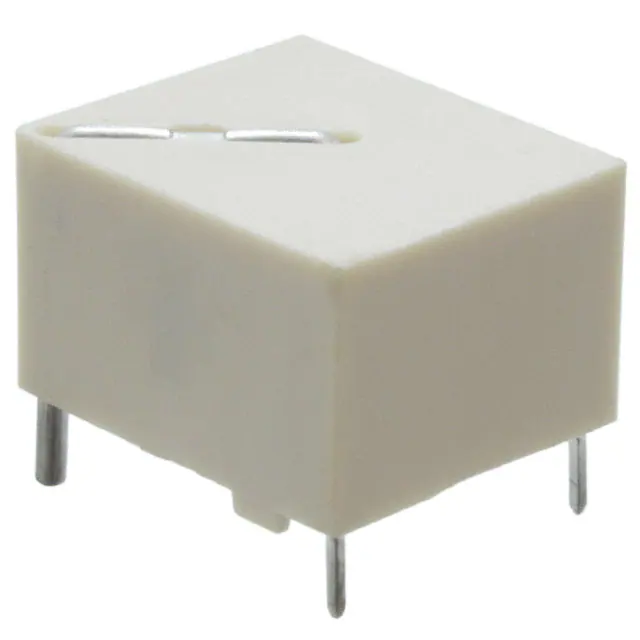

FIS125NL CURR SENSE XFMR 1:200 25A T/H Pulse Electronics Power	2,151	-	RFQ	Ficha técnica	Tube	FIS 1X5	Active	500kHz Max	Invasive	-	76 mH	700VµS	1:200	-	4.5Ohm Max	-	Through Hole	0.693 L x 0.591 W (17.60mm x 15.00mm)	0.492 (12.50mm)
PE-51686NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,594	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	5 mH	-	-	50:1	50Ohm Primary, 700mOhm Secondary	-	Through Hole	0.670 L x 0.390 W (17.01mm x 9.90mm)	0.800 (20.32mm)

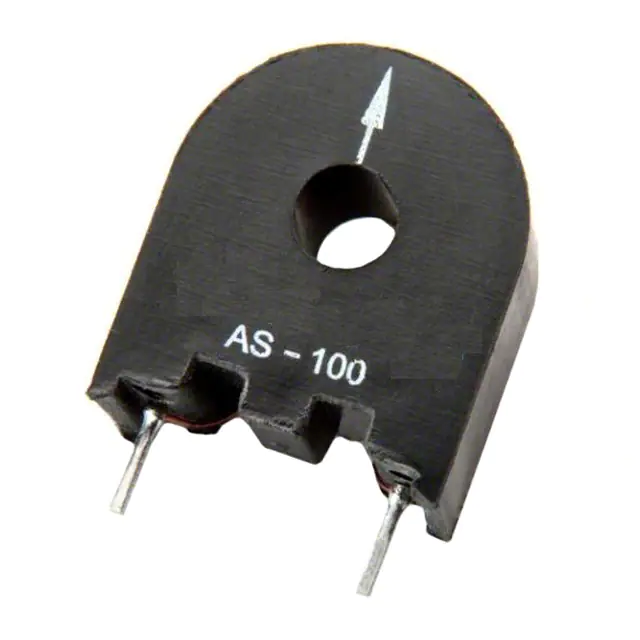

AS-100 CURR SENSE XFMR 1:50 T/H Amgis, LLC	2,515	-	RFQ	Ficha técnica	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	6 mH	175VµS	1:50	-	600mOhm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
PE-51718NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	915	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	20 mH	-	-	100CT:1	100Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.670 L x 0.390 W (17.01mm x 9.90mm)	0.800 (20.32mm)

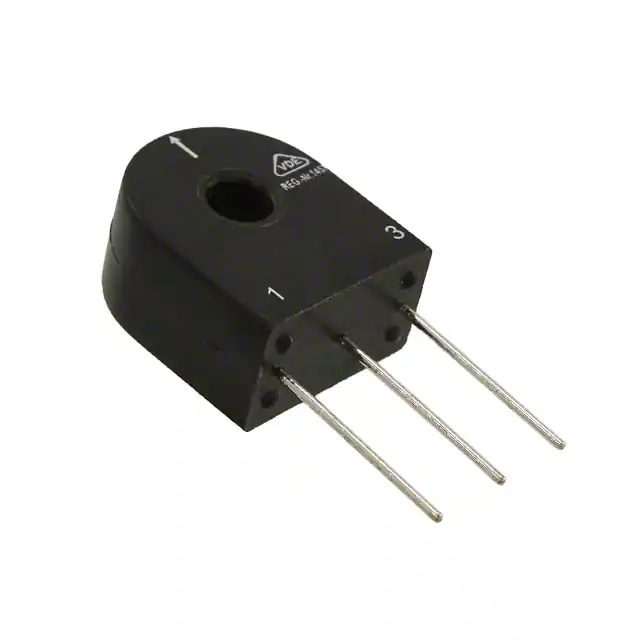

PE-51717NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,749	-	RFQ	Ficha técnica	Tray	-	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	20 A	5 mH	-	-	50CT:1	-	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
P0582NL CURR SENSE XFMR 100:1:1 35A T/H Pulse Electronics Power	2,794	-	RFQ	Ficha técnica	Tray	THT	Active	50kHz ~ 500kHz	Invasive	35 A	19 mH	-	100:1:1	-	1.4Ohm Primary, 1.7mOhm Secondary	-	Through Hole	0.810 L x 0.580 W (20.57mm x 14.73mm)	0.750 (19.05mm)

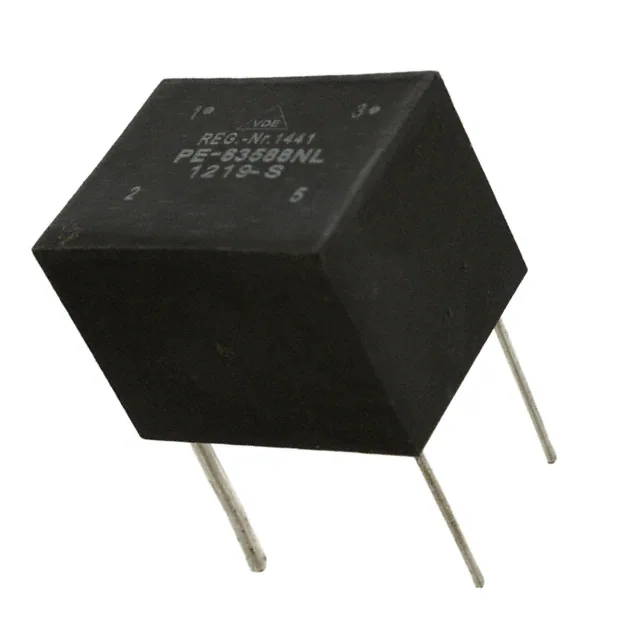

PE-63588NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	2,426	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-63587NL CURR SENSE XFMR 20A T/H Pulse Electronics Power	3,746	-	RFQ	Ficha técnica	Tray	THT	Active	20kHz ~ 200kHz	Invasive	20 A	20 mH	-	-	100:1	100Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.900 L x 0.700 W (22.86mm x 17.78mm)	0.700 (17.78mm)
PE-67100NL CURR SENSE XFMR 37A T/H Pulse Electronics Power	3,454	-	RFQ	Ficha técnica	Tray	-	Active	10kHz ~ 200kHz	Invasive	37 A	20 mH	-	1:100	100:1	56Ohm Primary, 1.4Ohm Secondary	-	Through Hole	0.565 L x 0.750 W (14.35mm x 19.05mm)	0.750 (19.05mm)
CST306-1A CURR SENSE XFMR 35A T/H Triad Magnetics	2,030	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	35 A	3.5 mH	500VµS	-	50:1	340mOhm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST306-3T CURR SENSE XFMR 25A T/H Triad Magnetics	377	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	55 mH	2000VµS	-	200CT:1	3.75Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)

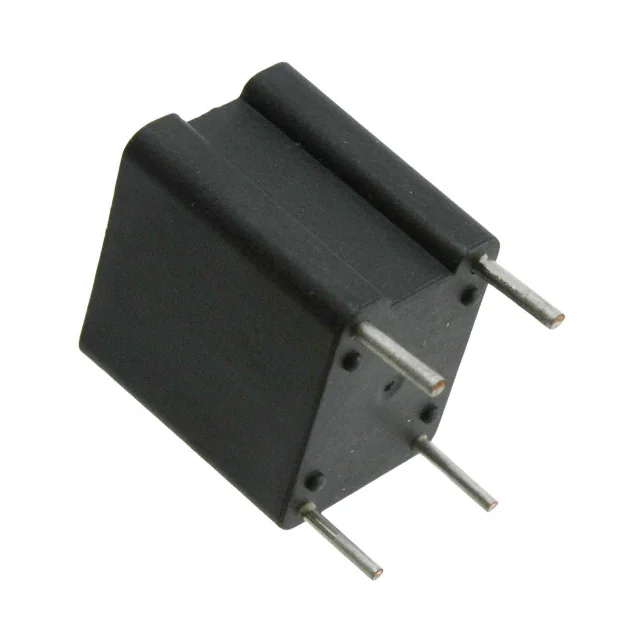

PE-67200NL CURR SENSE XFMR 38A T/H Pulse Electronics Power	2,754	-	RFQ	Ficha técnica	Tray	-	Active	10kHz ~ 200kHz	Invasive	38 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.565 L x 0.750 W (14.35mm x 19.05mm)	0.750 (19.05mm)

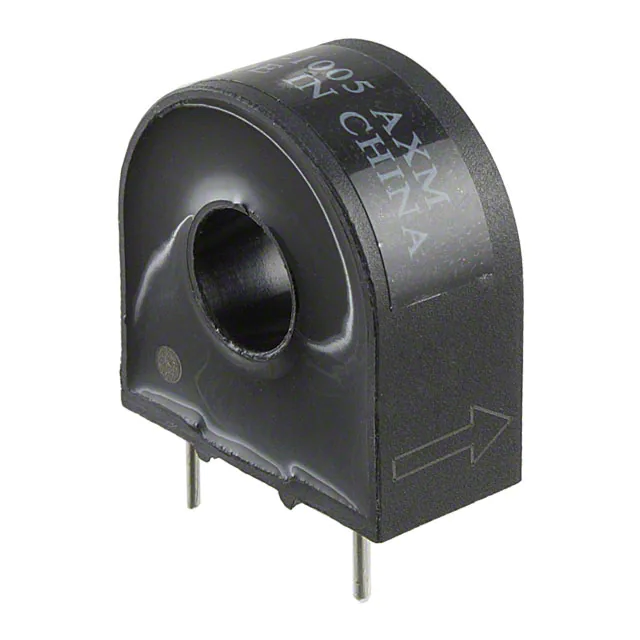

CST-1005 CURR SENSE XFMR 5A T/H Triad Magnetics	3,789	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
T60404E4626X502 CURRENT TRANSFORMER, 100A 2500:1 VACUUMSCHMELZE	2,525	-	RFQ	Ficha técnica	Box	-	Active	50Hz	Non-Invasive (Solid Core)	100 A	102 H	-	1:2500	2500:1	41.7Ohm	-	Through Hole	1.339 L x 0.551 W (34.00mm x 14.00mm)	1.339 (34.00mm)

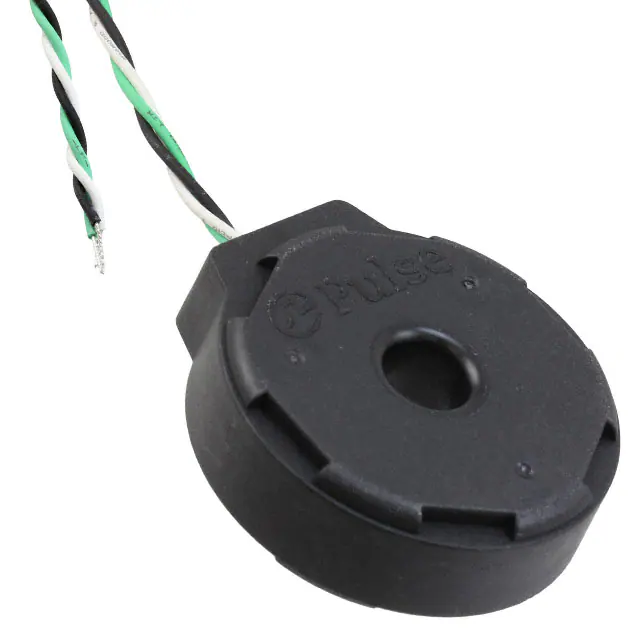

PA3202NL CURR SENSE XFMR ROGOWSKI 200A Pulse Electronics Power	3,810	-	RFQ	Ficha técnica	Tray	Sidewinder®, PA32XXNL	Active	50/60Hz	Non-Invasive (Solid Core)	200 A	1.75 mH	-	Rogowski Coil	-	54Ohm Max	-	Chassis Mount	1.669 L x 1.587 W (42.40mm x 40.30mm)	0.580 (14.73mm)
T60404E4626X501 CURRENT TRANSFORMER, 100A 2500:1 VACUUMSCHMELZE	2,854	-	RFQ	Ficha técnica	Box	-	Active	50Hz	Non-Invasive (Solid Core)	100 A	2.1 H	-	1:2500	2500:1	44Ohm	-	Through Hole	1.339 L x 0.551 W (34.00mm x 14.00mm)	1.339 (34.00mm)

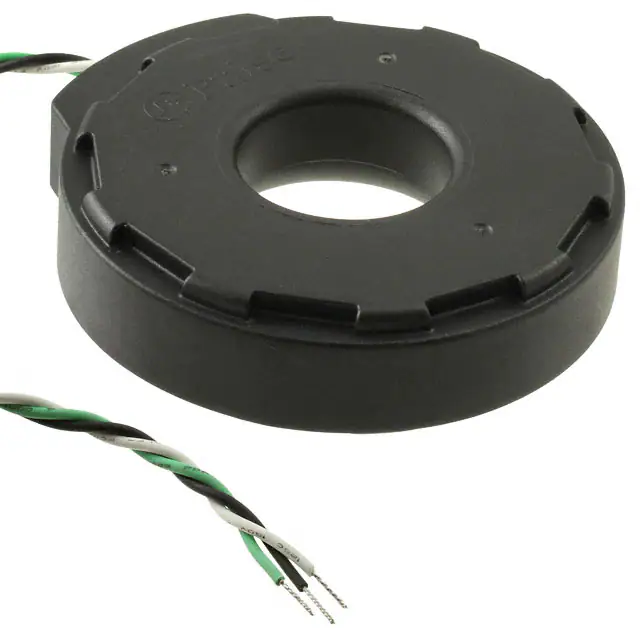

PA3209NL CURR SENSE XFMR ROGOWSKI 1000A Pulse Electronics Power	2,904	-	RFQ	Ficha técnica	Tray	Sidewinder®, PA32XXNL	Active	50/60Hz	Non-Invasive (Solid Core)	1000 A	3 mH	-	Rogowski Coil	-	42Ohm Max	-	Chassis Mount	2.240 L x 2.098 W (56.90mm x 53.30mm)	0.580 (14.73mm)

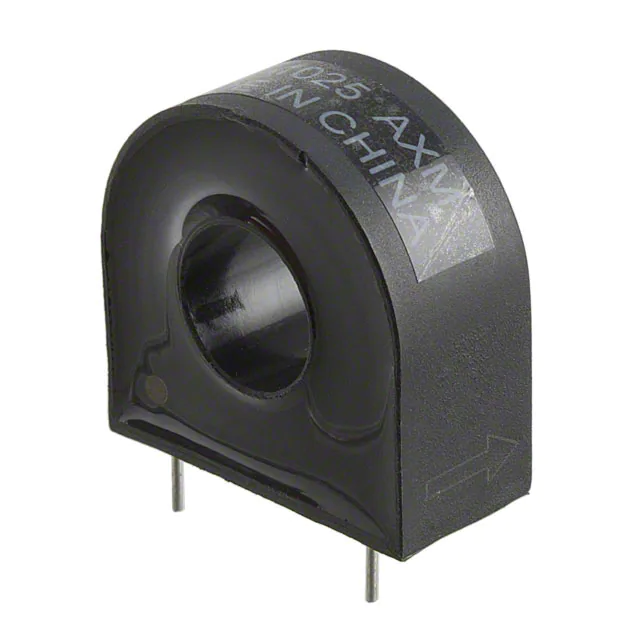

CST-1025 CURR SENSE XFMR 25A T/H Triad Magnetics	426	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	25 A	-	-	-	1000:1	46Ohm	-	Through Hole	1.189 L x 0.563 W (30.20mm x 14.30mm)	1.189 (30.20mm)

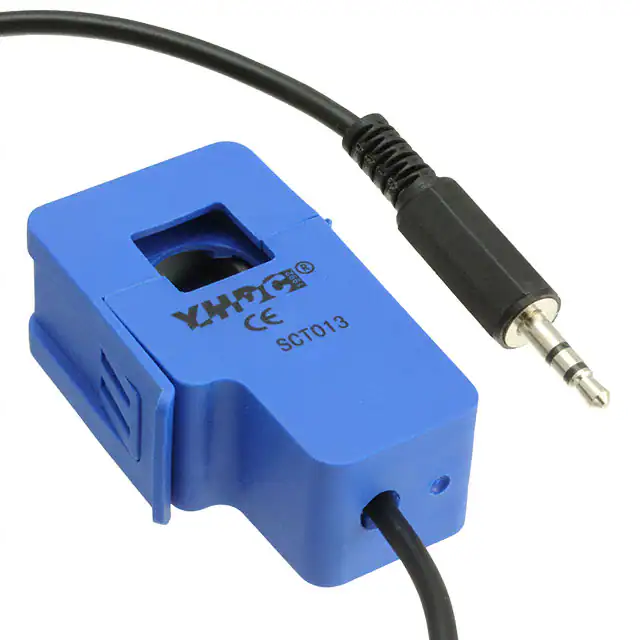

101990029 CURR SENSE XFMR 100A:0.05A 100A Seeed Technology Co., Ltd	3,957	-	RFQ	Ficha técnica	Bulk	SCT013	Active	-	Non-Invasive (Split Core)	100 A	-	-	-	-	-	-	Chassis Mount	-	-
CT-06-50 CURR SENSE XFMR T/H KEMET	240	-	RFQ	Ficha técnica	Bulk	CT	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	500:1	500:1	-	-	Through Hole	0.882 L x 0.709 W (22.40mm x 18.00mm)	0.280 (7.10mm)
