Transformadores de detección de corriente

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
CST206-1T CURR SENSE XFMR 110A T/H Triad Magnetics	2,461	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	110 A	14 mH	2000VµS	-	100:1	580mOhm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
PA3206NL CURR SENSE XFMR ROGOWSKI 40A Pulse Electronics Power	2,688	-	RFQ	Ficha técnica	Tray	Sidewinder®, PA32XXNL	Active	50/60Hz	Non-Invasive (Solid Core)	40 A	1.14 mH	-	Rogowski Coil	-	54Ohm Max	-	Chassis Mount	1.181 L x 0.563 W (30.00mm x 14.30mm)	1.220 (31.00mm)
CT-1030 CURR SENSE XFMR 30A T/H Amgis, LLC	3,592	-	RFQ	Ficha técnica	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	30 A	-	-	-	1000:1	48Ohm	-	Through Hole	1.189 L x 0.563 W (30.20mm x 14.30mm)	1.189 (30.20mm)
CST-1030 CURR SENSE XFMR 30A T/H Triad Magnetics	2,579	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	30 A	-	-	-	1000:1	46Ohm	-	Through Hole	1.189 L x 0.563 W (30.20mm x 14.30mm)	1.189 (30.20mm)
CR8320-1600 CURR SENSE XFMR 10A T/H CR Magnetics Inc.	2,118	-	RFQ	Ficha técnica	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	10 A	-	-	-	1600:1	95Ohm	-	Through Hole	0.764 L x 0.323 W (19.40mm x 8.20mm)	0.768 (19.50mm)
CR8410-1000 CURR SENSE XFMR 20A IN-LINE CR Magnetics Inc.	2,853	-	RFQ	Ficha técnica	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	41Ohm	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	0.323 (8.20mm)
T60404E4624X501 CURRENT TRANSFORMER, 60A 2500:1 VACUUMSCHMELZE	3,317	-	RFQ	Ficha técnica	Box	-	Active	50Hz	Non-Invasive (Solid Core)	60 A	3 H	-	1:2500	2500:1	55Ohm	-	Through Hole	1.220 L x 0.551 W (31.00mm x 14.00mm)
CR8348-1000 CURR SENSE XFMR 20A T/H CR Magnetics Inc.	3,910	-	RFQ	Ficha técnica	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	24Ohm	-	Through Hole	0.925 L x 0.433 W (23.50mm x 11.00mm)	0.984 (25.00mm)
CR8348-2000 CURR SENSE XFMR 50A T/H CR Magnetics Inc.	2,992	-	RFQ	Ficha técnica	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	50 A	-	-	-	2000:1	106Ohm	-	Through Hole	0.925 L x 0.433 W (23.50mm x 11.00mm)	0.984 (25.00mm)
CR8349-1500 CURR SENSE XFMR 75A T/H CR Magnetics Inc.	3,228	-	RFQ	Ficha técnica	Bulk	CR8300	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	75 A	-	-	-	1500:1	80Ohm	-	Through Hole	1.024 L x 0.670 W (26.00mm x 17.00mm)	1.102 (28.00mm)
CR8348-2500-N CURR SENSE XFMR 40A T/H CR Magnetics Inc.	3,167	-	RFQ	Ficha técnica	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	40 A	-	-	-	2500:1	134Ohm	-	Through Hole	0.925 L x 0.433 W (23.50mm x 11.00mm)	0.984 (25.00mm)

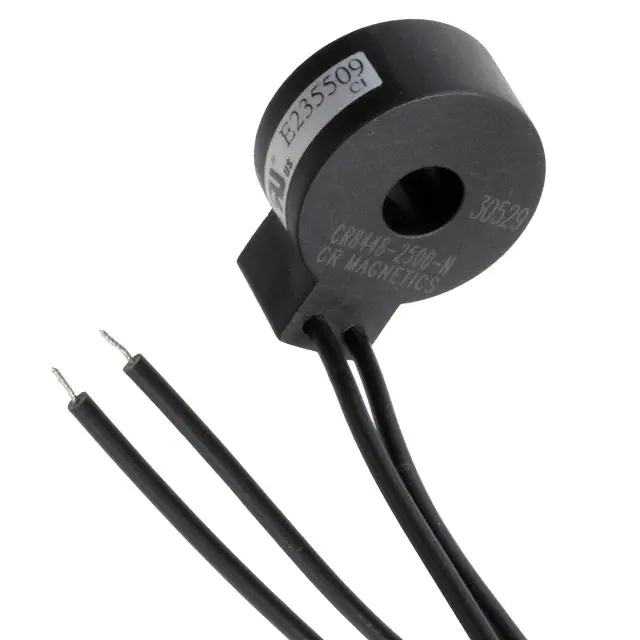

CR8448-2500-N CURR SENSE XFMR 40A IN-LINE CR Magnetics Inc.	2,151	-	RFQ	Ficha técnica	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	40 A	-	-	-	2500:1	134Ohm	-	Free Hanging (In-Line)	1.160 L x 0.922 W (29.46mm x 23.42mm)	0.435 (11.05mm)
CR8349-2500-N CURR SENSE XFMR 75A T/H CR Magnetics Inc.	3,255	-	RFQ	Ficha técnica	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	75 A	-	-	-	2500:1	190Ohm	-	Through Hole	1.024 L x 0.670 W (26.00mm x 17.00mm)	1.102 (28.00mm)

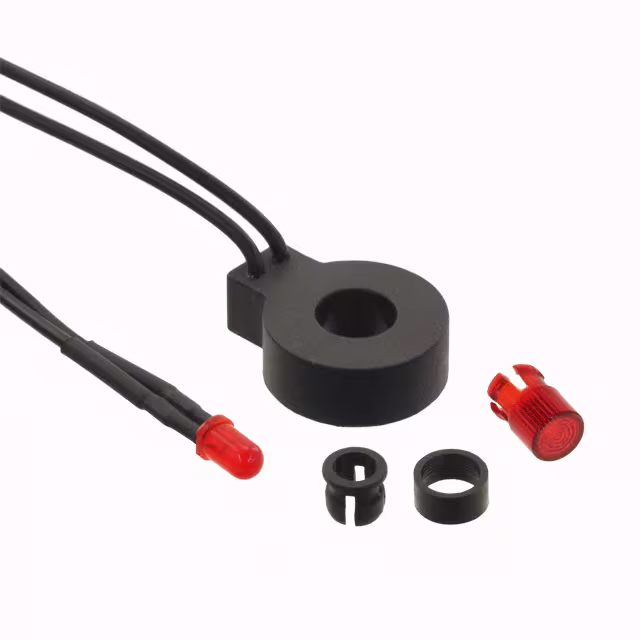

CR2550-R CURR SENSE XFMR IN-LINE CR Magnetics Inc.	286	-	RFQ	Ficha técnica	Bulk	CR2550	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	-
CR8420-1000 CURR SENSE XFMR 50A IN-LINE CR Magnetics Inc.	3,819	-	RFQ	Ficha técnica	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	50 A	-	-	-	1000:1	22Ohm	-	Free Hanging (In-Line)	1.417 L x 1.181 W (36.00mm x 30.00mm)	0.362 (9.20mm)
CR8349-1000-N CURR SENSE XFMR 50A T/H CR Magnetics Inc.	338	-	RFQ	Ficha técnica	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	50 A	-	-	-	1000:1	32Ohm	-	Through Hole	1.024 L x 0.670 W (26.00mm x 17.00mm)	1.102 (28.00mm)
CR3110-3000 CURR SENSE XFMR IN-LINE CR Magnetics Inc.	349	-	RFQ	Ficha técnica	Bulk	CR3100	Active	50/60Hz	Non-Invasive (Split Core)	-	-	-	-	-	515mOhm	-	Free Hanging (In-Line)	1.004 L x 1.043 W (25.50mm x 26.50mm)	1.575 (40.00mm)
CR8420-1000-G CURR SENSE XFMR 20A IN-LINE CR Magnetics Inc.	3,332	-	RFQ	Ficha técnica	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	44Ohm	-	Free Hanging (In-Line)	1.417 L x 1.181 W (36.00mm x 30.00mm)	0.362 (9.20mm)
CR8350-2500-N CURR SENSE XFMR 100A T/H CR Magnetics Inc.	2,523	-	RFQ	Ficha técnica	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	100 A	-	-	-	2500:1	57Ohm	-	Through Hole	1.476 L x 0.551 W (37.50mm x 14.00mm)	1.535 (39.00mm)

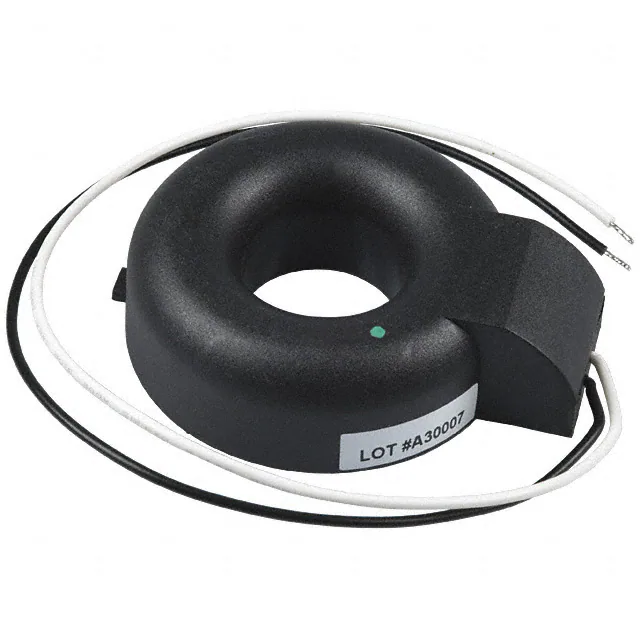

CR8459-2000-N CURR SENSE XFMR 200A IN-LINE CR Magnetics Inc.	3,205	-	RFQ	Ficha técnica	Bulk	CR8400	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	200 A	-	-	-	2000:1	74Ohm	-	Free Hanging (In-Line)	2.362 L x 1.890 W (60.00mm x 48.00mm)	0.689 (17.50mm)
