Iluminación LED - COB, motores, módulos, tiras

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)

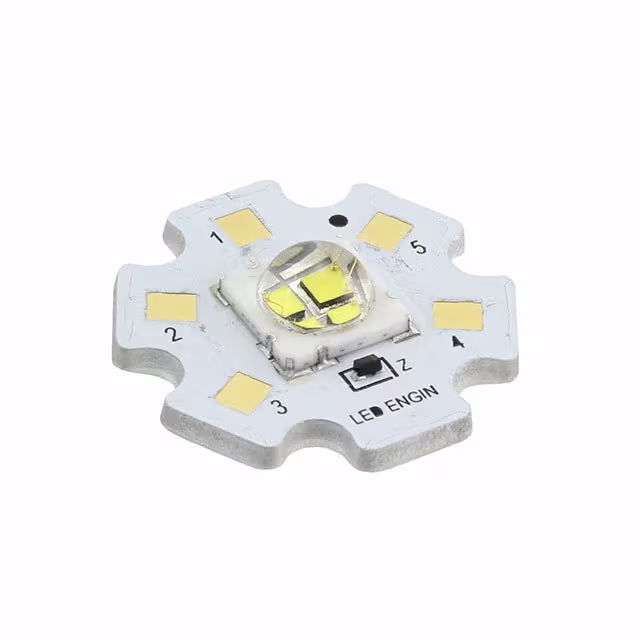

LZ4-40CW08-0000 LED EMITTER WHT 800LM STAR MCPCB OSRAM SYLVANIA Inc.	2,170	-	RFQ	Ficha técnica	Tray	LZ4	Obsolete	LED Module	White, Cool	5000K ~ 6500K	-	Starboard	800lm (695lm ~ 1085lm)	700mA	25°C	12.6V	91 lm/W	1A	75 (Typ)	90°	-	19.90mm Dia	5.40mm	5.60mm Dia
LZ4-40G108-0000 LED EMITTER GRN 600LM MCPCB OSRAM SYLVANIA Inc.	3,100	-	RFQ	Ficha técnica	Tray	LZ4	Active	LED Module	Green	-	525nm	Starboard	657lm (445lm ~ 868lm)	700mA	25°C	14.4V	65 lm/W	1A	-	100°	-	19.90mm Dia	5.40mm	5.60mm Dia
LZ4-40GW08-0230 LED EMITTER WH 480LM 1CH MCPCB OSRAM SYLVANIA Inc.	2,992	-	RFQ	Ficha técnica	Tray	LZ4	Obsolete	LED Module	White, Warm	3000K	-	Starboard	480lm (356lm ~ 556lm)	700mA	25°C	12.9V	53 lm/W	1A	95	105°	-	19.90mm Dia	5.40mm	5.60mm Dia
LZ4-40R208-0000 LED EMITTER RED 660NM STAR MCPCB OSRAM SYLVANIA Inc.	3,661	-	RFQ	Ficha técnica	Tray	LZ4	Obsolete	LED Module	Red	-	660nm	Starboard	2.5W (2W ~ 3W)	700mA	25°C	10.5V	-	1A	-	95°	-	19.90mm Dia	5.40mm	5.60mm Dia

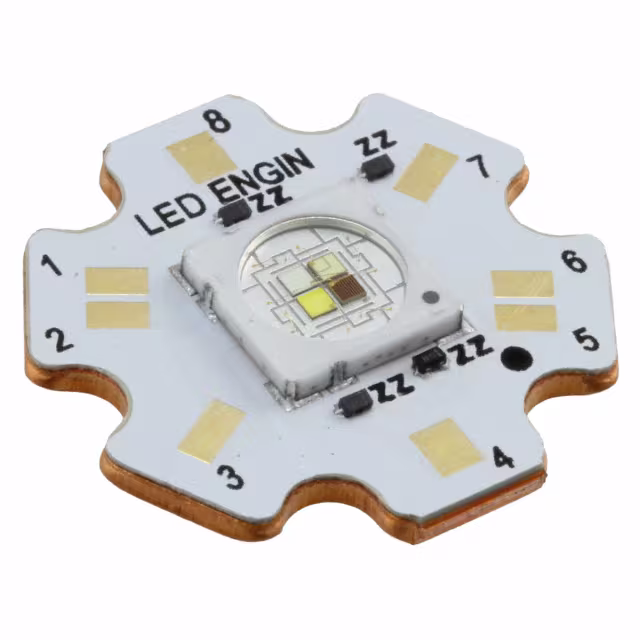

LZ4-64MDC9-0000 LED EMITTER RGBW FLAT STAR MCPCB OSRAM SYLVANIA Inc.	3,328	-	RFQ	Ficha técnica	Tray	LZ4	Obsolete	LED Module	Red, Green, Blue, White - Cool (RGBW)	6500K	623nm Red, 523nm Green, 460nm Blue	Starboard	65lm (Typ) Red, 125lm (Typ) Green, 30lm (Typ) Blue, 180lm (Typ) White	700mA	25°C	2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White	37 lm/W Red, 50 lm/W Green, 13 lm/W Blue, 80 lm/W White	1A	-	110°	-	19.90mm Dia	2.80mm	-
LZ9-J0CW00-0000 LED EMITTER WHT 227LM 1CH MCPCB OSRAM SYLVANIA Inc.	3,656	-	RFQ	Ficha técnica	Tray	LZ9	Obsolete	LED Module	White, Cool	5000K ~ 6500K	-	Starboard	1800lm (1357lm ~ 2120lm)	700mA	25°C	29.1V	88 lm/W	800mA	75 (Typ)	110°	-	19.90mm Dia	5.50mm	6.20mm Dia
LZ9-J0GW00-0230 LED EMITTER WHT 1060LM 1CH MCPCB OSRAM SYLVANIA Inc.	2,298	-	RFQ	Ficha técnica	Tray	LZ9	Obsolete	LED Module	White, Warm	3000K	-	Starboard	1060lm (868lm ~ 1357lm)	700mA	25°C	29.1V	52 lm/W	800mA	95	115°	-	19.90mm Dia	5.50mm	6.20mm Dia
LZ9-J0NW00-0040 LED EMITTER WHT 1650LM 1CH MCPCB OSRAM SYLVANIA Inc.	2,522	-	RFQ	Ficha técnica	Tray	LZ9	Obsolete	LED Module	White, Neutral	4000K	-	Starboard	1650lm (1357lm ~ 2120lm)	700mA	25°C	29.1V	81 lm/W	800mA	82 (Typ)	110°	-	19.90mm Dia	5.50mm	6.20mm Dia
LZ9-J0WW00-0030 LED EMITTER WHT 1430LM 1CH MCPCB OSRAM SYLVANIA Inc.	3,715	-	RFQ	Ficha técnica	Tray	LZ9	Obsolete	LED Module	White, Warm	3000K	-	Starboard	1430lm (1085lm ~ 1696lm)	700mA	25°C	29.1V	70 lm/W	800mA	82 (Typ)	110°	-	19.90mm Dia	5.50mm	6.20mm Dia
LZ9-M0CW00-0000 LED EMITTER WHT 227LM 3CH MCPCB OSRAM SYLVANIA Inc.	3,011	-	RFQ	Ficha técnica	Tray	LZ9	Obsolete	LED Module	White, Cool	5000K ~ 6500K	-	Starboard	1739lm (1357lm ~ 2120lm)	3 x 700mA	25°C	29.1V	28 lm/W	800mA	75 (Typ)	110°	-	19.90mm Dia	5.50mm	6.20mm Dia

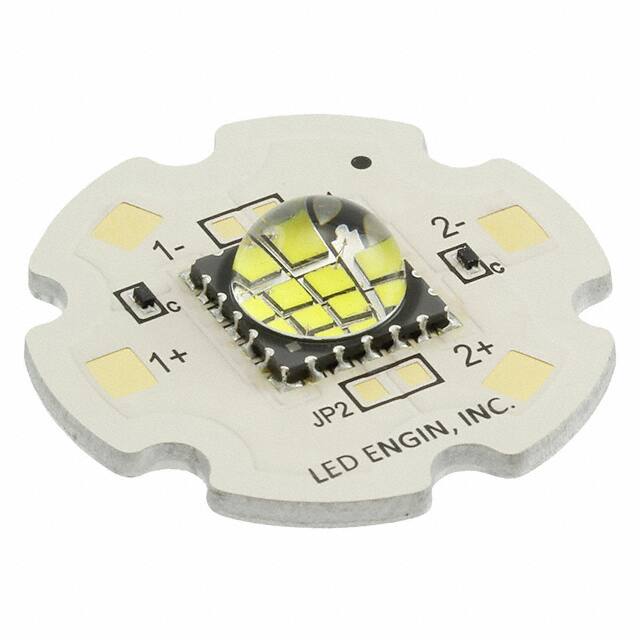

LZC-C0CW0R-0065 LED EMITTER WHT 2350LM 2CH MCPCB OSRAM SYLVANIA Inc.	3,908	-	RFQ	Ficha técnica	Tray	LZC	Obsolete	LED Module	White, Cool	6500K	-	Starboard	2350lm (1908lm ~ 3200lm)	2 x 700mA	25°C	18.9V	89 lm/W	1A	70 (Typ)	110°	-	28.30mm Dia	6.90mm	8.20mm Dia
LZC-C0GW00-0230 LED EMITTER WHT 2CH STAR MCPCB OSRAM SYLVANIA Inc.	2,507	-	RFQ	Ficha técnica	Tray	LZC	Obsolete	LED Module	White, Warm	3000K	-	Starboard	1400lm (1085lm ~ 1696lm)	2 x 700mA	25°C	19.4V	52 lm/W	-	95	110°	-	28.30mm Dia	6.90mm	8.20mm Dia
LZC-C0WW0R-0030 LED EMITTER WHT 3000K 2X6 MCPCB OSRAM SYLVANIA Inc.	2,810	-	RFQ	Ficha técnica	Tray	LZC	Obsolete	LED Module	White, Warm	3000K	-	Starboard	1900lm (1357lm ~ 2350lm)	2 x 700mA	25°C	18.9V	140 lm/W	1A	85 (Typ)	110°	-	28.30mm Dia	6.90mm	8.20mm Dia

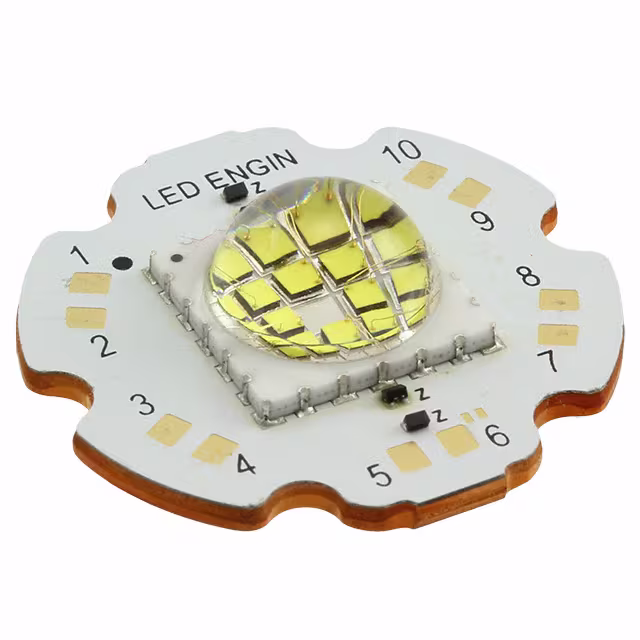

LZP-D0CW0R-0000 LED EMITTER WHT 227LM 5CH MCPCB OSRAM SYLVANIA Inc.	2,531	-	RFQ	Ficha técnica	Tray	LZP	Obsolete	LED Module	White, Cool	5000K ~ 6500K	-	Starboard	4400lm (3800lm ~ 5100lm)	4 x 700mA	25°C	18.9V	83 lm/W	1A	75 (Typ)	110°	-	28.30mm Dia	8.10mm	10.45mm Dia

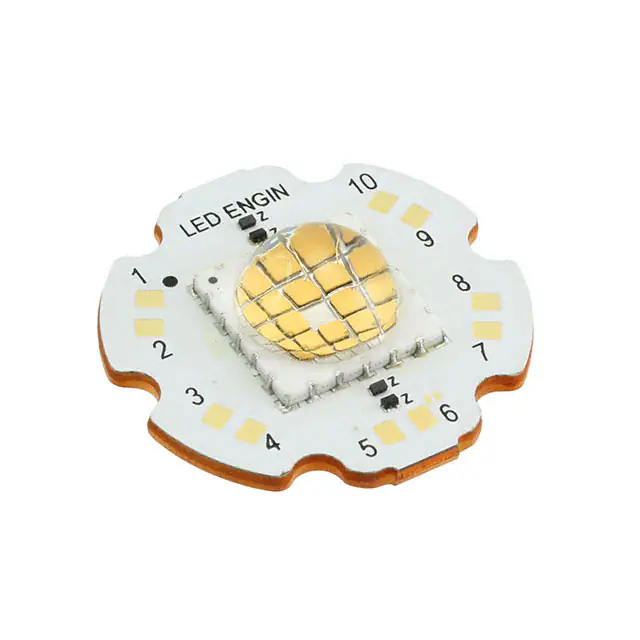

LZP-D0GW00-0230 LED EMITTER GALL WHITE 5CH MCPCB OSRAM SYLVANIA Inc.	2,224	-	RFQ	Ficha técnica	Tray	LZP	Obsolete	LED Module	White, Warm	3000K	-	Starboard	2650lm (2120lm ~ 2900lm)	4 x 700mA	25°C	19.4V	49 lm/W	1A	95	110°	-	28.00mm Dia	8.10mm	10.50mm Dia
LZP-D0WW0R-0030 LED EMITTER WHT 4650LM 5CH MCPCB OSRAM SYLVANIA Inc.	3,527	-	RFQ	Ficha técnica	Tray	LZP	Obsolete	LED Module	White, Warm	3000K	-	Starboard	3600lm (2900lm ~ 3800lm)	4 x 700mA	25°C	18.9V	68 lm/W	1A	83 (Typ)	110°	-	28.30mm Dia	8.10mm	10.45mm Dia
LZ1-10CW02-0000 LED MCPCB LZ1-2 COOL WHITE OSRAM SYLVANIA Inc.	3,542	-	RFQ	Ficha técnica	Tray	LZ1	Obsolete	LED Module	White, Cool	5000K ~ 6500K	-	Starboard	227lm (182lm ~ 285lm)	1A	25°C	3.6V	63 lm/W	1.2A	75 (Typ)	85°	-	19.90mm Dia	4.50mm	3.20mm Dia
LZ1-10NW02-P040 LED MCPCB LZ1-2 NEUTRAL WHITE OSRAM SYLVANIA Inc.	2,506	-	RFQ	Ficha técnica	Tray	LZ1	Obsolete	LED Module	White, Neutral	4000K	-	Starboard	232lm (182lm ~ 282lm)	1A	25°C	3.6V	64 lm/W	1.2A	82 (Typ)	85°	-	19.90mm Dia	4.50mm	3.20mm Dia
LZ1-10WW02-0000 LED MCPCB LZ1-2 WARM WHITE OSRAM SYLVANIA Inc.	3,905	-	RFQ	Ficha técnica	Tray	LZ1	Obsolete	LED Module	White, Warm	2700K ~ 3500K	-	Starboard	180lm (146lm ~ 220lm)	1A	25°C	3.6V	50 lm/W	1.2A	85 (Typ)	85°	-	19.90mm Dia	4.50mm	3.20mm Dia
LZ1-10WW02-0027 LED MCPCB LZ1-2 WARM WHITE OSRAM SYLVANIA Inc.	2,008	-	RFQ	Ficha técnica	Tray	LZ1	Obsolete	LED Module	White, Warm	2700K	-	Starboard	180lm (146lm ~ 220lm)	1A	25°C	3.6V	50 lm/W	1.2A	85 (Typ)	85°	-	19.90mm Dia	4.50mm	3.20mm Dia
