Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZP-D0GW00-0430LED EMITTER GALL WHITE 5CH MCPCB OSRAM SYLVANIA Inc. |
2,014 | - |
RFQ |
Ficha técnica |
Tray | LZP | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 2650lm (2120lm ~ 2900lm) | 4 x 700mA | 25°C | 19.4V | 49 lm/W | - | 95 | 110° | - | 28.00mm Dia | 8.10mm | 10.50mm Dia |
|
|
LZP-D0NW0R-0040LED EMITTER WHT 4000K 5CH MCPCB OSRAM SYLVANIA Inc. |
2,352 | - |
RFQ |
Ficha técnica |
Tray | LZP | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 4100lm (3500lm ~ 4600lm) | 4 x 700mA | 25°C | 18.9V | 85 lm/W | 1A | 82 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia |
|
|
LZP-D0SW00-0000LED EMITTER STUDIO WHT 5CH MCPCB OSRAM SYLVANIA Inc. |
3,717 | - |
RFQ |
Ficha técnica |
Tray | LZP | Obsolete | LED Module | White, Cool | 5300K | - | Starboard | 3600lm (3200lm ~ 3800lm) | 4 x 700mA | 25°C | 19.8V | 66 lm/W | 1A | 88 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia |
|
|
LZP-D0SW0R-0000LED EMITTER STUDIO WHT 5CH MCPCB OSRAM SYLVANIA Inc. |
3,532 | - |
RFQ |
Tray | LZP | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LZP-D0WW0R-0235LED EMITTER WHT 4650LM 5CH MCPCB OSRAM SYLVANIA Inc. |
2,509 | - |
RFQ |
Ficha técnica |
Tray | LZP | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia |
|
|
LZP-D0WW0R-0427LED EMITTER WHT 4650LM 5CH MCPCB OSRAM SYLVANIA Inc. |
3,948 | - |
RFQ |
Ficha técnica |
Tray | LZP | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia |
|
|
LZP-D0WW0R-0430LED EMITTER WHT 4650LM 5CH MCPCB OSRAM SYLVANIA Inc. |
2,213 | - |
RFQ |
Ficha técnica |
Tray | LZP | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia |
|
|
LZP-D0WW0R-0435LED EMITTER WHT 4650LM 5CH MCPCB OSRAM SYLVANIA Inc. |
3,222 | - |
RFQ |
Ficha técnica |
Tray | LZP | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia |
|
|
LZ1-10B200-0000LED EMITTER BLU 465NM STAR MCPCB OSRAM SYLVANIA Inc. |
3,472 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Obsolete | LED Module | Blue | - | 465nm | Starboard | 40lm (24lm ~ 60lm) | 1A | 25°C | 3.6V | 11 lm/W | 1.2A | - | 80° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
|
LZ1-10CW00-0000LED EMITTER WH 227LM STAR MCPCB OSRAM SYLVANIA Inc. |
3,692 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Obsolete | LED Module | White, Cool | 5000K ~ 6500K | - | Starboard | 227lm (182lm ~ 282lm) | 1A | 25°C | 3.6V | 63 lm/W | 1.2A | 75 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|

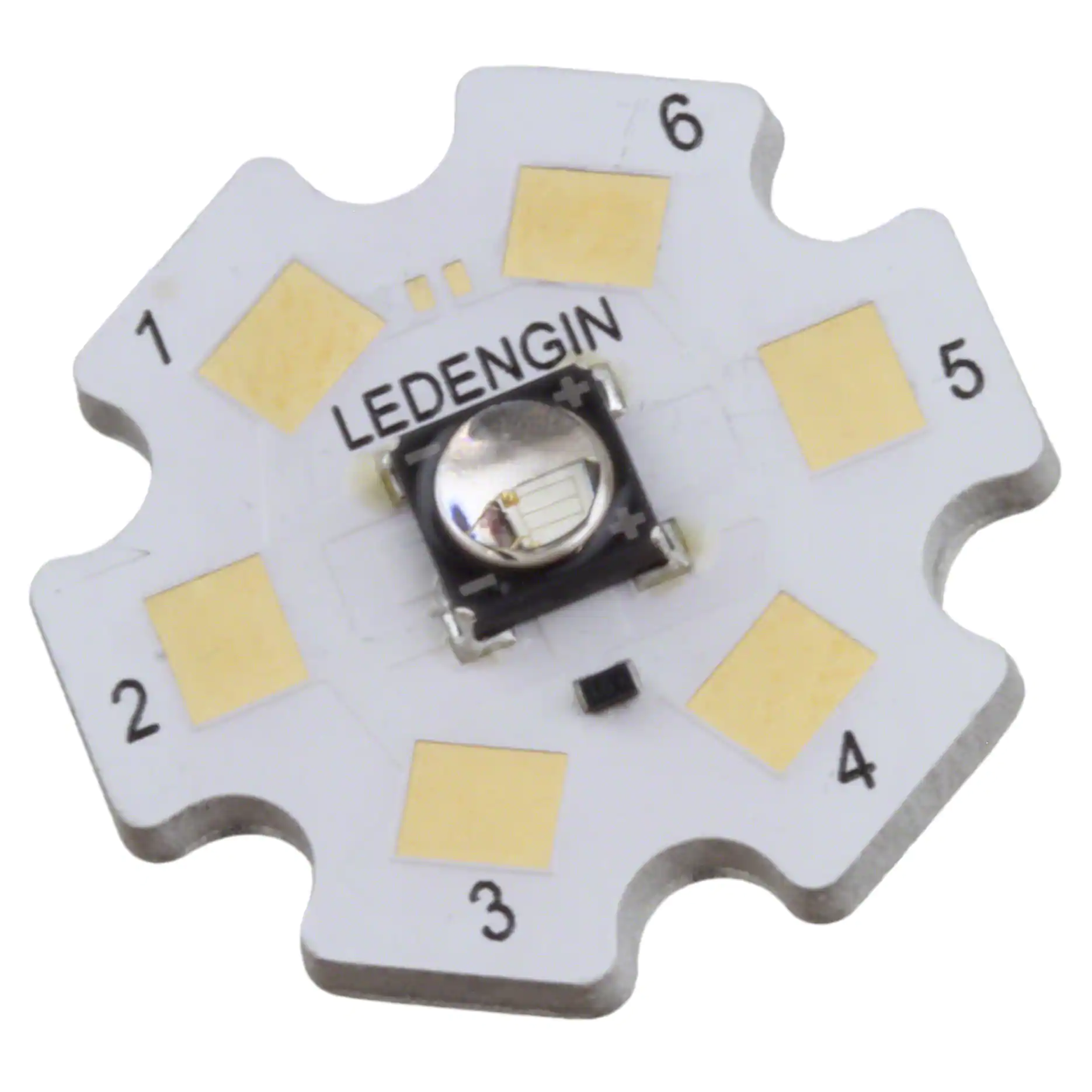

LZ1-10DB00-0000LED EMITTER BLU 460NM STAR MCPCB OSRAM SYLVANIA Inc. |
2,047 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Discontinued at Mosen | LED Module | Blue | - | 460nm | Starboard | - | 700mA | 25°C | 3.6V | - | 1.2A | - | 80° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
LZ1-10G100-0000LED EMITTER GRN 525NM STAR MCPCB OSRAM SYLVANIA Inc. |
3,155 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Obsolete | LED Module | Green | - | 525nm | Starboard | 200lm (145lm ~ 285lm) | 1A | 25°C | 3.7V | 53 lm/W | 1.2A | - | 80° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
LZ1-10NW00-0040LED EMITTER WHT 200LM STAR MCPCB OSRAM SYLVANIA Inc. |
3,637 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 216lm (146lm ~ 285lm) | 1A | 25°C | 3.6V | 60 lm/W | 1.2A | 82 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
LZ1-10R100-0000LED EMITTER RED 623NM STAR MCPCB OSRAM SYLVANIA Inc. |
2,718 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Obsolete | LED Module | Red | - | 623nm | Starboard | 160lm (117lm ~ 228lm) | 1A | 25°C | 2.6V | 62 lm/W | 1.2A | - | 76° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
|
LZ1-10R200-0000LED EMITTER RED 660NM STAR MCPCB OSRAM SYLVANIA Inc. |
2,680 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Obsolete | LED Module | Red | - | 660nm | Starboard | - | 1A | 25°C | 2.6V | - | 1.2A | - | 90° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
|
LZ1-10R300-0000LED EMITTER RED 740NM STAR MCPCB OSRAM SYLVANIA Inc. |
3,244 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Obsolete | LED Module | Red | - | 740nm | Starboard | - | 1A | 25°C | 2.6V | - | 1.2A | - | 76° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
|
LZ1-10WW00-0030LED EMITTER WHT 180LM STAR MCPCB OSRAM SYLVANIA Inc. |
2,183 | - |
RFQ |
Ficha técnica |
Tray | LZ1 | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 180lm (146lm ~ 220lm) | 1A | 25°C | 3.6V | 50 lm/W | 1.2A | 85 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia |
|
|
LZ4-20MD00-0000LED EMITTER RGBW 10W 4CH MCPCB OSRAM SYLVANIA Inc. |
3,182 | - |
RFQ |
Ficha técnica |
Tray | LZ4 | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6500K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 115lm Red, 160lm Green, 30lm Blue, 190lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 2.2V Red, 3.35V Green, 3.2V Blue, 3.2V White | 75 lm/W Red, 68 lm/W Green, 13 lm/W Blue, 85 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 75 | 95° | - | 19.90mm Dia | 5.60mm | 5.60mm Dia |
|
LZ4-24MDCA-0000LED EMITTER RGBW FLAT STAR MCPCB OSRAM SYLVANIA Inc. |
3,359 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZ4 | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6500K | 623nm Red, 523nm Green, 460nm Blue | Starboard | 65lm (Typ) Red, 125lm (Typ) Green, 30lm (Typ) Blue, 180lm (Typ) White | 700mA | 25°C | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White | 37 lm/W Red, 50 lm/W Green, 13 lm/W Blue, 80 lm/W White | 1.5A | - | 110° | - | 19.90mm Dia | 3.20mm | - |
|
LZ4-40B208-0000LED EMITTER BLUE 460NM MCPCB OSRAM SYLVANIA Inc. |
3,249 | - |
RFQ |
Ficha técnica |
Tray | LZ4 | Active | LED Module | Blue | - | 460nm | Starboard | 161lm (93lm ~ 228lm) | 700mA | 25°C | 12.8V | 18 lm/W | 1A | - | 100° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia |
