Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZ4-40GW08-0030LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
2,086 | - |
RFQ |
Ficha técnica |
Tray | LZ4 | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 456lm (356lm ~ 556lm) | 700mA | 25°C | 12.9V | 50 lm/W | 1A | 98 | 105° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia |
|
|
LZ9-J0GW00-0028LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
3,683 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZ9 | Obsolete | LED Module | White, Warm | 2850K 3-Step MacAdam Ellipse | - | Starboard | 1113lm (868lm ~ 1357lm) | 700mA | 25°C | 29.1V | 55 lm/W | 1.06A | 95 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-J0GW00-0030LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
2,158 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZ9 | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1113lm (868lm ~ 1357lm) | 700mA | 25°C | 29.1V | 55 lm/W | 1.06A | 95 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0GW00-0028LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
3,739 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZ9 | Obsolete | LED Module | White, Warm | 2850K 3-Step MacAdam Ellipse | - | Starboard | 1113lm (868lm ~ 1357lm) | 3 x 700mA | 25°C | 9.7V | 55 lm/W | 1.06A | 98 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
|
LZ9-M0GW00-0030LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
2,223 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZ9 | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1113lm (868lm ~ 1357lm) | 3 x 700mA | 25°C | 9.7V | 55 lm/W | 1.06A | 98 | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia |
|
LZC-70CW0R-0055LED EMITTER HIGH PWR COOL WHITE OSRAM SYLVANIA Inc. |
3,897 | - |
RFQ |
Ficha técnica |
Tray | LZC | Obsolete | LED Module | White, Cool | 5500K | - | Starboard | 2554lm (1908lm ~ 3200lm) | 700mA | 25°C | 37.8V | 97 lm/W | 1A | 70 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia |
|
|
LZC-70CW0R-0065LED EMITTER HIGH PWR COOL WHITE OSRAM SYLVANIA Inc. |
2,817 | - |
RFQ |
Ficha técnica |
Tray | LZC | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 2554lm (1908lm ~ 3200lm) | 700mA | 25°C | 37.8V | 97 lm/W | 1A | 70 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia |
|
|
LZC-70GW00-0027LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
2,393 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZC | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 38.8V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia |
|
|
LZC-70GW00-0028LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
3,516 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZC | Obsolete | LED Module | White, Warm | 2850K 3-Step MacAdam Ellipse | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 38.8V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia |
|
|
LZC-70GW00-0030LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
2,399 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZC | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1391lm (1085lm ~ 1696lm) | 700mA | 25°C | 38.8V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia |
|
|
LZC-C0CW0R-0055LED EMITTER HIGH PWR COOL WHITE OSRAM SYLVANIA Inc. |
3,446 | - |
RFQ |
Ficha técnica |
Tray | LZC | Active | LED Module | White, Cool | 5500K | - | Starboard | 2554lm (1908lm ~ 3200lm) | 2 x 700mA | 25°C | 18.9V | 97 lm/W | 1A | 70 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia |
|
|
LZC-C0GW00-0028LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
2,036 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZC | Obsolete | LED Module | White, Warm | 2850K 3-Step MacAdam Ellipse | - | Starboard | 1391lm (1085lm ~ 1696lm) | 2 x 700mA | 25°C | 19.4V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia |
|
|
LZC-C0GW00-0030LED MOD WARM WHITE STARBOARD OSRAM SYLVANIA Inc. |
3,840 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZC | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1391lm (1085lm ~ 1696lm) | 2 x 700mA | 25°C | 19.4V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia |
|
|
LZP-D0GW00-0028LED EMITTER HIGH PWR WHITE OSRAM SYLVANIA Inc. |
3,092 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZP | Obsolete | LED Module | White, Warm | 2850K 3-Step MacAdam Ellipse | - | Starboard | 2775lm (2350lm ~ 3200lm) | 4 x 700mA | 25°C | 19.4V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 8.10mm | 10.45mm Dia |
|
|
LZP-D0GW00-0030LED EMITTER HIGH PWR WHITE OSRAM SYLVANIA Inc. |
3,939 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZP | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 2775lm (2350lm ~ 3200lm) | 4 x 700mA | 25°C | 19.4V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 8.10mm | 10.45mm Dia |
|

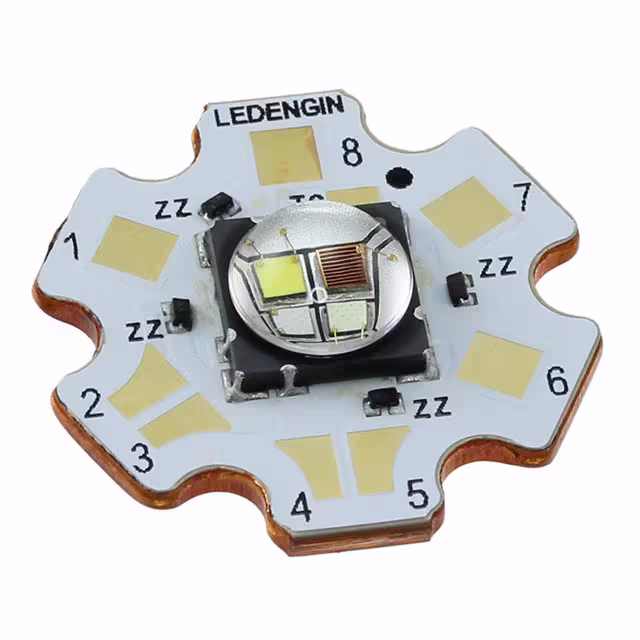

LZ4-V0MD0C-0000LED DOME RGBW 4CH CLEAR MCPCB OSRAM SYLVANIA Inc. |
2,523 | - |
RFQ |
Ficha técnica |
Tray | LZ4 | Obsolete | LED Module | Red, Green, Blue, White - Cool | 6335K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 133lm Red, 160lm Green, 33lm Blue, 234lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White | 76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 75 (Typ) | 95° | - | 19.90mm Dia | 5.40mm | 6.50mm Dia |
|

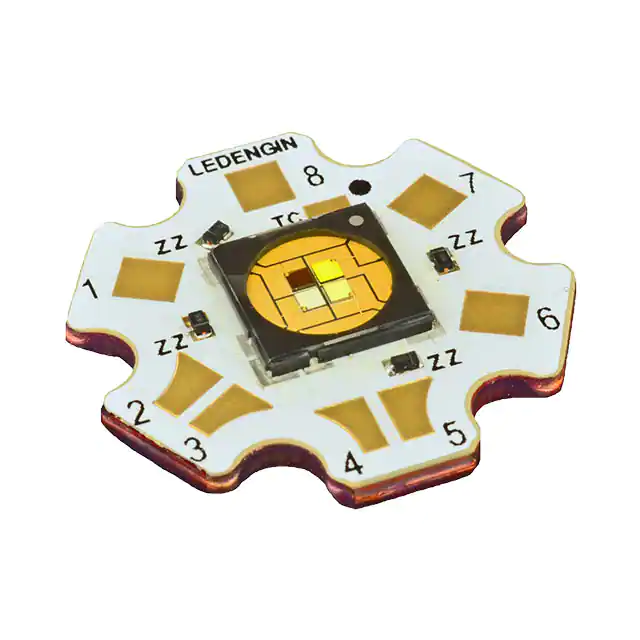

LZ4-V4MDPB-0000LED MOD LUXIGEN RGBW STARBOARD OSRAM SYLVANIA Inc. |
3,495 | - |
RFQ |
Ficha técnica |
Tray | LuxiGen™ LZ4 | Obsolete | LED Module | Red, Green, Blue, White - Cool (RGBW) | 6335K | 624nm Red, 525nm Green, 454nm Blue | Starboard | 115lm Red, 220lm Green, 1250mW Blue, 293lm White | 1A Red, 1A Green, 1A Blue, 1A White | 25°C | 2.4V Red, 3.5V Green, 3V Blue, 3V White | 48 lm/W Red, 63 lm/W Green, 98 lm/W White | 2.5A Red, 3A Green, 3A Blue, 3A White | 75 (Typ) | 110° | - | 19.90mm Dia | 2.66mm | 7.00mm L x 7.00mm W |
|
|
LZC-70UB00-00U4LED EMITTER VIOLET STAR MCPCB OSRAM SYLVANIA Inc. |
2,148 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | LZC | Active | LED Module | Violet | - | 388nm (385nm ~ 390nm) | Starboard | - | 700mA | 25°C | 44V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia |
|
|
LZC-70UB00-00U5LED EMITTER VIOLET STAR MCPCB OSRAM SYLVANIA Inc. |
3,532 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | LZC | Active | LED Module | Violet | - | 393nm (390nm ~ 395nm) | Starboard | - | 700mA | 25°C | 44V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia |
|
|
LZC-70UB00-00U6LED EMITTER VIOLET STAR MCPCB OSRAM SYLVANIA Inc. |
3,216 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR) | LZC | Active | LED Module | Violet | - | 398nm (395nm ~ 400nm) | Starboard | - | 700mA | 25°C | 44V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia |
