| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LHC1-3090-1211CRSPLED COB CRISPWHT WARM WHT SQ Lumileds |
3,482 | - |
RFQ |
Tube | LUXEON CoB, CrispWhite | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3750lm (Typ) | 1.2A | 85°C | 35.5V | 90 lm/W | 2.4A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | |
|

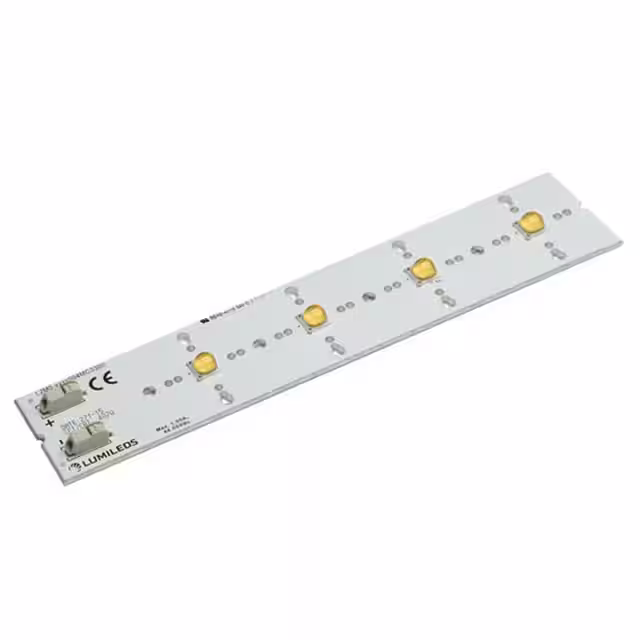

L2M0-5770004MC3300LED XR-M 5700K 4-UP LINEAR Lumileds |
3,336 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-M | Obsolete | LED Module | White, Cool | 5700K | - | Linear Light Strip | 4318lm (Typ) | 700mA | 85°C | 43.8V | 141 lm/W | 1.05A | 70 | - | - | 165.00mm L x 33.00mm W | 6.21mm | - |
|

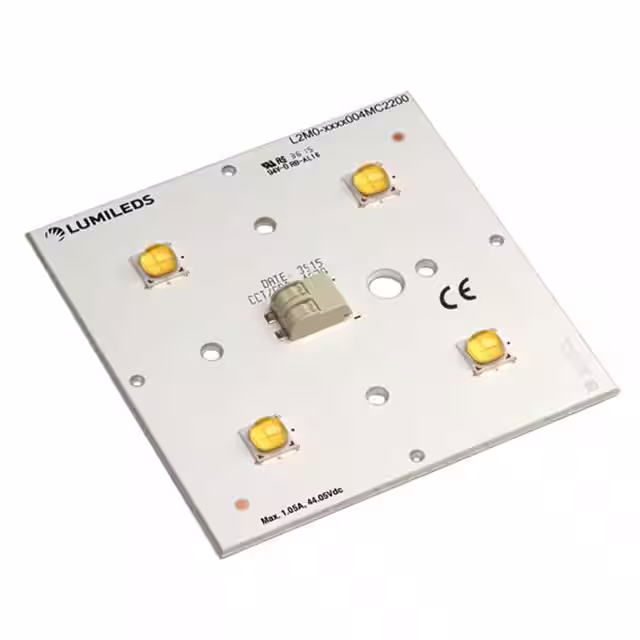

L2M0-4070004MC2200LED XR-M 4000K 4-UP SQUARE Lumileds |
3,673 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-M | Obsolete | LED Module | White, Neutral | 4000K | - | Square | 4211lm (Typ) | 700mA | 85°C | 43.8V | 137 lm/W | 1.05A | 70 | - | - | 73.00mm L x 73.00mm W | 6.21mm | - |
|
|
L2M0-5070004MC2200LED XR-M 5000K 4-UP SQUARE Lumileds |
3,468 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-M | Obsolete | LED Module | White, Cool | 5000K | - | Square | 4363lm (Typ) | 700mA | 85°C | 43.8V | 142 lm/W | 1.05A | 70 | - | - | 73.00mm L x 73.00mm W | 6.21mm | - |
|
L2C2-35801211E1900LED COB 1211 3500K WW 80CRI SMD Lumileds |
3,325 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5616lm (Typ) | 1.2A | 85°C | 35V | 134 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
L2C5-35901211E1900LED COB CORE RANGE GEN3 WW SQ Lumileds |
3,053 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5218lm (Typ) | 1.2A | 85°C | 34.8V | 125 lm/W | 2.4A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
L2C2-22901216E2300LED COB CORE RANGE WARM WHITE Lumileds |
2,372 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 5210lm (Typ) | 1.6A | 85°C | 35V | 93 lm/W | 3.2A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia |
|
L2C5-30901203E09C0LED COB LUXEON WHITE 3000K SQ Lumileds |
3,095 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB, CrispWhite Gen 2 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1006lm (Typ) | 300mA | 85°C | 35V | 96 lm/W | - | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C5-40701211E1900LED COB CORE RANGE GEN3 NW SQ Lumileds |
3,670 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6726lm (Typ) | 1.2A | 85°C | 34.8V | 161 lm/W | 2.4A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
L2C5-40801211E1900LED COB CORE RANGE GEN3 NW SQ Lumileds |
3,279 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6238lm (Typ) | 1.2A | 85°C | 34.8V | 149 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|

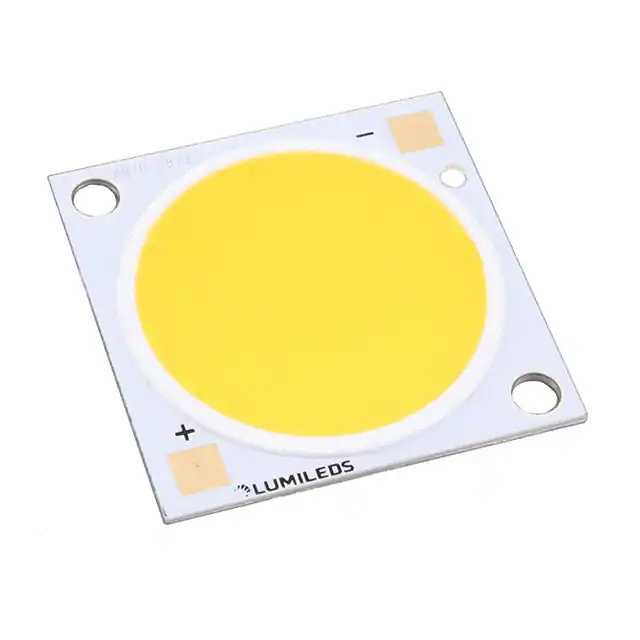

L2C5-30801812G2300LUXEON COB HIGH LUMEN EXTENSION Lumileds |
2,415 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8536lm (Typ) | 1.2A | 85°C | 51.7V | 138 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia |
|
L2C5-30901204E0900LED COB WARM WHT 3000K RECTANGLE Lumileds |
2,542 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2378lm (Typ) | 700mA | 85°C | 37V | 92 lm/W | 1.35A | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C5-27901204E0900LED COB WARM WHT 2700K RECTANGLE Lumileds |
2,702 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 2320lm (Typ) | 700mA | 85°C | 37V | 90 lm/W | 1.35A | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
E1300.jpg)
|
L2C5-40801204E1300LED COB CORE RANGE GEN3 NW RECT Lumileds |
3,422 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 2332lm (Typ) | 450mA | 85°C | 34.8V | 149 lm/W | 900mA | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
L2C5-40801321E2900LUXEON COB HIGH LUMEN EXTENSION Lumileds |
2,211 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11788lm (Typ) | 2.1A | 85°C | 37.5V | 150 lm/W | 4.1A | 80 | 115° | - | 38.00mm L x 38.00mm W | 1.50mm | 29.20mm Dia |
|
|
L2C4-50803S01F0600LED COB S01 COOL WHT 80 CRI 3 SD Lumileds |
3,977 | - |
RFQ |
Ficha técnica |
Tray | LUXEON CX Plus CoB Gen 2 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 522lm (Typ) | 100mA | 85°C | 34.5V | 151 lm/W | 250mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.50mm | 6.00mm Dia |
|
|
L2C4-35803S01F0600LED COB S01 WM WHT 80 CRI 3 SDCM Lumileds |
3,392 | - |
RFQ |
Ficha técnica |
Tray | LUXEON CX Plus CoB Gen 2 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 513lm (Typ) | 100mA | 85°C | 34.5V | 149 lm/W | 250mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.50mm | 6.00mm Dia |
|
|
L2C4-30803S01F0600LED COB S01 WM WHT 80 CRI 3 SDCM Lumileds |
3,031 | - |
RFQ |
Ficha técnica |
Tray | LUXEON CX Plus CoB Gen 2 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 495lm (Typ) | 100mA | 85°C | 34.5V | 143 lm/W | 250mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.50mm | 6.00mm Dia |
|
|
L2C4-40803S01F0600LED COB S01 NEU WHT 80 CRI 3 SDC Lumileds |
2,979 | - |
RFQ |
Ficha técnica |
Tray | LUXEON CX Plus CoB Gen 2 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 522lm (Typ) | 100mA | 85°C | 34.5V | 151 lm/W | 250mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.50mm | 6.00mm Dia |
|
|
L2C4-27803S01F0600LED COB S01 WM WHT 80 CRI 3 SDCM Lumileds |
3,803 | - |
RFQ |
Ficha técnica |
Tray | LUXEON CX Plus CoB Gen 2 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 477lm (Typ) | 100mA | 85°C | 34.5V | 138 lm/W | 250mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.50mm | 6.00mm Dia |
