Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

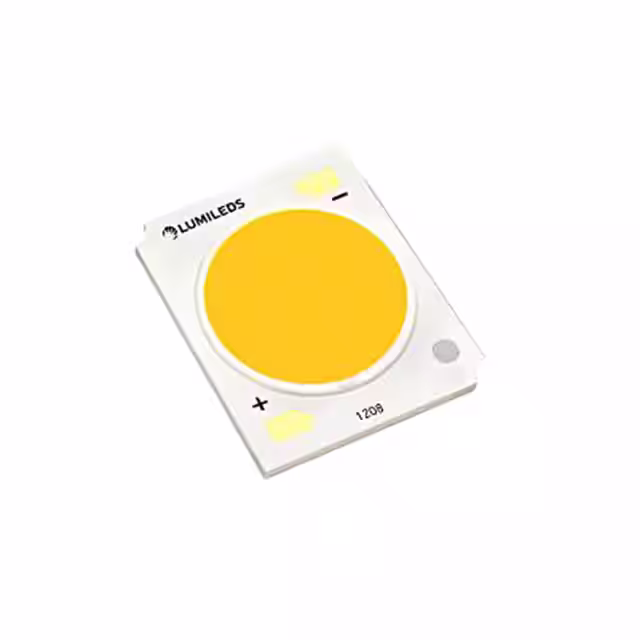

L2C5-30801208F1500LUXEON COB GEN 4 Lumileds |
3,624 | - |
RFQ |
Tube | LUXEON CoB Core Range Gen 4 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 4717lm (Typ) | 900mA | 85°C | 34.8V | 151 lm/W | 1.8A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia | |
|
|
L2C5-30901208F1500LUXEON COB GEN 4 Lumileds |
3,316 | - |
RFQ |
Tube | LUXEON CoB Core Range Gen 4 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 4043lm (Typ) | 900mA | 85°C | 34.8V | 130 lm/W | 1.8A | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia | |
|
L2C2-22901202E0900LED COB 1202 2200K WW 90CRI SMD Lumileds |
3,944 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Rectangle | 666lm (Typ) | 200mA | 85°C | 34.5V | 97 lm/W | 400mA | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C2-57701202E0900LED COB 5700K COOL WH 70CRI SMD Lumileds |
3,570 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 1045lm (Typ) | 200mA | 85°C | 34.5V | 151 lm/W | 400mA | 70 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
E0900.jpg)
|
L2C5-40801202E0900NEUTRAL-WHITE COB 80 CRI Lumileds |
2,781 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 999lm (Typ) | 200mA | 85°C | 34.5V | 145 lm/W | 400mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C2-50801203E0900LED COB 5000K COOL WH 80CRI SMD Lumileds |
2,158 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 1458lm (Typ) | 300mA | 85°C | 34.5V | 141 lm/W | 600mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C2-35801203E0900LED COB 1203 3500K WW 80CRI SMD Lumileds |
2,870 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 1404lm (Typ) | 300mA | 85°C | 34.5V | 136 lm/W | 600mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C2-27801203E0900LED COB 1203 2700K WW 80CRI SMD Lumileds |
2,939 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 1283lm (Typ) | 300mA | 85°C | 34.5V | 124 lm/W | 600mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia |
|
|
L2C2-22801203E0900LED COB 1203 2200K WW 80CRI SMD Lumileds |
2,991 | - |
RFQ |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Rectangle | 1067lm (Typ) | 300mA | 85°C | 34.5V | 103 lm/W | 600mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | |
|

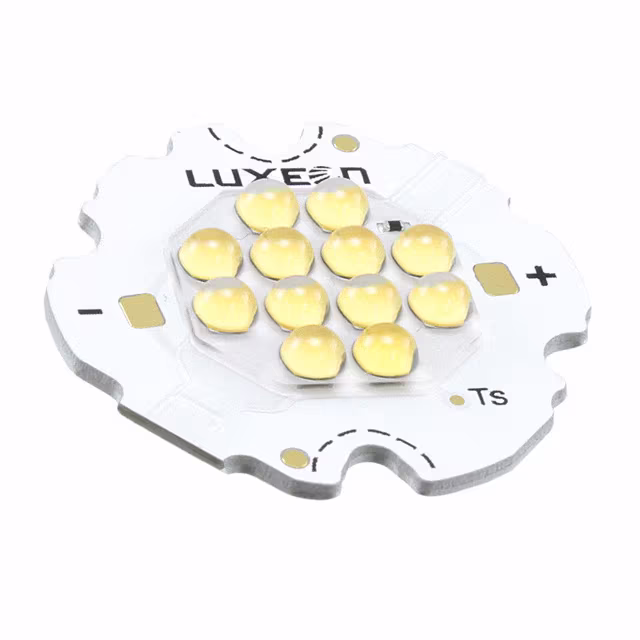

LXK8-PW27-0012ALED MOD LUXEON K WARM WHITE STAR Lumileds |
3,850 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1148lm (1100lm ~ 1320lm) | 350mA | 85°C | 31.5V | 104 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|

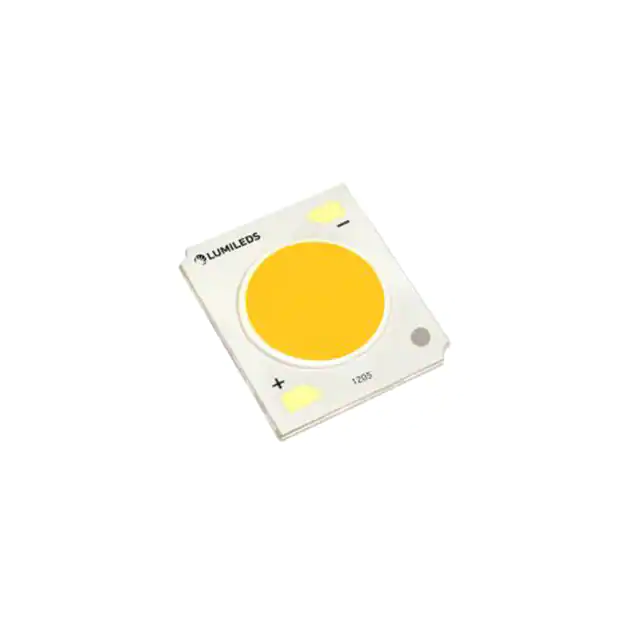

LHC1-3590-1205LED 3500K 90CRI WHT SMD Lumileds |
3,396 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3500K (Typ) 3-Step MacAdam Ellipse | - | Rectangle | 2075lm (Typ) | 600mA | 85°C | 35.5V | 97 lm/W | 1.2A | 90 | 115° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia |
|
L2C5-30901204E13C0LED COB LUXEON WHITE 3000K SQ Lumileds |
3,582 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB, CrispWhite Gen 2 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1579lm (Typ) | 450mA | 85°C | 35.3V | 99 lm/W | - | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
|
L235-2280AHLCBAAC0LED 3535L 2200K 80CRI WARM WHITE Lumileds |
3,449 | - |
RFQ |
Ficha técnica |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Warm | 2200K | - | Linear Light Strip, Flexible | 1206lm (Typ) | 600mA | 25°C | 18V | 112 lm/W | 1.2A | 80 | - | - | 300.00mm L x 10.00mm W | 1.23mm | - |
|
L218-4090048C00000LED STRIP LUXEON XR3020 NEU WHT Lumileds |
2,005 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-3020 | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 1780lm (Typ) | 400mA | 45°C | 34.8V | 128 lm/W | 600mA | 90 | - | With Connector | 558.40mm L x 20.00mm W | 3.00mm | - |
|
|
LHC1-3090-1205CRSPLED COB CRISPWHT WARMWHT RECT Lumileds |
3,933 | - |
RFQ |
Tube | LUXEON CoB, CrispWhite | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1900lm (Typ) | 600mA | 85°C | 35.5V | 90 lm/W | 1.2A | 90 | 115° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | |
|
L2C2-40901204E1300LED COB 4000K NEU WHT 90CRI SMD Lumileds |
3,870 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1883lm (Typ) | 450mA | 85°C | 35V | 120 lm/W | 900mA | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
E1300.jpg)
|
L2C5-35901204E1300LED COB CORE RANGEG EN3 WW RECT Lumileds |
3,411 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 1950lm (Typ) | 450mA | 85°C | 34.8V | 125 lm/W | 900mA | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
|
L2C5-27801204E1300LED COB CORE RANGE GEN3 WW RECT Lumileds |
3,475 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 2152lm (Typ) | 450mA | 85°C | 34.8V | 137 lm/W | 900mA | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
LHC1-3590-1208LED 3500K 90CRI WHT SMD Lumileds |
3,204 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3500K (Typ) 3-Step MacAdam Ellipse | - | Rectangle | 2775lm (Typ) | 900mA | 85°C | 35.5V | 87 lm/W | 1.8A | 90 | 115° | - | 24.00mm L x 20.00mm W | 1.50mm | 15.00mm Dia |
|

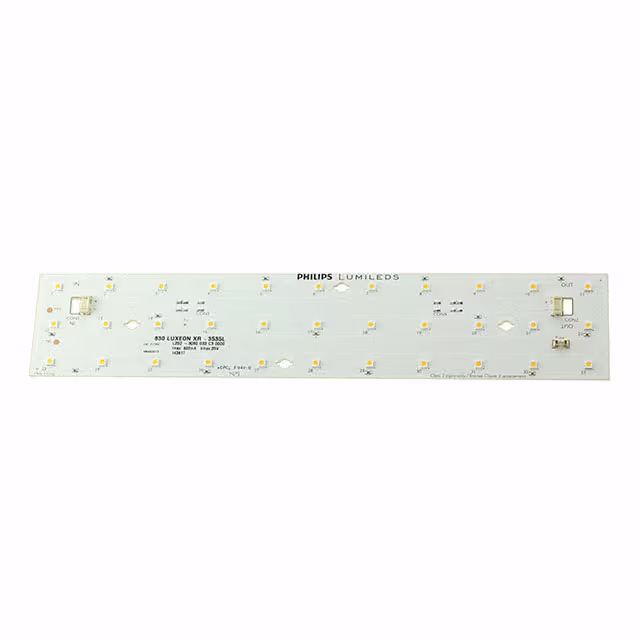

L202-3080033C30000LED 3535L 3P11S 3000K 80CRI Lumileds |
3,946 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-3535L | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | 1362lm (1320lm ~ 1403lm) | 300mA | 25°C | 33V | 142 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | - | - |
