Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L2C2-50801205E1300LED COB 5000K COOL WH 80CRI SMD Lumileds |
2,876 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 2916lm (Typ) | 600mA | 85°C | 35V | 139 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
L2C2-27801205E1300LED COB 1205 2700K WW 80CRI SMD Lumileds |
2,697 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 2565lm (Typ) | 600mA | 85°C | 35V | 122 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
E1300.jpg)
|
L2C5-27901205E1300LED COB CORE RANGE GEN3 WW RECT Lumileds |
2,102 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 2322lm (Typ) | 600mA | 85°C | 35V | 112 lm/W | 1.2A | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
|
L2C2-30801205E1300LUXEON COB 1205 3000K 80CRI Lumileds |
3,006 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2700lm (Typ) | 600mA | 85°C | 35V | 129 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
L2C5-33HG1208E1500LED COB LUXEON WHITE 3250K RECT Lumileds |
2,598 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB, CrispColor | Active | Chip On Board (COB) | White, Warm | 3250K 3-Step MacAdam Ellipse | - | Rectangle | 3450lm (Typ) | 900mA | 85°C | - | 110 lm/W | - | 90 | - | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|
LHC1-2280-1208LED COB LUXEON WARM WHITE SQUARE Lumileds |
2,387 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 2200K | - | Square | 2925lm (Typ) | 900mA | 85°C | 35.5V | 92 lm/W | 1.8A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|
L2C5-BD001208E1500LED COB 2700K WHITE RECTANGLE Lumileds |
3,973 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB FreshFocus | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 3190lm (Typ) | 900mA | 85°C | 34.8V | 101 lm/W | 1.8A | - | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|
|

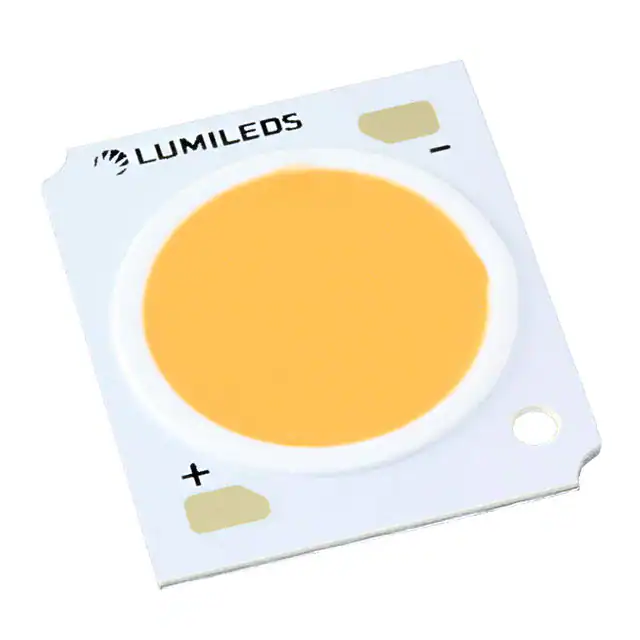

L2C5-RM001208E1500LED COB 2200KWHITE RECTANGLE Lumileds |
2,712 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB FreshFocus | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Rectangle | 2059lm (Typ) | 900mA | 85°C | 34.8V | 65 lm/W | 1.8A | - | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|

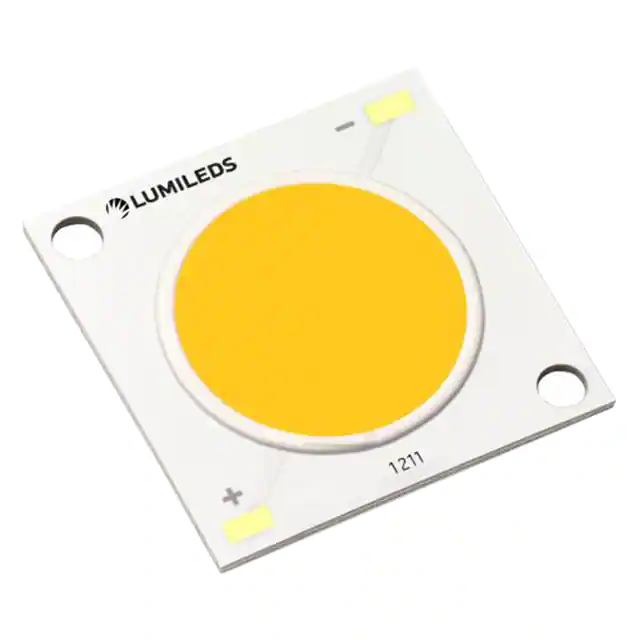

LHC1-2280-1211LED COB LUXEON WARM WHITE SQUARE Lumileds |
2,567 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 2200K | - | Square | 3975lm (Typ) | 1.2A | 85°C | 35.5V | 93 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
LXK8-PW40-0024ALED MOD LUXEON K NEU WHITE STAR Lumileds |
3,165 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 2660lm (2530lm ~ 3030lm) | 350mA | 85°C | 63V | 121 lm/W | 1.05A | 80 | 100° | - | 30.00mm L x 30.00mm W | 3.42mm | - |
|
|
LHC1-4070-1211LED 4000K 70CRI WHT SMD Lumileds |
3,322 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5600lm (Typ) | 1.2A | 85°C | 35.5V | 131 lm/W | 2.4A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
LHC1-3080-1211LED 3000K 80CRI WHT SMD Lumileds |
3,086 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 5000lm (Typ) | 1.2A | 85°C | 35.5V | 117 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|

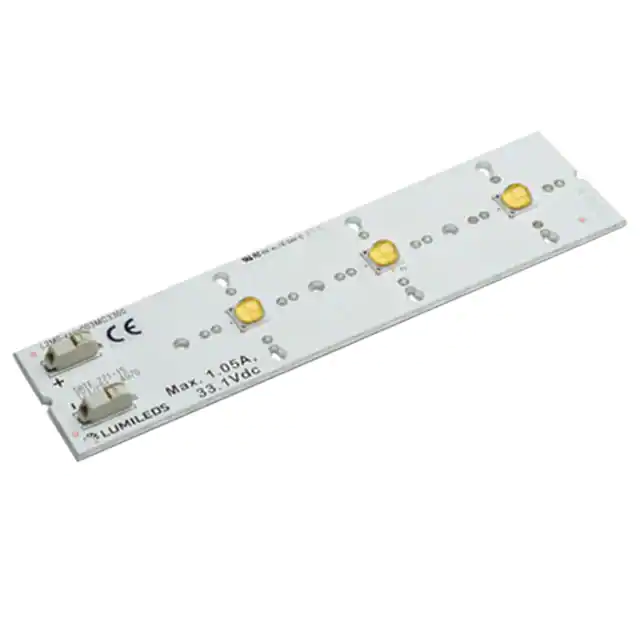

L2M0-5770003MC3300LED XR-M 5700K 3-UP LINEAR Lumileds |
3,878 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-M | Obsolete | LED Module | White, Cool | 5700K | - | Linear Light Strip | 3239lm (Typ) | 700mA | 85°C | 33V | 140 lm/W | 1.05A | 70 | - | - | 132.00mm L x 33.00mm W | 6.21mm | - |
|
|
L2M0-4070003MC3300LED XR-M 4000K 3-UP LINEAR Lumileds |
2,340 | - |
RFQ |
Ficha técnica |
Tray | LUXEON XR-M | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 3158lm (Typ) | 700mA | 85°C | 33V | 137 lm/W | 1.05A | 70 | - | - | 132.00mm L x 33.00mm W | 6.21mm | - |
|
|
L2C2-57701208E1500LED COB 5700K COOL WH 70CRI SMD Lumileds |
3,651 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Rectangle | 4577lm (Typ) | 900mA | 85°C | 35V | 145 lm/W | 1.8A | 70 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|
L2C2-40901208E1500LED COB 4000K NEU WHT 90CRI SMD Lumileds |
3,783 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 3767lm (Typ) | 900mA | 85°C | 35V | 120 lm/W | 1.8A | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|
L2C5-30901208E1500LED COB CORE RANGE GEN3 WW RECT Lumileds |
3,392 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 3610lm (Typ) | 900mA | 85°C | 34.8V | 115 lm/W | 1.8A | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|

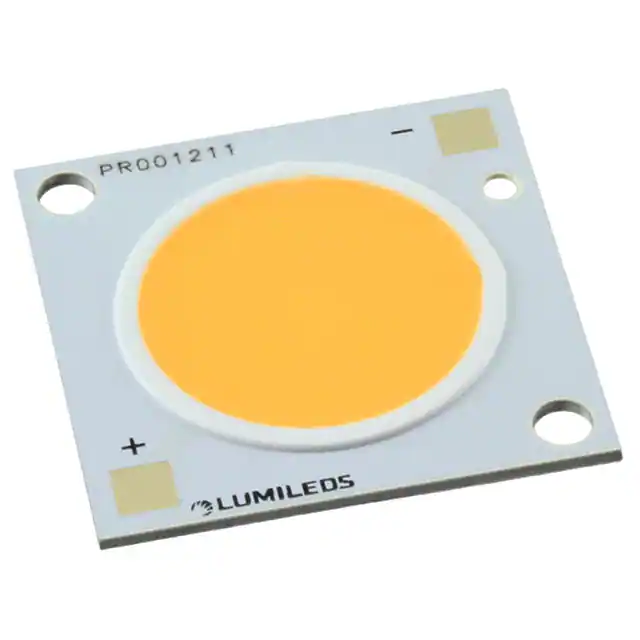

L2C5-PR001211E1900LED COB 3000K WHITE SQUARE Lumileds |
3,850 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB FreshFocus | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4470lm (Typ) | 1.2A | 85°C | 34.8V | 107 lm/W | 2.4A | - | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
L2C5-RM001211E1900LED COB 2200K WHITE SQUARE Lumileds |
3,371 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB FreshFocus | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 2820lm (Typ) | 1.2A | 85°C | 34.8V | 67 lm/W | 2.4A | - | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
LXK8-PW27-0024ALED MOD LUXEON K WARM WHITE STAR Lumileds |
3,017 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 2378lm (2230lm ~ 2670lm) | 350mA | 85°C | 63V | 108 lm/W | 1.05A | 80 | 100° | - | 30.00mm L x 30.00mm W | 3.42mm | - |
