Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2530-0000-000N0HU240HLED COB CXA2530 NEUTRAL WHITE SQ CreeLED, Inc. |
3,706 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXA2540-0000-000N0HW257FLED ARRAY XLAMP CXA2540 19MM WHT CreeLED, Inc. |
3,308 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 37V | 124 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXA2520-0000-000N00Q430FLED COB CXA2520 WARM WHT SQUARE CreeLED, Inc. |
3,703 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N0HV440GLED COB CXA2540 4000K WHT SMD CreeLED, Inc. |
2,203 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 36V | 119 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N0HW250GLED COB CXA2540 5000K WHT SMD CreeLED, Inc. |
3,830 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 36V | 127 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00V430GLED COB CXA2540 3000K WHT SMD CreeLED, Inc. |
2,121 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 36V | 119 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N0YT430GLED COB CXA2540 3000K WHT SMD CreeLED, Inc. |
3,860 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 1.1A | 85°C | 36V | 90 lm/W | 2.1A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00V435HLED HB XLAMP CXA2540 CreeLED, Inc. |
2,980 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00V230HLED HB XLAMP CXA2540 CreeLED, Inc. |
3,767 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4388lm (4230lm ~ 4545lm) | 1.1A | 85°C | 37V | 108 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N0US240FLED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc. |
3,179 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 800mA | 85°C | 37V | 97 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N0YQ430FLED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc. |
3,378 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2780lm) | 800mA | 85°C | 37V | 79 lm/W | 1.6A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXB2540-0000-000N0UU430GLED COB CXB2540 3000K WHT SMD CreeLED, Inc. |
3,092 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB2540 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 1.1A | 85°C | 36V | 103 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|

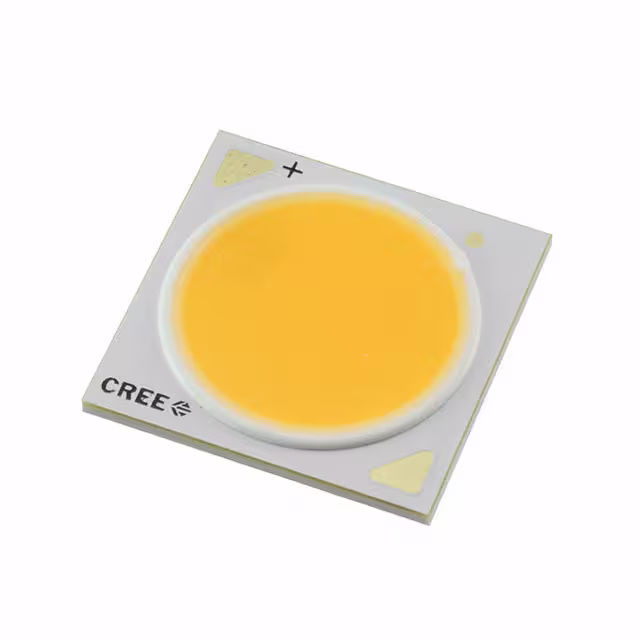

CXA2540-0000-000N00V40E7LED HB XLAMP CXA2540 CreeLED, Inc. |
2,154 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N0YR430FLED COB CXA2530 WARM WHT SQUARE CreeLED, Inc. |
3,051 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 800mA | 85°C | 37V | 91 lm/W | 1.6A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00V430FLED HB XLAMP CXA2540 CreeLED, Inc. |
2,143 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00V230FLED COB CXA2540 WARM WHT SQUARE CreeLED, Inc. |
3,847 | - |
RFQ |
Ficha técnica |
Tube | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 4388lm (4230lm ~ 4545lm) | 1.1A | 85°C | 37V | 108 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CMA2550-0000-000N0H0A30GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
3,536 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA2550 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6850lm (Typ) | 1.4A | 85°C | 34V | 144 lm/W | 3.3A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2540-0000-000N00U427FLED COB CXA2540 WARM WHT SQUARE CreeLED, Inc. |
3,716 | - |
RFQ |
Ficha técnica |
Tube | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 1.1A | 85°C | 37V | 101 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXA3050-0000-000N0HW450FCREE XLAMP CXA3050 23MM WHITE CreeLED, Inc. |
3,255 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3050 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5408lm (5225lm ~ 5590lm) | 1.4A | 85°C | 37V | 104 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
|
CXA3050-0000-000N0HX240FLED HB CXA3050 SERIES CreeLED, Inc. |
2,258 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA3050 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.4A | 85°C | 37V | 112 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
