Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

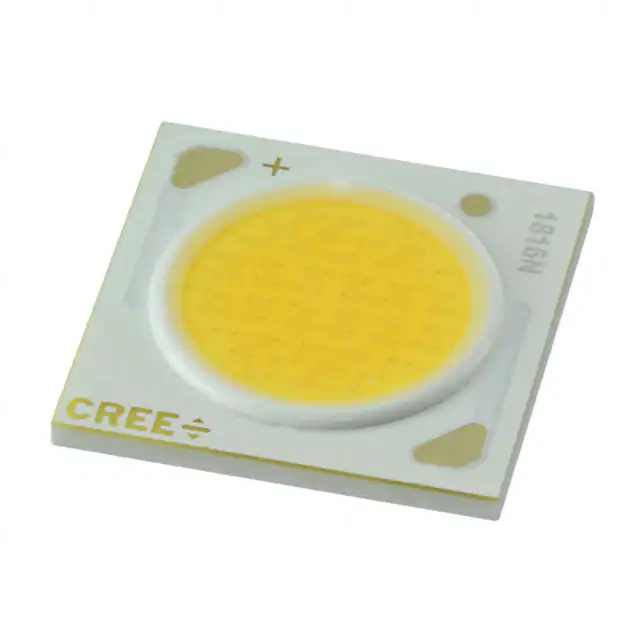

CXA1816-0000-000N00P227GLED COB CXA1816 2700K WHITE SMD CreeLED, Inc. |
3,554 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 450mA | 85°C | 36V | 117 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA1816-0000-000N0YM230GLED COB CXA1816 3000K WHITE SMD CreeLED, Inc. |
2,376 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 450mA | 85°C | 36V | 88 lm/W | 900mA | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA1512-0000-000N0YH427GLED COB CXA1512 2700K WHITE SMD CreeLED, Inc. |
3,710 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 350mA | 85°C | 36V | 80 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1512-0000-000F00K430FLED COB CXA1512 WARM WHT SQUARE CreeLED, Inc. |
2,911 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 700mA | 85°C | 18V | 106 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CMA1516-0000-000N0U0A27GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
2,609 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1516 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1736lm (Typ) | 450mA | 85°C | 35V | 110 lm/W | 1.05A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.00mm Dia |
|
CXB1816-0000-000N0HQ230GLED ARR 12MM 3000K 80CRI 2100LM CreeLED, Inc. |
3,091 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1816 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2180lm (2100lm ~ 2260lm) | 450mA | 85°C | 36V | 135 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXB1820-0000-000N0HR430GLED ARR 12MM 3000K 80CRI 2600LM CreeLED, Inc. |
2,877 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1820 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA2520-0000-000N0HR240HLED ARRAY XLAMP CXA2520 19MM WHT CreeLED, Inc. |
3,372 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N0UP230HLED ARRAY XLAMP CXA2520 19MM WHT CreeLED, Inc. |
2,263 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 550mA | 85°C | 36V | 96 lm/W | 1.25A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N00Q430HLED COB CXA2520 WARM WHT SQUARE CreeLED, Inc. |
2,171 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXA2530-0000-000N0HT450GLED COB CXA2530 5000K WHITE SMD CreeLED, Inc. |
2,159 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N00T227GLED COB CXA2530 2700K WHITE SMD CreeLED, Inc. |
3,353 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 36V | 115 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N00Q427GLED COB CXA2520 2700K WHITE SMD CreeLED, Inc. |
2,666 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CMA1825-0000-000N0U0A30GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
2,847 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1825 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2849lm (Typ) | 700mA | 85°C | 34.6V | 118 lm/W | 1.6A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA1830-0000-000N00T235FLED COB CXA1830 WARM WHT SQUARE CreeLED, Inc. |
2,175 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 3320lm (3220lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|

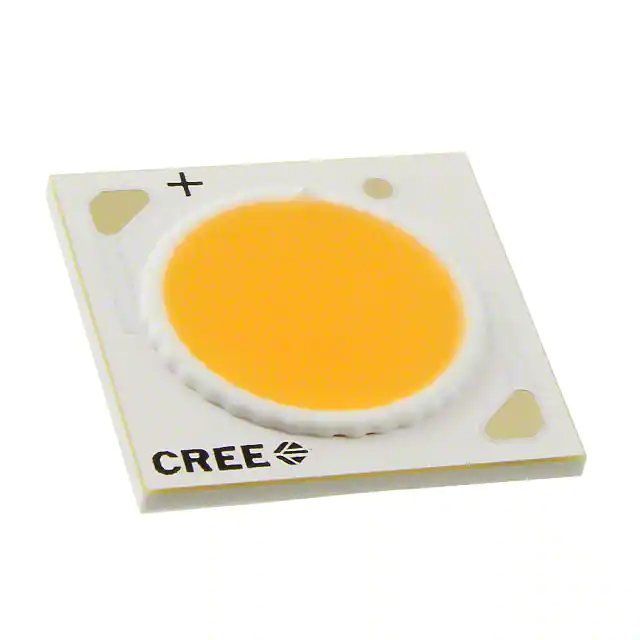

CXA1820-0000-000N00Q430FLED ARRAY XLAMP CXA1820 WHITE CreeLED, Inc. |
3,390 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2780lm) | 550mA | 85°C | 37V | 115 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CMT1420-0000-00PN0U0A40GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
2,089 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMT1420 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2535lm (Typ) | 550mA | 85°C | 34.4V | 134 lm/W | 1.05A | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia |
|
|
CXA2530-0000-000N0UR440HLED ARRAY XLAMP CXA2530 19MM WHT CreeLED, Inc. |
3,325 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 800mA | 85°C | 37V | 91 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2530-0000-000N0HU240GLED COB CXA2530 4000K WHITE SMD CreeLED, Inc. |
2,168 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 36V | 133 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXB1830-0000-000N0UT435GLED COB CXB1830 3500K WHT SMD CreeLED, Inc. |
2,080 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1830 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
