Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

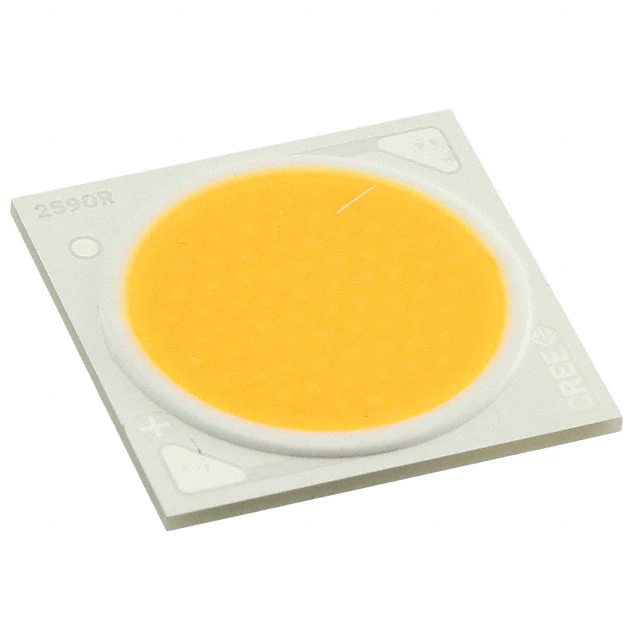

CXA2590-0000-000R0HAB0E5LED COB CXA2590 NEUTRAL WHITE SQ CreeLED, Inc. |
2,762 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2590 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 69V | 106 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia |
|

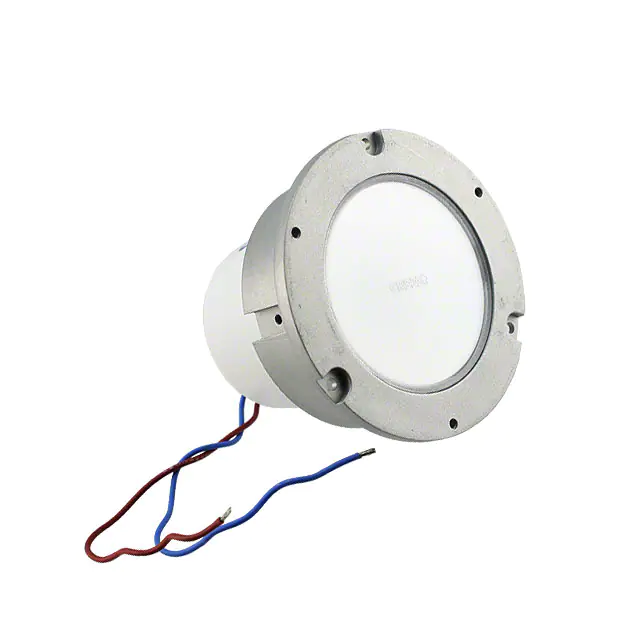

LMR020-0650-27F9-20100TWLED MOD LMR2 WRM WHT 650LM 230V CreeLED, Inc. |
3,757 | - |
RFQ |
Ficha técnica |
Box | LMR2, TrueWhite® | Obsolete | LED Engine | White, Warm | 2700K | - | Round, Plug and Play | - | - | - | - | - | - | 90 | - | Dimming - TRIAC | 88.20mm Dia | 70.00mm | 57.50mm Dia |
|
|
CXA2590-0000-000R0HAD50FLED COB CXA2590 COOL WHT SQUARE CreeLED, Inc. |
2,934 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2590 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 69V | 112 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia |
|
LMH020-4000-35G9-00000TWLED MOD 4000LM TRUEWHITE CreeLED, Inc. |
3,382 | - |
RFQ |
Ficha técnica |
Tray | LMH2 TrueWhite® | Obsolete | LED Module | White, Warm | 3500K | - | Round | 4000lm (3720lm ~ 4280lm) | 900mA | 85°C | 39.7V | 108 lm/W | 900mA | 90 | 85° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia |
|
|
LMH020-8000-40G9-00000TWLED MOD 8000LM 4000K FLAT CreeLED, Inc. |
2,458 | - |
RFQ |
Ficha técnica |
Box | LMH2 TrueWhite® | Obsolete | LED Module | White, Neutral | 4000K | - | Round | 8000lm (Typ) | 2A | - | 46.2V | 85 lm/W | 2.1A | 90 | 110° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | - |
|
CMT1922-0000-00PN0U0A30GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
3,246 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMT1922 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2784lm (Typ) | 600mA | 85°C | 34.2V | 136 lm/W | 785mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia |
|
CXA2540-0000-000N0UU240HLED ARRAY XLAMP CXA2540 19MM WHT CreeLED, Inc. |
3,560 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 1.1A | 85°C | 37V | 94 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXB3590-0000-000N0HCD40GLED COB CXB3590 4000K WHT SMD CreeLED, Inc. |
2,188 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB3590 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
|
CXB3590-0000-000N0HCD50GLED COB CXB3590 5000K WHT SMD CreeLED, Inc. |
3,848 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB3590 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia |
|
CXA1304-0000-000C00B40E5LED COB CXA1304 NEUTRAL WHT SQ CreeLED, Inc. |
2,413 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000C00B440FLED COB CXA1304 NEUTRAL WHT SQ CreeLED, Inc. |
2,391 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000C00A40E8LED COB CXA1304 WARM WHT SQUARE CreeLED, Inc. |
2,520 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 368lm (355lm ~ 380lm) | 400mA | 85°C | 9V | 102 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
CXA1507-0000-000N00H257FLED ARRAY XLAMP CXA1507 WHITE CreeLED, Inc. |
2,496 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 200mA | 85°C | 37V | 126 lm/W | 375mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1304-0000-000C00B430FLED COB CXA1304 WARM WHT SQUARE CreeLED, Inc. |
3,243 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000F00B227FLED COB CXA1304 WARM WHT SQUARE CreeLED, Inc. |
2,726 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 395lm (380lm ~ 410lm) | 200mA | 85°C | 18V | 110 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000F00B430FLED COB CXA1304 WARM WHT SQUARE CreeLED, Inc. |
3,899 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 200mA | 85°C | 18V | 118 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000F00A427FLED COB CXA1304 WARM WHT SQUARE CreeLED, Inc. |
2,182 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 368lm (355lm ~ 380lm) | 200mA | 85°C | 18V | 102 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000C00A427FLED COB CXA1304 WARM WHT SQUARE CreeLED, Inc. |
3,318 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 368lm (355lm ~ 380lm) | 400mA | 85°C | 9V | 102 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
CXB1304-0000-000C0UA427GLED ARRAY 6MM 2700K 90CRI 355LM CreeLED, Inc. |
2,515 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1304 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 368lm (355lm ~ 380lm) | 400mA | 85°C | 9V | 102 lm/W | 1A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
CMA1303-0000-000F0H0A27GLED COB CMA1304 2700K WHT SMD CreeLED, Inc. |
109 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 748lm (Typ) | 350mA | 85°C | 18.7V | 114 lm/W | 700mA | 80 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia |
