Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

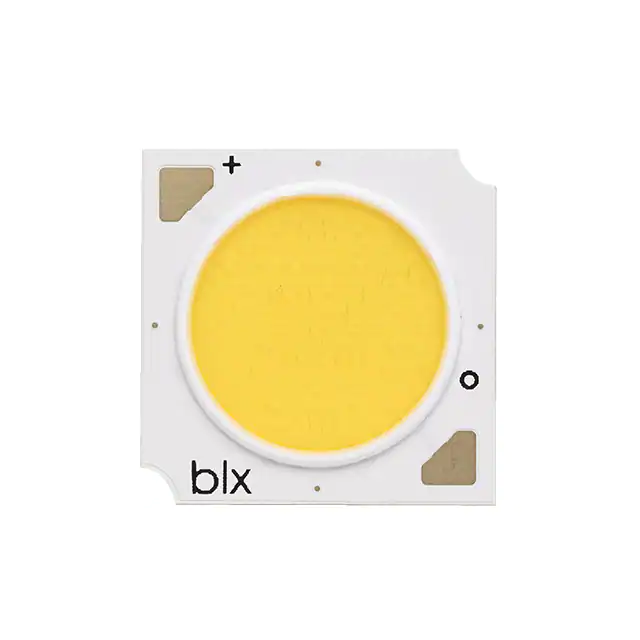

BXRE-35E2000-C-72V13C WARM WHITE LED ARRAY Bridgelux |
2,972 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3140lm (Typ) | 630mA | 85°C | 33.9V | 147 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-35G2000-C-72V13C WARM WHITE LED ARRAY Bridgelux |
2,796 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2621lm (Typ) | 630mA | 85°C | 33.9V | 123 lm/W | 1.26A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-40E2000-C-72V13C NEUTRAL WHITE LED ARRAY Bridgelux |
3,064 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3170lm (Typ) | 630mA | 85°C | 33.9V | 148 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-40G2000-C-72V13C NEUTRAL WHITE LED ARRAY Bridgelux |
2,932 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2713lm (Typ) | 630mA | 85°C | 33.9V | 127 lm/W | 1.26A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-50C2001-C-73V13C COOL WHITE LED ARRAY Bridgelux |
3,466 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3475lm (Typ) | 630mA | 85°C | 33.9V | 163 lm/W | 1.26A | 70 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-50E2001-C-73V13C COOL WHITE LED ARRAY Bridgelux |
2,536 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3266lm (Typ) | 630mA | 85°C | 33.9V | 153 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-50G2001-C-73V13C COOL WHITE LED ARRAY Bridgelux |
2,283 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2780lm (Typ) | 630mA | 85°C | 33.9V | 130 lm/W | 1.26A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-57C2001-C-73V13C COOL WHITE LED ARRAY Bridgelux |
3,808 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 3353lm (Typ) | 630mA | 85°C | 33.9V | 157 lm/W | 1.26A | 70 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-57E2001-C-73V13C COOL WHITE LED ARRAY Bridgelux |
2,188 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 3322lm (Typ) | 630mA | 85°C | 33.9V | 156 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-65C2001-C-73V13C COOL WHITE LED ARRAY Bridgelux |
3,519 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3739lm (Typ) | 630mA | 85°C | 33.9V | 160 lm/W | 1.26A | 70 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
|
BXRE-65E2001-C-73V13C COOL WHITE LED ARRAY Bridgelux |
3,027 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V13 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3383lm (Typ) | 630mA | 85°C | 33.9V | 158 lm/W | 1.26A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia |
|
BXRC-27E2000-B-73LED COB VERO 13 2700K ROUND Bridgelux |
2,364 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2090lm (Typ) | 450mA | 85°C | 34.1V | 136 lm/W | 900mA | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-27G2000-B-73LED COB VERO 13 2700K ROUND Bridgelux |
2,007 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1742lm (Typ) | 450mA | 85°C | 34.1V | 114 lm/W | 900mA | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-30E2000-B-73LED COB VERO 13 3000K ROUND Bridgelux |
2,943 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2179lm (Typ) | 450mA | 85°C | 34.1V | 142 lm/W | 900mA | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-50C2001-B-74LED COB VERO 13 5000K ROUND Bridgelux |
2,694 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2482lm (Typ) | 450mA | 85°C | 34.1V | 162 lm/W | 900mA | 70 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-35G2000-B-73LED COB VERO 13 3500K ROUND Bridgelux |
2,640 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1873lm (Typ) | 450mA | 85°C | 34.1V | 122 lm/W | 900mA | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-50E2001-B-74LED COB VERO 13 5000K ROUND Bridgelux |
3,120 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2334lm (Typ) | 450mA | 85°C | 34.1V | 152 lm/W | 900mA | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-50G2001-B-74LED COB VERO 13 5000K ROUND Bridgelux |
3,679 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1986lm (Typ) | 450mA | 85°C | 34.1V | 129 lm/W | 900mA | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-57C2001-B-74LED COB VERO 13 5700K ROUND Bridgelux |
3,037 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 2395lm (Typ) | 450mA | 85°C | 34.1V | 156 lm/W | 900mA | 70 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-57E2001-B-74LED COB VERO 13 5700K ROUND Bridgelux |
2,147 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 2374lm (Typ) | 450mA | 85°C | 34.1V | 155 lm/W | 900mA | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
