Iluminación LED - COB, motores, módulos, tiras

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
BXRC-40G2000-B-72-SE VERO SE 13B NEUTRAL WHITE LED AR Bridgelux	3,459	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	1973lm (Typ)	450mA	85°C	33.9V	129 lm/W	900mA	90	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-50C2001-B-73-SE VERO SE 13B COOL WHITE LED ARRAY Bridgelux	3,734	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Round	2523lm (Typ)	450mA	85°C	33.9V	165 lm/W	900mA	70	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-50E2001-B-73-SE VERO SE 13B COOL WHITE LED ARRAY Bridgelux	2,291	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Round	2368lm (Typ)	450mA	85°C	33.9V	155 lm/W	900mA	80	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-50G2001-B-73-SE VERO SE 13B COOL WHITE LED ARRAY Bridgelux	2,253	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Round	2015lm (Typ)	450mA	85°C	33.9V	132 lm/W	900mA	90	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-57C2001-B-73-SE VERO SE 13B COOL WHITE LED ARRAY Bridgelux	2,393	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Round	2438lm (Typ)	450mA	85°C	33.9V	160 lm/W	900mA	70	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-57E2001-B-73-SE VERO SE 13B COOL WHITE LED ARRAY Bridgelux	3,205	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Round	2340lm (Typ)	450mA	85°C	33.9V	153 lm/W	900mA	80	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-65C2001-B-73-SE VERO SE 13B COOL WHITE LED ARRAY Bridgelux	2,846	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Cool	6500K 3-Step MacAdam Ellipse	-	Round	2481lm (Typ)	450mA	85°C	33.9V	163 lm/W	900mA	70	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-65E2001-B-73-SE VERO SE 13B COOL WHITE LED ARRAY Bridgelux	2,613	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Cool	6500K 3-Step MacAdam Ellipse	-	Round	2382lm (Typ)	450mA	85°C	33.9V	156 lm/W	900mA	80	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-27H1000-C-72 VERO 10C WARM WHITE LED ARRAY Bridgelux	3,658	-	RFQ	Ficha técnica	Tray	Gen 7 Décor Series™	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Starboard	1269lm (Typ)	360mA	85°C	34V	104 lm/W	720mA	97	120°	-	20.00mm Dia	1.90mm	9.90mm Dia
BXRC-30H1000-C-72 VERO 10C WARM WHITE LED ARRAY Bridgelux	2,510	-	RFQ	Ficha técnica	Tray	Gen 7 Décor Series™	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Starboard	1359lm (Typ)	360mA	85°C	34V	111 lm/W	720mA	97	120°	-	20.00mm Dia	1.90mm	9.90mm Dia

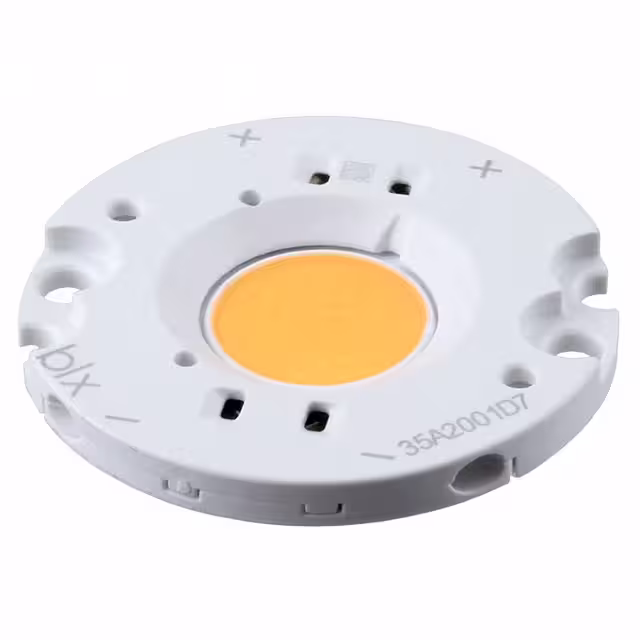

BXRC-35A2001-D-73-SE LED COB VERO SE 3500K ROUND Bridgelux	3,576	-	RFQ	Ficha técnica	Tray	Décor Series™ Class A Vero® SE 13	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	1808lm (Typ)	500mA	85°C	31V	117 lm/W	1A	93	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-30G200C-D-73-SE LED COB VERO 13 SE 3000K ROUND Bridgelux	2,351	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	1683lm (Typ)	500mA	85°C	30.9V	109 lm/W	1.05A	90	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-27E2000-D-72-SE VERO SE 13D WARM WHITE LED ARRAY Bridgelux	3,027	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	2161lm (Typ)	500mA	85°C	30.9V	140 lm/W	1A	80	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-27G2000-D-72-SE VERO SE 13D WARM WHITE LED ARRAY Bridgelux	2,082	-	RFQ	Ficha técnica	Tray	Gen 7 Vero® 13 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	1803lm (Typ)	500mA	85°C	30.9V	117 lm/W	1A	90	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-27H2000-B-72-SE VERO SE 13B WARM WHITE LED ARRAY Bridgelux	3,327	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	1536lm (Typ)	450mA	85°C	33.9V	101 lm/W	1.26A	97 (Typ)	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-30A2001-D-73-SE VERO SE 13D WARM WHITE LED ARRAY Bridgelux	2,390	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	1689lm (Typ)	500mA	85°C	30.9V	109 lm/W	1A	93 (Typ)	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-30E2000-D-72-SE VERO SE 13D WARM WHITE LED ARRAY Bridgelux	3,971	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	2247lm (Typ)	500mA	85°C	30.9V	145 lm/W	1A	80	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-30G2000-D-72-SE VERO SE 13D WARM WHITE LED ARRAY Bridgelux	2,682	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	1875lm (Typ)	500mA	85°C	30.9V	121 lm/W	1A	90	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-30H2000-B-72-SE VERO SE 13B WARM WHITE LED ARRAY Bridgelux	3,500	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	1649lm (Typ)	450mA	85°C	33.9V	108 lm/W	900mA	97 (Typ)	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
BXRC-30H2000-D-73-SE VERO SE 13D WARM WHITE LED ARRAY Bridgelux	3,451	-	RFQ	Ficha técnica	Tray	Vero® SE 13 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	1674lm (Typ)	500mA	85°C	30.9V	108 lm/W	1A	97 (Typ)	120°	-	36.20mm Dia	3.60mm	13.40mm Dia
