Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-57C4001-C-83VERO 18C COOL WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 6739lm (Typ) | 1.05A | 25°C | 33.9V | 189 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|

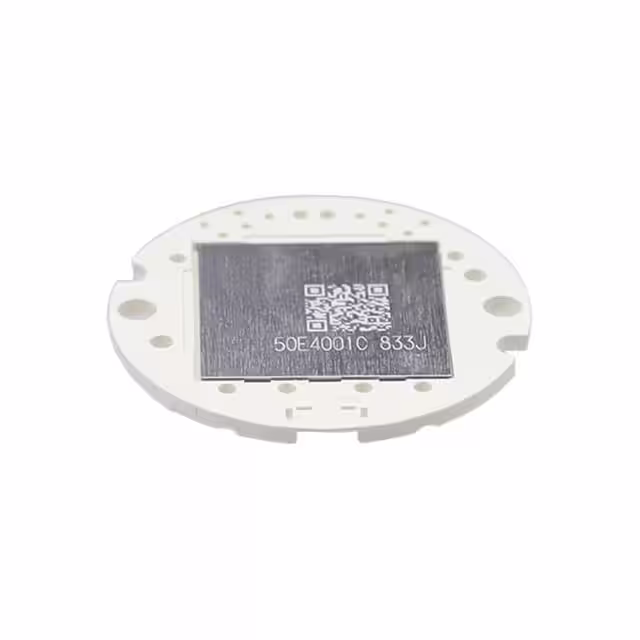

BXRC-50E4001-C-83VERO 18C COOL WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 6664lm (Typ) | 1.05A | 25°C | 33.9V | 187 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
|
BXRC-50C4001-C-83VERO 18C COOL WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 6927lm (Typ) | 1.05A | 25°C | 33.9V | 195 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
|
BXRC-65E4001-C-83VERO 18C COOL WHITE LED ARRAY Bridgelux |
3,069 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 6475lm (Typ) | 1.05A | 25°C | 33.9V | 182 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
|
BXRC-57E4001-C-83VERO 18C COOL WHITE LED ARRAY Bridgelux |
2,093 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 6400lm (Typ) | 1.05A | 25°C | 33.9V | 180 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
|
BXRC-27H4000-C-83VERO 18C WARM WHITE LED ARRAY Bridgelux |
3,162 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4405lm (Typ) | 1.05A | 25°C | 33.9V | 124 lm/W | 3A | 97 (Typ) | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
|
BXRC-50G4001-C-83VERO 18C COOL WHITE LED ARRAY Bridgelux |
2,283 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 5760lm (Typ) | 1.05A | 25°C | 33.9V | 162 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
|
BXRC-30H4000-C-83VERO 18C WARM WHITE LED ARRAY Bridgelux |
3,161 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4706lm (Typ) | 1.05A | 25°C | 33.9V | 132 lm/W | 3A | 97 (Typ) | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
|
BXRC-40C4001-C-83VERO 18C NEUTRAL WHITE LED ARRAY Bridgelux |
3,928 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 6889lm (Typ) | 1.05A | 25°C | 33.9V | 194 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
BXRC-27H4000-C-83-SEVERO SE 18C WARM WHITE LED ARRAY Bridgelux |
3,270 | - |
RFQ |
Tray | Gen 8 Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4347lm (Typ) | 1.05A | 25°C | 33.9V | 122 lm/W | 3A | 97 (Typ) | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | |
|
|
BXRC-30H4000-C-83-SEVERO SE 18C WARM WHITE LED ARRAY Bridgelux |
2,939 | - |
RFQ |
Tray | Gen 8 Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4645lm (Typ) | 1.05A | 25°C | 33.9V | 130 lm/W | 3A | 97 (Typ) | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | |
|
BXRV-DR-1830G-4000-A-13-S2DW LED ARRAY, LES=18MM, INTEGRAT Bridgelux |
2,583 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ SE | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 4887lm (Typ) | 1.29A | 25°C | 33.8V | 112 lm/W | 1.4A | 90 | 110° | With Holder | 45.00mm Dia | 3.80mm | 18.30mm Dia |
|
BXRE-27E6500-C-83V22C WARM WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 10424lm (Typ) | 1.2A | 25°C | 50.7V | 171 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-30G6500-C-83V22C WARM WHITE LED ARRAY Bridgelux |
2,996 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8991lm (Typ) | 1.2A | 25°C | 50.7V | 148 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
|
BXRE-30E6500-C-83V22C WARM WHITE LED ARRAY Bridgelux |
2,673 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 V22 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 11076lm (Typ) | 1.2A | 25°C | 50.7V | 182 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia |
|
BXRV-TR-2765G-65A0-A-23-S2TW LED ARRAY, LES=22MM, INTEGRAT Bridgelux |
3,519 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 5168lm Warm White, 6106lm Cool White | 900mA | 25°C | 52V Warm White, 53V Cool White | 110 lm/W Warm White, 128 lm/W Cool White | 1.4A | 90 | 130° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.10mm Dia |
|

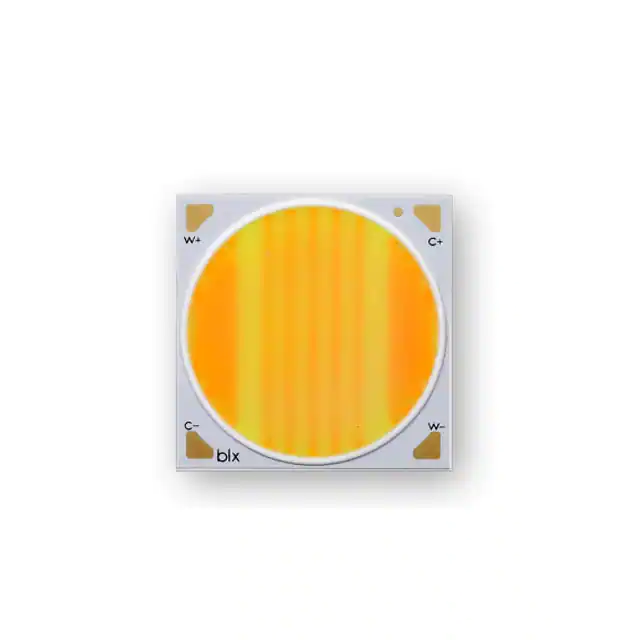

BXRV-TR-2765G-1KA0-A-23-S2TW LED ARRAY, LES=29MM, INTEGRAT Bridgelux |
2,608 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 5182lm Warm White, 7043lm Cool White | 1.05A | 25°C | 52.1V Warm White, 52.4V Cool White | 113 lm/W Warm White, 128 lm/W Cool White | 1.8A | 90 | 130° | - | 32.05mm L x 32.05mm W | 1.65mm | 29.60mm Dia |
|
BXEB-TL-L1120Z-2750S4000-A-C3VESTA TL GEN 3 (2 SMD ROWS) LED Bridgelux |
2,481 | - |
RFQ |
Ficha técnica |
Bulk | Vesta™ Tunable Linear Gen 3 | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5920lm Warm White, 6720lm Cool White | 1.2A | 25°C | 40.6V | 122 lm/W Warm White, 138 lm/W Cool White | 2A | 98 | 120° | - | 1120.00mm L x 31.00mm W | 5.60mm | - |
|
BXRC-40G10K0-C-83VERO 29C NEUTRAL WHITE LED ARRAY Bridgelux |
3,189 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13778lm (Typ) | 1.3A | 25°C | 66.7V | 159 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-30G1KH0-C-83VERO 29C WARM WHITE LED ARRAY Bridgelux |
3,408 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 13637lm (Typ) | 1.3A | 25°C | 66.7V | 157 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
