Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-27G10K0-C-83VERO 29C WARM WHITE LED ARRAY Bridgelux |
2,102 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12457lm (Typ) | 1.3A | 25°C | 66.7V | 144 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-27E10K0-C-83VERO 29C WARM WHITE LED ARRAY Bridgelux |
2,284 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 15099lm (Typ) | 1.3A | 25°C | 66.7V | 174 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-40E10K0-C-83VERO 29C NEUTRAL WHITE LED ARRAY Bridgelux |
3,118 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 16515lm (Typ) | 1.3A | 25°C | 66.7V | 190 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-30E10K0-C-83VERO 29C WARM WHITE LED ARRAY Bridgelux |
2,735 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 16043lm (Typ) | 1.3A | 25°C | 66.7V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-27G1KH0-C-83VERO 29C WARM WHITE LED ARRAY Bridgelux |
2,321 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12995lm (Typ) | 1.3A | 25°C | 66.7V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-30G10K0-C-83VERO 29C WARM WHITE LED ARRAY Bridgelux |
3,401 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 13023lm (Typ) | 1.3A | 25°C | 66.7V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-35E10K0-C-83VERO 29C WARM WHITE LED ARRAY Bridgelux |
2,626 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 16420lm (Typ) | 1.3A | 25°C | 66.7V | 189 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-35G10K0-C-83VERO 29C WARM WHITE LED ARRAY Bridgelux |
2,825 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 13495lm (Typ) | 1.3A | 25°C | 66.7V | 156 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
BXRC-50E10K1-C-84-SEVERO SE 29C COOL WHITE LED ARRAY Bridgelux |
2,040 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 16662lm (Typ) | 1.3A | 25°C | 66.7V | 192 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-30C10K1-C-84-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
3,997 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 16756lm (Typ) | 1.3A | 25°C | 66.7V | 193 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-27G10K0-C-83-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
3,867 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12426lm (Typ) | 1.3A | 25°C | 66.7V | 143 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-30G1KH0-C-83-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
3,344 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 13602lm (Typ) | 1.3A | 25°C | 66.7V | 157 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-27E10K0-C-83-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
3,119 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 15062lm (Typ) | 1.3A | 25°C | 66.7V | 174 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|

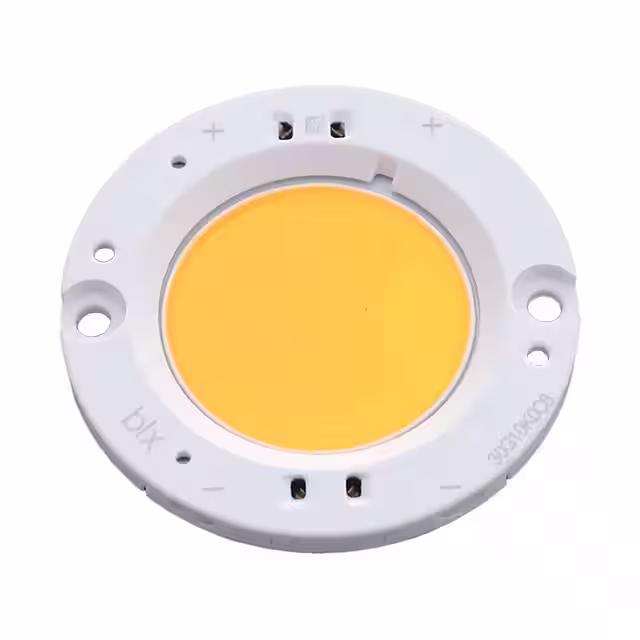

BXRC-30G10K0-C-83-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
3,564 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12991lm (Typ) | 1.3A | 25°C | 66.7V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-30E10K0-C-83-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
2,328 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 16003lm (Typ) | 1.3A | 25°C | 66.7V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-35E10K0-C-83-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
2,462 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 16379lm (Typ) | 1.3A | 25°C | 66.7V | 189 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-40G10K0-C-83-SEVERO SE 29C NEUTRAL WHITE LED AR Bridgelux |
2,420 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13744lm (Typ) | 1.3A | 25°C | 66.7V | 159 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-27G1KH0-C-83-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
3,379 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12962lm (Typ) | 1.3A | 25°C | 66.7V | 149 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
|
BXRC-35G10K0-C-83-SEVERO SE 29C WARM WHITE LED ARRAY Bridgelux |
3,948 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 13461lm (Typ) | 1.3A | 25°C | 66.7V | 155 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
|
BXRC-40E10K0-C-83-SEVERO SE 29C NEUTRAL WHITE LED AR Bridgelux |
3,123 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 16474lm (Typ) | 1.3A | 25°C | 66.7V | 190 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia |
