Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30E1000-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
2,449 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1595lm (Typ) | 300mA | 25°C | 30.7V | 173 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-57E1001-C-84-SEVERO SE 10C COOL WHITE LED ARRAY Bridgelux |
3,801 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 1595lm (Typ) | 300mA | 25°C | 30.7V | 173 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-40C1001-C-84-SEVERO SE 10C NEUTRAL WHITE LED AR Bridgelux |
2,156 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Round | 1717lm (Typ) | 300mA | 25°C | 30.7V | 186 lm/W | 1A | 70 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-50G1001-C-84-SEVERO SE 10C COOL WHITE LED ARRAY Bridgelux |
2,207 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1436lm (Typ) | 300mA | 25°C | 30.7V | 156 lm/W | 1A | 90 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-57C1001-C-84-SEVERO SE 10C COOL WHITE LED ARRAY Bridgelux |
2,680 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 1679lm (Typ) | 300mA | 25°C | 30.7V | 182 lm/W | 1A | 70 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-27G1000-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
3,433 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1239lm (Typ) | 300mA | 25°C | 30.7V | 134 lm/W | 1A | 90 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-50C1001-C-84-SEVERO SE 10C COOL WHITE LED ARRAY Bridgelux |
2,476 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1726lm (Typ) | 300mA | 25°C | 30.7V | 187 lm/W | 1A | 70 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-30G10H0-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
3,670 | - |
RFQ |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1356lm (Typ) | 300mA | 25°C | 30.7V | 147 lm/W | 1A | 90 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia | |
|
|
BXRC-27G10H0-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
3,768 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1292lm (Typ) | 300mA | 25°C | 30.7V | 140 lm/W | 1A | 90 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-30G1000-C-83-SEVERO SE 10C WARM WHITE LED ARRAY Bridgelux |
2,173 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1295lm (Typ) | 300mA | 25°C | 30.7V | 141 lm/W | 1A | 90 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
|
BXRC-40G1000-C-83-SEVERO SE 10C NEUTRAL WHITE LED AR Bridgelux |
3,637 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1370lm (Typ) | 300mA | 25°C | 30.7V | 149 lm/W | 1A | 90 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia |
|
BXRC-27H1000-C-83VERO 10C WARM WHITE LED ARRAY Bridgelux |
2,616 | - |
RFQ |
Tray | Gen 8 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | - | 300mA | 25°C | 30.7V | - | 1A | 97 (Typ) | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | |
|

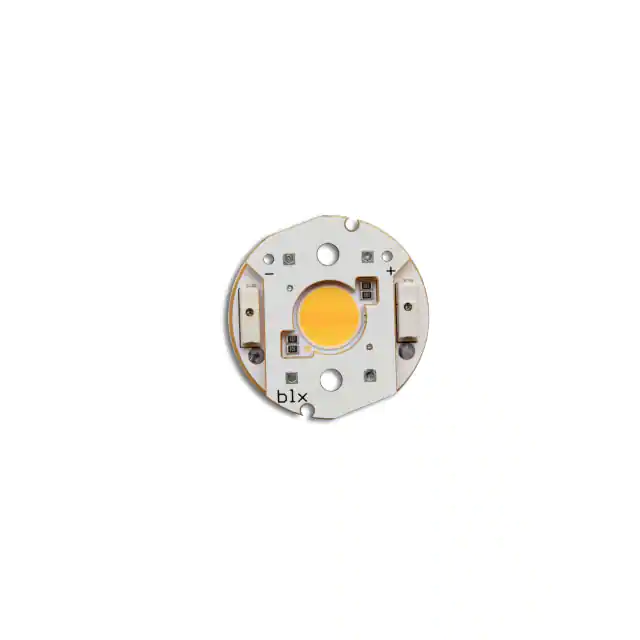

BXRV-DR-1830G-1000-A-13-S2DW LED ARRAY, LES=9MM, 6W, INTEG Bridgelux |
2,862 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ SE | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 613lm (Typ) | 350mA | 25°C | 17V | 103 lm/W | 420mA | 90 | 110° | With Holder | 30.80mm Dia | 3.80mm | 9.10mm Dia |
|
BXRV-TR-2765G-06A0-B-23-S2TW LED ARRAY, LES=6MM, VF=36V, I Bridgelux |
3,640 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 500lm Warm White, 600lm Cool White | 150mA | 25°C | 36V Warm White, 36V Cool White | 92 lm/W Warm White, 110 lm/W Cool White | 200mA | 90 | 130° | - | 12.50mm L x 12.50mm W | 2.00mm | 6.80mm Dia |
|
BXEB-L0560Z-35E4000-C-D3EB GEN 3 HIGH OUTPUT LED MODULE Bridgelux |
2,789 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ Gen 3 | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4960lm | 1.4A | 25°C | 19.2V | 185 lm/W | 2.8A | 80 | 120° | - | 560.00mm L x 24.00mm W | 6.10mm | |
|
|
BXRV-DR-1830G-1000-B-13-S2DW LED ARRAY, LES=9MM, 12W, INTE Bridgelux |
2,008 | - |
RFQ |
Ficha técnica |
Tray | Vesta™ SE | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 1218lm (Typ) | 350mA | 25°C | 33.8V | 103 lm/W | 420mA | 90 | 110° | With Holder | 30.80mm Dia | 3.80mm | 9.10mm Dia |
|
BXEB-TL-L0560Z-2750E2000-B-C3VESTA TL GEN 3 (1 SMD ROW) LED M Bridgelux |
3,120 | - |
RFQ |
Ficha técnica |
Bulk | Vesta™ Tunable Linear Gen 3 | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2438lm Warm White, 2723lm Cool White | 750mA | 25°C | 19.7V | 165 lm/W Warm White, 184 lm/W Cool White | 1.5A | 80 | 120° | - | 560.00mm L x 24.00mm W | 5.60mm | - |
|
BXRC-35G2000-C-83VERO 13C WARM WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2507lm (Typ) | 500mA | 25°C | 33.4V | 150 lm/W | 1.75A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia |
|
|
BXRC-27G20H0-C-83VERO 13C WARM WHITE LED ARRAY Bridgelux |
3,657 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2414lm (Typ) | 500mA | 25°C | 33.4V | 145 lm/W | 1.75A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia |
|
|
BXRC-40G2000-C-83VERO 13C NEUTRAL WHITE LED ARRAY Bridgelux |
2,009 | - |
RFQ |
Ficha técnica |
Tray | Gen 8 Vero® 13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 2559lm (Typ) | 500mA | 25°C | 33.4V | 153 lm/W | 1.75A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia |
