0Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRH-35A3001-D-233000 LM CLASS A WARM WHITE LED A Bridgelux |
3,601 | - |
RFQ |
Ficha técnica |
Tube | H9 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3074lm (Typ) | 1A | 25°C | 36.6V | 84 lm/W | 1.4A | 93 (Typ) | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia |
|
|
BXRH-40E3000-D-233000 LM NEUTRAL WHITE LED ARRAY Bridgelux |
3,001 | - |
RFQ |
Ficha técnica |
Tube | H9 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3880lm (Typ) | 1A | 25°C | 36.6V | 106 lm/W | 1.4A | 80 | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia |
.jpg)
|
BXRH-27E6000-G-236000 LM WARM WHITE LED ARRAY Bridgelux |
2,964 | - |
RFQ |
Ficha técnica |
Tube | H12 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 6085lm (Typ) | 1.75A | 25°C | 36.6V | 95 lm/W | 2.2A | 80 | 112° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.60mm Dia |
|
|
BXRH-30E6000-G-236000 LM WARM WHITE LED ARRAY Bridgelux |
2,335 | - |
RFQ |
Ficha técnica |
Tube | H12 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6405lm (Typ) | 1.75A | 25°C | 36.6V | 100 lm/W | 2.2A | 80 | 112° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.60mm Dia |
|
|
BXRH-30G6000-G-236000 LM WARM WHITE LED ARRAY Bridgelux |
2,783 | - |
RFQ |
Ficha técnica |
Tube | H12 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5380lm (Typ) | 1.75A | 25°C | 36.6V | 84 lm/W | 2.2A | 90 | 112° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.60mm Dia |
|
|
BXRH-35A6001-G-236000 LM CLASS A WARM WHITE LED A Bridgelux |
2,908 | - |
RFQ |
Ficha técnica |
Tube | H12 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5380lm (Typ) | 1.75A | 25°C | 36.6V | 84 lm/W | 2.2A | 93 (Typ) | 112° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.60mm Dia |
|
|
BXRH-40E6000-G-236000 LM NEUTRAL WHITE LED ARRAY Bridgelux |
2,192 | - |
RFQ |
Ficha técnica |
Tube | H12 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6789lm (Typ) | 1.75A | 25°C | 36.6V | 106 lm/W | 2.2A | 80 | 112° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.60mm Dia |
.jpg)
|

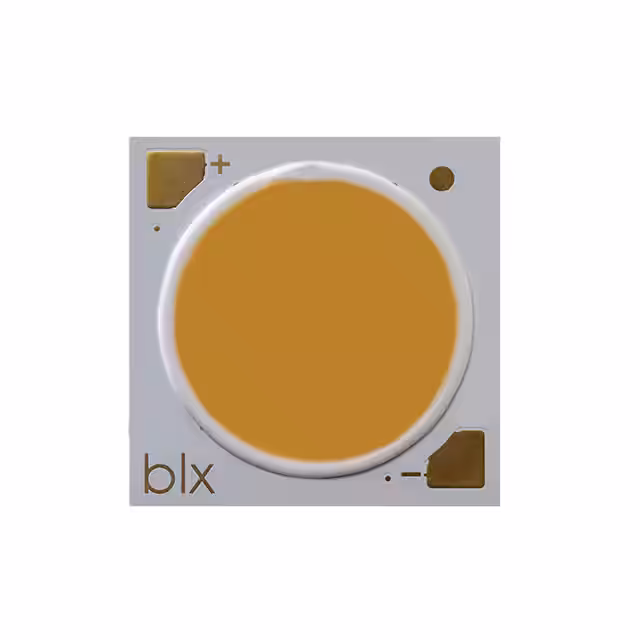

BXRH-27E8000-J-238000 LM WARM WHITE LED ARRAY Bridgelux |
2,235 | - |
RFQ |
Ficha técnica |
Tube | H15 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8693lm (Typ) | 2.5A | 25°C | 36.6V | 95 lm/W | 3.5A | 80 | 112° | - | 19.00mm L x 19.00mm W | 1.70mm | 15.10mm Dia |
|
|
BXRH-30E8000-J-238000 LM WARM WHITE LED ARRAY Bridgelux |
2,600 | - |
RFQ |
Ficha técnica |
Tube | H15 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9150lm (Typ) | 2.5A | 25°C | 36.6V | 100 lm/W | 3.5A | 80 | 112° | - | 19.00mm L x 19.00mm W | 1.70mm | 15.10mm Dia |
|
|
BXRH-30G8000-J-238000 LM WARM WHITE LED ARRAY Bridgelux |
2,295 | - |
RFQ |
Ficha técnica |
Tube | H15 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7686lm (Typ) | 2.5A | 25°C | 36.6V | 84 lm/W | 3.5A | 90 | 112° | - | 19.00mm L x 19.00mm W | 1.70mm | 15.10mm Dia |
|
|
BXRH-35A8001-J-238000 LM CLASS A WARM WHITE LED A Bridgelux |
3,673 | - |
RFQ |
Ficha técnica |
Tube | H15 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7686lm (Typ) | 2.5A | 25°C | 36.6V | 84 lm/W | 3.5A | 93 (Typ) | 112° | - | 19.00mm L x 19.00mm W | 1.70mm | 15.10mm Dia |
|
|
BXRH-40E8000-J-238000 LM NEUTRAL WHITE LED ARRAY Bridgelux |
3,481 | - |
RFQ |
Ficha técnica |
Tube | H15 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9699lm (Typ) | 2.5A | 25°C | 36.6V | 106 lm/W | 3.5A | 80 | 112° | - | 19.00mm L x 19.00mm W | 1.70mm | 15.10mm Dia |
|
BXEB-L0280Z-30E1000-C-A3LED MODULE EB SERIES 3000K STRIP Bridgelux |
2,656 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1205lm (Typ) | 350mA | 50°C | 22.1V | 156 lm/W | 700mA | 80 | - | - | 280.00mm L x 24.00mm W | 6.10mm | - |
|
|
BXEB-L0280Z-35E1000-C-A3LED MODULE EB SERIES 3500K STRIP Bridgelux |
3,190 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1205lm (Typ) | 350mA | 50°C | 22.1V | 156 lm/W | 700mA | 80 | - | - | 280.00mm L x 24.00mm W | 6.10mm | - |
|
|
BXEB-L0280Z-40E1000-C-A3LED MODULE EB SERIES 4000K STRIP Bridgelux |
3,979 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1230lm (Typ) | 350mA | 50°C | 22.1V | 159 lm/W | 700mA | 80 | - | - | 280.00mm L x 24.00mm W | 6.10mm | - |
|
|
BXEB-L0280Z-50E1000-C-A3LED MODULE EB SERIES 5000K STRIP Bridgelux |
2,327 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1230lm (Typ) | 350mA | 50°C | 22.1V | 159 lm/W | 700mA | 80 | - | - | 280.00mm L x 24.00mm W | 6.10mm | - |
|
|
BXEB-L0280Z-57E1000-C-A3LED MODULE EB SERIES 5700K STRIP Bridgelux |
3,697 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ | Obsolete | LED Module | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1230lm (Typ) | 350mA | 50°C | 22.1V | 159 lm/W | 700mA | 80 | - | - | 280.00mm L x 24.00mm W | 6.10mm | - |
|
|
BXEB-L0560Z-30E2000-C-A3LED MODULE EB SERIES 3000K STRIP Bridgelux |
3,505 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2410lm (Typ) | 700mA | 50°C | 22.1V | 156 lm/W | 1.4A | 80 | - | - | 560.00mm L x 24.00mm W | 6.10mm | - |
|
|
BXEB-L0560Z-35E2000-C-A3LED MODULE EB SERIES 3500K STRIP Bridgelux |
2,434 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2410lm (Typ) | 700mA | 50°C | 22.1V | 156 lm/W | 1.4A | 80 | - | - | 560.00mm L x 24.00mm W | 6.10mm | - |
|
|
BXEB-L0560Z-40E2000-C-A3LED MODULE EB SERIES 4000K STRIP Bridgelux |
3,653 | - |
RFQ |
Ficha técnica |
Bulk | EB Series™ | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2460lm (Typ) | 700mA | 50°C | 22.1V | 159 lm/W | 1.4A | 80 | - | - | 560.00mm L x 24.00mm W | 6.10mm | - |
