Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRH-35G1000-C-231000 LM WARM WHITE LED ARRAY Bridgelux |
3,909 | - |
RFQ |
Ficha técnica |
Tube | H6 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1180lm (Typ) | 750mA | 25°C | 18.3V | 86 lm/W | 1.05A | 90 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia |
|
|
BXRH-40G1000-C-231000 LM NEUTRAL WHITE LED ARRAY Bridgelux |
3,876 | - |
RFQ |
Ficha técnica |
Tube | H6 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1208lm (Typ) | 750mA | 25°C | 18.3V | 88 lm/W | 1.05A | 90 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia |
|

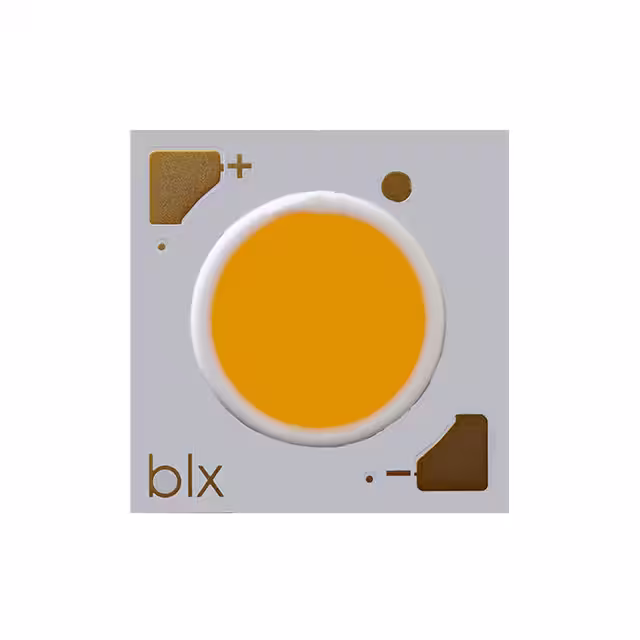

BXRH-40G3000-D-233000 LM NEUTRAL WHITE LED ARRAY Bridgelux |
3,652 | - |
RFQ |
Ficha técnica |
Tube | H9 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3221lm (Typ) | 1A | 25°C | 36.6V | 88 lm/W | 1.4A | 90 | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia |
|
BXRV-TR-2750G-20A0-A-25LED TUNABLE COOL WHT 15MM LES Bridgelux |
2,025 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Obsolete | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 2220lm (Typ) | 500mA | 25°C | 35.9V | 123 lm/W | 700mA | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.65mm | 14.20mm Dia |
|
|
BXRV-TR-2750G-10A0-A-15LED TUNABLE COOL WHT 15MM LES Bridgelux |
2,776 | - |
RFQ |
Tube | Vesta™ | Obsolete | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 1153lm (Typ) | 500mA | 25°C | 18.1V | 126 lm/W | 1A | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.70mm | 9.40mm Dia | |
|
|
BXRV-TR-2750G-10A0-A-25LED TUNABLE COOL WHT 15MM LES Bridgelux |
3,807 | - |
RFQ |
Tube | Vesta™ | Obsolete | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 1153lm (Typ) | 500mA | 25°C | 18V | 126 lm/W | 700mA | 92 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia | |
|
|
BXRV-TR-2750G-20A0-A-15LED TUNABLE COOL WHT 15MM LES Bridgelux |
2,709 | - |
RFQ |
Tube | Vesta™ | Obsolete | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 2316lm (Typ) | 500mA | 25°C | 36.5V | 127 lm/W | 1A | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.70mm | 14.00mm Dia | |
|
|
OLMB-50C000-S06A-AA000MODULE LED OLM 5000K 70CRI Bridgelux |
3,345 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5000K | - | Rectangle | 3167lm (Typ) | 900mA | 25°C | 23.1V | 152 lm/W | 1.8A | 70 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-30E000-A01A-AA000MODULE LED OLM 3000K 80CRI Bridgelux |
3,045 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | - | 900mA | 25°C | 23.1V | - | 1.8A | 80 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-30E000-S01A-AA000MODULE LED OLM 3000K 80CRI Bridgelux |
3,186 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | - | 900mA | 25°C | 23.1V | - | 1.8A | 80 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-40C000-S06A-AA000MODULE LED OLM 4000K 70CRI Bridgelux |
2,798 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 3139lm (Typ) | 900mA | 25°C | 23.1V | 151 lm/W | 1.8A | 70 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-40E000-S06A-AA000MODULE LED OLM 4000K 80CRI Bridgelux |
2,431 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 2889lm (Typ) | 900mA | 25°C | 23.1V | 139 lm/W | 1.8A | 80 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-40C000-S01A-AA000MODULE LED OLM 4000K 70CRI Bridgelux |
3,760 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 3139lm (Typ) | 900mA | 25°C | 23.1V | 151 lm/W | 1.8A | 70 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-56C000-A06A-AA000MODULE LED OLM 5600K 70CRI Bridgelux |
3,506 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5600K | - | Rectangle | - | 900mA | 25°C | 23.1V | - | 1.8A | 70 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-57C000-S06A-AA000MODULE LED OLM 5700K 70CRI Bridgelux |
2,250 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5700K | - | Rectangle | 3056lm (Typ) | 900mA | 25°C | 23.1V | 147 lm/W | 1.8A | 70 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-50C000-S01A-AA000MODULE LED OLM 5000K 70CRI Bridgelux |
2,733 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5000K | - | Rectangle | 3167lm (Typ) | 900mA | 25°C | 23.1V | 152 lm/W | 1.8A | 70 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-30E000-S06A-AA000MODULE LED OLM 3000K 80CRI Bridgelux |
2,916 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | - | 900mA | 25°C | 23.1V | - | 1.8A | 80 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-56C000-S01A-AA000MODULE LED OLM 5600K 70CRI Bridgelux |
2,381 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5600K | - | Rectangle | - | 900mA | 25°C | 23.1V | - | 1.8A | 70 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-40E000-S01A-AA000MODULE LED OLM 4000K 80CRI Bridgelux |
3,155 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 2889lm (Typ) | 900mA | 25°C | 23.1V | 139 lm/W | 1.8A | 80 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - | |
|
|
OLMB-57C000-S01A-AA000MODULE LED OLM 5700K 70CRI Bridgelux |
2,632 | - |
RFQ |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5700K | - | Rectangle | 3056lm (Typ) | 900mA | 25°C | 23.1V | 147 lm/W | 1.8A | 70 | - | IP66 | 164.00mm L x 73.00mm W | 27.00mm | - |
