Núcleos de ferrita

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PC95ELT25X8.6-Z FERRITE CORE ELT 7.54UH 1SET TDK Corporation	3,627	-	RFQ	Ficha técnica	Tray	Planar	Active	ELH, PLT	ELT 25 x 8.6	PC95	-	7.54 µH	±25%	Ungapped	-	-	0.35	85.6	30	83	2570	Uncoated	0.248 (6.30mm)
PC47EER35-Z FERRITE CORE EER 2.77UH 2PC SET TDK Corporation	2,857	-	RFQ	Ficha técnica	Tray	E	Active	E	EER 35	PC47	-	2.77 µH	±25%	Ungapped	-	-	0.85	90.8	107	-	9720	Uncoated	0.815 (20.70mm)

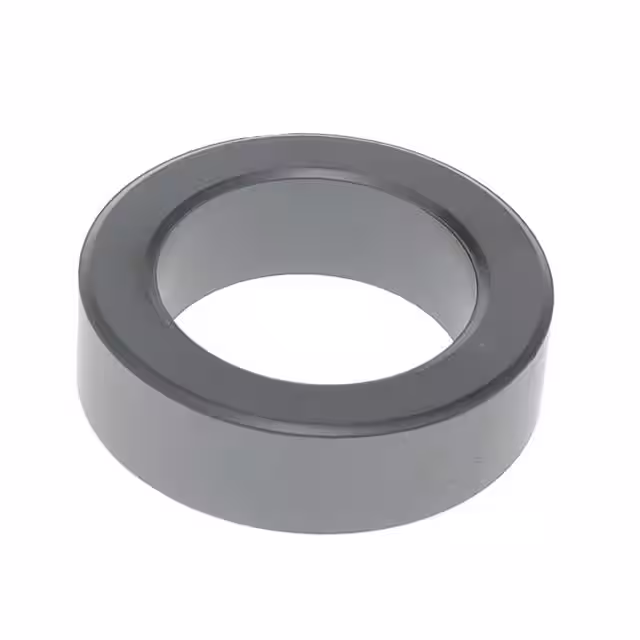

HF60T44.5X13X30 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	3,984	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	1.752 (44.50mm)	-	-	Ungapped	-	1600	-	-	-	-	-	Uncoated	0.512 (13.00mm)
PC47EER40-Z FERRITE CORE EER 3.62UH 2PC SET TDK Corporation	2,040	-	RFQ	Ficha técnica	Tray	E	Active	E	EER 40	PC47	-	3.62 µH	±25%	Ungapped	-	-	0.66	98	149	-	14600	Uncoated	0.882 (22.40mm)
HF60T38X14X22 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	2,569	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.551 (14.00mm)
PC47EER42-Z FERRITE CORE EER 4.69UH 2PC SET TDK Corporation	3,598	-	RFQ	Ficha técnica	Tray	E	Active	E	EER 42	PC47	-	4.69 µH	±25%	Ungapped	-	-	0.51	98.8	194	-	19200	Uncoated	0.882 (22.40mm)
PC47EI50-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	2,160	-	RFQ	Ficha técnica	Tray	E	Active	E	-	PC47	-	6.11 µH	±25%	Ungapped	-	2500	0.409	94	230	-	21620	Uncoated	1.313 (33.35mm)
PC95SP50X50X5 FERRITE CORE SP 1PCS TDK Corporation	2,009	-	RFQ	Ficha técnica	Tray	SP	Active	SP	SP 50 x 50 x 5	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.197 (5.00mm)
PC95PQ20/20Z-12 FERRITE CORE PQ 4UH 2PC SET TDK Corporation	3,786	-	RFQ	Ficha técnica	Tray	PQ	Active	PQ	PQ 20 x 20	PC95	-	4 µH	±25%	Ungapped	-	-	0.74	45.4	62	-	2790	Uncoated	0.795 (20.20mm)
PC47EER42/42/20-Z FERRITE CORE EER 5.34UH 2PC SET TDK Corporation	2,241	-	RFQ	Ficha técnica	Tray	E	Active	E	EER 42 x 42 x 20	PC47	-	5.34 µH	±25%	Ungapped	-	-	0.41	98.6	240	-	23700	Uncoated	0.835 (21.20mm)
PC95PQ32/20Z-12 FERRITE CORE PQ 9.12UH 2PC SET TDK Corporation	3,728	-	RFQ	Ficha técnica	Tray	PQ	Active	PQ	PQ 32 x 20	PC95	-	9.12 µH	±25%	Ungapped	-	-	0.33	55.5	170	-	9420	Uncoated	0.809 (20.55mm)
PC95PQ32/30Z-12 FERRITE CORE PQ 7UH 2PC SET TDK Corporation	2,535	-	RFQ	Ficha técnica	Tray	PQ	Active	PQ	PQ 32 x 30	PC95	-	7 µH	±25%	Ungapped	-	-	0.46	74.6	161	-	12000	Uncoated	1.195 (30.35mm)

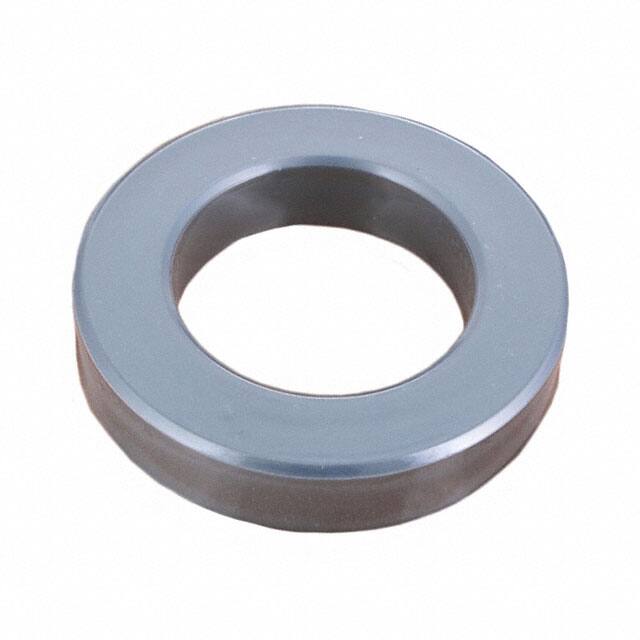

HF90T62X13X39 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	3,838	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)
HF60T62X13X39 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	2,101	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.512 (13.00mm)
PC95PQ35/35Z-12 FERRITE CORE PQ 7.32UH 2PC SET TDK Corporation	2,338	-	RFQ	Ficha técnica	Tray	PQ	Active	PQ	PQ 35 x 35	PC95	-	7.32 µH	±25%	Ungapped	-	-	0.45	87.9	196	-	17300	Uncoated	1.368 (34.75mm)
PC95SP100X100X5 FERRITE CORE SP 1PCS TDK Corporation	3,388	-	RFQ	Ficha técnica	Tray	SP	Active	SP	SP 100 x 100 x 5	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.197 (5.00mm)
PC95PQ50/50Z-12 FERRITE CORE PQ 9.7UH 2PC SET TDK Corporation	3,924	-	RFQ	Ficha técnica	Tray	PQ	Active	PQ	PQ 50 x 50	PC95	-	9.7 µH	±25%	Ungapped	-	-	0.35	113	328	-	37200	Uncoated	1.967 (49.95mm)
HF90T80X20X50 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	3,458	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.787 (20.00mm)
PC95SP135X65X20 FERRITE CORE SP 1PCS TDK Corporation	3,517	-	RFQ	Ficha técnica	Tray	SP	Active	SP	SP 135 x 65 x 20	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
PC47EPC10-Z FERRITE CORE EPC 1UH 2PC SET TDK Corporation	3,640	-	RFQ	Ficha técnica	Tray	EPC	Active	EPC	EPC 10	PC47	-	1 µH	±25%	Ungapped	-	-	1.89	17.8	9.39	-	167	Uncoated	0.134 (3.40mm)
