Núcleos de ferrita

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PC47EER28-Z FERRITE CORE EER 2.87UH 2PC SET TDK Corporation	131	-	RFQ	Ficha técnica	Tray	E	Active	E	EER 28	PC47	-	2.87 µH	±25%	Ungapped	-	-	0.78	64	82.1	-	5250	Uncoated	0.551 (14.00mm)
PC95ELT20X7.7-Z FERRITE CORE ELT 5.63UH 1SET TDK Corporation	248	-	RFQ	Ficha técnica	Tray	Planar	Active	ELH, PLT	ELT 20 x 7.7	PC95	-	5.63 µH	±25%	Ungapped	-	-	0.47	54.6	25.6	52.9	1400	Uncoated	0.230 (5.84mm)
HF90T28X13X16 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	400	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	1.102 (28.00mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)
PC95EL22X8-Z FERRITE CORE EL 6.54UH 2PC SET TDK Corporation	248	-	RFQ	Ficha técnica	Tray	Planar	Active	EL	EL 22 x 8	PC95	-	6.54 µH	±25%	Ungapped	-	-	0.41	66.2	27.3	64.2	1810	Uncoated	0.158 (4.02mm)
PC95PQ65/54-Z FERRITE CORE PQ 13.5UH 2PC SET TDK Corporation	3,844	-	RFQ	Ficha técnica	Tray	Large PQ	Active	PQ	PQ 65 x 54	PC95	-	13.5 µH	±25%	Ungapped	-	-	0.21	123	597	-	73552	Uncoated	2.106 (53.50mm)
PC95ELT15.5X5.8-Z FERRITE CORE ELT 3.68UH 1SET TDK Corporation	3,827	-	RFQ	Ficha técnica	Tray	Planar	Active	ELH, PLT	ELT 15.5 x 5.8	PC95	-	3.68 µH	±25%	Ungapped	-	-	0.6	32.9	19.6	31.9	646	Uncoated	0.174 (4.42mm)

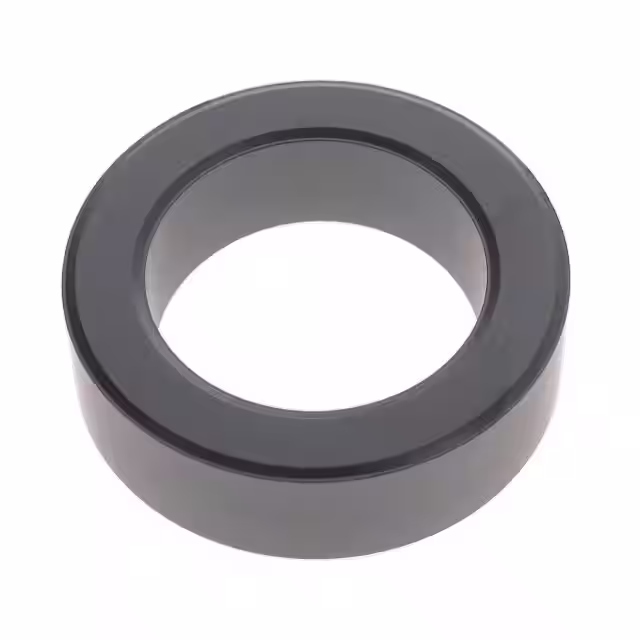

HF90T44.5X13X30 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	3,076	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	1.752 (44.50mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)
H5C2ER9.5/5-Z FERRITE CORE 2PC SET TDK Corporation	3,179	-	RFQ	Ficha técnica	Tray	-	Active	ER	ER 9.5 x 5	H5C2	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.197 (5.00mm)
PC44ER9.5/5-Z FERRITE CORE 2PC SET TDK Corporation	2,678	-	RFQ	Ficha técnica	Tray	-	Active	ER	ER 9.5 x 5	PC44	-	-	-	Ungapped	-	-	1.68	14.2	8.47	-	120	Uncoated	0.193 (4.90mm)
PC47EPC13-Z FERRITE CORE EPC 870NH 2PC SET TDK Corporation	900	-	RFQ	Ficha técnica	Tray	EPC	Active	EPC	EPC 13	PC47	-	870 nH	±25%	Ungapped	-	-	2.45	30.6	12.5	-	382	Uncoated	0.260 (6.60mm)
PC95ER11/5-Z FERRITE CORE ER 1.68UH 2PC SET TDK Corporation	2,417	-	RFQ	Ficha técnica	Tray	Planar	Active	ER	ER 11 x 5	PC95	-	1.68 µH	±25%	Ungapped	-	-	1.23	11.9	14.7	10.3	174	Uncoated	0.098 (2.50mm)
PC47EPC17-Z FERRITE CORE EPC 1.15UH 2PC SET TDK Corporation	3,414	-	RFQ	Ficha técnica	Tray	EPC	Active	EPC	EPC 17	PC47	-	1.15 µH	±25%	Ungapped	-	-	1.76	40.2	22.8	-	917	Uncoated	0.337 (8.55mm)
PC95ER14/4.5/9-Z FERRITE CORE ER 2.55UH 2PC SET TDK Corporation	2,310	-	RFQ	Ficha técnica	Tray	Planar	Active	ER	EI 14 x 4.5 x 9	PC95	-	2.55 µH	±25%	Ungapped	-	-	0.68	22.7	15.4	21.2	349	Uncoated	0.089 (2.25mm)
PC40EER40-Z FERRITE CORE 2PC SET TDK Corporation	3,870	-	RFQ	Ficha técnica	Tray	-	Active	EER	EER 40	PC40	-	-	±25%	Gapped	-	-	0.658	98	149	-	14600	Uncoated	0.882 (22.40mm)
PC44EPC13-Z FERRITE CORE 2PC SET TDK Corporation	180	-	RFQ	Ficha técnica	Tray	-	Active	EPC	EPC 13	PC44	-	-	±25%	Ungapped	-	-	2.45	30.6	12.5	-	382	Uncoated	0.260 (6.60mm)
PC47EER25.5-Z FERRITE CORE EER 1.92UH 2PC SET TDK Corporation	2,875	-	RFQ	Ficha técnica	Tray	E	Active	EER	EER 25.5	PC47	-	1.92 µH	±25%	Ungapped	-	-	1.08	48.2	44.8	-	2160	Uncoated	0.366 (9.30mm)
PC47EI19-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	3,458	-	RFQ	Ficha técnica	Tray	E	Active	E	-	PC47	-	1.4 µH	±25%	Ungapped	-	2500	1.65	39.6	24	-	950	Uncoated	-
PC95EL11X4-Z FERRITE CORE EL 2.4UH 2PC SET TDK Corporation	2,666	-	RFQ	Ficha técnica	Tray	Planar	Active	EL	EL 11 x 4	PC95	-	2.4 µH	±25%	Ungapped	-	-	0.83	16.5	13.7	15.9	226	Uncoated	0.079 (2.00mm)
HF60T14X7X8 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	3,282	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	0.551 (14.00mm)	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.276 (7.00mm)
HF90T18X10X10 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,954	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	0.709 (18.00mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.394 (10.00mm)
