Núcleos de ferrita

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PC44PQ32/30Z-12 FERRITE CORE 2PC SET TDK Corporation	2,771	-	RFQ	Ficha técnica	Tray	-	Active	PQ	PQ 32 x 30	PC44	-	-	±25%	Ungapped	-	-	0.464	47.6	161	-	12000	Uncoated	1.195 (30.35mm)

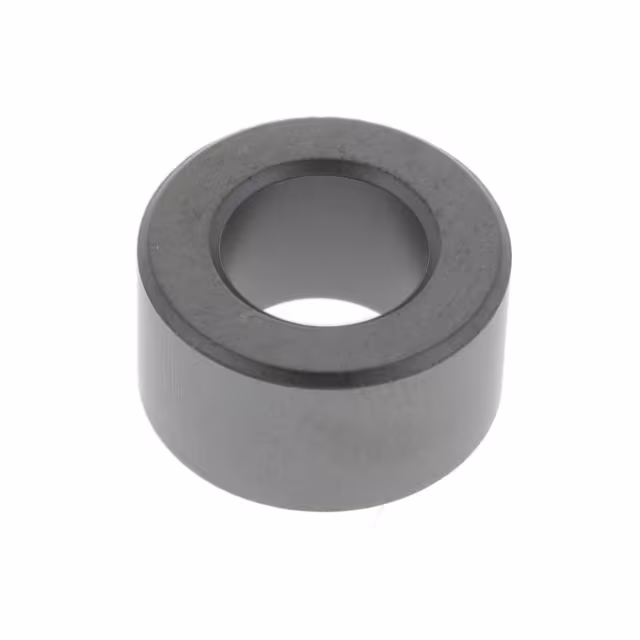

HF60T18X10X10 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	2,992	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	0.709 (18.00mm)	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.394 (10.00mm)
PC44PQ20/16Z-12 FERRITE CORE 2PC SET TDK Corporation	2,649	-	RFQ	Ficha técnica	Tray	-	Active	PQ	PQ 20 x 16	PC44	-	-	±25%	Ungapped	-	-	0.605	37.4	62	-	2310	Uncoated	0.638 (16.20mm)
PC95ER18/5/12-Z FERRITE CORE ER 3.5UH 2PC SET TDK Corporation	3,685	-	RFQ	Ficha técnica	Tray	Planar	Active	ER	ER 18 x 5 x 12	PC95	-	3.5 µH	±25%	Ungapped	-	-	0.6	32.8	19.7	28.3	645	Uncoated	0.098 (2.50mm)
PC95EL13X4.4-Z FERRITE CORE EL 3.16UH 2PC SET TDK Corporation	3,972	-	RFQ	Ficha técnica	Tray	Planar	Active	EL	EI 13 x 4.4	PC95	-	3.16 µH	±25%	Ungapped	-	-	0.67	23.1	15.4	22.4	357	Uncoated	0.089 (2.25mm)
PC95EL15.5X5.8-Z FERRITE CORE EL 3.68UH 2PC SET TDK Corporation	3,736	-	RFQ	Ficha técnica	Tray	Planar	Active	EL	EI 15.5 x 5.8	PC95	-	3.68 µH	±25%	Ungapped	-	-	0.6	32.9	19.6	31.9	646	Uncoated	0.115 (2.92mm)
PC44PQ35/35Z-12 FERRITE CORE FOR SW PWR 2PC SET TDK Corporation	3,210	-	RFQ	Ficha técnica	Tray	-	Active	PQ	PQ 35 x 35	PC44	-	-	±25%	Ungapped	-	-	0.448	87.9	196	-	17300	Uncoated	1.368 (34.75mm)
HF90T22X10X14 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,841	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	0.866 (22.00mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.394 (10.00mm)

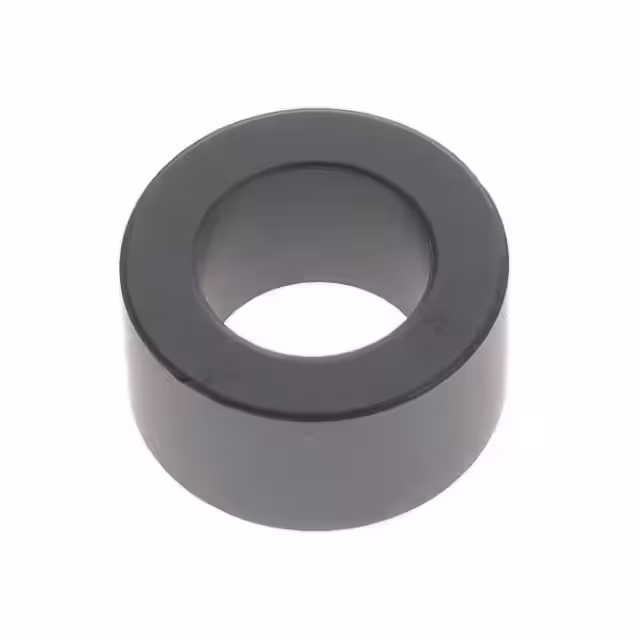

HF90T25X13X15 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,577	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)
PC95EL18X7.3-Z FERRITE CORE EL 4.76UH 2PC SET TDK Corporation	2,067	-	RFQ	Ficha técnica	Tray	Planar	Active	EL	EL 18 x 7.3	PC95	-	4.76 µH	±25%	Ungapped	-	-	0.54	44.3	23.8	43	1050	Uncoated	0.144 (3.65mm)
PC95ELT18X7.3-Z FERRITE CORE ELT 4.76UH 1SET TDK Corporation	3,254	-	RFQ	Ficha técnica	Tray	Planar	Active	ELH, PLT	ELT 18 x 7.3	PC95	-	4.76 µH	±25%	Ungapped	-	-	0.54	44.3	23.8	43	1050	Uncoated	0.222 (5.65mm)
PC95ER25/5.5/18-Z FERRITE CORE ER 4.4UH 2PC SET TDK Corporation	2,601	-	RFQ	Ficha técnica	Tray	Planar	Active	ER	ER 25 x 5.5 x 18	PC95	-	4.4 µH	±25%	Ungapped	-	-	0.49	53.7	26.1	38.5	1400	Uncoated	0.108 (2.75mm)
PC95SP25X25X5 FERRITE CORE SP 1PCS TDK Corporation	2,785	-	RFQ	Ficha técnica	Tray	SP	Active	SP	SP 25 x 5 x 5	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.197 (5.00mm)
PC47EER28L-Z FERRITE CORE EER 2.52UH 2PC SET TDK Corporation	2,122	-	RFQ	Ficha técnica	Tray	E	Active	E	EER 28	PC47	-	2.52 µH	±25%	Ungapped	-	-	0.93	75.5	81.4	-	6150	Uncoated	0.665 (16.90mm)

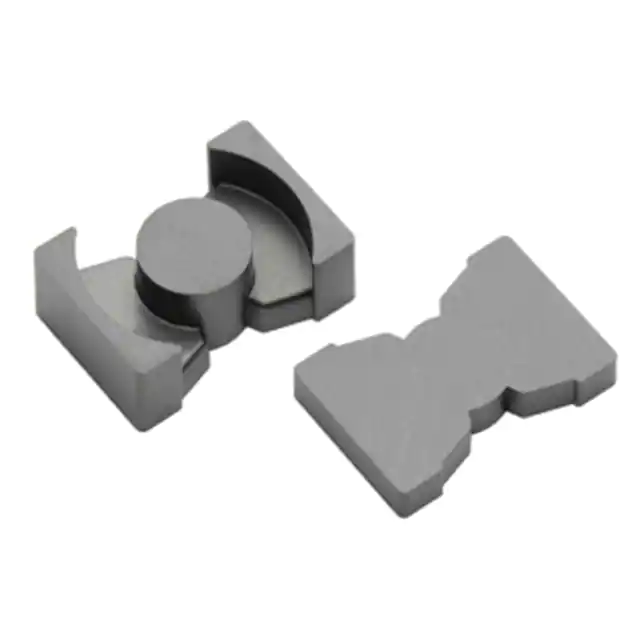

PC95PQI16/7.8Z-12 FERRITE CORE PQI 4.91UH 1SET TDK Corporation	2,596	-	RFQ	Ficha técnica	Tray	Planar	Active	HPQ, PQD	PQI 16 x 7.8	PC95	-	4.91 µH	±25%	Ungapped	-	-	0.47	41.8	19.5	37.6	815	Uncoated	0.213 (5.40mm)
HF90T31X13X19 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,280	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)
HF60T28X13X16 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	3,462	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	1.102 (28.00mm)	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.512 (13.00mm)
PC95ELT22X8-Z FERRITE CORE ELT 6.54UH 1SET TDK Corporation	3,117	-	RFQ	Ficha técnica	Tray	Planar	Active	ELH, PLT	ELT 22 x 8	PC95	-	6.54 µH	±25%	Ungapped	-	-	0.41	66.2	27.3	64.2	1810	Uncoated	0.237 (6.02mm)
PC95PQI26/12Z-12 FERRITE CORE PQI 11.95UH 1SET TDK Corporation	2,039	-	RFQ	Ficha técnica	Tray	Planar	Active	HPQ, PQD	PQI 26 x 12	PC95	-	11.95 µH	±25%	Ungapped	-	-	0.22	123	27.7	109	3410	Uncoated	0.287 (7.30mm)
PC44PQ40/40Z-12 FERRITE CORE 2PC SET TDK Corporation	2,142	-	RFQ	Ficha técnica	Tray	-	Active	PQ	PQ 40 x 40	PC44	-	-	±25%	Ungapped	-	-	0.508	102	201	-	20500	Uncoated	1.565 (39.75mm)
