Transformadores de potencia

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
F120-050 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,383	-	RFQ	Ficha técnica	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 100mA, Series 50mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms

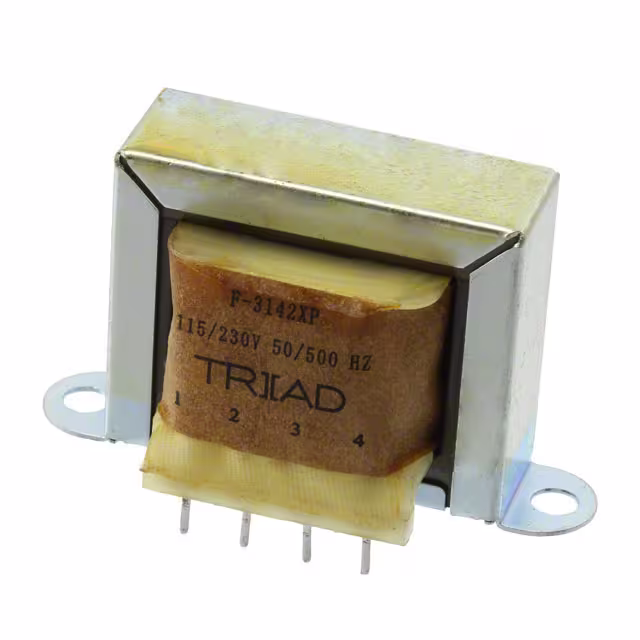

F-3142XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	2,439	-	RFQ	Ficha técnica	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 7.5V, Series 15V	Parallel 600mA, Series 300mA	Dual	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms

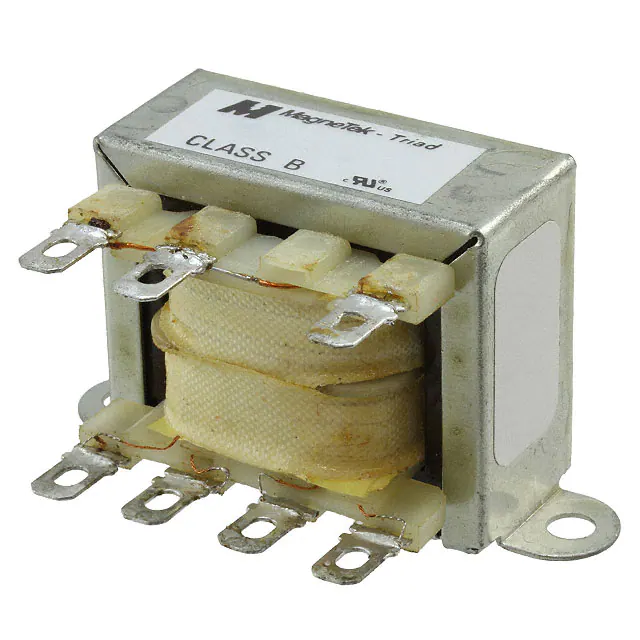

FD4-10 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,061	-	RFQ	Ficha técnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	10V	600mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	65.07mm L x 31.75mm W	34.93mm	2500VAC

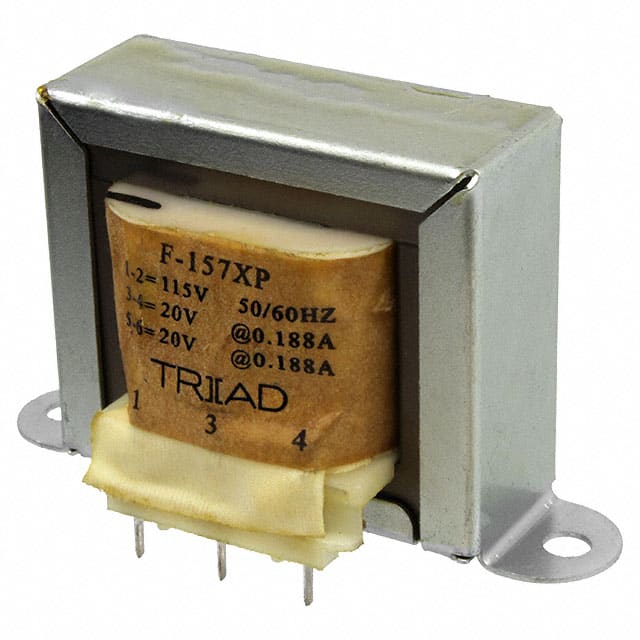

F-157XP PWR XFMR LAMINATED 7.5VA CHAS MT Triad Magnetics	2,570	-	RFQ	Ficha técnica	Box	Single Primary	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 376mA, Series 188mA	Single	Dual	No	7.5VA	Chassis Mount	PC Pin	71.42mm L x 37.29mm W	41.28mm	1500Vrms
F120-100 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,920	-	RFQ	Ficha técnica	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 200mA, Series 100mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
F-115X PWR XFMR LAMINATED 2.04VA CHAS Triad Magnetics	3,506	-	RFQ	Ficha técnica	Box	Single Secondary	Active	Laminated Core	115V	24V	85mA	Single	Single	Yes	2.04VA	Chassis Mount	Wire Leads	52.37mm L x 34.93mm W	30.15mm	1500Vrms
F16-800 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,030	-	RFQ	Ficha técnica	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 1.6A, Series 800mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
FS10-1200 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,419	-	RFQ	Ficha técnica	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms

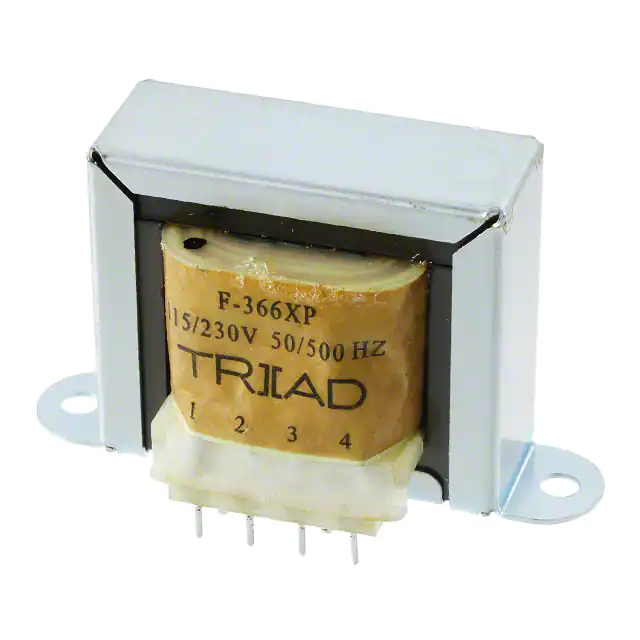

F-366XP PWR XFMR LAMINATED 10VA CHAS MT Triad Magnetics	3,607	-	RFQ	Ficha técnica	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.28A, Series 640mA	Dual	Dual	No	10VA	Chassis Mount	PC Pin	71.42mm L x 36.50mm W	41.28mm	1500Vrms
F48-400 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,863	-	RFQ	Ficha técnica	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
FS48-400-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,868	-	RFQ	Ficha técnica	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FP56-200 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,990	-	RFQ	Ficha técnica	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 400mA, Series 200mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FS20-1000-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,238	-	RFQ	Ficha técnica	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 2A, Series 1A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
F-375P PWR XFMR LAMINATED 24VA TH Triad Magnetics	3,405	-	RFQ	Ficha técnica	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.6A, Series 800mA	Dual	Dual	No	24VA	Through Hole	PC Pin	41.28mm L x 57.15mm W	34.93mm	1500Vrms
F16-2250 PWR XFMR LAMINATED 36VA TH Triad Magnetics	2,351	-	RFQ	Ficha técnica	Box	Split Pack™	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 4.5A, Series 2.25A	Single	Dual	No	36VA	Through Hole	PC Pin	66.80mm L x 55.55mm W	39.62mm	2500Vrms
F36-1000-C2 PWR XFMR LAMINATED 36VA TH Triad Magnetics	3,926	-	RFQ	Ficha técnica	Bulk	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 2A, Series 1A	Single	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.70mm	2500Vrms
F20-1800-C2 PWR XFMR LAMINATED 36VA TH Triad Magnetics	2,739	-	RFQ	Ficha técnica	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 3.6A, Series 1.8A	Single	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	2500Vrms
F-212Z PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	2,918	-	RFQ	Ficha técnica	Box	Multiple Secondary	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 1A, Series 500mA	Single	Dual	No	24VA	Chassis Mount	Solder Lug	79.38mm L x 50.80mm W	69.85mm	1500Vrms

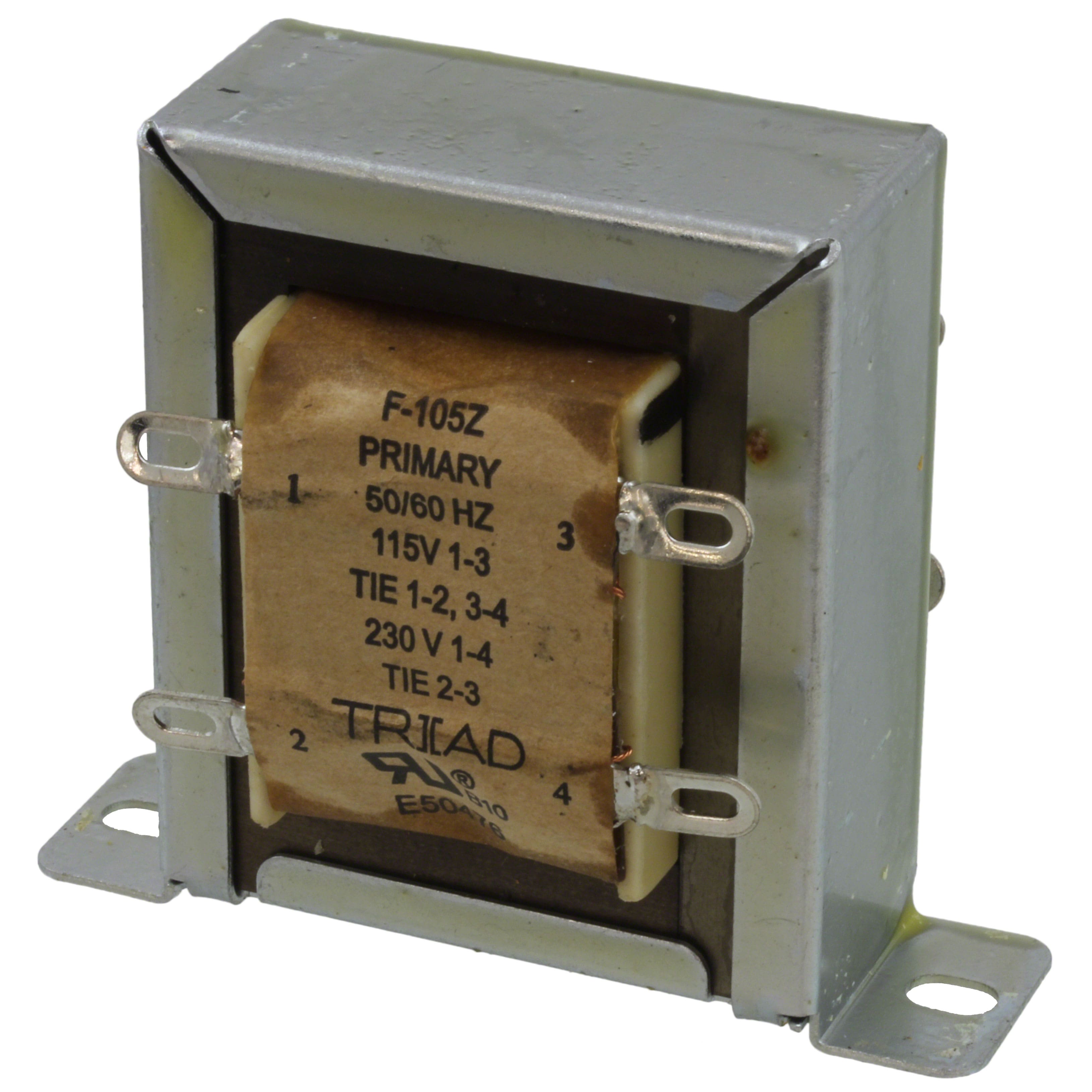

F-105Z PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,481	-	RFQ	Ficha técnica	Box	Control Transformers	Active	Laminated Core	115V, 230V	Parallel 6V, Series 12V	Parallel 2A, Series 1A	Dual	Dual	No	12VA	Chassis Mount	Solder Lug	73.02mm L x 44.45mm W	60.32mm	1500Vrms

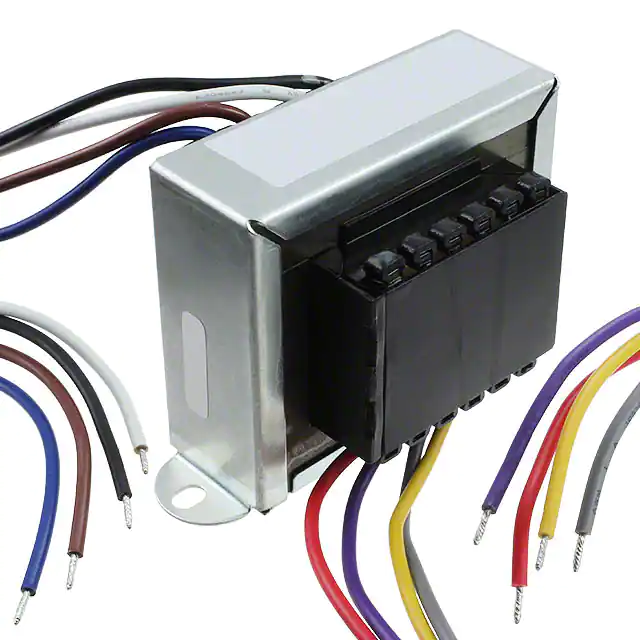

VPL36-1400 PWR XFMR LAMINATED 50.0VA CHAS Triad Magnetics	3,081	-	RFQ	Ficha técnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	36V	1.389A	Dual	Dual	No	50.0VA	Chassis Mount	Wire Leads	57.15mm L x 101.6mm W	65.09mm	3500Vrms
