Transformadores de potencia

Número de parte del fabricante	Disponibilidad	Precio	Cantidad	Ficha técnica	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FP20-600 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,972	-	RFQ	Ficha técnica	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
VPS24-1000 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,966	-	RFQ	Ficha técnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 2A, Series 1A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS10-2500 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,478	-	RFQ	Ficha técnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 5A, Series 2.5A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
F-59X PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	3,965	-	RFQ	Ficha técnica	Box	Single Secondary	Active	Laminated Core	115V	60V	400mA	Single	Single	Yes	24VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms

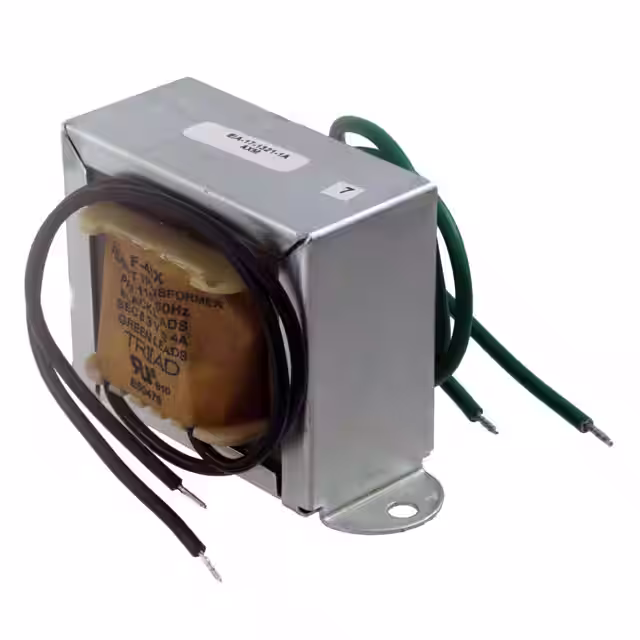

F-43X PWR XFMR LAMINATED 25.2VA CHAS Triad Magnetics	2,468	-	RFQ	Ficha técnica	Box	Single Secondary	Active	Laminated Core	115V	6.3V	4A	Single	Single	No	25.2VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms

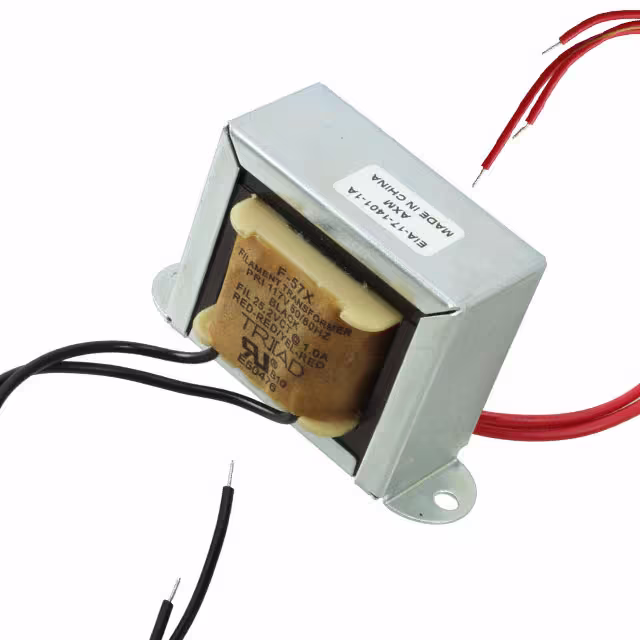

F-57X PWR XFMR LAMINATED 25.2VA CHAS Triad Magnetics	2,450	-	RFQ	Ficha técnica	Box	Single Secondary	Active	Laminated Core	117V	25.2V	1A	Single	Single	Yes	25.2VA	Chassis Mount	Wire Leads	80.56mm L x 50.80mm W	49.20mm	1500Vrms

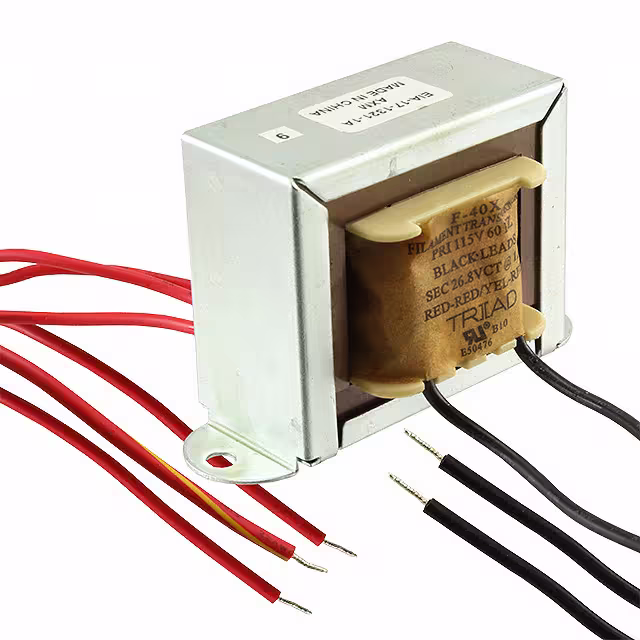

F-40X PWR XFMR LAMINATED 26.8VA CHAS Triad Magnetics	2,923	-	RFQ	Ficha técnica	Box	Single Secondary	Active	Laminated Core	115V	26.8V	1A	Single	Single	Yes	26.8VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms
FP12-950 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,157	-	RFQ	Ficha técnica	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1.9A, Series 950mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP34-340 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,723	-	RFQ	Ficha técnica	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 680mA, Series 340mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
F6-10 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,965	-	RFQ	Ficha técnica	Box	Quick Pack	Active	Laminated Core	115V	10V	3A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
F-344X PWR XFMR LAMINATED 25.2VA CHAS Triad Magnetics	3,257	-	RFQ	Ficha técnica	Box	Single Secondary	Active	Laminated Core	115V, 230V	12.6V	2A	Dual	Single	Yes	25.2VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms

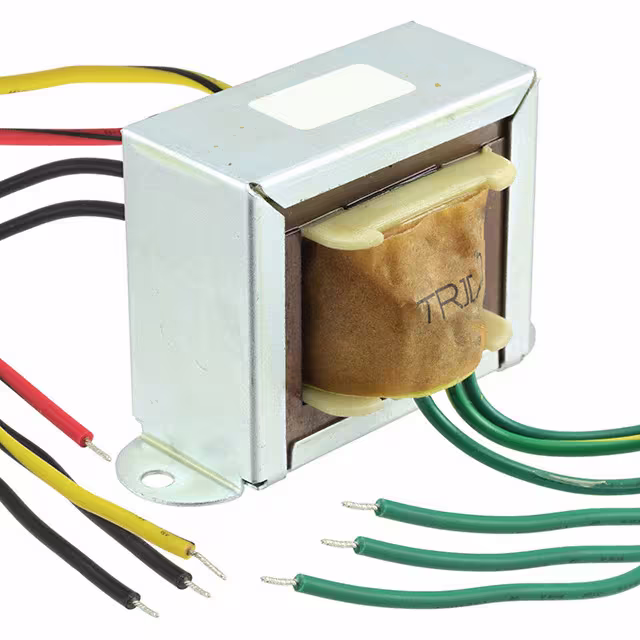

F-345X PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	3,080	-	RFQ	Ficha técnica	Box	Single Secondary	Active	Laminated Core	115V, 230V	24V	1A	Dual	Single	Yes	24VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms
FS48-750-C2 PWR XFMR LAMINATED 36VA TH Triad Magnetics	2,368	-	RFQ	Ficha técnica	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 1.5A, Series 750mA	Dual	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4200Vrms
F28-1300 PWR XFMR LAMINATED 36VA TH Triad Magnetics	2,070	-	RFQ	Ficha técnica	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 2.6A, Series 1.3A	Single	Dual	No	36VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	2500Vrms
FD6-16 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,889	-	RFQ	Ficha técnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	16V	2A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-28 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,883	-	RFQ	Ficha técnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	28V	1.1A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-120 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,186	-	RFQ	Ficha técnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	120V	250mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
VPP16-1900 PWR XFMR LAMINATED 30VA TH Triad Magnetics	3,684	-	RFQ	Ficha técnica	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 3.8A, Series 1.9A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4000Vrms
VPP28-1060 PWR XFMR LAMINATED 30VA TH Triad Magnetics	3,432	-	RFQ	Ficha técnica	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 2.12A, Series 1.06A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4000Vrms
VPP36-820 PWR XFMR LAMINATED 30VA TH Triad Magnetics	3,253	-	RFQ	Ficha técnica	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.64A, Series 820mA	Dual	Dual	No	30VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4000Vrms
