Optoaisladores - Salida de transistor, fotovoltaica
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-6531OPTOISO 1.5KV TRANS W/BASE CLCC Broadcom Limited |
3,395 | - |
RFQ |
Ficha técnica |
Bulk | - | Active | 2 | 1500VDC | 9% @ 16mA | - | 400ns, 1µs | - | DC | Transistor with Base | 20V | 8mA | 1.55V | 20 mA | - | -55°C ~ 125°C | Surface Mount |
|
8302401ECOPTOISO 1.5KV 4CH DARLNG 16-DIP Broadcom Limited |
3,895 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
HCPL-5760OPTOISO 1.5KV DARLINGTON 8-DIP Broadcom Limited |
2,261 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1500VDC | - | - | 4µs, 8µs | 10µs, 0.5µs | AC, DC | Darlington | 20V | 40mA | - | - | - | -55°C ~ 125°C | Through Hole |
|
HCPL-814-000EOPTOISOLATOR 5KV TRANSISTOR 4DIP Broadcom Limited |
3,755 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
HCPL-073A-000EOPTOISO 3.75KV 2CH DARLNG 8-SO Broadcom Limited |
3,278 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 2 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington | 18V | 60mA | 1.25V | 5 mA | - | 0°C ~ 70°C | Surface Mount |
|
HCPL-817-50BEOPTOISOLATOR 5KV TRANSISTOR 4SMD Broadcom Limited |
3,814 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
ACPL-827-00BEOPTOISOLATOR 5KV 2CH TRANS 8DIP Broadcom Limited |
3,551 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 2 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
HCPL-0700-500EOPTOISO 3.75KV DARL W/BASE 8SOIC Broadcom Limited |
3,539 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-070A-500EOPTOISO 3.75KV DARLINGTON 8-SO Broadcom Limited |
834 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 5 mA | - | 0°C ~ 70°C | Surface Mount |
|
|
HCPL-0530-500EOPTOISO 3.75KV 2CH TRANS 8SOIC Broadcom Limited |
3,956 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 7% @ 16mA | 50% @ 16mA | 200ns, 1.3µs | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-0370-500EOPTOISO 3.75KV DARLINGTON 8-SO Broadcom Limited |
521 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | - | - | 4µs, 10µs | 20µs, 0.3µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0534-500EOPTOISO 3.75KV 2CH TRANS 8SOIC Broadcom Limited |
605 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 15% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
ACPL-K44T-500EOPTOISOLATOR 5KV 2CH TRANSISTOR Broadcom Limited |
950 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, R²Coupler™ | Active | 2 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 150ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.55V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
|
HCPL-3760-500EOPTOISOLATOR 3.75KV DARL 8DIP GW Broadcom Limited |
855 | - |
RFQ |
Ficha técnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | - | - | 4.5µs, 8µs | 14µs, 0.4µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 85°C | Surface Mount |
|

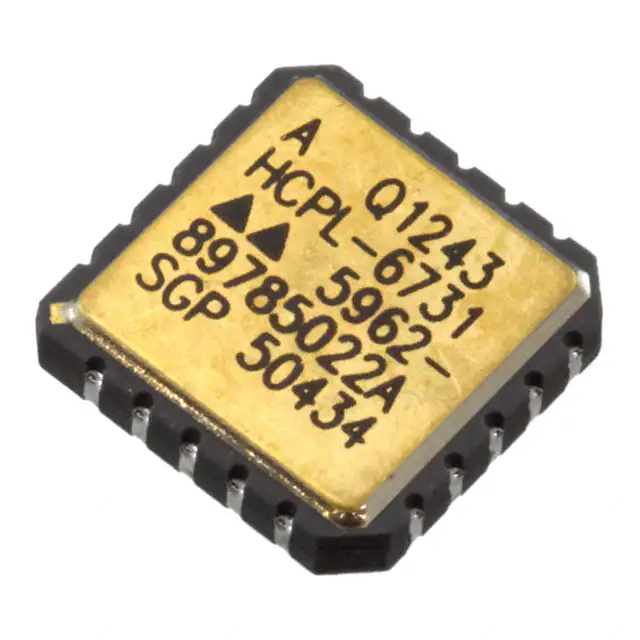

5962-89785022AOPTOISO 1.5KV 2CH DARLNG 20-LCCC Broadcom Limited |
2,093 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
|
ACPL-847-00GEOPTOISOLTR 5KV 4CH TRANS 16-DIP Broadcom Limited |
123 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 4 | 5000Vrms | 130% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
HCPL-0700-000EOPTOISO 3.75KV DARL W/BASE 8SOIC Broadcom Limited |
2,602 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
HCPL-M452-000EOPTOISO 3.75KV TRANSISTOR 6SOIC Broadcom Limited |
380 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-0701OPTOISO 3.75KV DARL W/BASE 8SOIC Broadcom Limited |
974 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-5500OPTOISO 1.5KV TRANS W/BASE 8DIP Broadcom Limited |
3,950 | - |
RFQ |
Ficha técnica |
Tube | - | Active | 1 | 1500VDC | 9% @ 16mA | - | 400ns, 1µs | - | DC | Transistor with Base | 20V | 8mA | 1.55V | 20 mA | - | -55°C ~ 125°C | Through Hole |
