Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

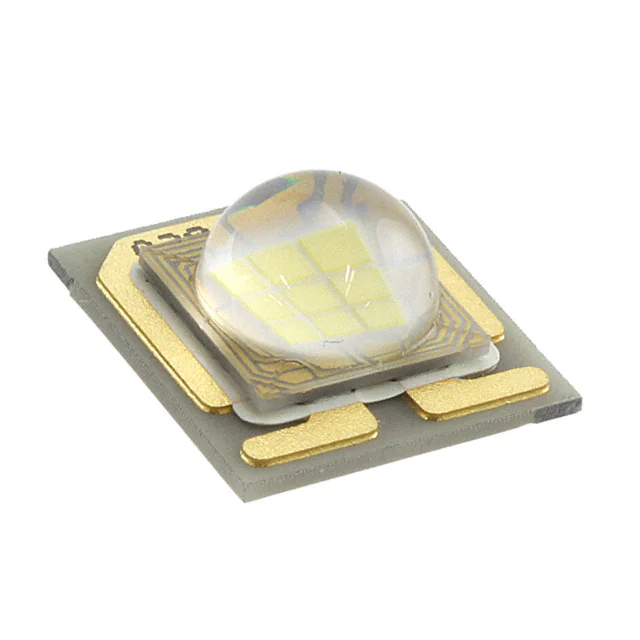

LXS8-PW40LED MOD LUXEON S1000 NEU WHT SQ Lumileds |
3,357 | - |
RFQ |
Tray | LUXEON S1000 | Obsolete | LED Module | White, Neutral | 4000K | - | Square | 1450lm (Typ) | 700mA | 85°C | 25.6V | 81 lm/W | 900mA | 80 | 105° | - | 13.87mm L x 12.87mm W | 6.09mm | 8.06mm Dia | |
|
LXS9-PW30LED MOD LUXEON S1000 WARM WHT SQ Lumileds |
2,463 | - |
RFQ |
Tray | LUXEON S1000 | Obsolete | LED Module | White, Warm | 3000K | - | Square | 1175lm (Typ) | 700mA | 85°C | 25.6V | 66 lm/W | 900mA | 90 | 105° | - | 13.87mm L x 12.87mm W | 6.09mm | 8.06mm Dia | |
|

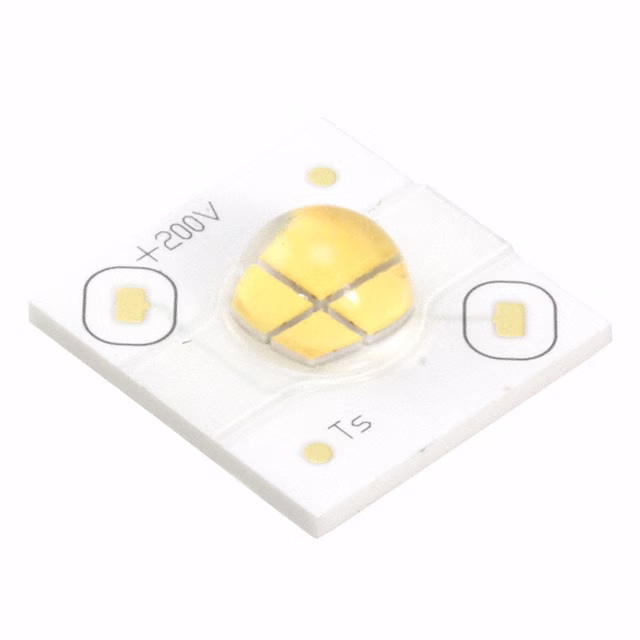

LXV8-PW27-0014LED MOD LUXEON H WARM WHITE RECT Lumileds |
2,246 | - |
RFQ |
Tray | LUXEON H | Obsolete | LED Module | White, Warm | 2700K | - | Rectangle | 330lm (Typ) | 40mA | 85°C | 96V | 86 lm/W | 100mA | 80 | 120° | - | 14.50mm L x 14.50mm W | 5.05mm | 8.06mm Dia | |
|
|
LXV8-PW27-0024LED MOD LUXEON H WARM WHITE RECT Lumileds |
3,841 | - |
RFQ |
Tray | LUXEON H | Obsolete | LED Module | White, Warm | 2700K | - | Rectangle | 330lm (Typ) | 20mA | 85°C | 192V | 86 lm/W | 50mA | 80 | 120° | - | 14.50mm L x 14.50mm W | 5.05mm | 8.06mm Dia | |
|
|
LXV8-PW30-0014LED MOD LUXEON H WARM WHITE RECT Lumileds |
2,468 | - |
RFQ |
Tray | LUXEON H | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 350lm (Typ) | 40mA | 85°C | 96V | 91 lm/W | 100mA | 80 | 120° | - | 14.50mm L x 14.50mm W | 5.05mm | 8.06mm Dia | |
|
|
LXV8-PW30-0024LED MOD LUXEON H WARM WHITE RECT Lumileds |
2,814 | - |
RFQ |
Tray | LUXEON H | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 350lm (Typ) | 20mA | 85°C | 192V | 91 lm/W | 50mA | 80 | 120° | - | 14.50mm L x 14.50mm W | 5.05mm | 8.06mm Dia | |
|
|
LXV8-PW40-0014LED MOD LUXEON H NEU WHITE RECT Lumileds |
2,669 | - |
RFQ |
Tray | LUXEON H | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 370lm (Typ) | 40mA | 85°C | 96V | 96 lm/W | 100mA | 80 | 120° | - | 14.50mm L x 14.50mm W | 5.05mm | 8.06mm Dia | |
|
|
LXV8-PW40-0024LED MOD LUXEON H NEU WHITE RECT Lumileds |
2,902 | - |
RFQ |
Tray | LUXEON H | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 370lm (Typ) | 20mA | 85°C | 192V | 96 lm/W | 50mA | 80 | 120° | - | 14.50mm L x 14.50mm W | 5.05mm | 8.06mm Dia | |
|
LXK8-PW50-0016LED MOD LUXEON K COOL WHT STARBD Lumileds |
3,605 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1850lm (1760lm ~ 2110lm) | 350mA | 85°C | 42V | 126 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|
|
LXK8-PW50-0024LED MOD LUXEON K COOL WHT STARBD Lumileds |
3,575 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 2767lm (2650lm ~ 3180lm) | 350mA | 85°C | 63V | 125 lm/W | 1.05A | 80 | 100° | - | 30.00mm L x 30.00mm W | 3.42mm | - |
|
|
LXK9-PW27-0004LED MOD LUXEON K WARM WHT STARBD Lumileds |
3,060 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 320lm (300lm ~ 360lm) | 350mA | 85°C | 10.5V | 87 lm/W | 1.05A | 90 | 100° | - | 17.67mm L x 17.67mm W | 3.42mm | - |
|
|
LXK9-PW27-0008LED MOD LUXEON K WARM WHT STARBD Lumileds |
2,577 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 640lm (610lm ~ 730lm) | 350mA | 85°C | 21V | 87 lm/W | 1.05A | 90 | 100° | - | 21.75mm L x 21.75mm W | 3.42mm | - |
|
|
LXK9-PW27-0012LED MOD LUXEON K WARM WHT STARBD Lumileds |
3,706 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 960lm (940lm ~ 1120lm) | 350mA | 85°C | 31.5V | 85 lm/W | 1.05A | 90 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|
|
LXK9-PW27-0016LED MOD LUXEON K WARM WHT STARBD Lumileds |
2,796 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1280lm (1265lm ~ 1510lm) | 350mA | 85°C | 42V | 87 lm/W | 1.05A | 90 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|
|
LXK9-PW27-0024LED MOD LUXEON K WARM WHT STARBD Lumileds |
2,863 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1925lm (1880lm ~ 2250lm) | 350mA | 85°C | 63V | 87 lm/W | 1.05A | 90 | 100° | - | 30.00mm L x 30.00mm W | 3.42mm | - |
|
|
LXK9-PW30-0004LED MOD LUXEON K WARM WHT STARBD Lumileds |
3,927 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 350lm (320lm ~ 380lm) | 350mA | 85°C | 10.5V | 95 lm/W | 1.05A | 90 | 100° | - | 17.67mm L x 17.67mm W | 3.42mm | - |
|
|
LXK9-PW30-0008LED MOD LUXEON K WARM WHT STARBD Lumileds |
3,046 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 695lm (660lm ~ 790lm) | 350mA | 85°C | 21V | 95 lm/W | 1.05A | 90 | 100° | - | 21.75mm L x 21.75mm W | 3.42mm | - |
|
|
LXK9-PW30-0012LED MOD LUXEON K WARM WHT STARBD Lumileds |
3,448 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1050lm (1010lm ~ 1210lm) | 350mA | 85°C | 31.5V | 95 lm/W | 1.05A | 90 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|
|
LXS8-PW30-0024LED MOD LUXEON S3000 WARM WHT Lumileds |
2,104 | - |
RFQ |
Ficha técnica |
Tray | LUXEON S3000 | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 4100lm (Typ) | 700mA | 85°C | 67.5V | 87 lm/W | 1.05A | 80 | 105° | With Connector | 17.60mm L x 32.60mm W | 5.21mm | 13.50mm Dia |
|
|
LXS8-PW30-0041LED MOD LUXEON S5000 WARM WHT Lumileds |
2,174 | - |
RFQ |
Ficha técnica |
Tray | LUXEON S5000 | Obsolete | LED Module | White, Warm | 3000K | - | Rectangle | 7000lm (Typ) | 700mA | 85°C | 115V | 87 lm/W | 1.05A | 80 | 105° | With Connector | 20.90mm L x 34.15mm W | 5.21mm | 17.00mm Dia |
