Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L2C5-MM001208E1500LED COB 3500K WHITE RECTANGLE Lumileds |
2,048 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB FreshFocus | Active | Chip On Board (COB) | White, Neutral | 4500K 3-Step MacAdam Ellipse | - | Rectangle | 2161lm (Typ) | 900mA | 85°C | 34.8V | 69 lm/W | 1.8A | - | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|
|
L2C5-PR001208E1500LED COB 3000K WHITE RECTANGLE Lumileds |
3,709 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB FreshFocus | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 3300lm (Typ) | 900mA | 85°C | 34.8V | 105 lm/W | 1.8A | - | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia |
|
LHC1-3070-1205LED COB LUXEON WARM WHITE SQUARE Lumileds |
3,823 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 2600lm (Typ) | 600mA | 85°C | 35.5V | 122 lm/W | 1.2A | 70 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|
LXK8-PW50-0012LED MOD LUXEON K COOL WHT STARBD Lumileds |
2,865 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1389lm (1310lm ~ 1570lm) | 350mA | 85°C | 31.5V | 126 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|

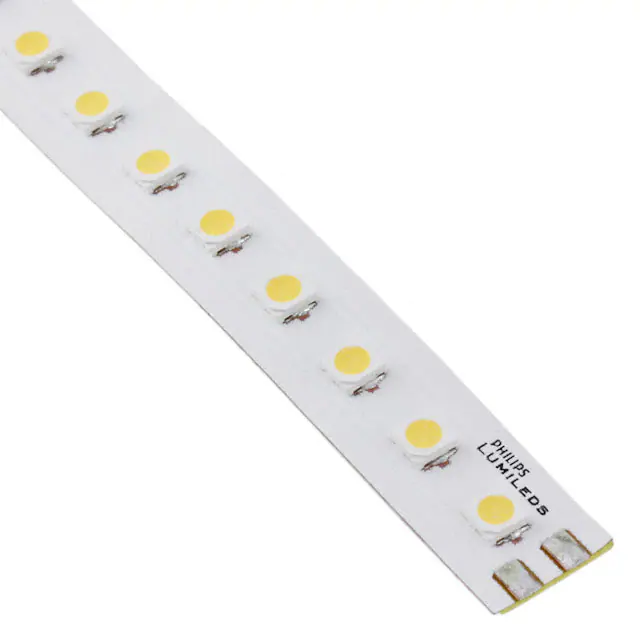

L235-3580AHLCBAAC0LED LUXEON MATRIX 3500K Lumileds |
3,428 | - |
RFQ |
Ficha técnica |
Strip | LUXEON XF-3535L | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip, Flexible | 1548lm (Typ) | 600mA | 25°C | 18V | 143 lm/W | 1.2A | 80 | - | - | 300.00mm L x 10.00mm W | 1.23mm | - |
|
L2C2-30901204E1300LED COB 1204 3000K WW 90CRI SMD Lumileds |
2,083 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1742lm (Typ) | 450mA | 85°C | 35V | 111 lm/W | 900mA | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
E1300.jpg)
|
L2C5-50701204E1300LED COB CORE RANGE GEN3 CW RECT Lumileds |
2,596 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB Core Range Gen 3 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 2509lm (Typ) | 450mA | 85°C | 34.8V | 160 lm/W | 900mA | 70 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia |
|

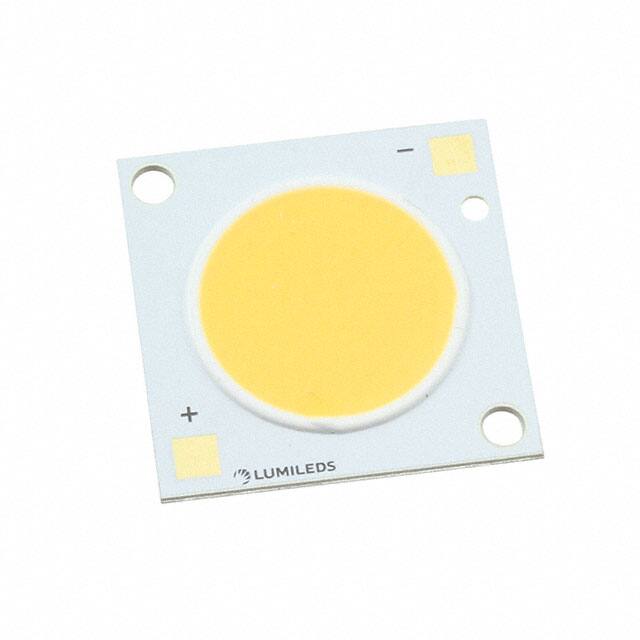

L2C5-30901211E19C0LED COB LUXEON WHITE 3000K SQ Lumileds |
3,911 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB, CrispWhite Gen 2 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4215lm (Typ) | 1.2A | 85°C | 35.2V | 100 lm/W | - | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
L2C5-BD001211E1900LED COB 2700K WHITE SQUARE Lumileds |
3,428 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB FreshFocus | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4370lm (Typ) | 1.2A | 85°C | 34.8V | 104 lm/W | 2.4A | - | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
L2C5-FS001211E1900LED COB 6500K WHITE SQUARE Lumileds |
2,773 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB FreshFocus | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 4640lm (Typ) | 1.2A | 85°C | 34.8V | 110 lm/W | 2.4A | - | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
LHC1-5770-1211LED 5700K 70CRI WHT SMD Lumileds |
3,171 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 5600lm (Typ) | 1.2A | 85°C | 35.5V | 131 lm/W | 2.4A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
|
LHC1-4090-1211LED 4000K 90CRI WHT SMD Lumileds |
2,852 | - |
RFQ |
Ficha técnica |
Tube | LUXEON CoB | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 4400lm (Typ) | 1.2A | 85°C | 35.5V | 103 lm/W | 2.4A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia |
|
LXK8-PW27-0016ALED MOD LUXEON K WARM WHITE STAR Lumileds |
2,669 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1530lm (1480lm ~ 1770lm) | 350mA | 85°C | 42V | 104 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|
|
LXK8-PW30-0012ALED MOD LUXEON K WARM WHITE STAR Lumileds |
2,882 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1200lm (1140lm ~ 1360lm) | 350mA | 85°C | 31.5V | 109 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|
|
LXK8-PW30-0016ALED MOD LUXEON K WARM WHITE STAR Lumileds |
2,401 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1568lm (1520lm ~ 1820lm) | 350mA | 85°C | 42V | 107 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|
|
LXK8-PW30-0024ALED MOD LUXEON K WARM WHITE STAR Lumileds |
3,359 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 2445lm (2280lm ~ 2730lm) | 350mA | 85°C | 63V | 111 lm/W | 1.05A | 80 | 100° | - | 30.00mm L x 30.00mm W | 3.42mm | - |
|
|
LXK8-PW40-0012ALED MOD LUXEON K NEU WHITE STAR Lumileds |
3,591 | - |
RFQ |
Ficha técnica |
Tray | LUXEON K | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1329lm (1250lm ~ 1500lm) | 350mA | 85°C | 31.5V | 121 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - |
|
LXS8-PW27LED MOD LUXEON S1000 WARM WHT SQ Lumileds |
3,877 | - |
RFQ |
Tray | LUXEON S1000 | Obsolete | LED Module | White, Warm | 2700K | - | Square | 1250lm (Typ) | 700mA | 85°C | 25.6V | 70 lm/W | 900mA | 80 | 105° | - | 13.87mm L x 12.87mm W | 6.09mm | 8.06mm Dia | |
|
|
LXS8-PW30LED MOD LUXEON S1000 WARM WHT SQ Lumileds |
2,614 | - |
RFQ |
Tray | LUXEON S1000 | Obsolete | LED Module | White, Warm | 3000K | - | Square | 1390lm (Typ) | 700mA | 85°C | 25.6V | 78 lm/W | 900mA | 80 | 105° | - | 13.87mm L x 12.87mm W | 6.09mm | 8.06mm Dia | |
|
|
LXS8-PW35LED MOD LUXEON S1000 WARM WHT SQ Lumileds |
3,440 | - |
RFQ |
Tray | LUXEON S1000 | Obsolete | LED Module | White, Warm | 3500K | - | Square | 1420lm (Typ) | 700mA | 85°C | 25.6V | 79 lm/W | 900mA | 80 | 105° | - | 13.87mm L x 12.87mm W | 6.09mm | 8.06mm Dia |
