Iluminación LED - COB, motores, módulos, tiras
| Foto: | Número de parte del fabricante | Disponibilidad | Precio | Cantidad | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDM-14-4027-90-36-DW01LED COB CDM14 WHITE Luminus Devices Inc. |
113 | - |
RFQ |
Ficha técnica |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Neutral | 2700K ~ 4000K | - | Rectangle | 2085lm (Typ) | 600mA | 85°C | 35.5V | 98 lm/W | 800mA | 92 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 15.50mm Dia |
|
CXM-18-35-90-36-AA32-F4-3LED COB 3500K SQUARE Luminus Devices Inc. |
892 | - |
RFQ |
Ficha técnica |
Tray | Sensus™ | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3750lm (Typ) | 900mA | 85°C | 34V | 123 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
|
CXM-18-30-90-36-AA32-F4-3LED COB 3000K SQUARE Luminus Devices Inc. |
733 | - |
RFQ |
Ficha técnica |
Tray | Sensus™ | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3680lm (Typ) | 900mA | 85°C | 34V | 120 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
CXM-14-HS-11-36-AC30-P1-7LED LIGHTING COB, HORTICULTURE B Luminus Devices Inc. |
181 | - |
RFQ |
Tray | Sensus™ Horticulture | Active | Chip On Board (COB) | White | - | - | Square | - | 720mA | 85°C | 34V | - | 1.44A | - | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.30mm Dia | |
|
|
CXM-14-HS-12-36-AC30-P1-7LED LIGHTING COB, HORTICULTURE B Luminus Devices Inc. |
221 | - |
RFQ |
Tray | Sensus™ Horticulture | Active | Chip On Board (COB) | White | - | - | Square | - | 720mA | 85°C | 34V | - | 1.44A | - | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.30mm Dia | |
|
CDM-18-4027-90-36-DW01LED COB CDM18 WHITE Luminus Devices Inc. |
117 | - |
RFQ |
Ficha técnica |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Neutral | 2700K ~ 4000K | - | Rectangle | 3190lm (Typ) | 900mA | 85°C | 35.5V | 100 lm/W | 1.08A | 92 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 16.80mm Dia |
|

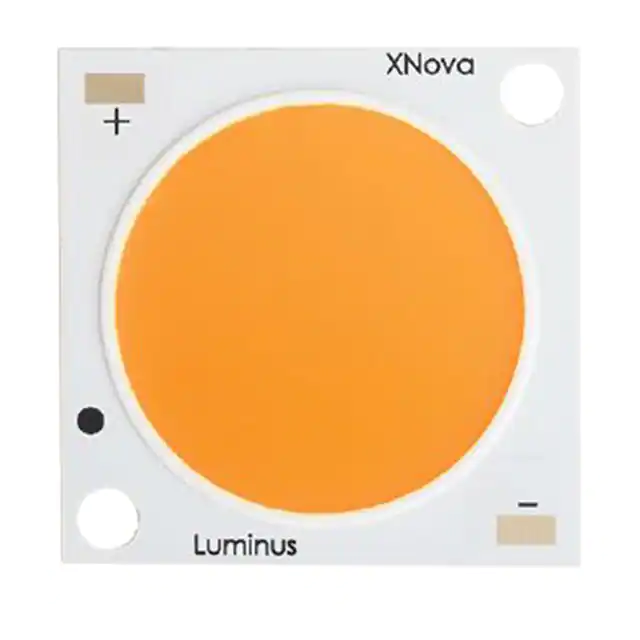

CXM-22-40-90-36-AC10-F3-3LED COB 4000K SQUARE Luminus Devices Inc. |
1,771 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen 2 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5465lm (Typ) | 1.28A | 85°C | 34V | 126 lm/W | 2.56A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
|
CXM-22-40-80-36-AC10-F3-3LED COB 4000K SQUARE Luminus Devices Inc. |
1,116 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen 2 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6345lm (Typ) | 1.28A | 85°C | 34V | 146 lm/W | 2.56A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
|
CXM-22-27-80-36-AC10-F3-3LED COB 2700K SQUARE Luminus Devices Inc. |
1,086 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen 2 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5620lm (Typ) | 1.28A | 85°C | 34V | 129 lm/W | 2.56A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
|
CXM-22-27-90-36-AC10-F3-3LED COB 2700K SQUARE Luminus Devices Inc. |
494 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen 2 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4390lm (Typ) | 1.28A | 85°C | 34V | 101 lm/W | 2.56A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
|
CXM-22-30-90-36-AC12-F3-3LED COB 3000K SQUARE Luminus Devices Inc. |
354 | - |
RFQ |
Ficha técnica |
Tray | Sensus™ | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4800lm (Typ) | 1.28A | 85°C | 35V | 107 lm/W | 2.56A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
CXM-22-30-95-36-AC00-F2-3LED COB 42W 5905LM 28MM SQ SMD Luminus Devices Inc. |
298 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4240lm (Typ) | 1.28A | 85°C | 36V | 92 lm/W | 2.56A | 95 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 23.50mm Dia |
|
|

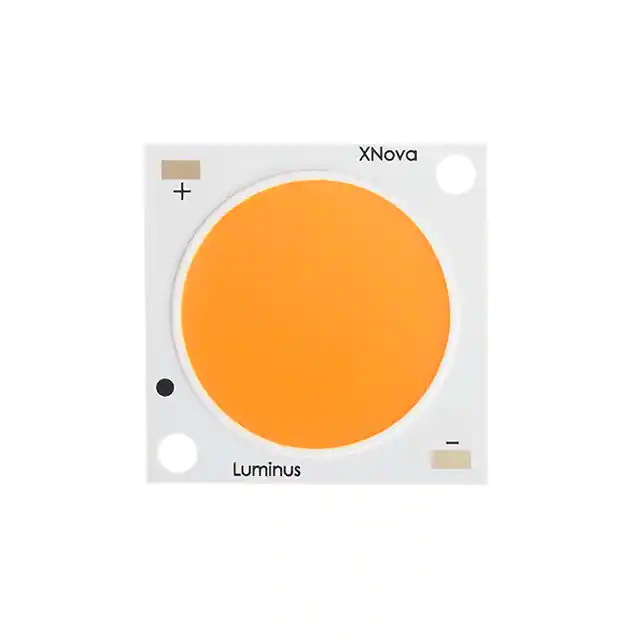

CLM-22-35-90-36-AC30-F4-3LED COB 3500K SQUARE Luminus Devices Inc. |
359 | - |
RFQ |
Ficha técnica |
Tray | CLM-22 Gen3 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4935lm (Typ) | 1.1A | 85°C | 33.8V | 133 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
|
CLM-22-27-90-36-AC30-F4-3LED COB 2700K SQUARE Luminus Devices Inc. |
219 | - |
RFQ |
Ficha técnica |
Tray | CLM-22 Gen3 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4485lm (Typ) | 1.1A | 85°C | 33.8V | 121 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
CLM-22-30-80-36-AC30-F4-3LED COB 3000K SQUARE Luminus Devices Inc. |
217 | - |
RFQ |
Ficha técnica |
Tray | CLM-22 Gen3 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5750lm (Typ) | 1.1A | 85°C | 33.8V | 155 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
|
CLM-22-30-90-36-AC30-F4-3LED COB 3000K SQUARE Luminus Devices Inc. |
200 | - |
RFQ |
Ficha técnica |
Tray | CLM-22 Gen3 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4835lm (Typ) | 1.1A | 85°C | 33.8V | 130 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
CTM-22-4018-90-36-TW01LED COB CTM22 WHITE Luminus Devices Inc. |
183 | - |
RFQ |
Ficha técnica |
Tray | CTM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Neutral | 1800K ~ 4000K | - | Square | 1875lm Warm White, 3100lm Cool White | 875mA | 85°C | 37V | 58 lm/W Warm White, 96 lm/W Cool White | 1.1A | 90 | 130° | - | 28.00mm L x 28.00mm W | 1.58mm | 22.00mm Dia |
|
|
CXM-18-27-90-36-AA30-F4-3LED COB 2700K SQUARE Luminus Devices Inc. |
121 | - |
RFQ |
Ficha técnica |
Tray | CXM-18 Gen3 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3590lm (Typ) | 900mA | 85°C | 34V | 117 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
|
CXM-22-35-90-54-AC30-F4-3LED COB 3500K SQUARE Luminus Devices Inc. |
1,054 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen3 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7105lm (Typ) | 1.1A | 85°C | 51V | 127 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
CXM-22-30-80-54-AC30-F4-3LED COB 3000K SQUARE Luminus Devices Inc. |
670 | - |
RFQ |
Ficha técnica |
Tray | CXM-22 Gen3 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8285lm (Typ) | 1.1A | 85°C | 51V | 148 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
